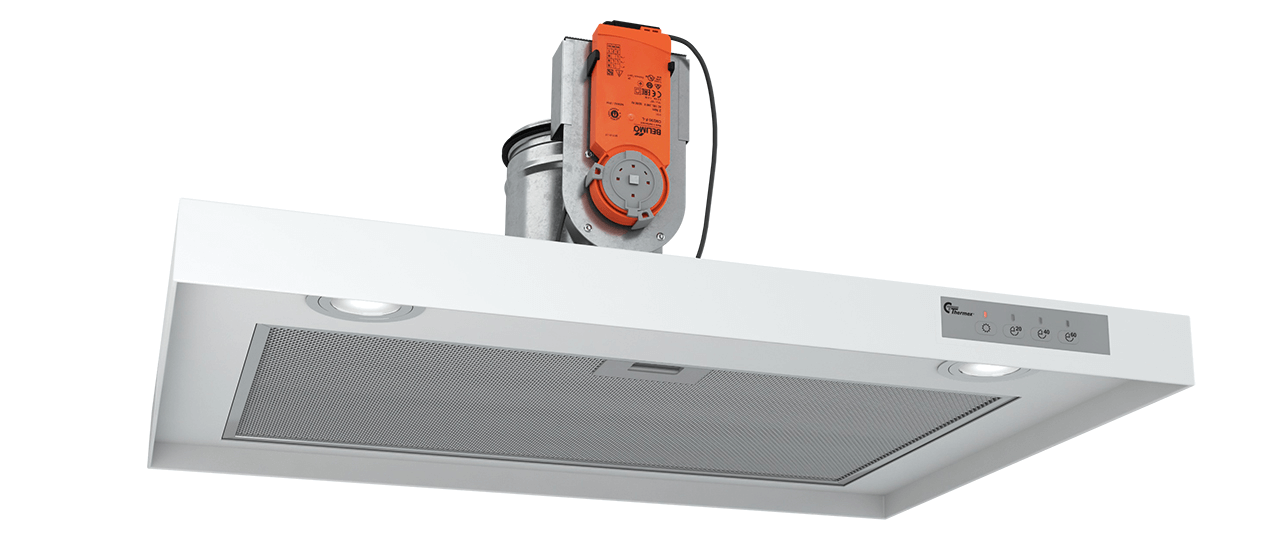

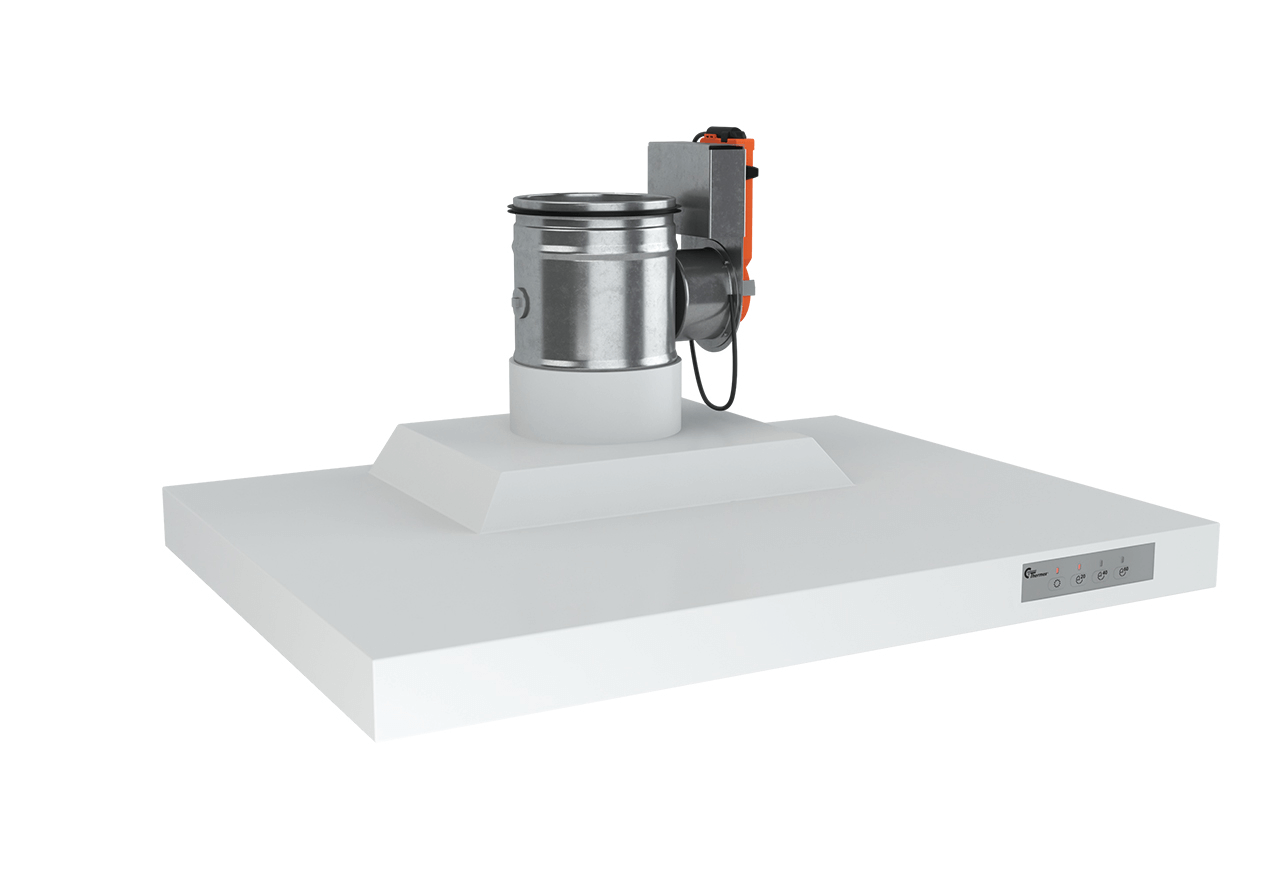

Airslim II 600x50 mm White Incl. Top Link®

530.99.1031.2
Thermex Airslim in 50mm in height is a newly developed kitchen hood for apartments with communal facilities.
Height
Incl. Moisture sensor
Incl. Top Link
Please select variant!

Thermex Airslim is a newly developed kitchen hood for apartments with communal facilities. With all its possibilities, it can be adapted to the needs of all new buildings in terms of size and color. It has an infinitely adjustable damper, electronics and damper motor of industrial quality, as well as a relay output that enables the hood to cooperate with other ventilation installations in the building. The product is developed and produced in Denmark from extra strong steel and it is powder coated for extra long durability. It is extra easy to install.

  • Top model for communal chimneys
  • Aerodynamic design
  • Simple operation
  • Durable
  • Easy installation

Specifications

Control
Soft touch
Material
White painted steel
Odour extraction >75% installation height 500 mm [m3/t]
144
Odour extraction >75% installation height 600 mm [m3/t]
167
Voltage [V]
230

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Light dimmer

Using the dimmer function, you can adjust the brightness of the work light in the scope. The lighting in kitchens is very different, so with dimmers you can adjust the amount of light to suit your needs.

Projekteringsfane

Odour extraction test standard
EN 13141-3

Specifications

Control
Soft touch
Material
White painted steel
Odour extraction >75% installation height 500 mm [m3/t]
144
Odour extraction >75% installation height 600 mm [m3/t]
167
Voltage [V]
230

Weight and measurements

Maximum width [mm]
598
Maximum depth [mm]
450
Maximum height [mm]
245
Outlet dimension (mm)
Ø125
Packaging width(mm)
360
Packaging depth [mm]
500
Packaging height(mm)
640
Net weight [kg]
7
Weight
7.5

Features

Control
Soft touch
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
Yes
Smarthome
No

Technical specifications

Colour temperature [Kelvin]
4000
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
Odour extraction >75% installation height 500 mm [m3/t]
144
Odour extraction >75% installation height 600 mm [m3/t]
167
Odour extraction test standard
EN 13141-3
Voltage [V]
230

Other specifications

EAN
5703347528552
Type of grease filter
Aluminum filter
Number of filters
2
Number of speeds ex (boost)
2
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Cabinet substantiated
Motor type
Central ventilation
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
Material
White painted steel

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Dimensioneringsdiagram

Installation manual

Odour extraction performance

User manual
