Central Gemini III
530.41.5041.2

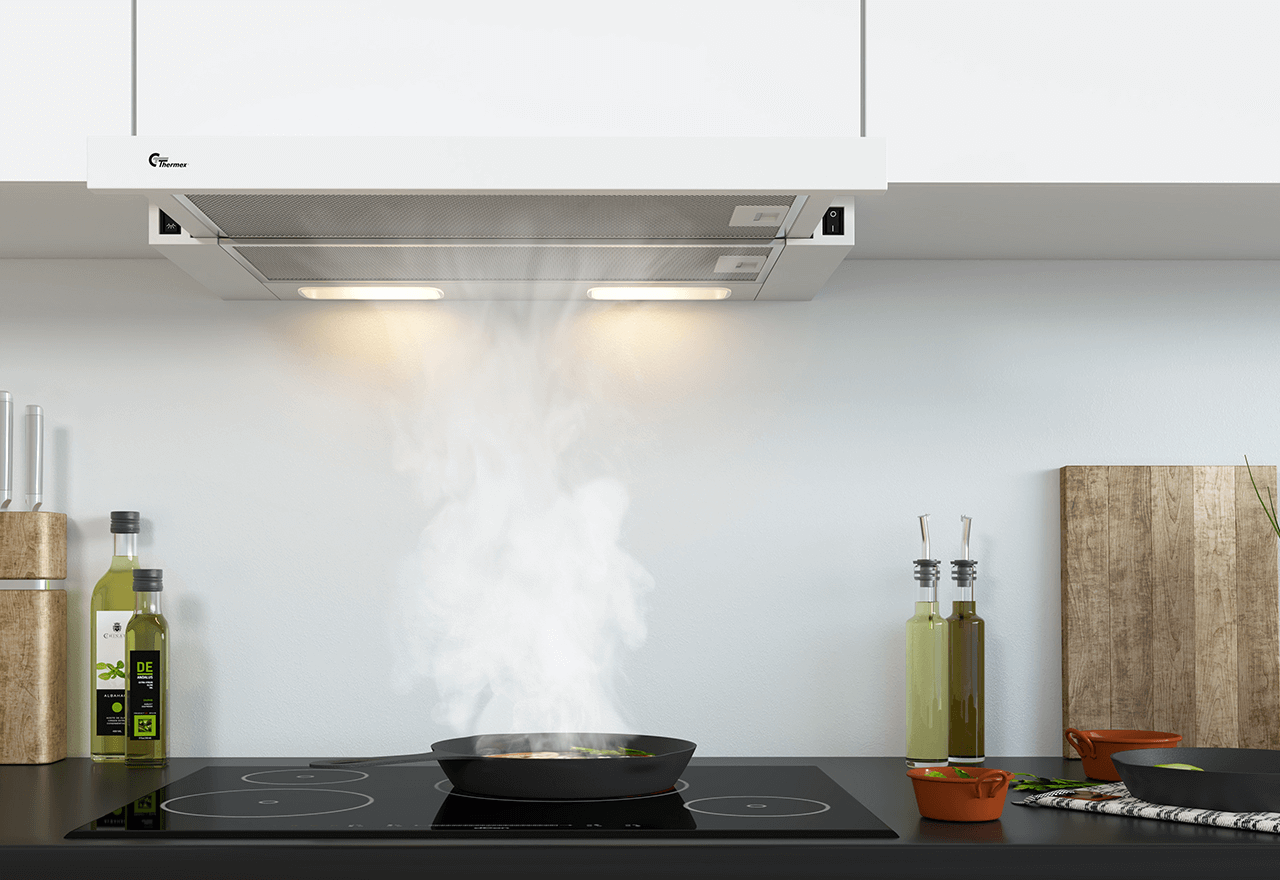

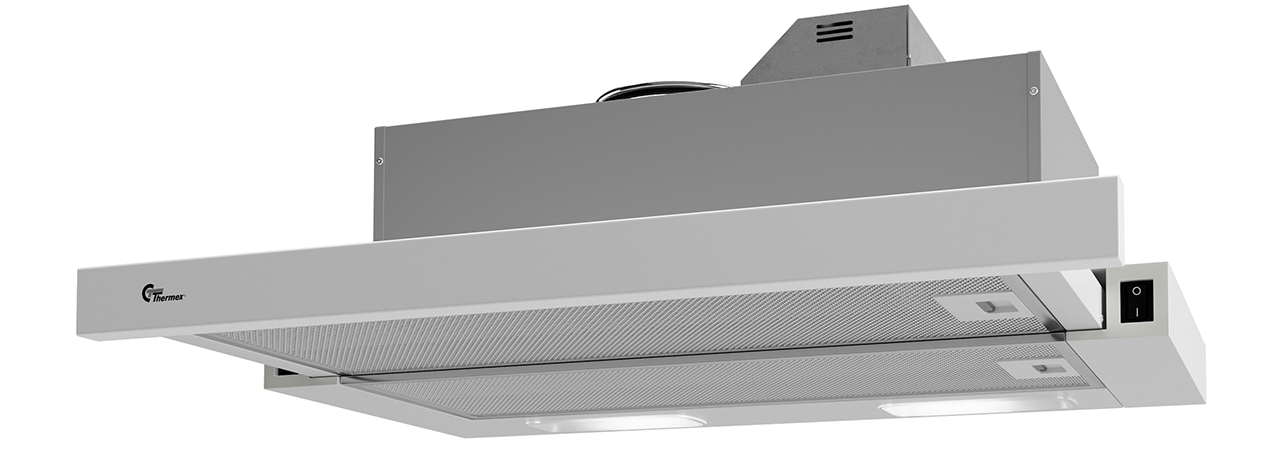

Thermex Gemini III 60cm in white with switch is one of the market's most cost-effective extractor hoods for communal extraction and built-in installation in overhead cabinets. The design of the extractor hood provides maximum grease capture with minimal airflow.
In many construction projects, price is often of crucial importance when choosing an extractor hood solution for multiple apartments, while also needing to be a shared ventilation solution. You get a stylish and durable solution that budget managers will be pleased with with the Thermex Central Gemini III. Light and dampers are operated either by sliding the extraction part in or out, or by using the concealed buttons. It has a built-in switch so it can cooperate with the ventilation system.
Specifications
Control
Switch control
Material
White painted steel
Odour extraction >75% installation height 600 mm [m3/t]
216
Specifications
Control
Switch control
Material
White painted steel
Odour extraction >75% installation height 600 mm [m3/t]
216
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
480
Maximum height [mm]
224
Outlet dimension (mm)
Ø125
Packaging width(mm)
350
Packaging depth [mm]
635
Packaging height(mm)
240
Net weight [kg]
8
Weight
9
Features
Control
Switch control
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2.5
Total consumption of light (WL) [W]
5
Power supply [V]
230
Odour extraction >75% installation height 600 mm [m3/t]
216
Odour extraction test standard
EN 13141-3
Other specifications
EAN
5703347528859
Type of grease filter
Metal filter
Number of filters
2
Number of speeds ex (boost)
2
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Extract
Motor type
Central ventilation
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
BodyColor (RAL)
9003
Material
White painted steel
Downloads
Here you will find all documents relevant to this product
