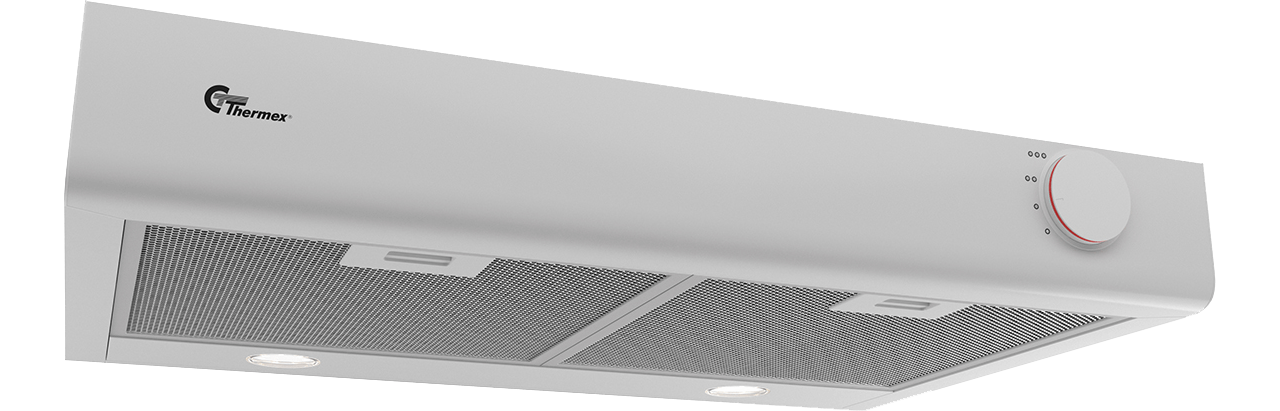

Manchester Smart 600 mm White With motor

520.23.2061.2

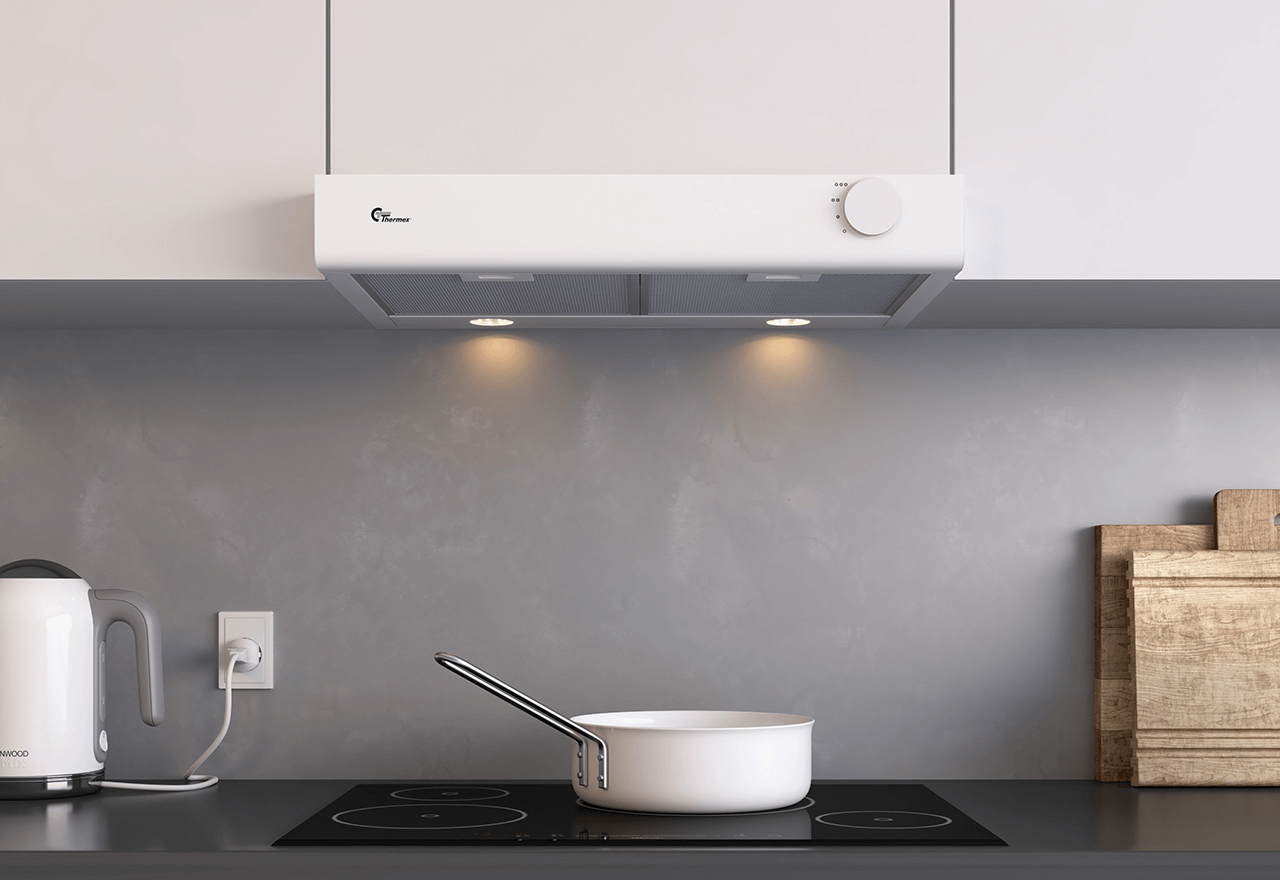

Thermex Manchester Smart in white is an efficient and quiet extractor hood for cupboard mounting. The built-in motor ensures efficient extraction and the control knob ensures simple and reliable operation.

The Thermex Manchester Smart has a modern design with rounded edges and a large round knob for easy control of light and speed. The cupboard integrated hood is available for an affordable price, but with all the necessary functions and equiment. Absolutely simple and elegant in design. The built-in motor can produce up to 173 m3/h

Specifications

Minimum airflow [m3/h]
102
Minimum-Soundpower [dB(A)]
53
Maximum-airflow [m3/h]
173
Maximum-Soundpower [dB(A)]
65
Energy consumption [W]
91
Control
Rotary knob
Material
White painted steel

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Specifications

Minimum airflow [m3/h]
102
Minimum-Soundpower [dB(A)]
53
Maximum-airflow [m3/h]
173
Maximum-Soundpower [dB(A)]
65
Energy consumption [W]
91
Control
Rotary knob
Material
White painted steel

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
450
Maximum height [mm]
95
Outlet dimension (mm)
Ø120
Packaging width(mm)
530
Packaging depth [mm]
110
Packaging height(mm)
700
Net weight [kg]
4.5
Weight
5

Features

Control
Rotary knob
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
240
LE value [lux/W]
40
LE-class
G
EEI-value
80.7
EEI-class
C
Colour temperature [Kelvin]
3000
Lamp consumption [W]
3
Total consumption of light (WL) [W]
6
GFE-value
68.7
GFE-class
D
FDE-value
9
FDE-class
E
Energy consumption [W]
91
Power supply [V]
230
Moottorin maksimikulutus [W]
90

Other specifications

EAN
5703347525124
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.23.0585.9
Number of carbonfilters
1
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Cabinet substantiated
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
BodyColor (RAL)
9003
Material
White painted steel
