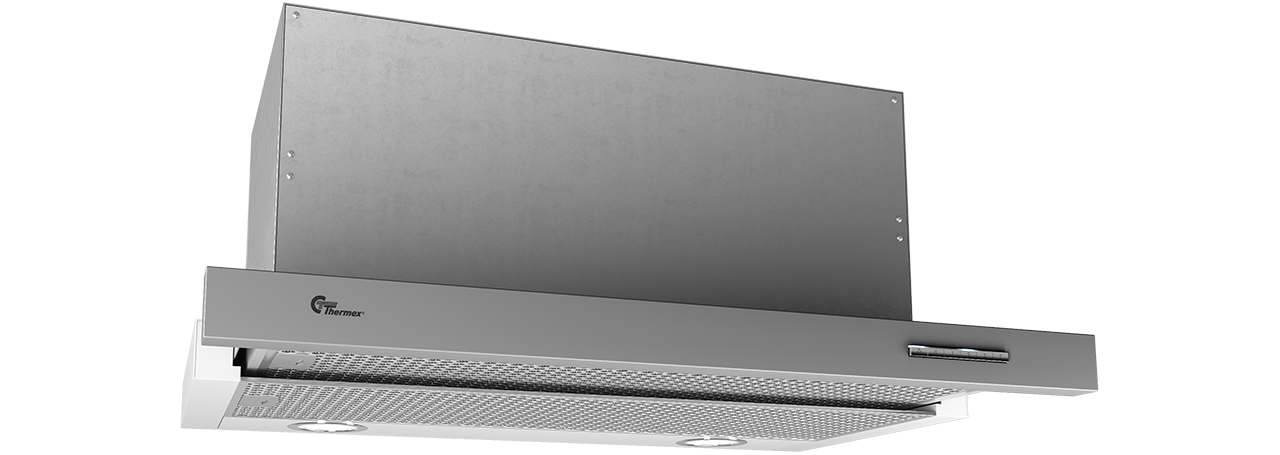

Slim S4 PLUS 600 mm Stainless/White With motor

520.42.3368.2
Thermex Slim S4 plus 60 cm in stainless steel with motor is an efficient and quiet extractor hood for cupboard mounting. The built-in motor ensures efficient extraction and the control button ensures simple and reliable operation.
Width
Please select variant!

As the name suggests, Thermex Slim S4 Plus is both slim and elegant, but at the same time has all the power you could wish for. It has a boost function for those times when you really need the hood to perform at its maximum. When it is not in use, because it is a pull-out model, it can be slid in and combined with an overhead cabinet. Extra good and neat filter makes it even more efficient and elegant. The built-in motor can produce up to 587 m3/h

  • Filter cleaning indicator
  • Periodic ventilation
  • Possibility of balanced air exchange using the Trigger Link Module

Specifications

Minimum airflow [m3/h]
302
Minimum-Soundpower [dB(A)]
49
Maximum-airflow [m3/h]
587
Maximum-Soundpower [dB(A)]
63
Airflow with boost [m3/h]
700
Soundpower boost [dB(A)]
68
Control
Soft touch
Material
White painted steel with stainless steel front

Eco motor

With an Eco motor, you are sure that the product has a low energy consumption, which is good for both the environment and your electricity bill. It is the latest new technology in efficient motors, and also provides a low noise level.

Decoration filter

The decorative filter is an ordinary metal filter, but it is designed in such a way that the filter appears more aesthetically pleasing. It can be washed in a dishwasher, but it is recommended to wash it by hand.

Soft touch

Electronic soft touch operation for easy operation of the motor and light in the hood. The Softtouch operation is a classic in the Thermex range, due to its simple and user-friendly design.

Periodic extraction

Periodic extraction is a function of the hood which makes it possible to use the hood as an aid for ventilation in the home. You can e.g. set the hood to start for 10 minutes per hour.

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Filter cleaning indicator

The filter cleaning indicator is a timer that reminds you to remember to clean the filter in the hood. It is not a sensor, but a timer that gives a notification after a period of time.

Specifications

Minimum airflow [m3/h]
302
Minimum-Soundpower [dB(A)]
49
Maximum-airflow [m3/h]
587
Maximum-Soundpower [dB(A)]
63
Airflow with boost [m3/h]
700
Soundpower boost [dB(A)]
68
Control
Soft touch
Material
White painted steel with stainless steel front

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
430
Maximum height [mm]
269
Outlet dimension (mm)
Ø150
Packaging width(mm)
660
Packaging depth [mm]
400
Packaging height(mm)
410
Net weight [kg]
9
Weight
10

Features

Control
Soft touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
Yes
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
80
LE value [lux/W]
40
LE-class
A
EEI-value
53.1
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.2
Total consumption of light (WL) [W]
2.4
GFE-value
76
GFE-class
C
FDE-value
29.5
FDE-class
A
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.49
Motor Power [W]
251

Other specifications

EAN
5703347522765
Type of grease filter
Decorative filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.42.9000.9
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Vent pipe modification
No
Mounting
Extract
Motor type
Internal motor
Front panel color
Stainless steel
BodyColor
Stainless steel
Front panel material
Stainless steel
Material
White painted steel with stainless steel front

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

User manual

Teknisk info

Exhaust fittings
