Slim S4 Premium

520.21.3368.2

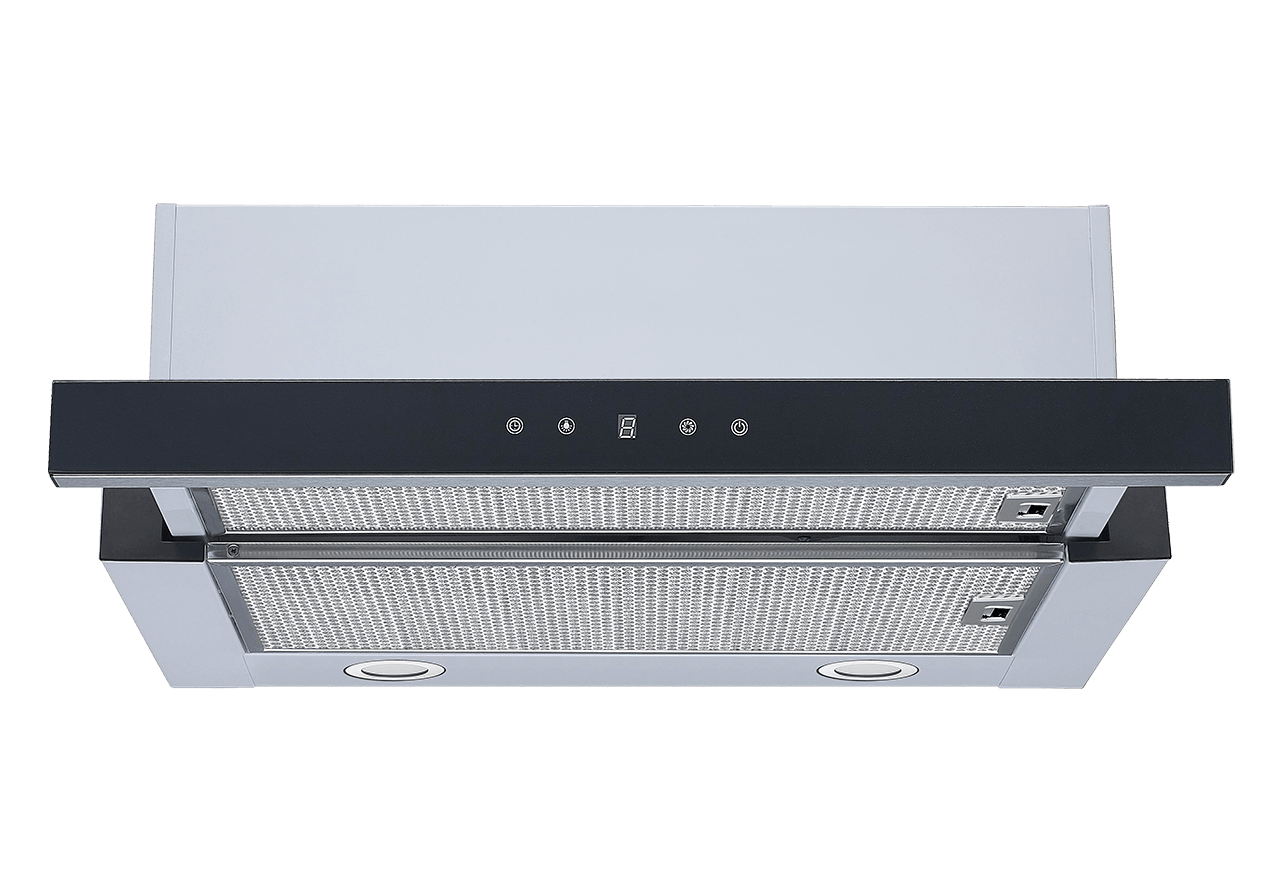

Slim S4 Premium is an elegant pull-out hood in grey painted steel with a black glass front that combines high performance, low noise levels and energy-efficient operation in a discreet design for wall cabinets.

The Slim S4 Premium from Thermex is an elegant and efficient pull-out hood that has been developed for discreet integration into wall cabinets and fits under almost all kitchen cabinets.

Design and functionality
The cooker hood is made of grey painted steel with a stylish black glass front, which gives a modern and exclusive look. The retractable construction ensures optimal collection of fumes and steam, while the hood remains almost invisible when not in use. With a width of 60 cm, it is suitable for most standard kitchens.

Operation and light
The Slim S4 Premium is operated via an intuitive glass touch operation with display, which provides easy access to the hood's five speeds, including three fixed levels and two powerful boost levels. In addition, the cooker hood is equipped with a practical timer function with a five-minute after-run. The two built-in LED lamps provide a pleasant and functional work light with a colour temperature of 3000 Kelvin and a low energy consumption of 1.5 W per lamp.

Motor and performance
The cooker hood is equipped with a built-in DC motor with energy label A+, which combines high efficiency with low energy consumption. The air volume can be regulated from 210 to 604 m³/h, ensuring efficient extraction even during intensive cooking, while the noise level starts as low as 47 dB(A).

Flexible installation
Slim S4 Premium is installed directly in the wall cabinet and can be used for both extraction and recirculation. For recirculation, a carbon filter can be purchased and mounted on the motor's intake, after which the air is led out through the top of the wall cabinet and back into the kitchen.

Easy cleaning
The cooker hood is easy to maintain in everyday life, as the surfaces are simply wiped with a damp cloth. The two aluminium filters can also be removed and washed in the dishwasher, ensuring efficient filtration and a long service life.

Specifications
Air flow: 210–604 m³/h
Sound level: 47–71 dB(A)
Power supply: 230 V
Energy consumption: 113 W
Material: Grey painted steel with black glass front
Dimensions: 600 x 300–440 x 195 mm

The Slim S4 Premium is the ideal choice for those who want a discreet, powerful and energy-efficient extractor hood with modern operation and high user-friendliness.

  • Pull-out hood in grey lacquered steel with black glass front for mounting in upper cabinets
  • Glass touch operation with display and five speeds including two boost levels
  • Efficient DC motor with energy rating A+ and air flow rate up to 604 m3/h
  • Two LED lamps with 3000 Kelvin and low energy consumption of 1.5 W per lamp
  • Recirculation possible with the purchase of carbon filters and washable aluminium filters

Specifications

Minimum airflow [m3/h]
210
Minimum-Soundpower [dB(A)]
47
Maximum-airflow [m3/h]
396
Maximum-Soundpower [dB(A)]
64
Airflow with boost [m3/h]
604
Soundpower boost [dB(A)]
71
Control
Glass touch
Material
Painted steel and glass
Energy consumption [W]
113
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
210
Minimum-Soundpower [dB(A)]
47
Maximum-airflow [m3/h]
396
Maximum-Soundpower [dB(A)]
64
Airflow with boost [m3/h]
604
Soundpower boost [dB(A)]
71
Control
Glass touch
Material
Painted steel and glass
Energy consumption [W]
113
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
440
Maximum height [mm]
195
Outlet dimension (mm)
Ø150
Packaging width(mm)
650
Packaging depth [mm]
235
Packaging height(mm)
360
Net weight [kg]
6.5
Weight
7.5

Features

Control
Glass touch
Boost funktion
Yes
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
135
LE value [lux/W]
29
LE-class
A
EEI-value
43.7
EEI-class
A+
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
75.5
GFE-class
C
FDE-value
29.3
FDE-class
A
AEC [kWh/h]
19.7
Energy consumption [W]
113
Energiforbrug standby (Ps) [W]
0.5
Motor Power [W]
110
Voltage [V]
230

Other specifications

EAN
5703347535048
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.21.8320.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Extract
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Painted steel and glass
SupplyCord (m)
1.2
Battery type
None
Number of batteries
0

Downloads

Here you will find all documents relevant to this product

Product info

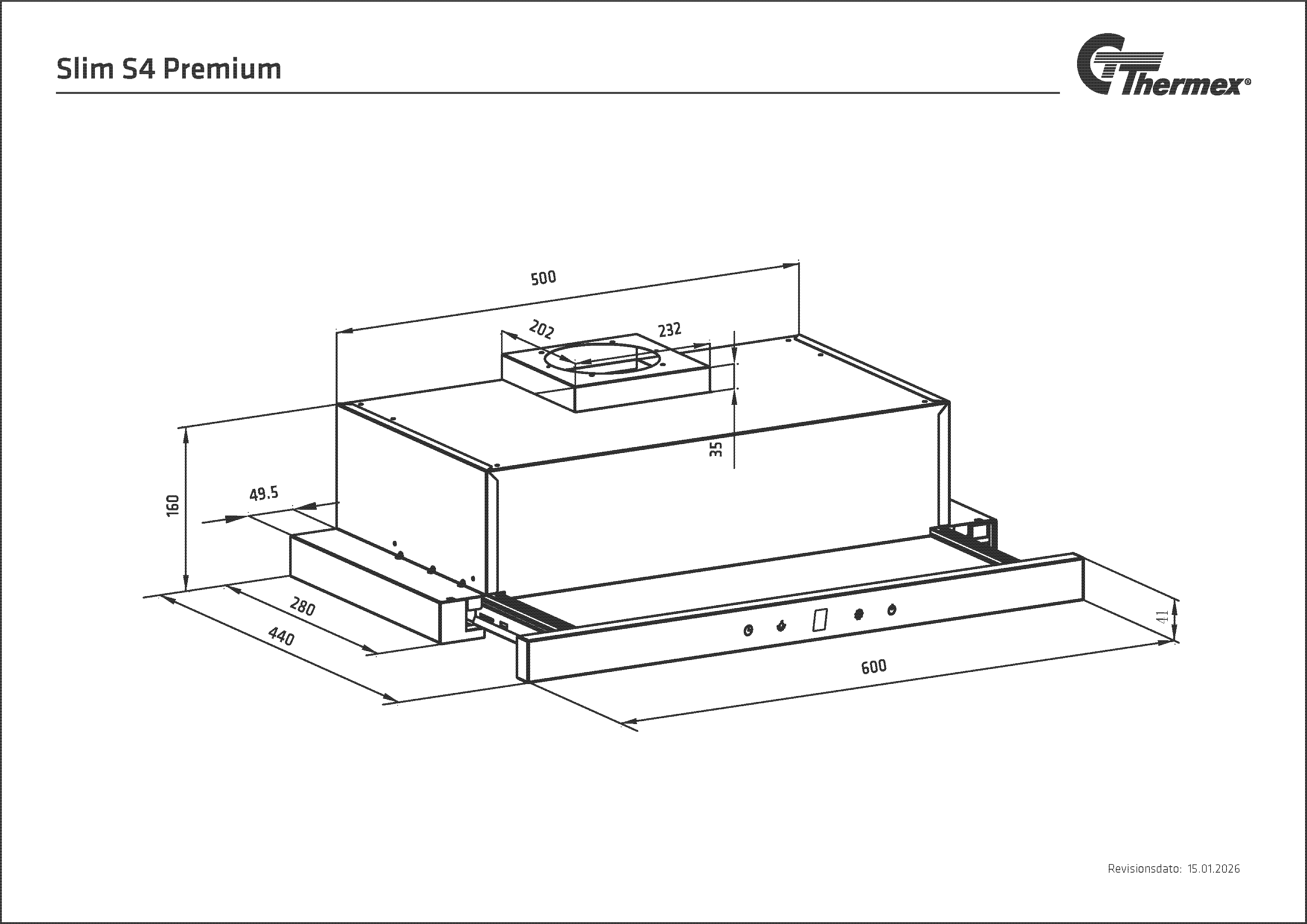

Dimensional drawing
