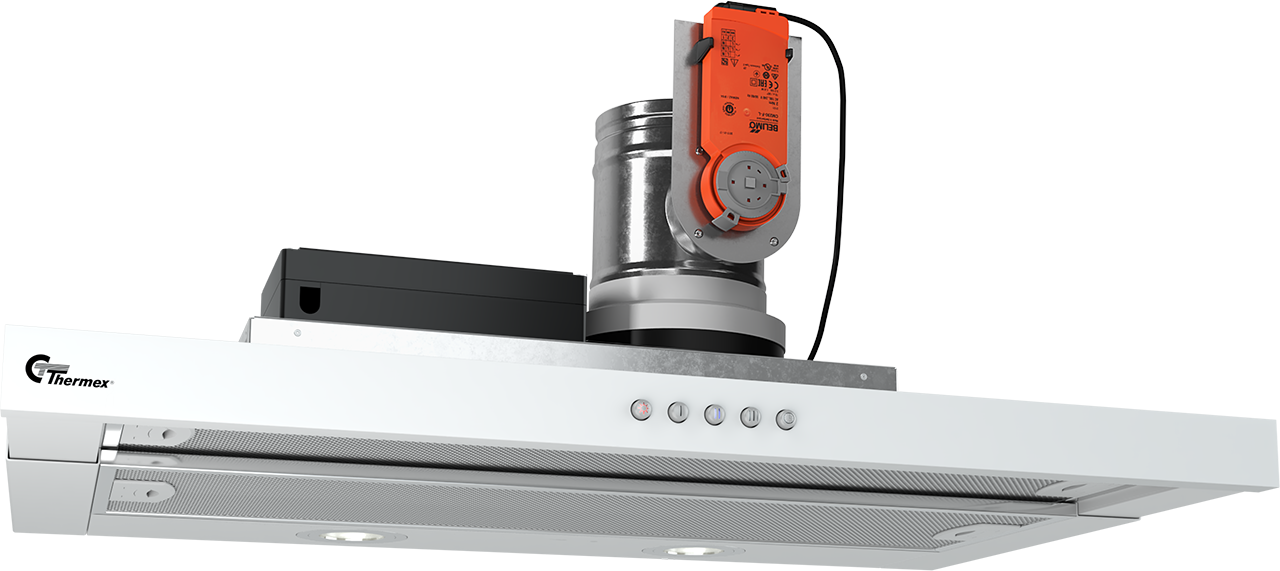

Super Silent extension 600 mm - VG + CVL-Link
520.19.1261.7
Width
Color hood
Motor type
Specifications
Control
Soft touch
Material
White painted steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
445
Maximum height [mm]
175
Outlet dimension (mm)
Ø125
Packaging width(mm)
660
Packaging depth [mm]
520
Packaging height(mm)
390
Net weight [kg]
10
Weight
12
Features
Control
Soft touch
Boost funktion
No
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes
Technical specifications
Illumination (Emiddle) [lux]
330
LE value [lux/W]
94
LE-class
A
Lamp consumption [W]
1.2
Total consumption of light (WL) [W]
2.4
GFE-value
83.3
GFE-class
C
Voltage [V]
230
Other specifications
EAN
5703347524141
Type of grease filter
Aluminum filter
Number of filters
2
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Extract
Motor type
Central ventilation
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
Material
White painted steel
Downloads
Here you will find all documents relevant to this product
