Super Silent Extension 600 mm White Without motor

520.19.1261.0

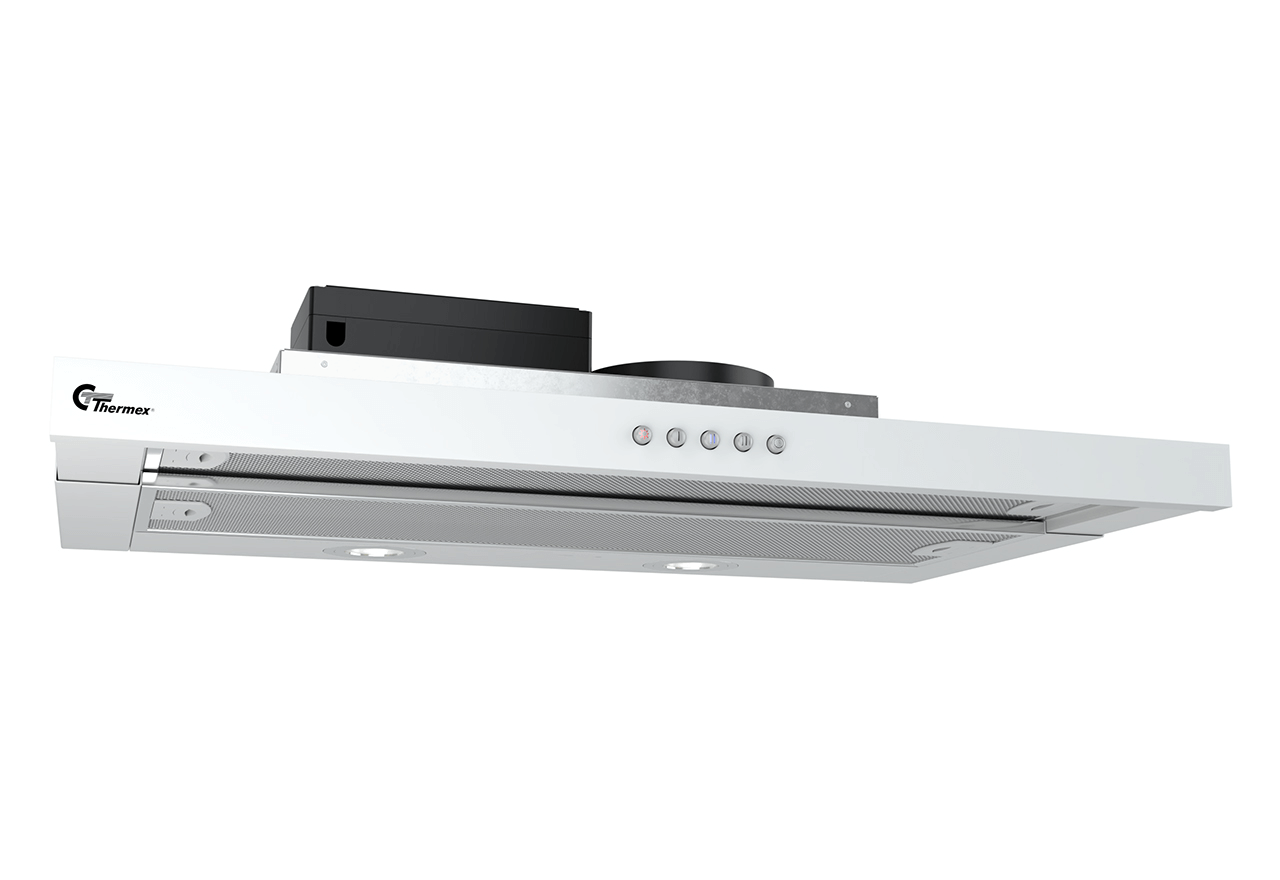

Thermex Super Silent extractor 60cm in white without motor, is an efficient and quiet extractor hood for cupboard mounting, and is intended for connection to an external motor, central ventilation or heat recovery
Width
Color hood
Motor type
Please select variant!

The Thermex Super Silent Extractor is a very affordable solution for those of you who don't think a hood should do too much of itself. It must be quiet, efficient and look like a natural part of your kitchen. These are exactly the properties you get with a Super Silent Extractor. The large collection surface is easily hidden when you are not using the hood and can be pulled out or pushed in. You can choose between stainless and white front. Thermex «All Possibilities» solution means that it can be adapted to all homes and all types of exhaust and ventilation systems, including Thermex Plasmex® .

The hood is controlled by our new smart remote control or automatically via the hob with Thermex Thermex Toplink® . In addition, you can operate the hood via the Thermex Remote app, which can be downloaded for free from the App store and Google Play. In the app, it is possible to adjust the brightness, activate periodic extraction and get an indication of the filter.

You can also use Voice link the functionality built into the hood. Here you can control the hood with your voice alone via Google Assistant (Hey Google) . So there are plenty of options to choose from to operate your Thermex Super Silent Extractor.

  • Modern design
  • Can be controlled from app or google home
  • Option to purchase additional top link
  • Delivered with stainless steel front

Specifications

Control
Soft touch
Material
White painted steel
Voltage [V]
230

VoiceLink

Control your Thermex hood by using your voice alone - this applies to both the hood's suction power and light. This gives you the freedom to use your hands for other things when you are in the kitchen.

Read more

Wifi

The Wifi function means that the product communicates wirelessly via Wifi. All private homes today have Wifi, which offers many options in connection with electronic ventilation products.

App control

With the App control, you can access your Thermex product via your smartphone. It turns your smartphone into a remote control, so you always have full control. In the app, there are more functions than you find on the normal operation.

Decoration filter

The decorative filter is an ordinary metal filter, but it is designed in such a way that the filter appears more aesthetically pleasing. It can be washed in a dishwasher, but it is recommended to wash it by hand.

Soft touch

Electronic soft touch operation for easy operation of the motor and light in the hood. The Softtouch operation is a classic in the Thermex range, due to its simple and user-friendly design.

Periodic extraction

Periodic extraction is a function of the hood which makes it possible to use the hood as an aid for ventilation in the home. You can e.g. set the hood to start for 10 minutes per hour.

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Filter cleaning indicator

The filter cleaning indicator is a timer that reminds you to remember to clean the filter in the hood. It is not a sensor, but a timer that gives a notification after a period of time.

Specifications

Control
Soft touch
Material
White painted steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
445
Maximum height [mm]
175
Outlet dimension (mm)
Ø150
Packaging width(mm)
660
Packaging depth [mm]
520
Packaging height(mm)
390
Net weight [kg]
10
Weight
12

Features

Control
Soft touch
Boost funktion
No
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
No
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes

Technical specifications

Illumination (Emiddle) [lux]
330
LE value [lux/W]
94
LE-class
A
Lamp consumption [W]
1.2
Total consumption of light (WL) [W]
2.4
GFE-value
83.3
GFE-class
C
Energiforbrug standby (Ps) [W]
0.3
Voltage [V]
230

Other specifications

EAN
5703347524905
Type of grease filter
Aluminum filter
Number of filters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Extract
Motor type
External motor
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
Material
White painted steel
