Super Silent 600 mm White With motor

520.19.1001.2

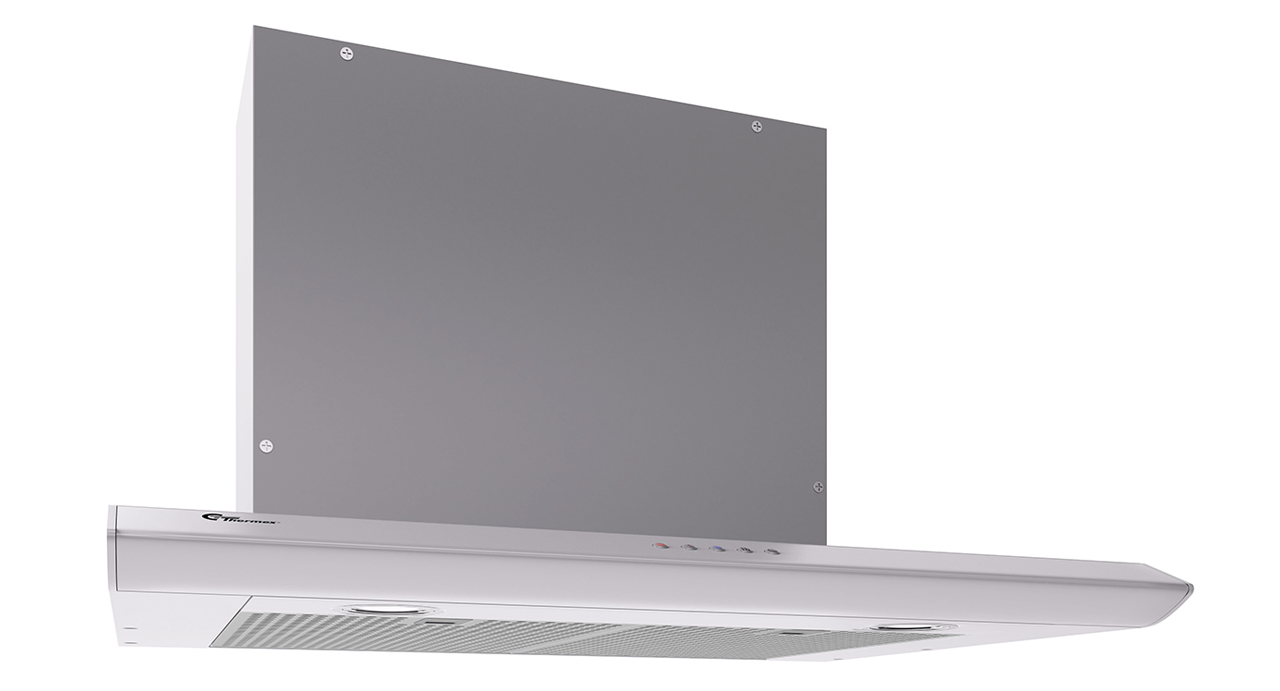

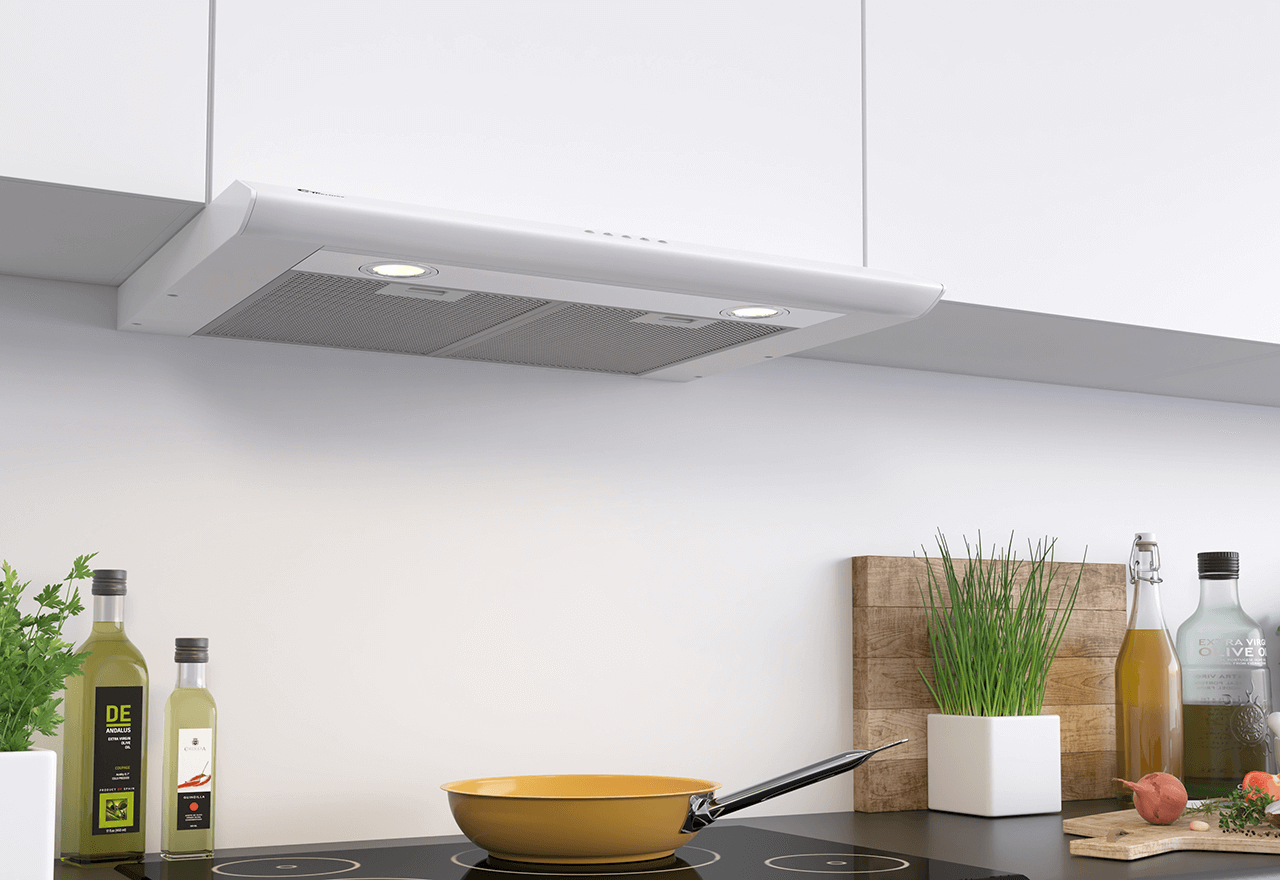

Thermex Super Silent 60 cm in white with motor is an efficient and quiet hood for cupboard mounting. The built-in motor ensures an ultra-low noise level for maximum comfort in the kitchen.
Color hood
Please select variant!

Thermex Super Silent is a simple and practical kitchen hood with no frills. It is simple to operate with traditional push buttons on the front, quiet and easy to keep clean. A safe choice for you who just want something that works and something that is durable. Available in white or stainless steel, and is easy to integrate into all kitchen solutions with an overhead cabinet, discreet, but with sharp and stylish lines. The built-in motor can move up to 444 m3/h.

  • Easy Clean
  • Simple operation
  • Easy to integrate into all kitchen solutions with an overhead cabinet
  • Discreet design with sharp lines

Specifications

Minimum airflow [m3/h]
120.9
Minimum-Soundpower [dB(A)]
49
Maximum-airflow [m3/h]
444
Maximum-Soundpower [dB(A)]
67
Control
Soft touch
Material
White painted steel
Voltage [V]
230

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Soft touch

Electronic soft touch operation for easy operation of the motor and light in the hood. The Softtouch operation is a classic in the Thermex range, due to its simple and user-friendly design.

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Specifications

Minimum airflow [m3/h]
120.9
Minimum-Soundpower [dB(A)]
49
Maximum-airflow [m3/h]
444
Maximum-Soundpower [dB(A)]
67
Control
Soft touch
Material
White painted steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
450
Maximum height [mm]
425
Outlet dimension (mm)
Ø150
Packaging width(mm)
515
Packaging depth [mm]
505
Packaging height(mm)
650
Net weight [kg]
17
Weight
18

Features

Control
Soft touch
Moveable outlet
No
Built-in trigger function
No
Wi-Fi
No

Technical specifications

LE value [lux/W]
36
LE-class
A
EEI-value
95
EEI-class
D
GFE-value
69.2
GFE-class
D
FDE-value
9.4
FDE-class
E
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.3
Motor Power [W]
135
Voltage [V]
230

Other specifications

EAN
5703347519406
El-nummer
9978890547
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.19.3000.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Suction Edge
No
Mounting
Cabinet substantiated
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
Material
White painted steel

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
