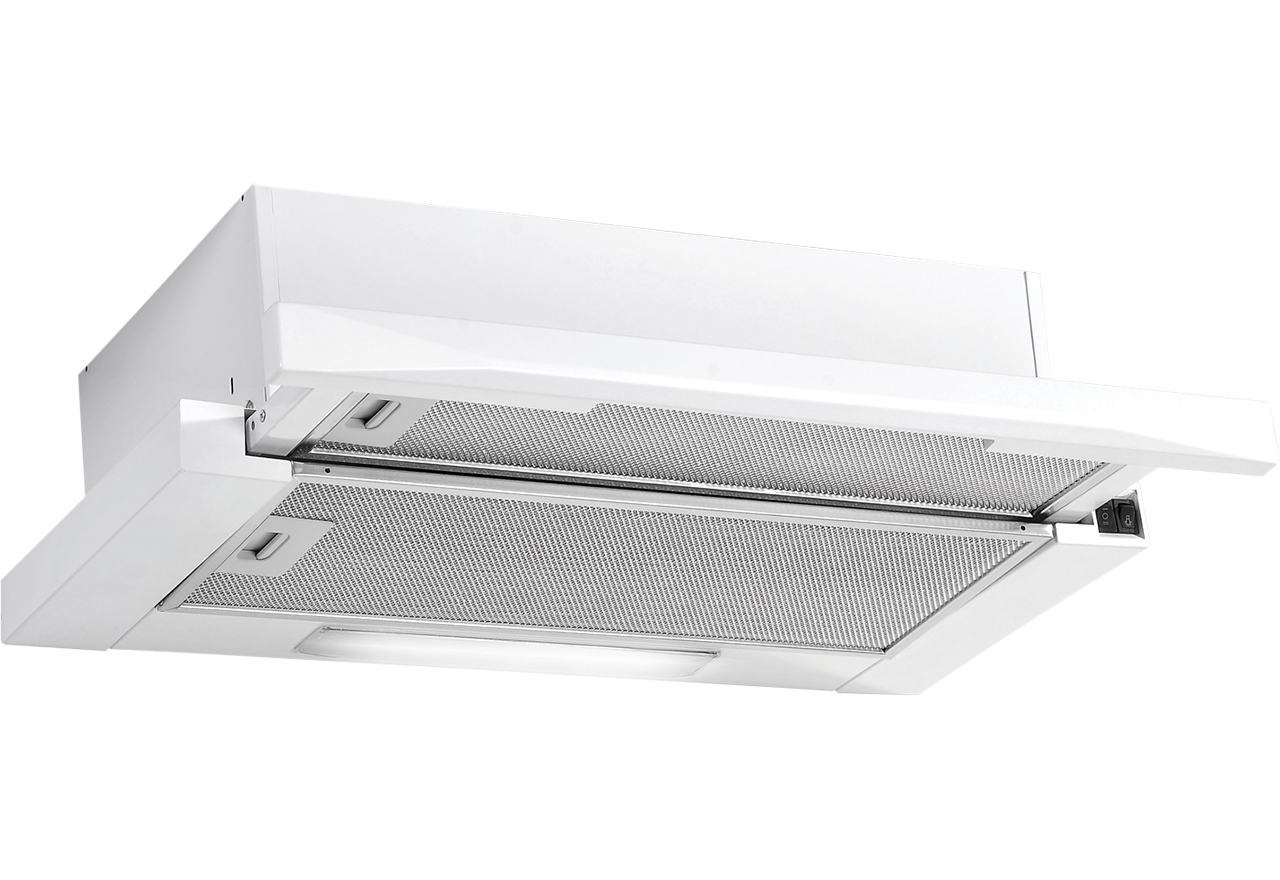

TXSL60

520.31.1001.2
TXSL 60 in white is an affordable pull-out extractor hood for installation under a wall cabinet in 60cm white TXSL 60 has a built-in motor with 2 speeds and a suction capacity of up to 350 m3/h, suitable for extraction or recirculation and equipped with LED lighting.

Specifications

Minimum airflow [m3/h]
221
Minimum-Soundpower [dB(A)]
59
Maximum-airflow [m3/h]
348
Maximum-Soundpower [dB(A)]
67
Control
Switch control
Material
White painted steel

Specifications

Minimum airflow [m3/h]
221
Minimum-Soundpower [dB(A)]
59
Maximum-airflow [m3/h]
348
Maximum-Soundpower [dB(A)]
67
Control
Switch control
Material
White painted steel

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
420
Maximum height [mm]
195
Aftræksdimension (mm)
Ø120
Packaging width(mm)
235
Packaging depth [mm]
650
Packaging height(mm)
360
Net weight [kg]
5.5
Weight
6.5

Features

Control
Switch control
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
121
LE value [lux/W]
60.8
LE-class
G
EEI-value
65.6
EEI-class
B
Energy consumption in off mode (Po) [W]
0.48
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
2
GFE-value
63.2
GFE-class
E
FDE-value
13.1
FDE-class
D
Power supply [V]
230
Moottorin maksimikulutus [W]
65

Other specifications

EAN
5703347532337
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.21.8310.9
Number of carbonfilters
2
Number of speeds ex (boost)
2
Number of lamps
8
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Extract
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
BodyColor (RAL)
9016
Material
White painted steel
SupplyCord (m)
1.2
