York IV 60 cm grey/stainless

520.21.6068.2
Thermex York IV combines stylish design, efficiency and ease of use, making it an ideal choice for modern kitchens.
Width
Color
Please select variant!

The Thermex York IV is a stylish and efficient cabinet-mounted cooker hood, designed to fit perfectly into modern kitchens.

Design and functionality
Material and appearance: Made of grey lacquered steel and with a stainless steel front, which ensures a timeless and minimalist look.
Installation: The cooker hood is installed in a wall cabinet and is 60 cm wide, making it ideal for integration into most kitchen cabinets.
Illumination: An elegant LED light strip (3000 Kelvin, 1.5 W) provides pleasant illumination of the hob.

Features and Operation
Filtration: Equipped with 2 washable aluminum filters. For extra flexibility, a carbon filter set can be purchased for recirculation use.
Operation: Simple control via rocker buttons to control 2 speeds and light. Microswitch in the pull-out allows the cooker hood to be switched on and off by simply pulling it out.
Engine: Built-in motor with energy label A that delivers an air flow of up to 307 m³/h.

Noise level
With a noise level of just 41 dB(A) at the lowest speed and a maximum of 61 dB(A), the York IV ensures a quiet and comfortable cooking experience.

Easy cleaning
The cooker hood is easy to maintain. The surface is wiped with a damp cloth, while the aluminium filters can be cleaned in the dishwasher.

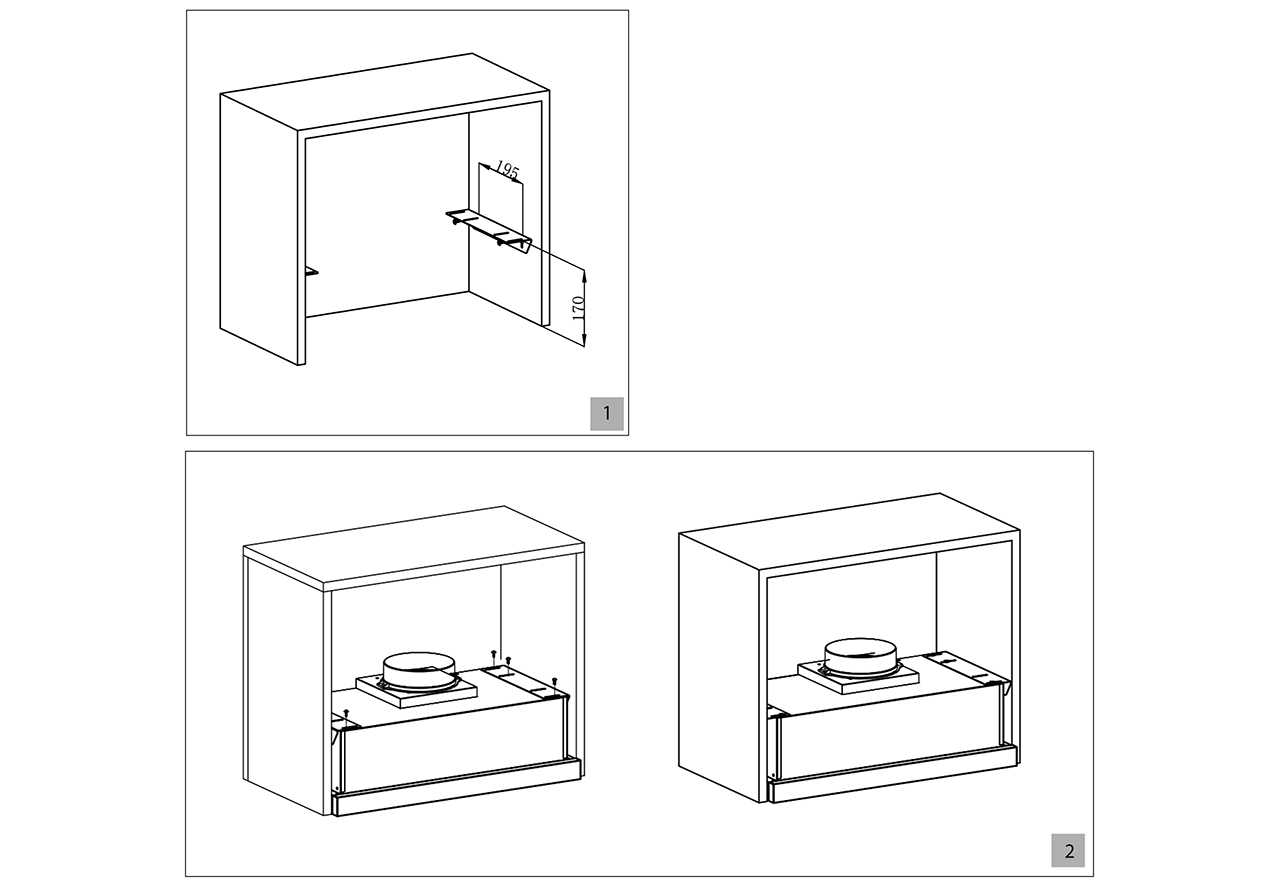

Flexible installation
York IV offers multiple mounting options, making it a versatile choice for kitchens with different needs.

Thermex York IV combines modern design, efficiency and user-friendliness – a perfect solution for the stylish kitchen.

  • Discreet design that fits in wall cabinets
  • Built-in LED light strip (3000 K) for optimal illumination
  • Washable aluminium filters and carbon filter option
  • Easy operation with rocker buttons and microswitch
  • Low-noise motor (41-61 dB) with energy rating A

Specifications

Minimum airflow [m3/h]
210
Minimum-Soundpower [dB(A)]
50
Maximum-airflow [m3/h]
387
Maximum-Soundpower [dB(A)]
63
Energy consumption [W]
34.5
Control
Switch control
Material
Gray painted with Stainless steel front
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
210
Minimum-Soundpower [dB(A)]
50
Maximum-airflow [m3/h]
387
Maximum-Soundpower [dB(A)]
63
Energy consumption [W]
34.5
Control
Switch control
Material
Gray painted with Stainless steel front
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
430
Maximum height [mm]
250
Outlet dimension (mm)
Ø120
Packaging width(mm)
655
Packaging depth [mm]
240
Packaging height(mm)
355
Net weight [kg]
6
Weight
6.8

Features

Control
Switch control
Boost funktion
No
Decor light
No
Timer funktion
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
98
LE value [lux/W]
51.5
LE-class
A
EEI-value
38.6
EEI-class
A+
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
1.9
GFE-value
76.5
GFE-class
C
FDE-value
18.1
FDE-class
C
AEC [kWh/h]
10.3
Energy consumption [W]
34.5
Energiforbrug standby (Ps) [W]
0.48
Motor Power [W]
33
Voltage [V]
230

Other specifications

EAN
5703347533853
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.21.7000.9
Number of carbonfilters
2
Number of speeds ex (boost)
2
Number of lamps
1
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Extract
Motor type
Internal motor
Front panel color
Stainless steel
BodyColor
Grey
Front panel material
Stainless steel
Material
Gray painted with Stainless steel front
SupplyCord (m)
1.2
Battery type
None
Number of batteries
0

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
