Metz Maxi II - black with internal motor

423.46.3162.2
Modern aesthetics and advanced efficiency come together in the black Metz Maxi II ceiling extractor hood from Thermex. Stylish design, advanced technology, and almost silent operation create the perfect kitchen environment.
Color hood
Motor type
Please select variant!

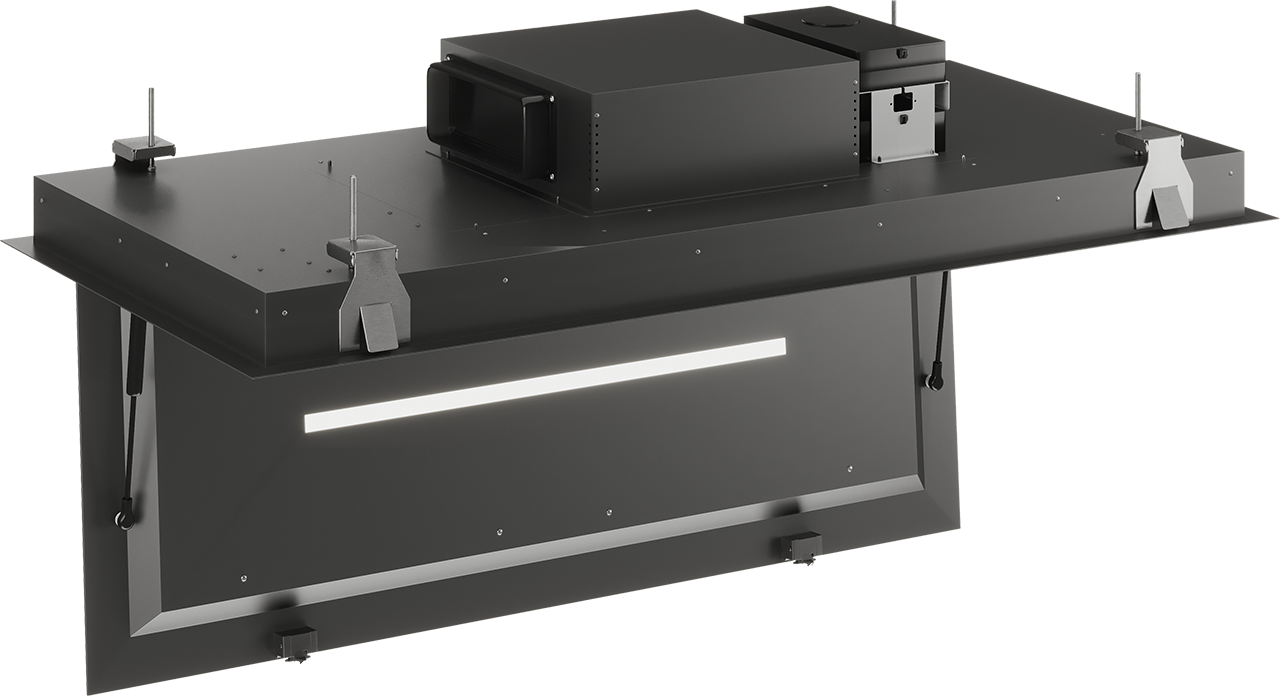

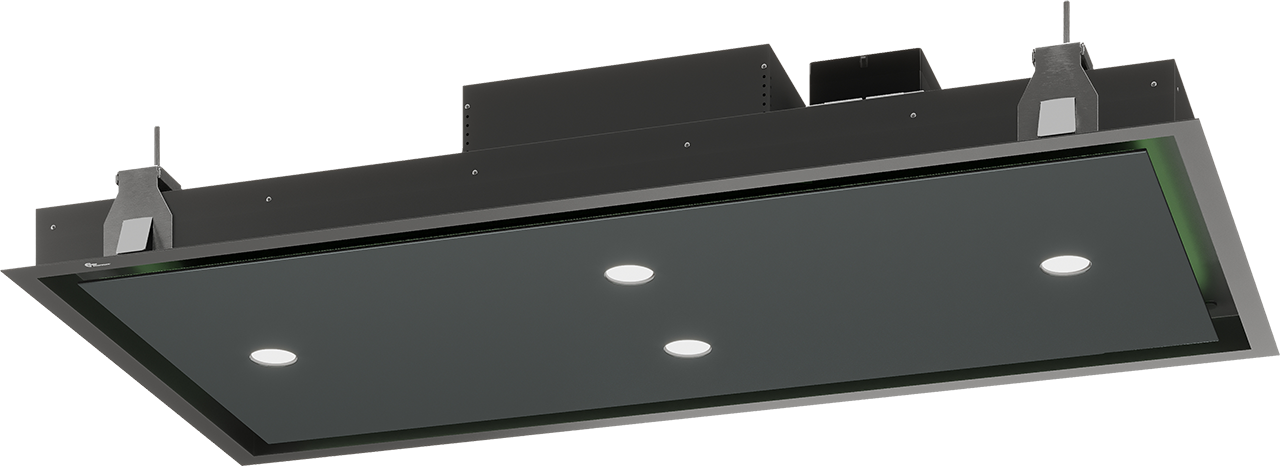

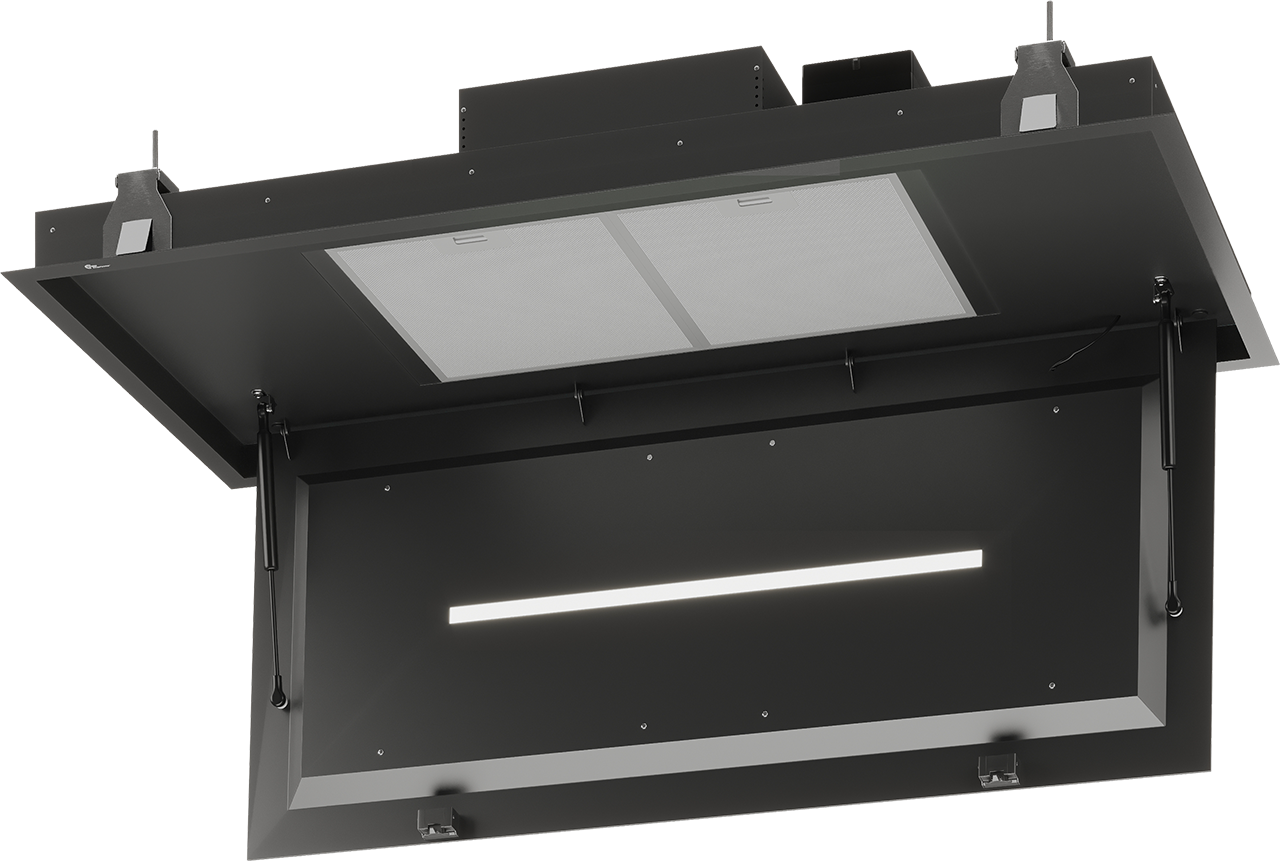

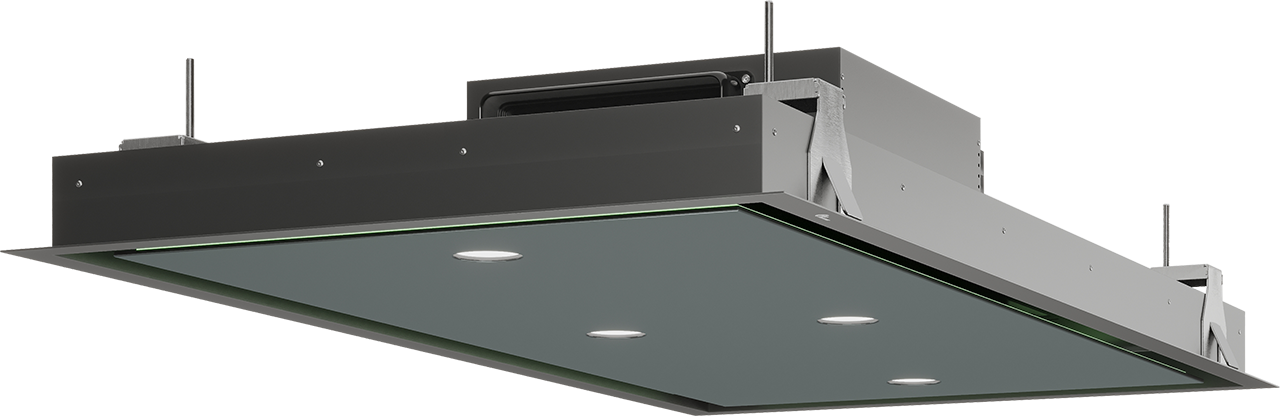

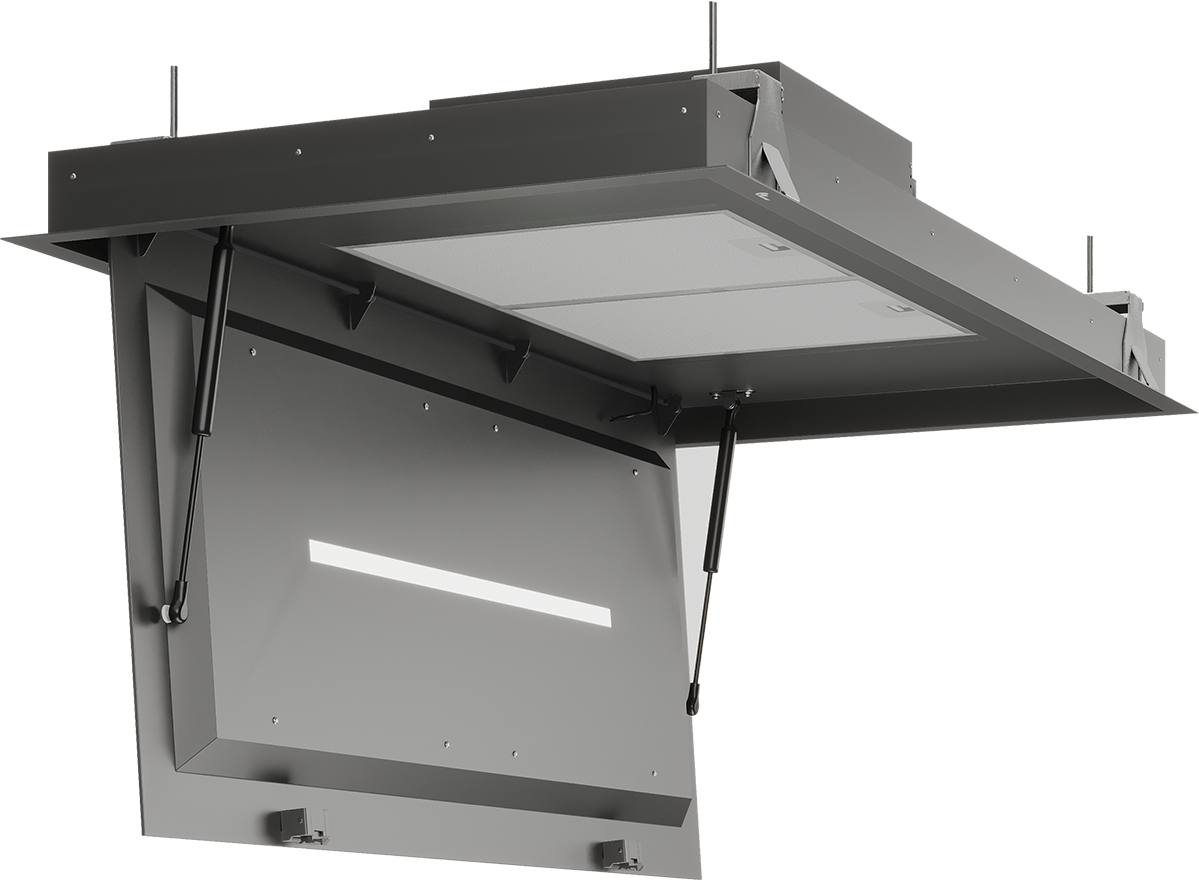

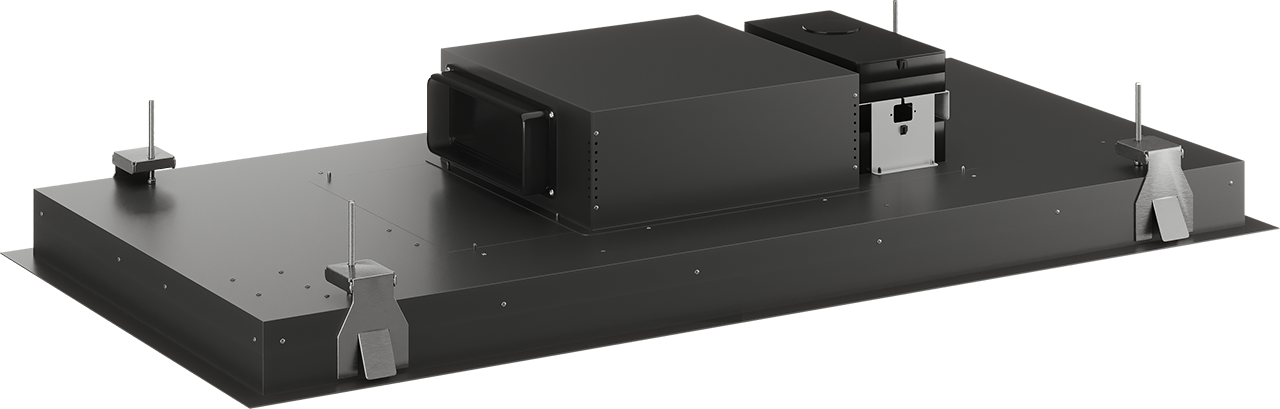

Metz Maxi II from Thermex is a ceiling-integrated extractor hood that combines effective ventilation with stylish design. It is made of black-painted steel with an elegant black glass door and features two grease filters and four LED lamps. The unique feature of Kelvin-adjustable light offers the possibility to customize the color temperature of the lighting, giving the user the freedom to create a warm, cozy atmosphere or a cooler, white illumination as needed. Cleaning is easy with a glass plate that can be cleaned with window cleaner and filters that are dishwasher-safe. Installation is convenient with a low built-in height of under 20 cm, and the option to remove the glass plate makes it easy for one person to install the extractor hood. The hood offers practical features such as app control via "Thermex Remote" in the App Store and Google Play, as well as voice control via Google Assistant, enhancing user-friendliness. Operation is elegant via a remote control with touch operation, giving the user control over suction power and light intensity. Additionally, it is possible to connect Thermex TopLink, allowing the hood to be turned on from any electric hob or oven. The motor is a built-in brushless ECO motor with an impressive suction power of up to 750 m3/h and a low noise level of 44 dB(A), creating a comfortable and efficient environment in the kitchen.
  • Modern design in black-painted steel and glass door
  • Effective suction power up to 750 m3/h

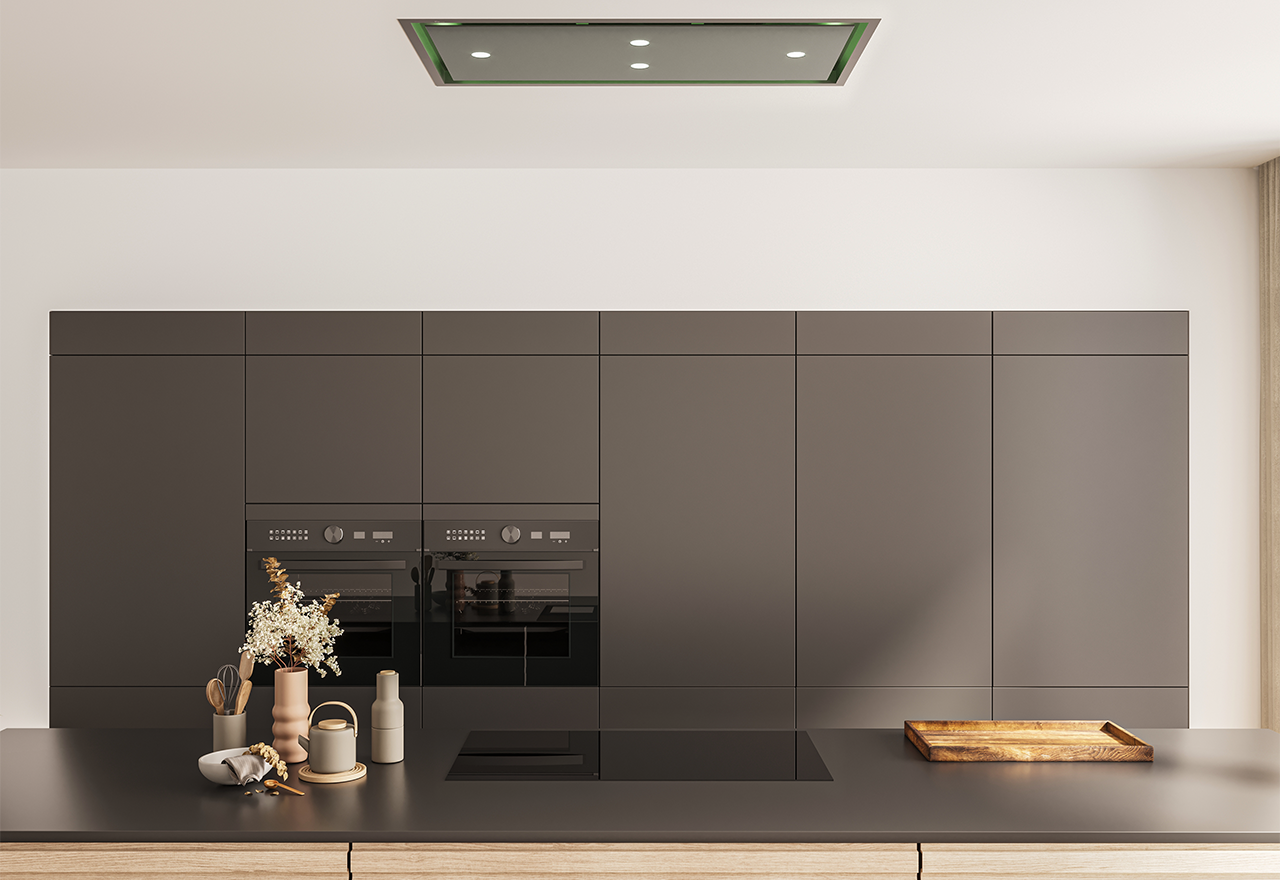

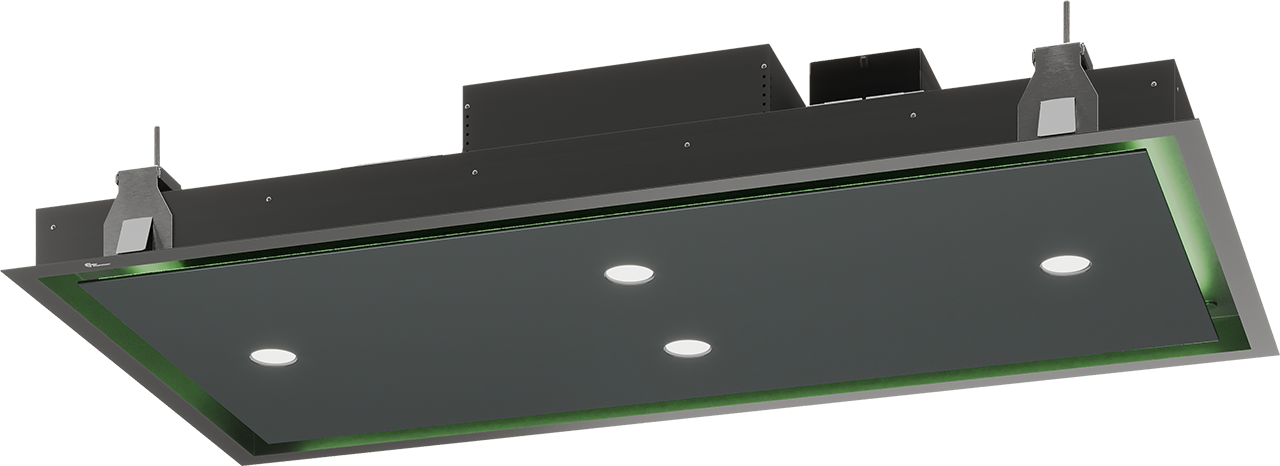

  • Create atmosphere with color temperature adjustment
  • App and voice control for convenient operation
  • Noise level from 44 dB(A) for an undisturbed kitchen experience

Specifications

Minimum airflow [m3/h]
190
Minimum-Soundpower [dB(A)]
44
Maximum-airflow [m3/h]
400
Maximum-Soundpower [dB(A)]
59
Airflow with boost [m3/h]
750
Soundpower boost [dB(A)]
73
Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
190
Minimum-Soundpower [dB(A)]
44
Maximum-airflow [m3/h]
400
Maximum-Soundpower [dB(A)]
59
Airflow with boost [m3/h]
750
Soundpower boost [dB(A)]
73
Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
1200
Maximum depth [mm]
600
Maximum height [mm]
117
Outlet dimension (mm)
220x90
Packaging width(mm)
1320
Packaging depth [mm]
710
Packaging height(mm)
320
Net weight [kg]
34
Weight
39

Features

Control
Remote control
Boost funktion
Yes
Decor light
Yes
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
Yes
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes

Technical specifications

Illumination (Emiddle) [lux]
369
LE value [lux/W]
38.4
LE-class
A
EEI-value
33.5
EEI-class
A++
Energy consumption in off mode (Po) [W]
0.49
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2.4
Total consumption of light (WL) [W]
9.6
GFE-value
76.4
GFE-class
C
FDE-value
40.6
FDE-class
A
Type of plug
Schuko
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.49
Motor Power [W]
220
Voltage [V]
230

Other specifications

EAN
5703347532917
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.46.2000.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
4
Suction Bottom
No
Suction Front
No
Suction Edge
Yes
Mounting
Ceiling Integrated
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.5
