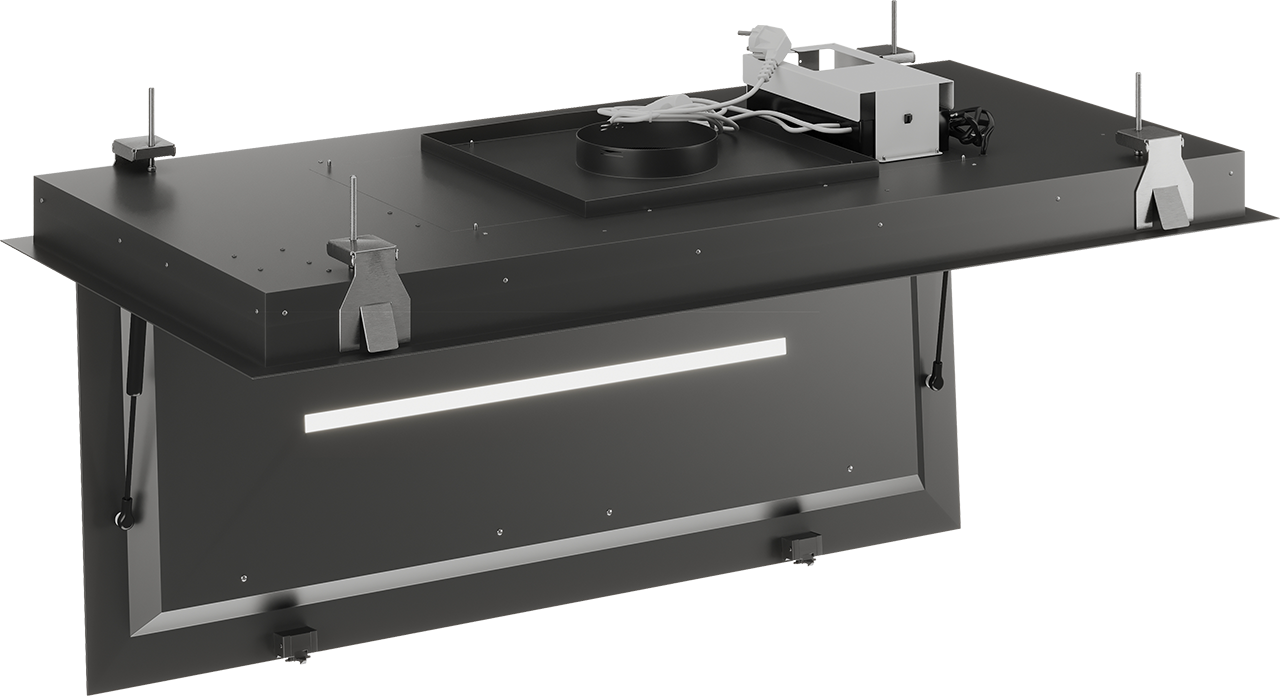

Metz Maxi II - black for external motor

423.46.3162.0

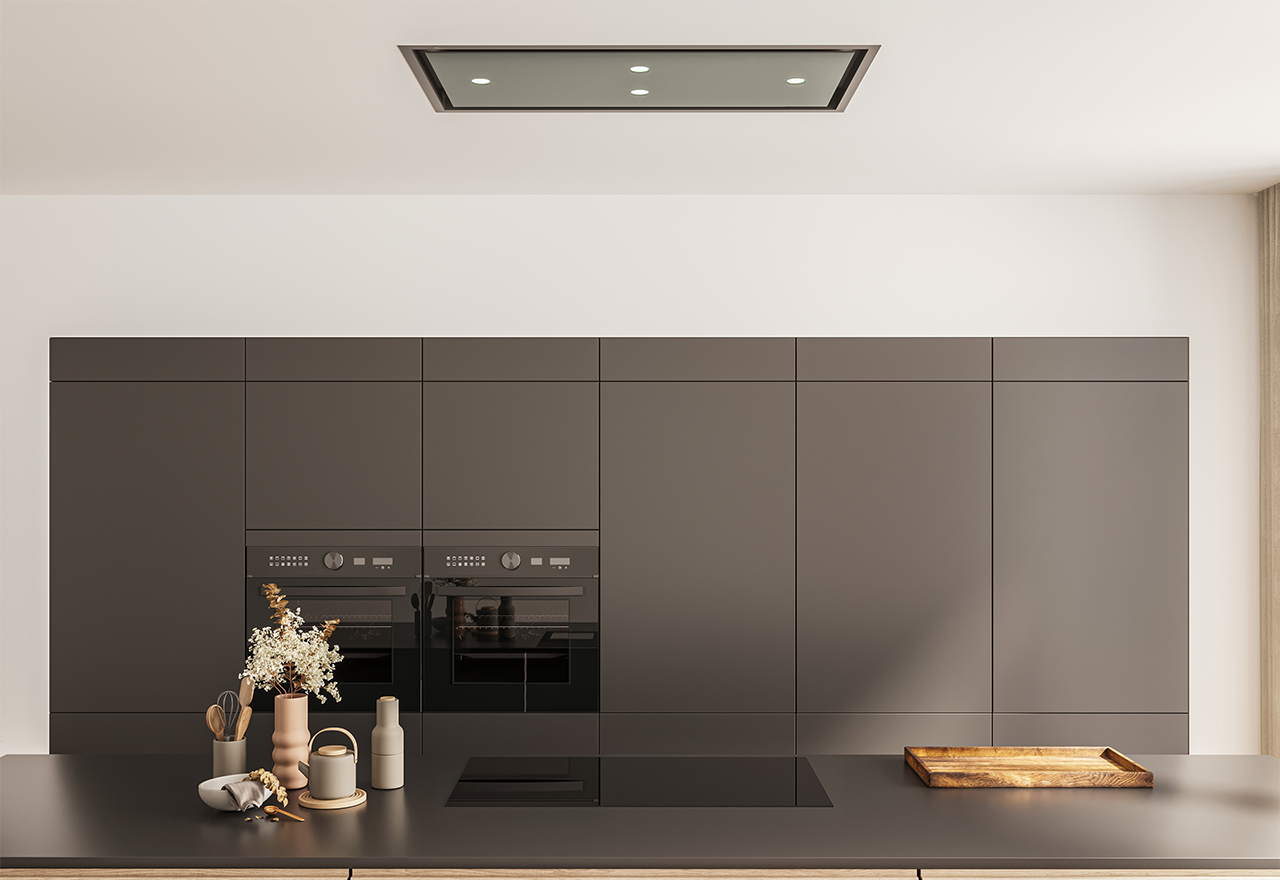

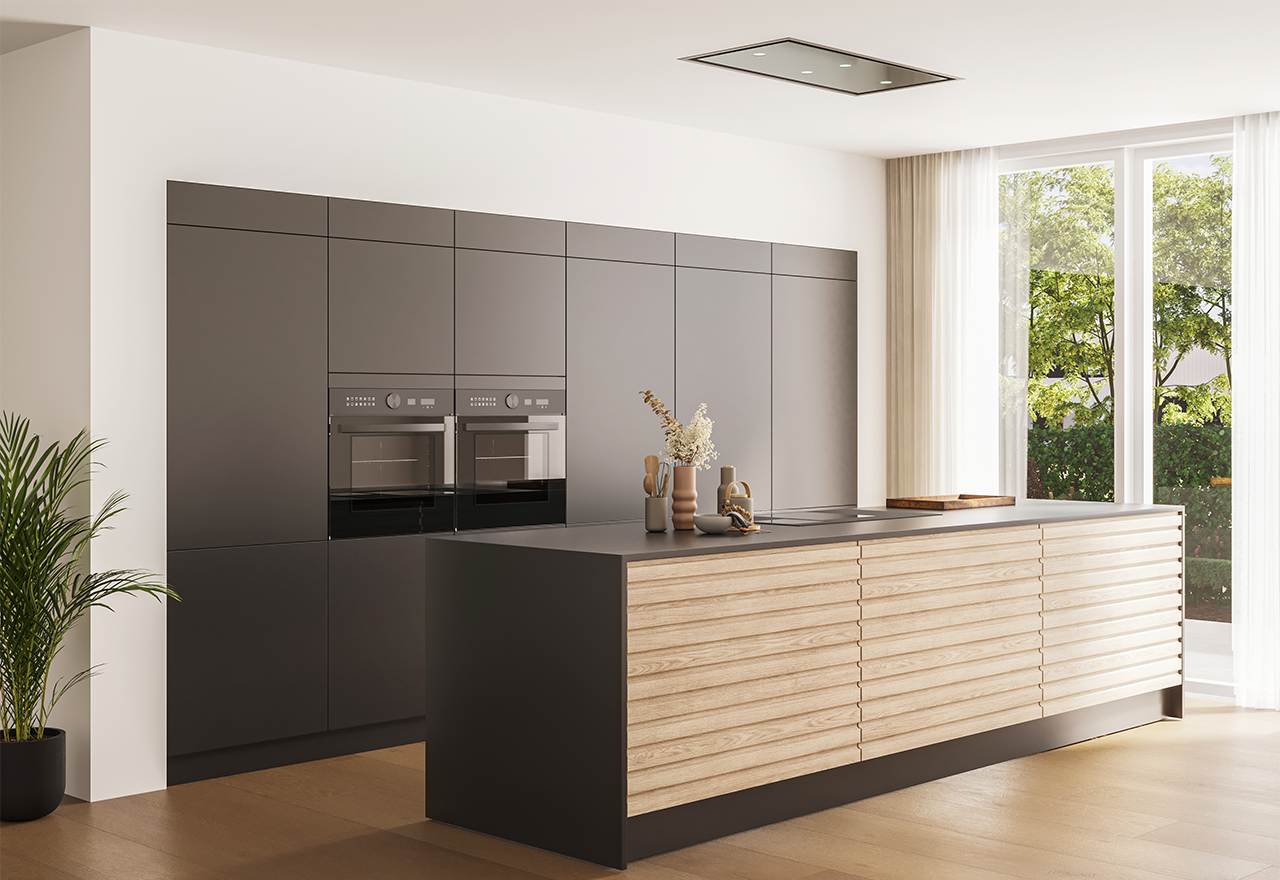

Modern aesthetics and advanced efficiency meet in the black Metz Maxi II ceiling hood from Thermex. Stylish design, advanced technology, and nearly silent operation create the perfect kitchen environment.
Color hood
Motor type
Please select variant!

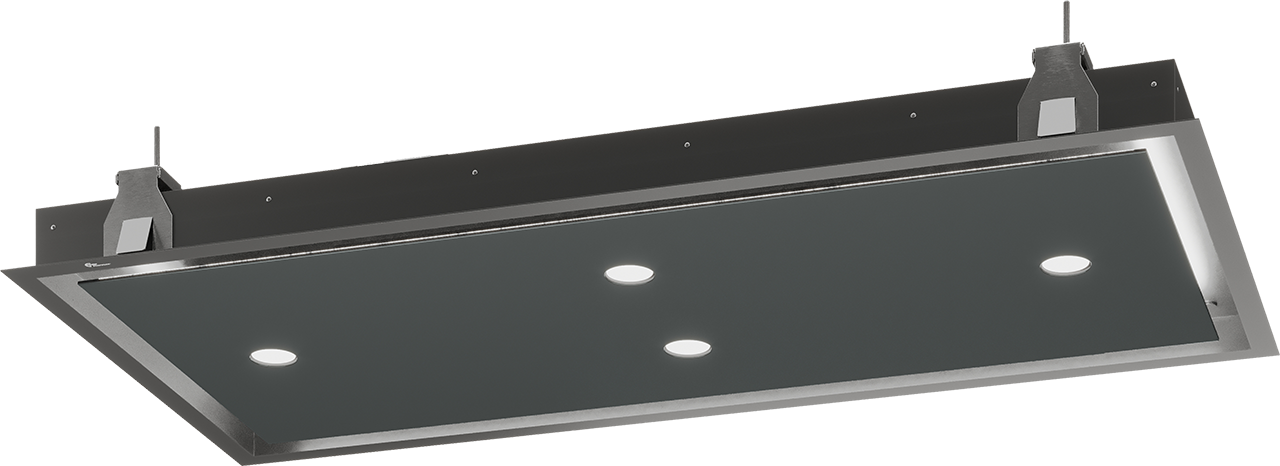

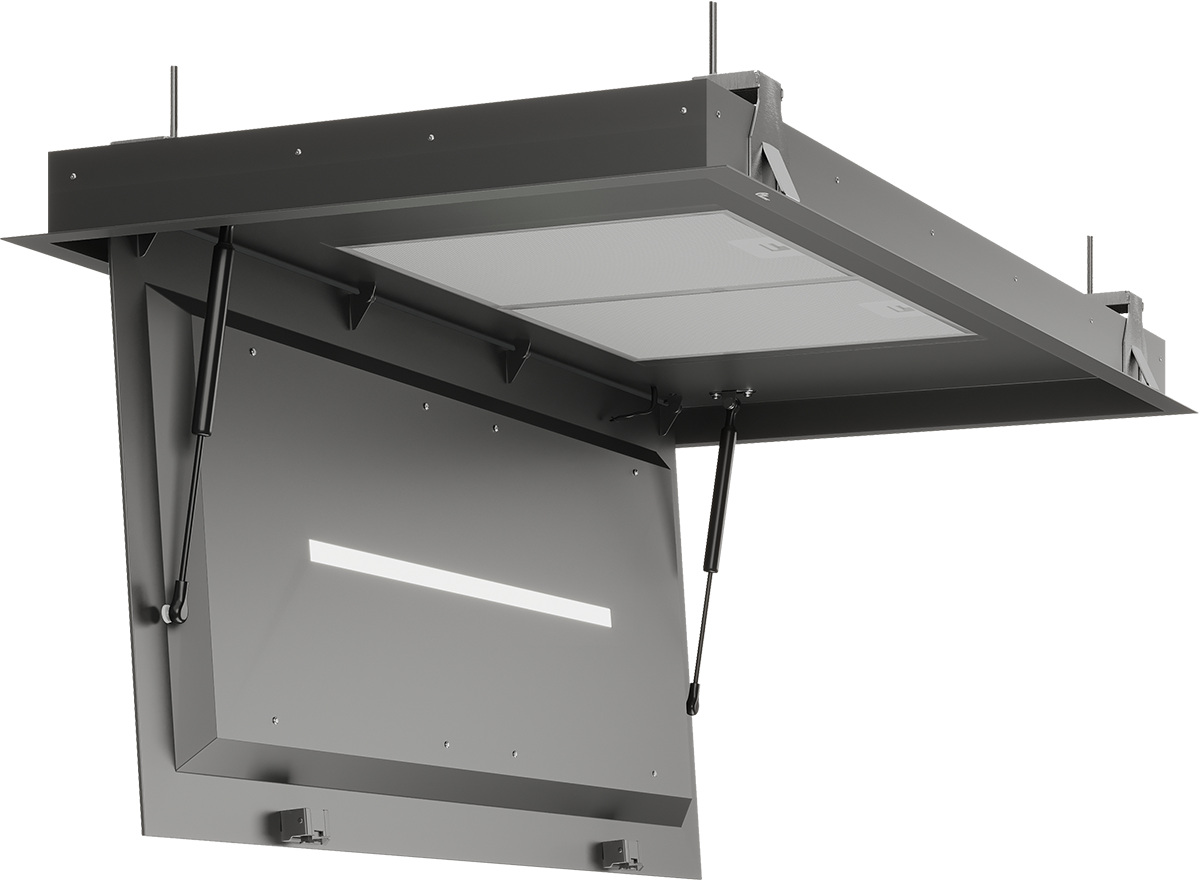

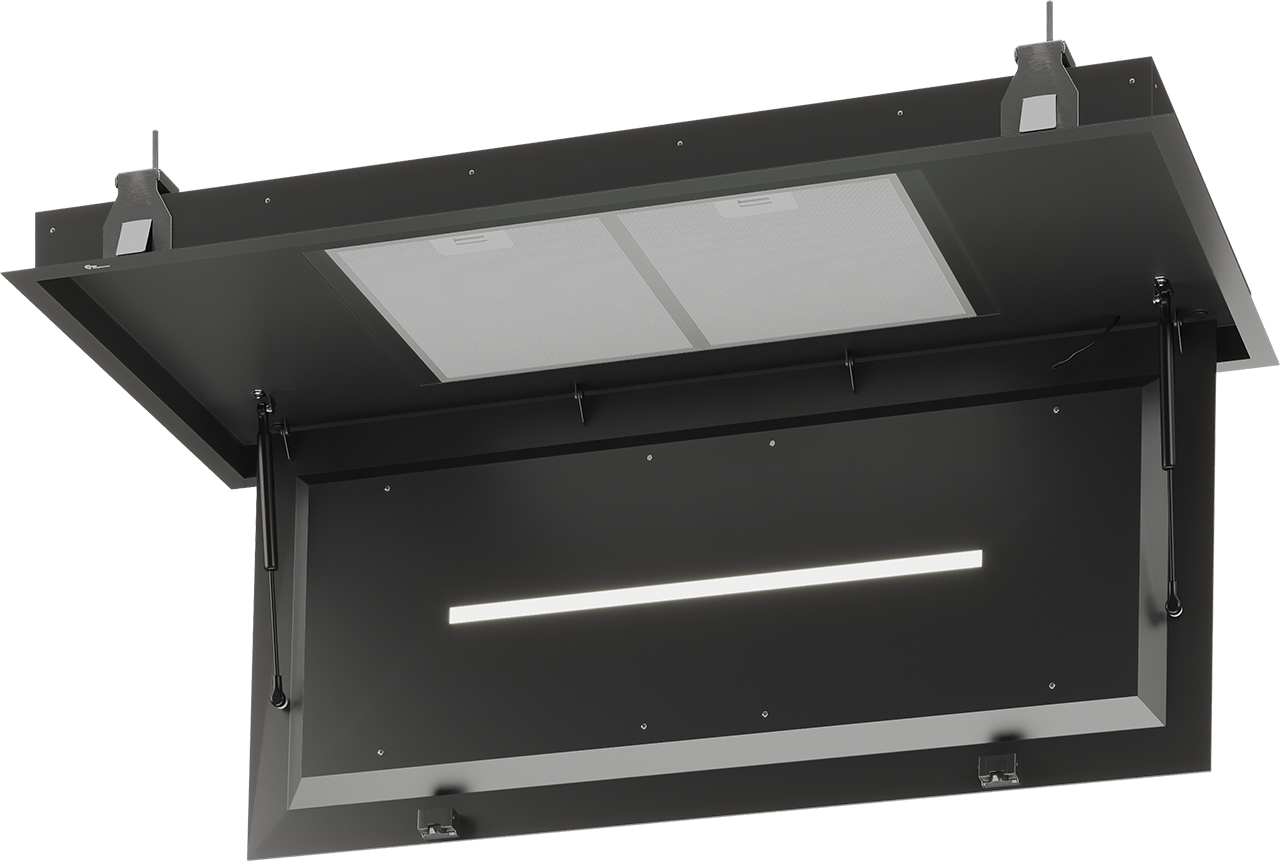

Metz Maxi II from Thermex is a ceiling-integrated range hood that combines efficient ventilation with stylish design. It is made of black lacquered steel with an elegant black glass door and features two grease filters and four LED lamps. The unique feature of Kelvin-adjustable light offers the possibility to customize the color temperature of the lighting, giving the user the freedom to create a warm, cozy atmosphere or a cooler, white illumination as needed. Cleaning is easy with a glass plate that can be cleaned with window cleaner, and filters that can be washed in the dishwasher. Installation is convenient with a low built-in height, and the option to remove the glass plate makes it easy for one person to install the range hood. The range hood offers practical features such as app control via "Thermex Remote" in the App Store and Google Play, as well as voice control via Google Assistant, enhancing user-friendliness. Operation is elegant through a remote control with touch operation, giving the user control over suction power and light intensity. Additionally, it is possible to connect Thermex TopLink, allowing the range hood to be turned on from any electric stove or oven.
  • Modern design in black-painted steel and glass door
  • Create atmosphere with color temperature adjustment.
  • App and voice control for convenient operation.

Specifications

Control
Remote control
Material
Black painted steel and Black glass

Specifications

Control
Remote control
Material
Black painted steel and Black glass

Weight and measurements

Maximum width [mm]
1200
Maximum depth [mm]
600
Maximum height [mm]
199
Outlet dimension (mm)
Ø150
Packaging width(mm)
1320
Packaging depth [mm]
710
Packaging height(mm)
320
Net weight [kg]
27.5
Weight
32.5

Features

Control
Remote control
Boost funktion
Yes

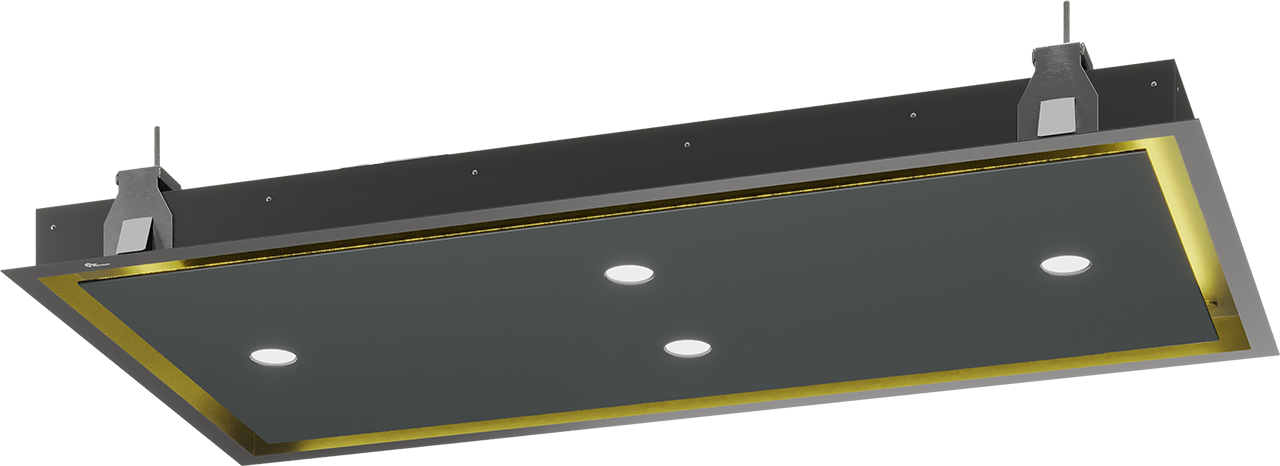

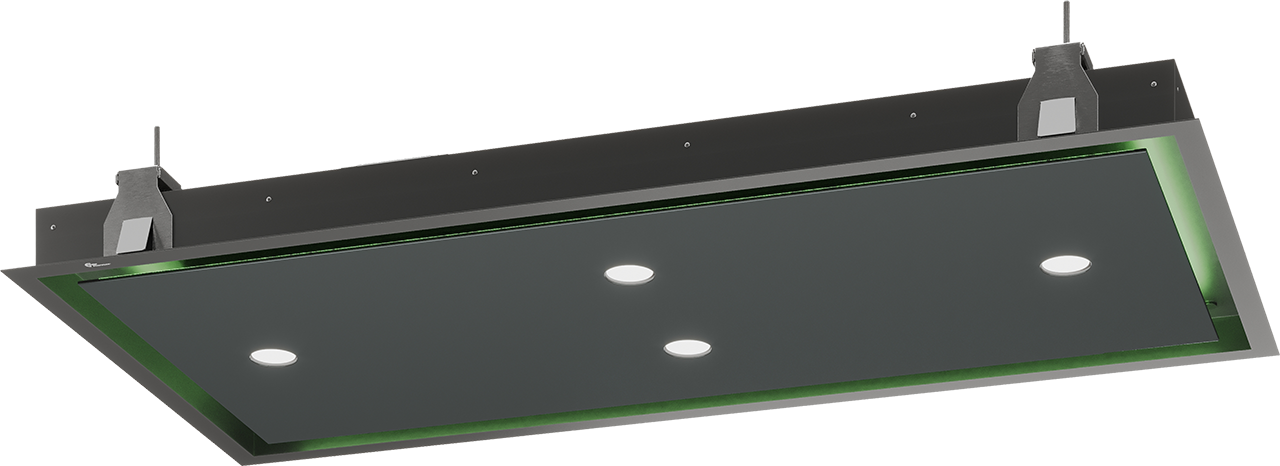

Decor light
Yes
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes

Technical specifications

Illumination (Emiddle) [lux]
369
LE value [lux/W]
38.4
LE-class
G
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2.4
Total consumption of light (WL) [W]
9.6
GFE-value
76.4
GFE-class
C
Type of plug
Schuko
Power supply [V]
230

Other specifications

EAN
5703347532900
Type of grease filter
Aluminum filter
Number of filters
2
Number of speeds ex (boost)
3
Number of lamps
4
Suction Bottom
No
Suction Front
No
Suction Edge
Yes
Mounting
Ceiling Integrated

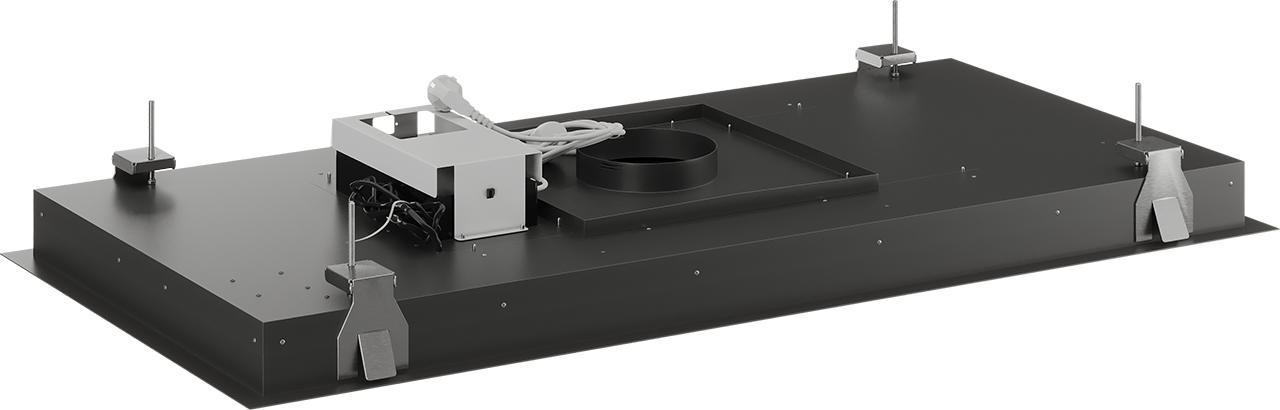

Motor type
External motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
BodyColor (RAL)
9005
Material
Black painted steel and Black glass
SupplyCord (m)
1.5
