Typhoon II Flex Zone

525.21.1482.2

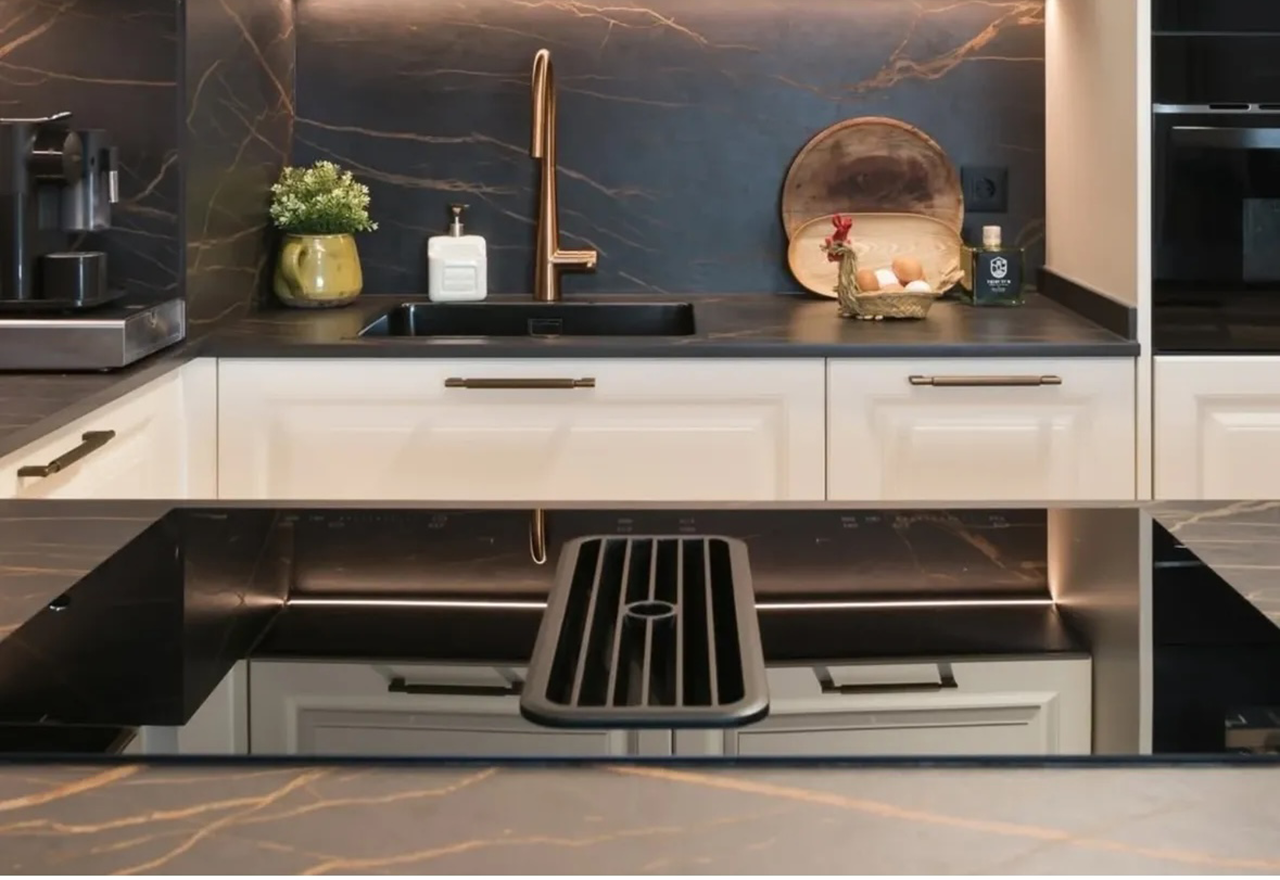

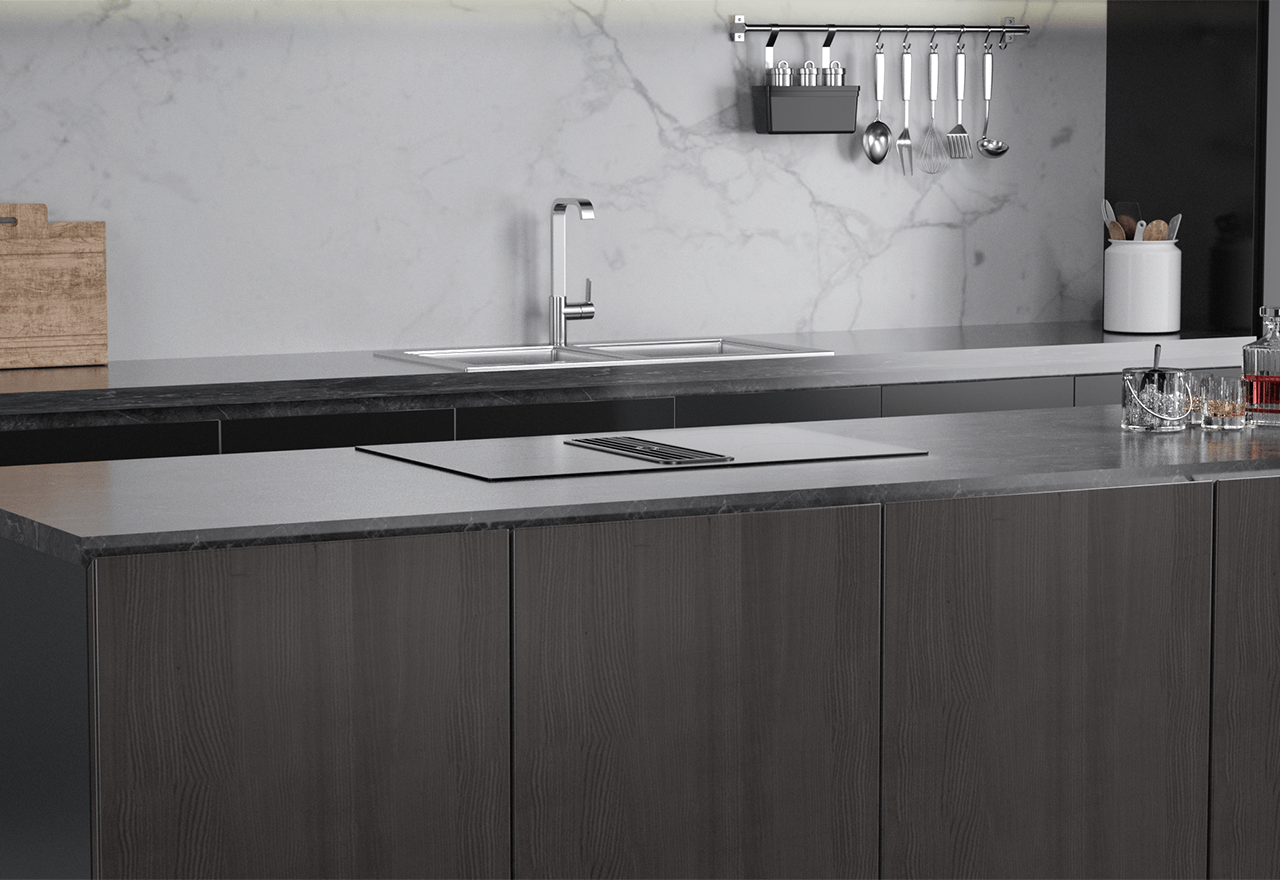

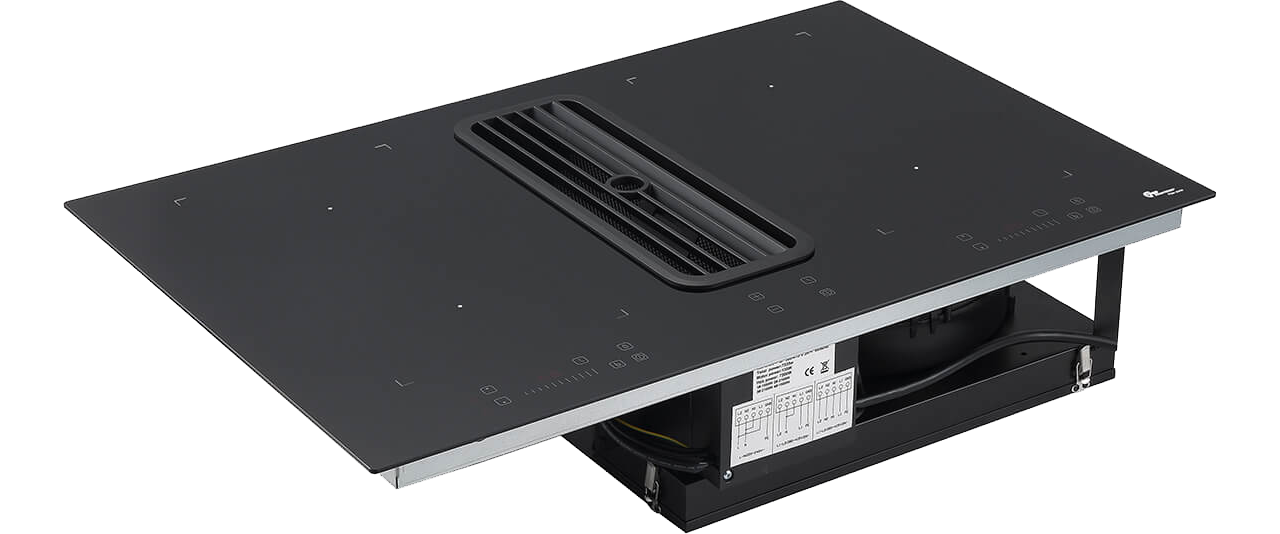

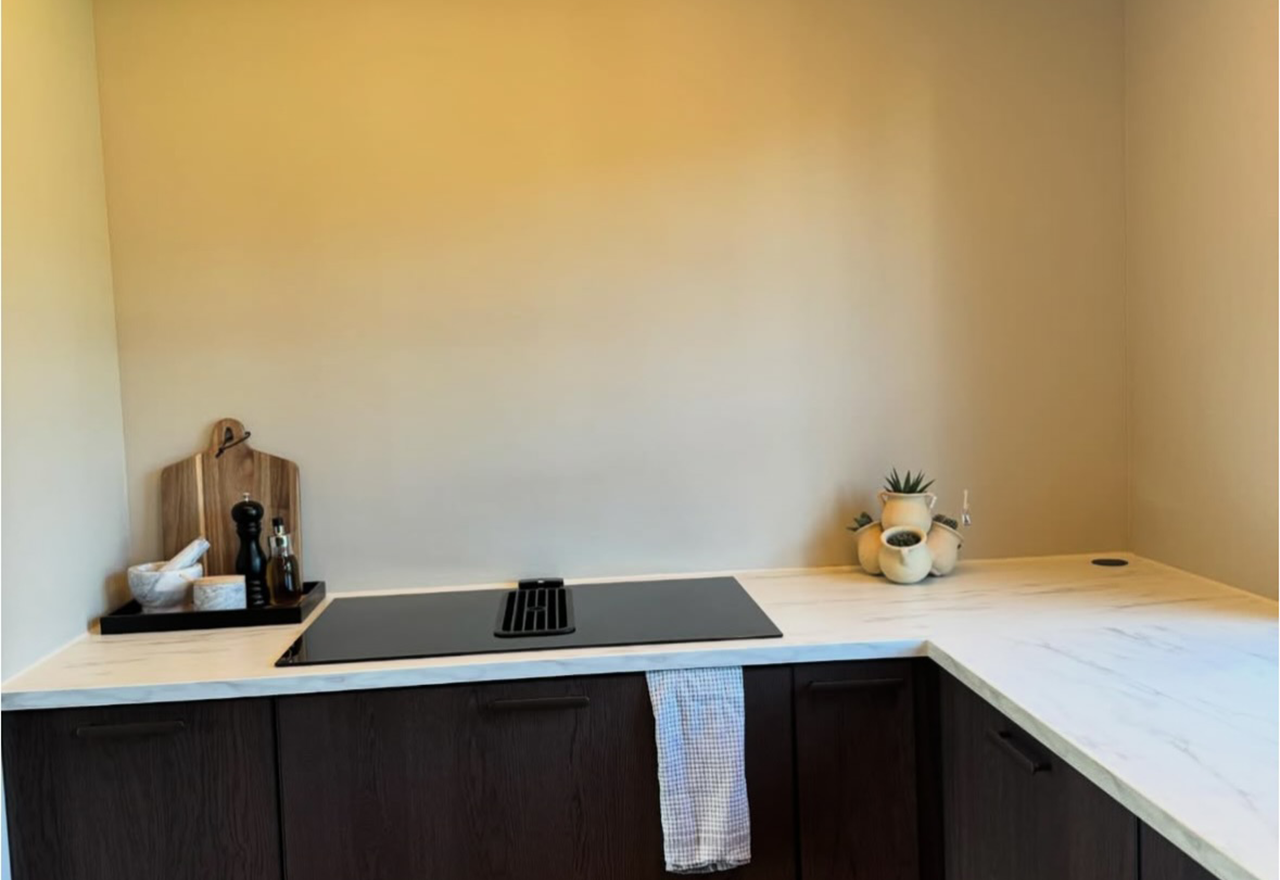

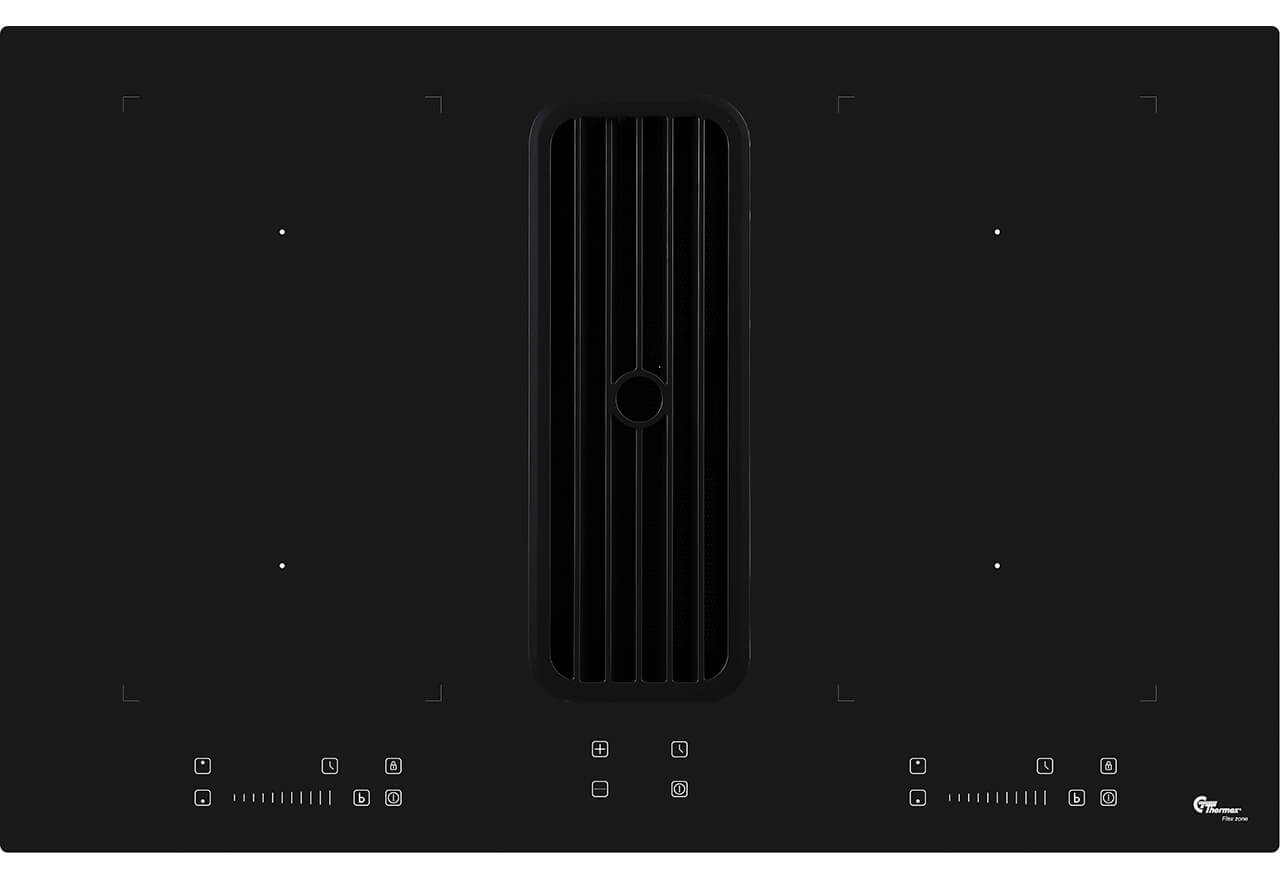

Thermex Typhoon II Flex Zone is an induction hob with a built-in hood, all in one unit. With Thermex Typhoon II Flex Zone, you don't need a hood above the hob. Documented capture of over 75%

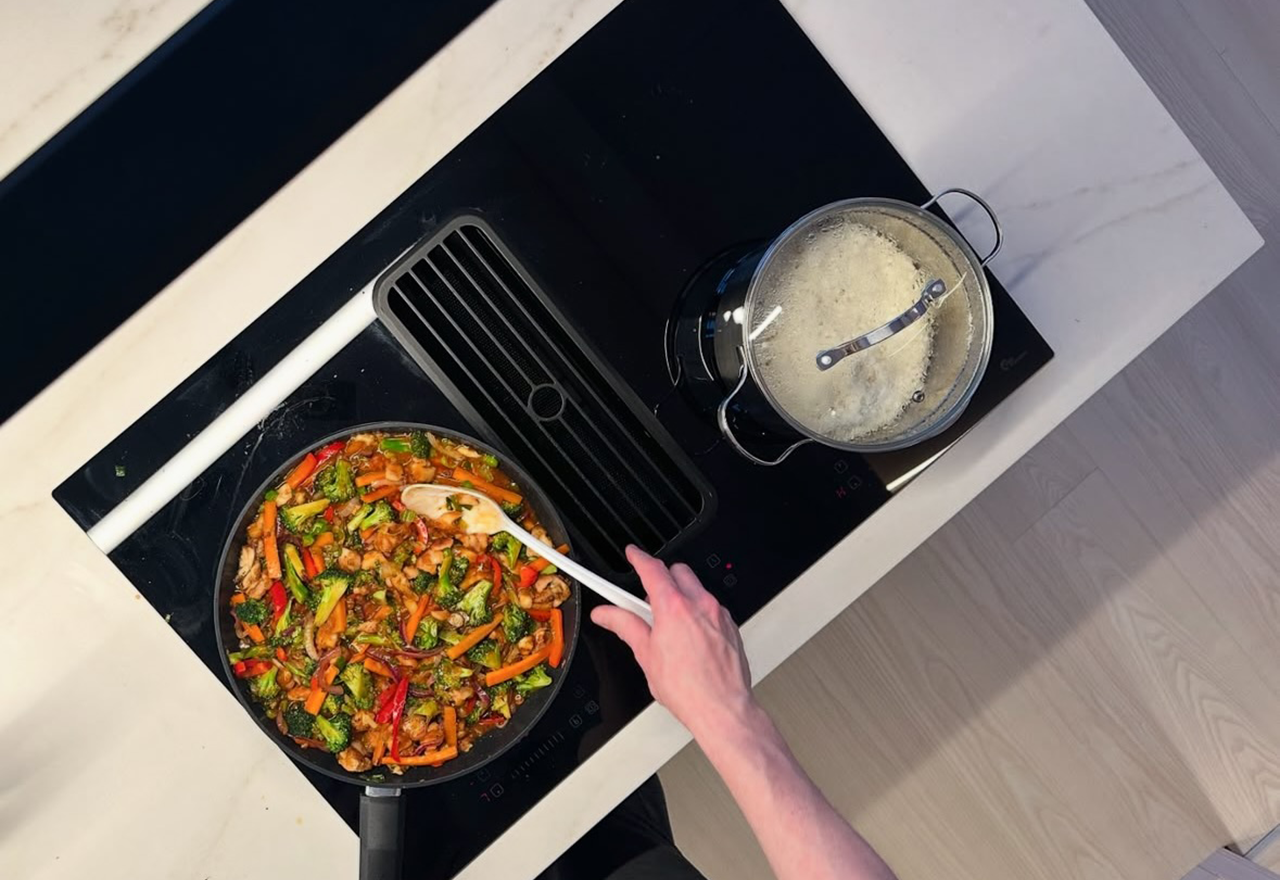

Thermex Typhoon II Flex Zone is an innovative and space-saving solution for your kitchen when it comes to kitchenhood built into the hob. The hob has 9-stage heat regulation + boost on each cooking zone, and of course it has child protection. The hob differs from its little brother Typhoon with its flex zone, also known as the "Bro function". The kitchenhood part has a powerful, quiet Eco motor that pulls steam and steam down between the cooking zones. The built-in motor can produce up to 623 m3/h and it is so efficient that it meets the requirement of a minimum of 75% extraction.

Specifications

Minimum airflow [m3/h]
225
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
623
Maximum-Soundpower [dB(A)]
73
Control
Glass touch
Material
Black glass

Specifications

Minimum airflow [m3/h]
225
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
623
Maximum-Soundpower [dB(A)]
73
Control
Glass touch
Material
Black glass

Weight and measurements

Maximum width [mm]
805
Maximum depth [mm]
520
Maximum height [mm]
205
Cooking zone rear-right [mm]
190 x 210
Cooking zone rear-left [mm]
190 x 210
Cooking zone front-right [mm]
190 x 210
Cooking zone Front-left [mm]
190 x 210
Installation dimensions WxD [mm]
765x495
Aftræksdimension (mm)
220x90
Packaging width(mm)
870
Packaging depth [mm]
575
Packaging height(mm)
275
Net weight [kg]
18
Weight
22

Features

Control
Glass touch
Boost funktion
No
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Periodic room ventilation
No
Wi-Fi
No
Automatic bridge function
No
Boost function (Hob)
Yes
Bridge function
Yes
Child safety
Yes
Pot sensor
Yes
Keep warm function
No
Automatic boiling
No
Recall
No
Safety shutdown
No
Stop & Go
No
Timer on all cooking zones
Yes
Toplink compatible
No
Smarthome
No

Technical specifications

EEI-value
43.3
EEI-class
A+
Energy consumption in off mode (Po) [W]
0.45
GFE-value
46
GFE-class
F
FDE-value
30.9
FDE-class
A
Cooking area Rear-right [W]
1800
Cooking zone Rear-left [W]
1800
Cooking zone Front-right [W]
1800
Cooking zone Front-left [W]
1800
Total power of the hob [W]
7335
Power supply [V]
230
Moottorin maksimikulutus [W]
135

Other specifications

EAN
5703347532252
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8700.9
Number of carbonfilters
1
Number of speeds ex (boost)
3
Mounting
Table integrated
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
BodyColor (RAL)
9005
Material
Black glass
Flush mounting
No
SupplyCord (m)
1
