Green Air Black

528.21.1002.2
Thermex Green Air in black is a lamp model of the highest quality. The built-in Plasmex Filter provides an effective purification of the air in your kitchen, and the installation could not be easier
Color hood
Please select variant!

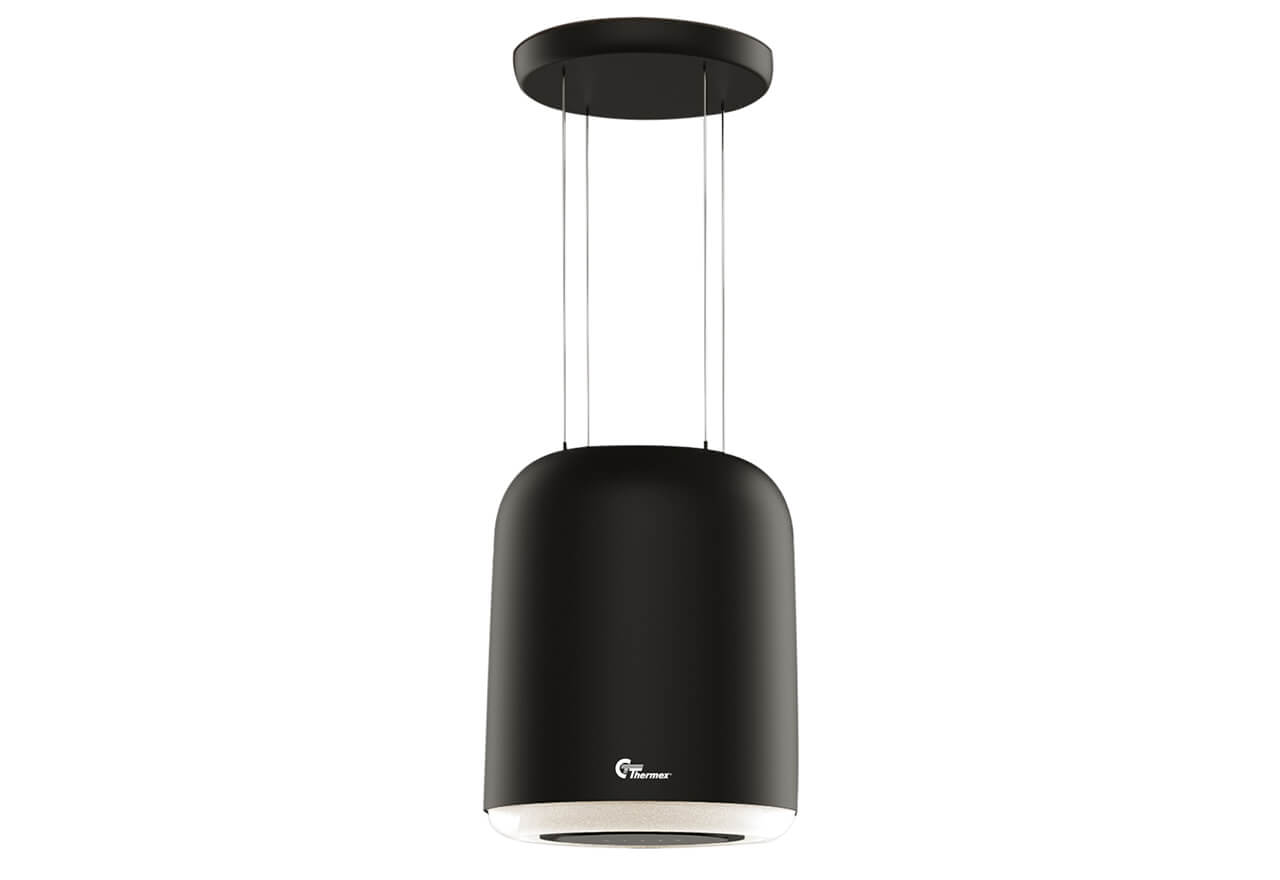

Thermex Green Air in black is a modern lamp model that fits into any kitchen. The design means that the hood could be mistaken for a ceiling lamp. Thermex Green Air is also installed just as easily as a regular ceiling light. Due to the built-in Plasmex Filter, the hood does not need any piping. If you do not have the option to install a regular exhaust, this is a very easy solution. The hood simply hangs from wires that are mounted in the ceiling.

The hood has a built-in Plasmex Filter which cleans the air extremely efficiently. 96.5% of the air is cleaned when it is sent through the filter. It is much higher than a traditional carbon filter where the air typically has to pass through 3-4 times before the air is cleaned. In the Thermex Green Air model, the air is cleaned of odors and bacteria for the first time. Plasmex filters are also used in air purifiers, so the hood can also be used as an effective air purifier. In addition, there is also a built-in UV lamp in the hood, which effectively kills unwanted bacteria. And with a lifetime of 10 years, on the Plasmex filter, you don't have to worry about changing the carbon filter in the hood like in other lamp models.

Operation

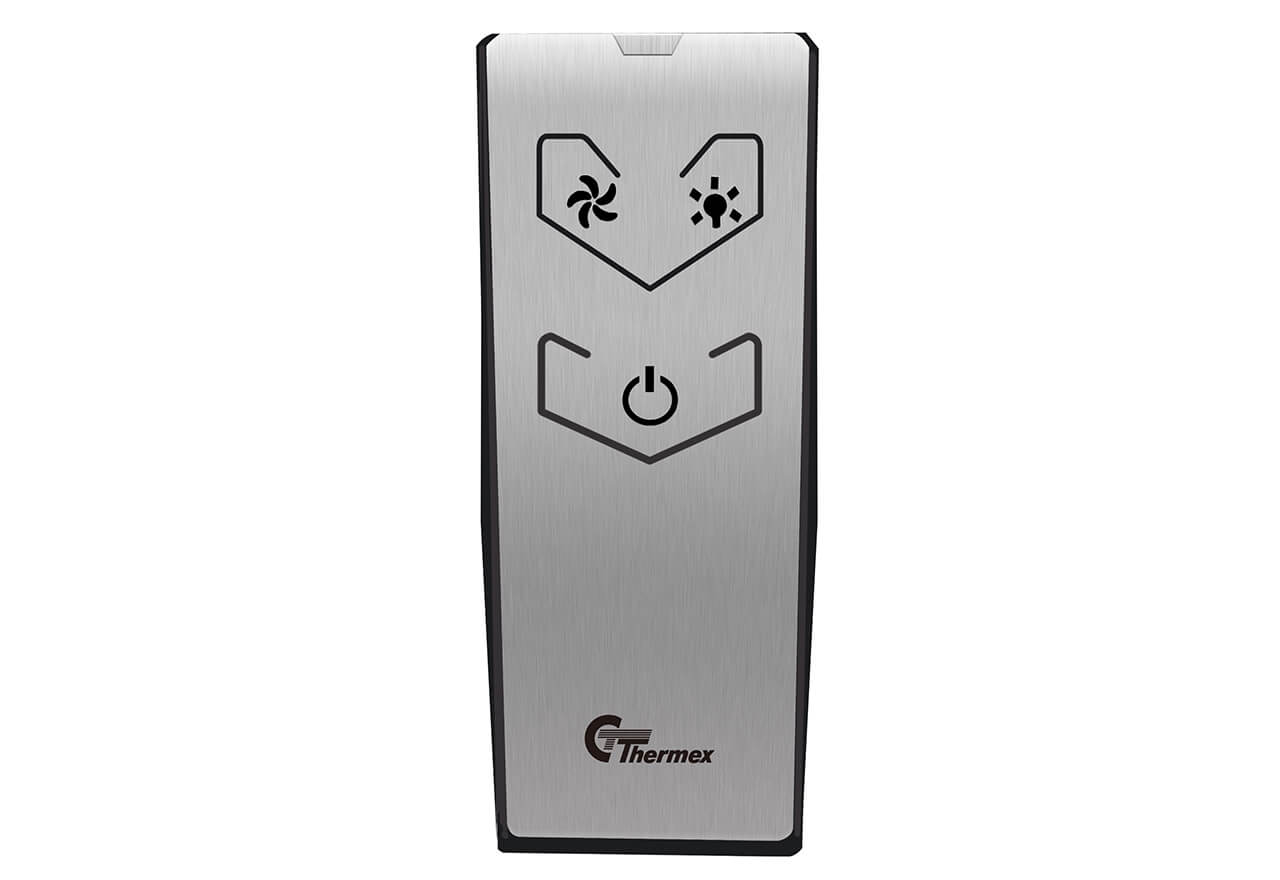

Thermex Green Air comes with a remote control, as well as a glass touch on the glass plate at the bottom of the hood. The remote control can be used to easily and simply switch the hood's light on and off. The light can be switched on in 2 strengths, 50% and 100% light. In addition, you can adjust the suction power in 3 steps.

Engine
The built-in motor in the Green Air model sends a whopping 456 m3/h through the Plasmex Filter and back into the kitchen. It provides extremely thorough ventilation in your kitchen, and odors and grease are collected in the grease filter and Plasmex filter respectively.

Specifications

Minimum airflow [m3/h]
340
Minimum-Soundpower [dB(A)]
58
Maximum-airflow [m3/h]
456
Maximum-Soundpower [dB(A)]
65
Control
Remote control
Material
Black painted steel
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
340
Minimum-Soundpower [dB(A)]
58
Maximum-airflow [m3/h]
456
Maximum-Soundpower [dB(A)]
65
Control
Remote control
Material
Black painted steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
410
Maximum depth [mm]
410
Maximum height [mm]
200
Packaging width(mm)
475
Packaging depth [mm]
475
Packaging height(mm)
590
Net weight [kg]
11
Weight
13.5

Features

Control
Remote control
Boost funktion
No
Decor light
No
Timer funktion
Nej
Indicator for filter cleaning
No
Built-in trigger function
No
Light dimmer
Yes
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Lamp consumption [W]
8
Total consumption of light (WL) [W]
8
Motor Power [W]
90
Voltage [V]
230

Other specifications

EAN
5703347530708
Type of grease filter
Plasmex®-filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
745.21.1030.2
Number of carbonfilters
1
Number of speeds ex (boost)
3
Number of lamps
1
Suction Bottom
Yes
Suction Edge
Yes
Mounting
Lamp model
Motor type
Internal motor
BodyColor
Black
Material
Black painted steel

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Exhaust fittings
