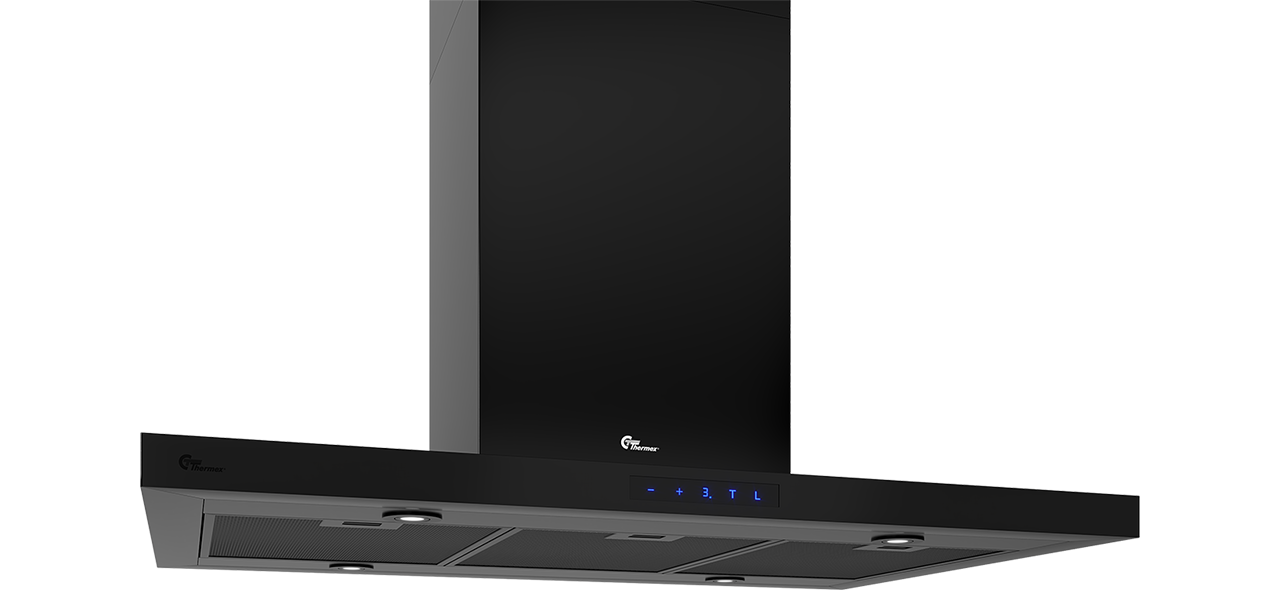

Harwich II 900 mm Black without motor

528.23.3092.0
Harwich II 90 cm Free-hanging in black without motor is a classic hood with a large suction surface, as well as a simple and user-friendly glass touch panel.
Color hood
Motor type
Please select variant!

The Thermex Harwich II is an affordable free-hanging model with a horizontal design. You get a lot of hood for the money when you choose the Harwich II, large collection surface, good extraction capacity and a stainless design. Elegant and discreet glass touch operation. The free-hanging model is available in 90 cm, and if other widths are required, the wall-mounted verios is available in a total of 4 different widths from 60 cm to 120 cm. Harwich has so-called decorative filters that look extra good. Thermex has several different external motors that suit your mounting situation and budget.

  • Stylish design
  • Elegant and discreet glass touch operation
  • Possibility of balanced air exchange using the Trigger Link Module

Specifications

Control
Glass touch
Material
Black painted steel
Voltage [V]
230

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Glass touch

The Glastouch control is an elegant solution to the normal control, which goes together with the hood. As the operation is behind a glass panel, cleaning the hood is even easier with the glass touch.

Periodic extraction

Periodic extraction is a function of the hood which makes it possible to use the hood as an aid for ventilation in the home. You can e.g. set the hood to start for 10 minutes per hour.

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Specifications

Control
Glass touch
Material
Black painted steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
900
Maximum depth [mm]
600
Maximum height [mm]
980
Vent pipe width (mm)
320
Vent pipe max height (mm)
980
Vent pipe min height (mm)
790
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
1000
Packaging depth [mm]
765
Packaging height(mm)
400
Net weight [kg]
24.7
Weight
31.5

Features

Control
Glass touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Smarthome
No

Technical specifications

LE value [lux/W]
117.5
LE-class
A
Colour temperature [Kelvin]
4000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
12
GFE-value
66.2
GFE-class
D
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.45
Voltage [V]
230

Other specifications

EAN
5703347531415
Type of grease filter
Aluminum filter
Number of filters
3
Number of carbonfilters
3
Number of speeds ex (boost)
3
Number of lamps
4
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
No
Mounting
Free-hanging
Motor type
External motor
Front panel color
Black
BodyColor
Black
Front panel material
Black lacquered steel
Material
Black painted steel
