Camino Eco III 50 cm

527.21.9258.2

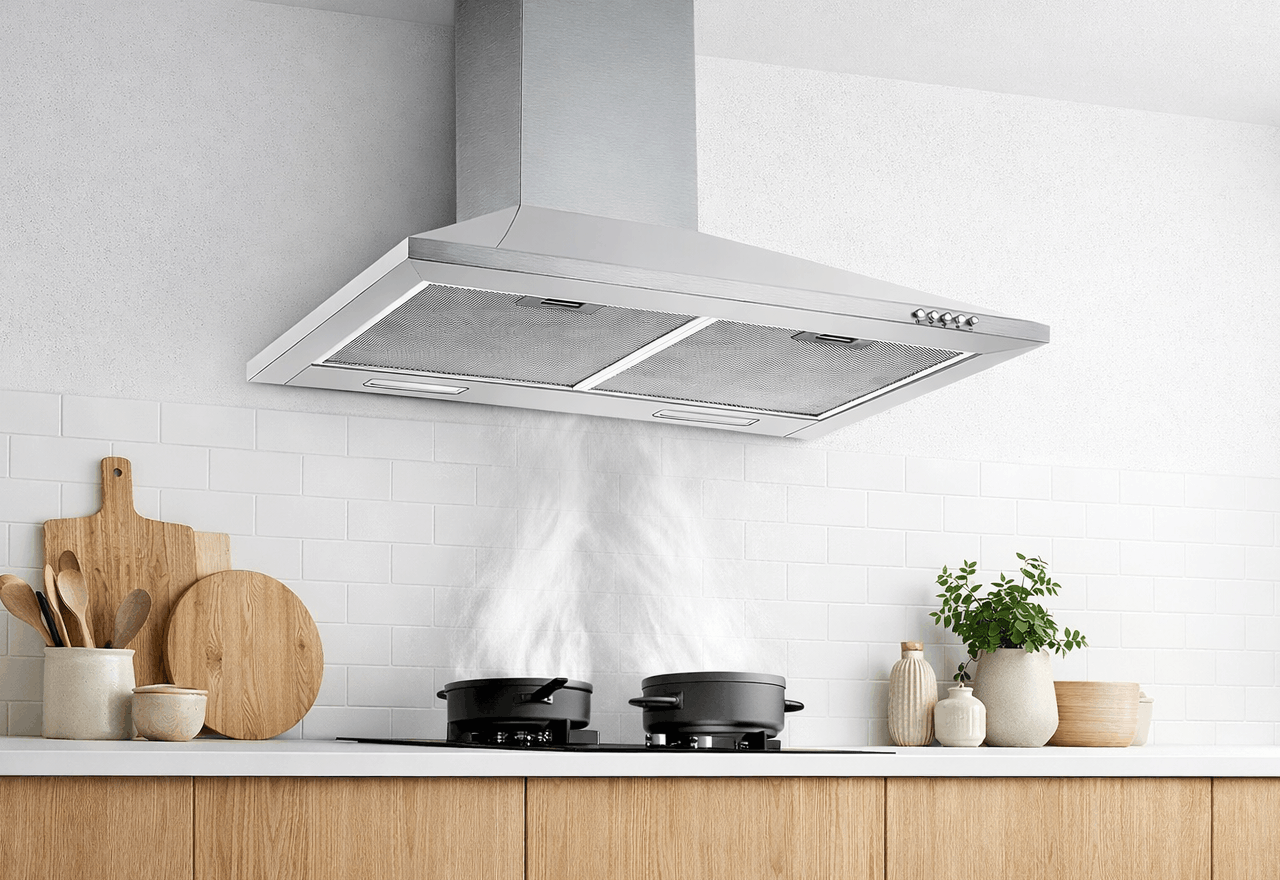

The Camino Eco III is a wall-mounted pyramid-shaped stainless steel cooker hood with a built-in motor, three speeds and LED lights. It has low noise, high performance and dishwasher-safe filters.
Width
Please select variant!

Camino Eco III is a stylish and efficient wall-mounted cooker hood in stainless steel that combines classic pyramid design with energy-saving operation and simple operation.

Design and functionality
The cooker hood is made of stainless steel with an elegant pyramid shape, which gives a timeless look to both modern and classic kitchens. The wall-mounted construction makes it suitable over the stove and hob, and the width of 50 cm is well suited for standard installations.

Features and Operation
The Camino Eco III is equipped with a built-in motor in energy class A that delivers an air flow of up to 399 m³/h. The three speeds are easily controlled via push buttons, so you can quickly adjust the extraction as needed. Two integrated LED light strips provide a bright and pleasant working light over the cooking area.

Noise level
The cooker hood works with a noise level of 50 dB(A), which provides a pleasant kitchen experience in daily use. At higher loads, it delivers extra extraction while keeping the noise level at a reasonable level.

Easy cleaning
Cleaning is simple and convenient. The surface is easily wiped with a damp cloth and the two aluminium filters can be easily removed and washed in the dishwasher, so the cooker hood can always be kept clean and efficient.

Specifications
Airflow: 207-399 m3/h
Noise level: 50-65 dB(A)
Material; Stainless steel
Power supply: 230V
Dimensions: 500x475x953 mm

The Camino Eco III is the obvious choice for those who want an energy-efficient, user-friendly and elegant cooker hood with stable performance and easy maintenance.

  • Classic stainless steel pyramid shape
  • Built-in motor in energy class A
  • Air capacity up to 399 m3/h
  • Two LED light strips provide bright work light
  • Aluminium filters are dishwasher safe

Specifications

Minimum airflow [m3/h]
207
Minimum-Soundpower [dB(A)]
50
Maximum-airflow [m3/h]
399
Maximum-Soundpower [dB(A)]
65
Control
Push buttons
Material
Stainless steel
Energy consumption [W]
54
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
207
Minimum-Soundpower [dB(A)]
50
Maximum-airflow [m3/h]
399
Maximum-Soundpower [dB(A)]
65
Control
Push buttons
Material
Stainless steel
Energy consumption [W]
54
Voltage [V]
230

Weight and measurements

Maximum width [mm]
500
Maximum depth [mm]
475
Maximum height [mm]
953
Vent pipe width (mm)
222
Vent pipe max height (mm)
773
Vent pipe min height (mm)
393
Outlet dimension (mm)
Ø150
Packaging width(mm)
570
Packaging depth [mm]
250
Packaging height(mm)
525
Net weight [kg]
7
Weight
8

Features

Control
Push buttons
Boost funktion
No
Decor light
No
Timer funktion
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
130
LE value [lux/W]
30
LE-class
A
EEI-value
54.4
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
4
GFE-value
58.3
GFE-class
E
FDE-value
18.1
FDE-class
C
AEC [kWh/h]
20.5
Energy consumption [W]
54
Energiforbrug standby (Ps) [W]
0.5
Motor Power [W]
50
Voltage [V]
230

Other specifications

EAN
5703347535093
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.21.7000.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
BodyColor
Stainless steel
Material
Stainless steel
SupplyCord (m)
1.2
Battery type
None
Number of batteries
0

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
