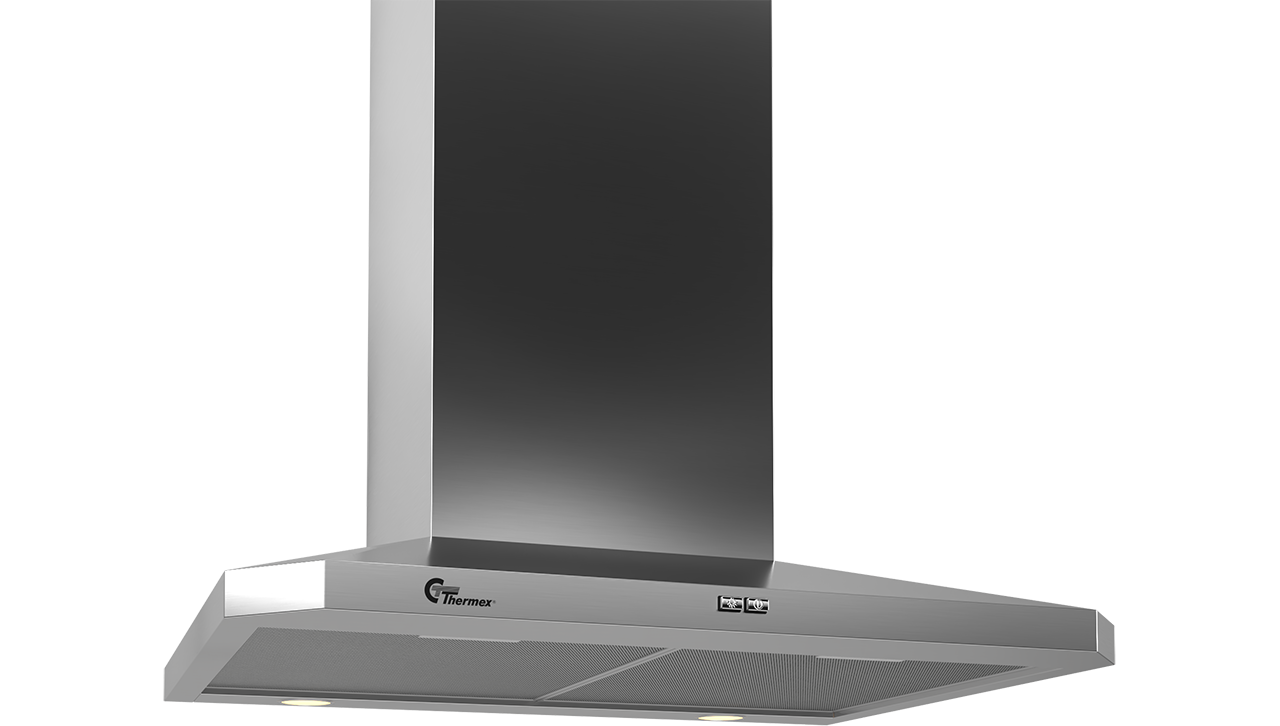

Central 787 600 mm Stainless

530.41.9068.2
Thermex Central 787 600 in stainless is the market's most efficient decorative extractor hood for communal chimneys. The hood's large filter surface provides maximum absorption with a minimum of air flow.
Width
Color hood
Please select variant!

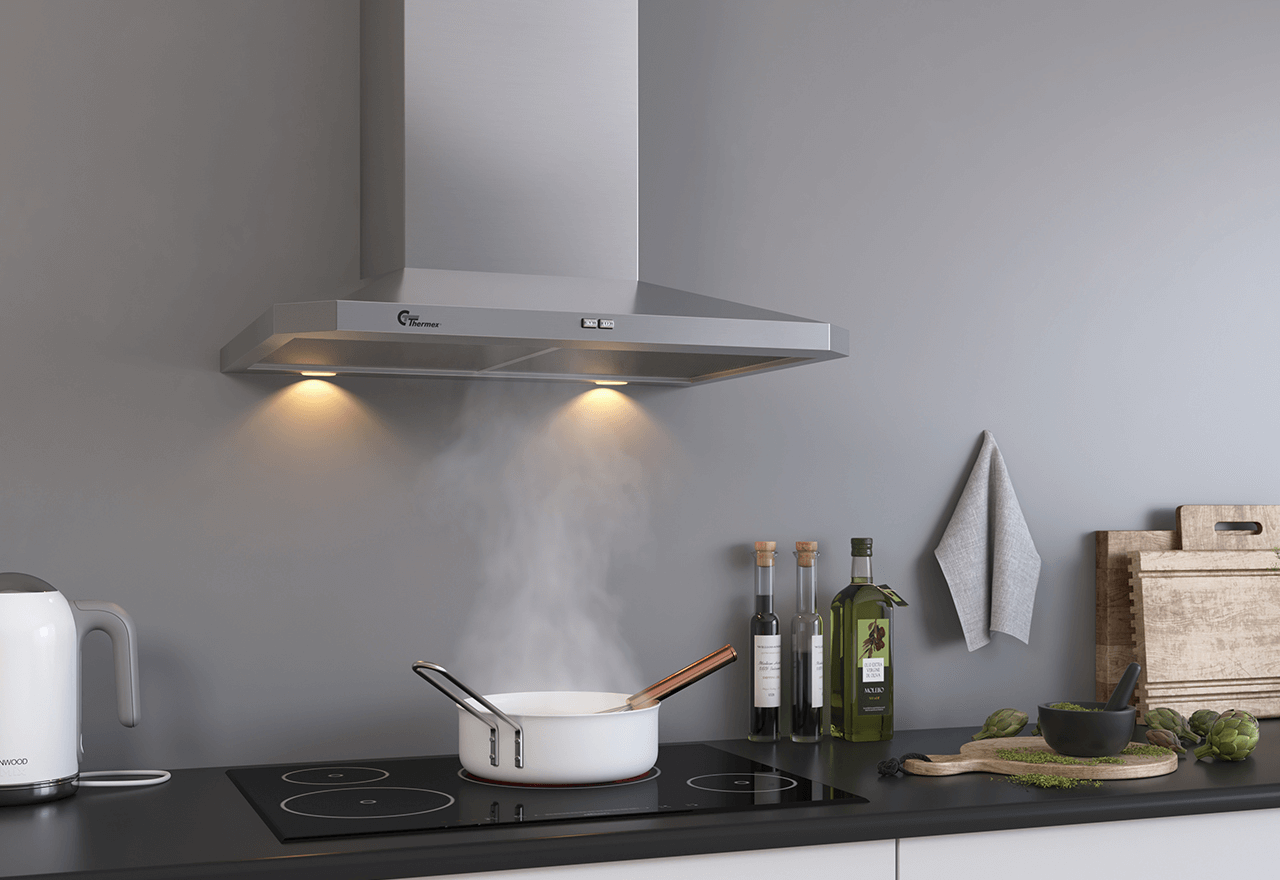

If you do not want a cupboard above the hob, then the Central 787 will be a good choice when you have to choose an extractor hood and live in an apartment with a communal exhaust. Beautiful, efficient and energy-saving. The hood is available in two different sizes (60 and 90 cm in width), and is made of stainless steel. Light and damper can be controlled with two buttons on the front of the hood. Central 787 has a built-in switch so that it can cooperate with the ventilation system in the building. Tested and recognized by the authorities for communal flues.

  • Built-in switch (Trigger)
  • Large suction surface
  • Classic design
  • Simple operation

Specifications

Control
Push buttons
Material
Stainless steel
Odour extraction >75% installation height 600 mm [m3/t]
234
See all specifications

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Specifications

Control
Push buttons
Material
Stainless steel
Odour extraction >75% installation height 600 mm [m3/t]
234

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
598
Maximum height [mm]
1115
Vent pipe width (mm)
285
Vent pipe max height (mm)
1165
Vent pipe min height (mm)
700
Minimum length vent pipe cutdown [mm]
500
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø125
Packaging width(mm)
680
Packaging depth [mm]
460
Packaging height(mm)
630
Net weight [kg]
10.5
Weight
15

Features

Control
Push buttons
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.3
Total consumption of light (WL) [W]
2.6
SEL-værdi
0
Power supply [V]
230
Odour extraction >75% installation height 600 mm [m3/t]
234
Odour extraction test standard
EN 13141-3

Other specifications

EAN
5703347528866
Type of grease filter
Aluminum filter
Number of filters
2
Number of speeds ex (boost)
2
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Central ventilation
BodyColor
Stainless steel
BodyColor (RAL)
0
Material
Stainless steel

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Exhaust fittings
