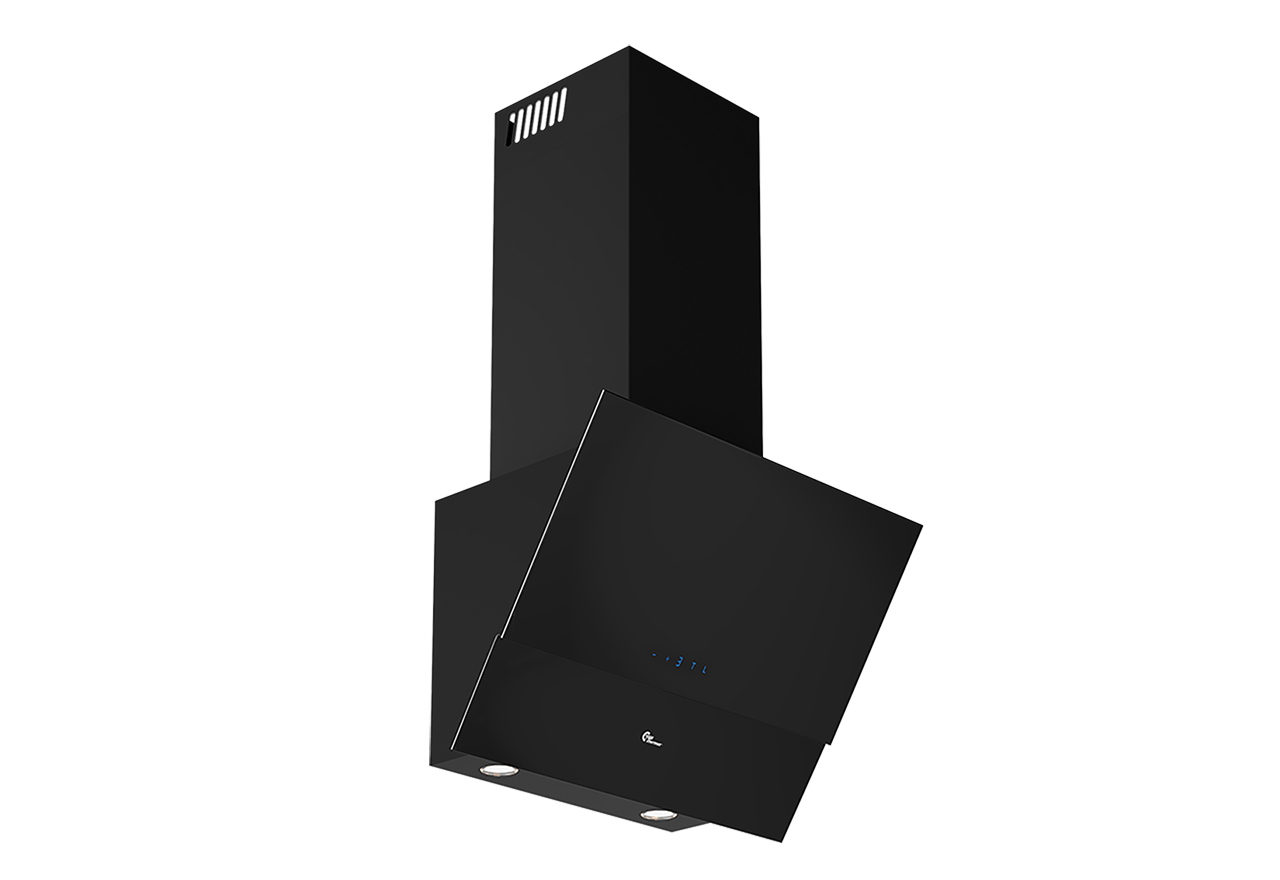

Central Dax 60 cm black, villa

540.23.5068.8

Central Dax villa comes with a unique wireless control for forcing from wet rooms. If control from more wet areas is desired, this is ordered when purchasing the cover.

Width
Motor type
Please select variant!
Central Dax villa is stylish and discreet with black flat glass in 600 or 800 mm width. The lower glass panel can be opened for more efficient absorption. Central Dax villa comes with a unique wireless control for forcing from wet rooms. If control from more wet areas is desired, this is ordered when purchasing the cover.
  • Modern design in black glass
  • Effective front suction
  • Glass door can be opened for extra suction
  • Motor-driven damper with setting of foundation and forcing flow
  • Wireless control of ventilation from the bathroom or laundry room

Specifications

Control
Glass touch
Material
Black painted steel and Black glass

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Glass touch

The Glastouch control is an elegant solution to the normal control, which goes together with the hood. As the operation is behind a glass panel, cleaning the hood is even easier with the glass touch.

Front suction

This hood has front suction. This means that there is a suction slot in the front of the hood, which makes the suction even more effective. This especially helps to catch the embers from the outermost cooking zones.

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Specifications

Control
Glass touch
Material
Black painted steel and Black glass

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
375
Maximum height [mm]
1135
Vent pipe width (mm)
255
Vent pipe max height (mm)
980
Vent pipe min height (mm)
480
Minimum length vent pipe cutdown [mm]
350
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø125
Net weight [kg]
16
Weight
19

Features

Control
Glass touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
No
Periodic room ventilation
Yes
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
240
LE value [lux/W]
40
LE-class
G
Colour temperature [Kelvin]
3000
Lamp consumption [W]
3
Total consumption of light (WL) [W]
6
Power supply [V]
230

Other specifications

EAN
5703347526084
Type of grease filter
Aluminum filter
Number of filters
1
Number of lamps
2
Suction Bottom
No
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Centralventilation Villa
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.7

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Exhaust fittings
