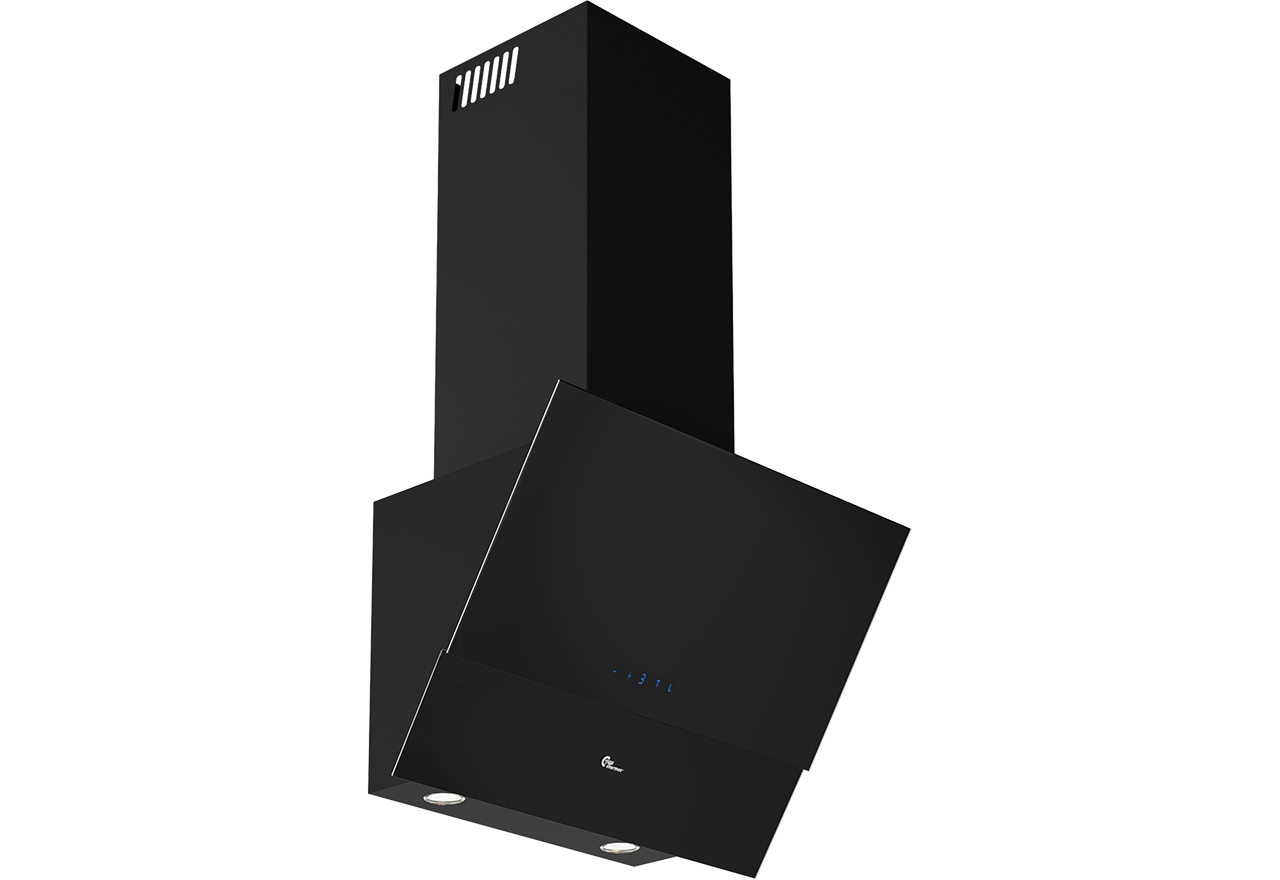

Dax 600 mm Black With motor

540.23.5068.2
Thermex Dax 60 cm in black with motor is a nice and stylish vertical hood. The black flat glass together with the elegant glass touch operation will adorn any kitchen. Model Dax can be used with all ventilation types, and can therefore be used with ten
Width
Motor type
Please select variant!

Thermex Dax is a nice and stylish vertical hood. The black flat glass together with the elegant glass touch operation will adorn any kitchen. Model Dax is Thermex «All Possibilities» compatible, so it can be adapted to all homes and all imaginable ventilation solutions.

A really decorative and good solution. The built-in motor can produce up to 405 m3/h and as much as 655 m3/h when using the boost function.

  • Modern design in black glass
  • Effective front suction
  • Glass door can be opened for extra suction
  • Toplink compatible
  • Glass touch

Specifications

Minimum airflow [m3/h]
235
Minimum-Soundpower [dB(A)]
54
Maximum-airflow [m3/h]
405
Maximum-Soundpower [dB(A)]
61
Airflow with boost [m3/h]
655
Soundpower boost [dB(A)]
69
Control
Glass touch
Material
Black painted steel and Black glass

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Glass touch

The Glastouch control is an elegant solution to the normal control, which goes together with the hood. As the operation is behind a glass panel, cleaning the hood is even easier with the glass touch.

Front suction

This hood has front suction. This means that there is a suction slot in the front of the hood, which makes the suction even more effective. This especially helps to catch the embers from the outermost cooking zones.

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Specifications

Minimum airflow [m3/h]
235
Minimum-Soundpower [dB(A)]
54
Maximum-airflow [m3/h]
405
Maximum-Soundpower [dB(A)]
61
Airflow with boost [m3/h]
655
Soundpower boost [dB(A)]
69
Control
Glass touch
Material
Black painted steel and Black glass

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
375
Maximum height [mm]
1135
Vent pipe width (mm)
255
Vent pipe max height (mm)
980
Vent pipe min height (mm)
480
Minimum length vent pipe cutdown [mm]
350
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
710
Packaging depth [mm]
485
Packaging height(mm)
515
Net weight [kg]
13
Weight
15

Features

Control
Glass touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
Yes
Wi-Fi
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
240
LE value [lux/W]
40
LE-class
A
EEI-value
63.9
EEI-class
B
Colour temperature [Kelvin]
3000
Lamp consumption [W]
3
Total consumption of light (WL) [W]
6
GFE-value
56.3
GFE-class
E
FDE-value
24.8
FDE-class
B
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.45
Motor Power [W]
260

Other specifications

EAN
5703347525018
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.23.0575.9
Number of carbonfilters
1
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
No
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.7
