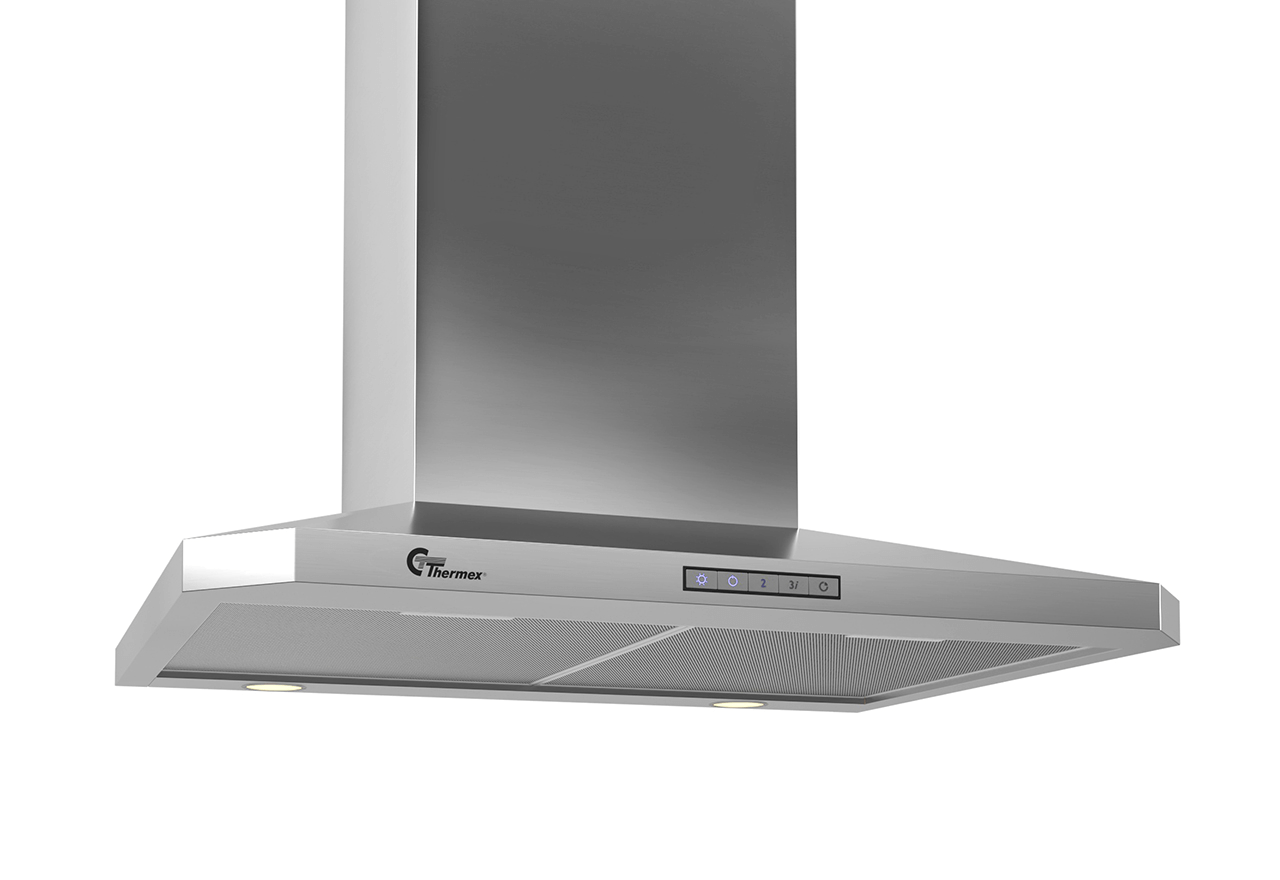

Decor 787 wall 60 cm Stainless Without motor
527.41.7868.0
Decor 787 60cm in stainless steel without motor is a classic pyramid-shaped kitchen hood with a large suction surface, as well as a simple and user-friendly control panel
Width
Color hood
Motor type
Many people do not want an upper cabinet where the hob should stand, and if this is the case for you, then Decor 787 is a good choice. You can choose between the colors white, black and stainless steel, and you can choose between 3 different widths (60, 70 and 90 cm). Decor 787 is a neat, efficient and energy-saving extractor hood with its Thermex «All Possibilities» solution can be adapted to all homes regardless of exhaust and ventilation solution, it is also available in a free-hanging model in 60 and 90 cm width.
- Efficient and energy-saving hood
- Classic design
- Modern soft touch operation
- Many color and width options
Specifications
Control
Soft touch
Material
Stainless steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
500
Maximum height [mm]
1165
Vent pipe width (mm)
285
Vent pipe max height (mm)
1065
Vent pipe min height (mm)
600
Minimum length vent pipe cutdown [mm]
400
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø160
Packaging width(mm)
470
Packaging depth [mm]
680
Packaging height(mm)
630
Net weight [kg]
13
Weight
15
Features
Control
Soft touch
Boost funktion
Yes
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
Yes
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
LE value [lux/W]
38
LE-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.3
Total consumption of light (WL) [W]
2.6
GFE-value
80.7
GFE-class
C
Voltage [V]
230
Other specifications
EAN
5703347527975
Type of grease filter
Aluminum filter
Number of filters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
External motor
Front panel color
Stainless steel
BodyColor
Stainless steel
Material
Stainless steel
