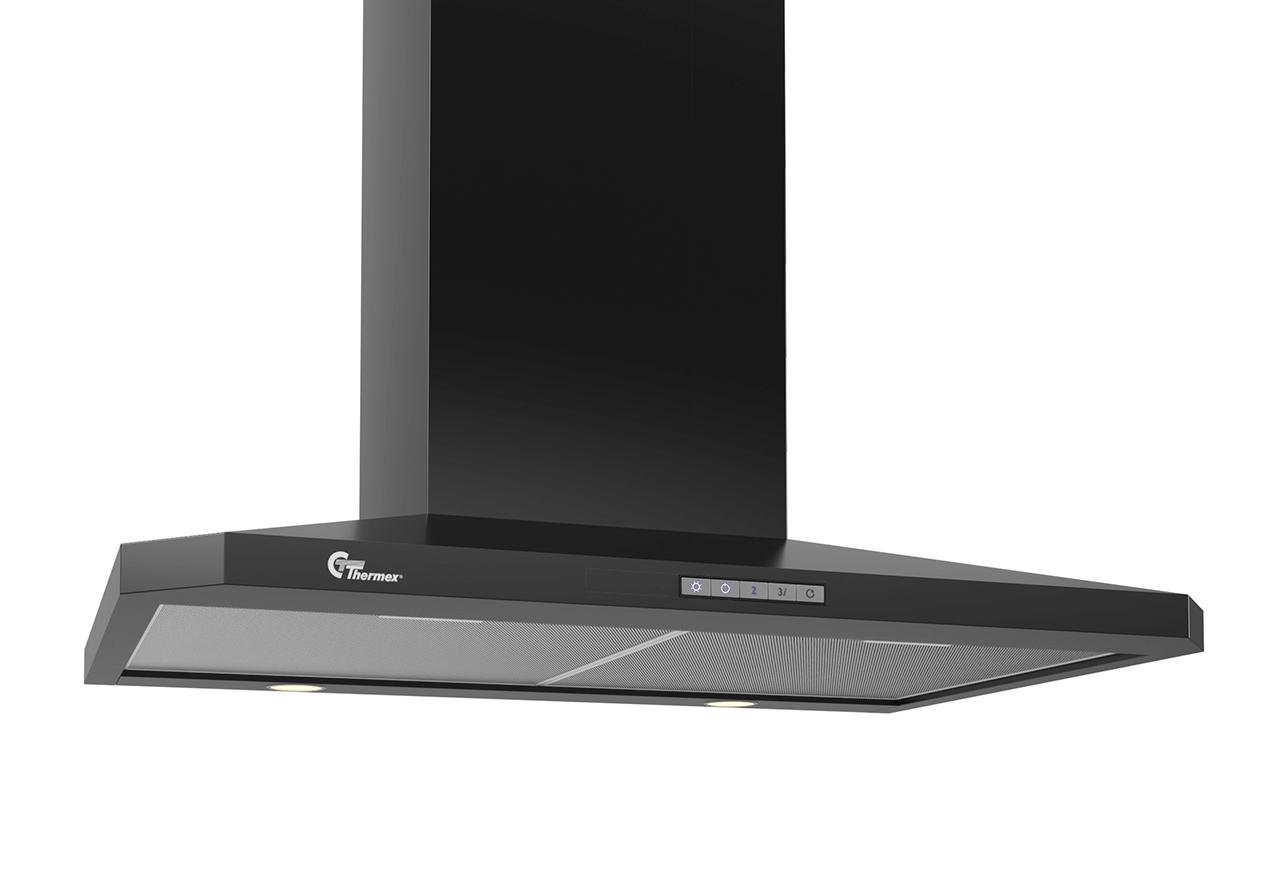

Decor 787 wall 70 cm Black With motor

527.41.7872.2
Decor 787 70cm in black with motor is a classic pyramid-shaped kitchen hood with large suction surface, efficient motor and simple and user-friendly control panel
Width
Color hood
Motor type
Please select variant!

Many people do not want an upper cabinet where the hob should stand, and if this is the case for you, then Decor 787 is a good choice. You can choose between the colors white, black and stainless steel, and you can choose between 3 different widths (60, 70 and 90 cm). Decor 787 is a neat, efficient and energy-saving extractor hood with its Thermex «All Possibilities» solution can be adapted to all homes regardless of exhaust and ventilation solution, it is also available in a free-hanging model in 60 and 90 cm width. Thermex has several different external motors that suit your mounting situation and budget. The built-in engine can produce up to 605 m3/h and as much as 724 m3/h when using the boost function.

  • Efficient and energy-saving hood
  • Classic design
  • Modern soft touch operation
  • Many color and width options

Specifications

Minimum airflow [m3/h]
331
Minimum-Soundpower [dB(A)]
48
Maximum-airflow [m3/h]
605
Maximum-Soundpower [dB(A)]
60
Airflow with boost [m3/h]
724
Soundpower boost [dB(A)]
68
Control
Soft touch
Material
Black painted steel
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
331
Minimum-Soundpower [dB(A)]
48
Maximum-airflow [m3/h]
605
Maximum-Soundpower [dB(A)]
60
Airflow with boost [m3/h]
724
Soundpower boost [dB(A)]
68
Control
Soft touch
Material
Black painted steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
700
Maximum depth [mm]
500
Maximum height [mm]
1165
Vent pipe width (mm)
285
Vent pipe max height (mm)
1065
Vent pipe min height (mm)
600
Minimum length vent pipe cutdown [mm]
450
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
470
Packaging depth [mm]
770
Packaging height(mm)
630
Net weight [kg]
16
Weight
18

Features

Control
Soft touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
Yes
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

LE value [lux/W]
38
LE-class
A
EEI-class
A+
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.3
Total consumption of light (WL) [W]
2.6
GFE-value
80.7
GFE-class
C
FDE-value
34.4
FDE-class
A
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.48
Motor Power [W]
265
Voltage [V]
230

Other specifications

EAN
5703347523762
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.41.0500.9
Number of carbonfilters
1
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Material
Black painted steel
