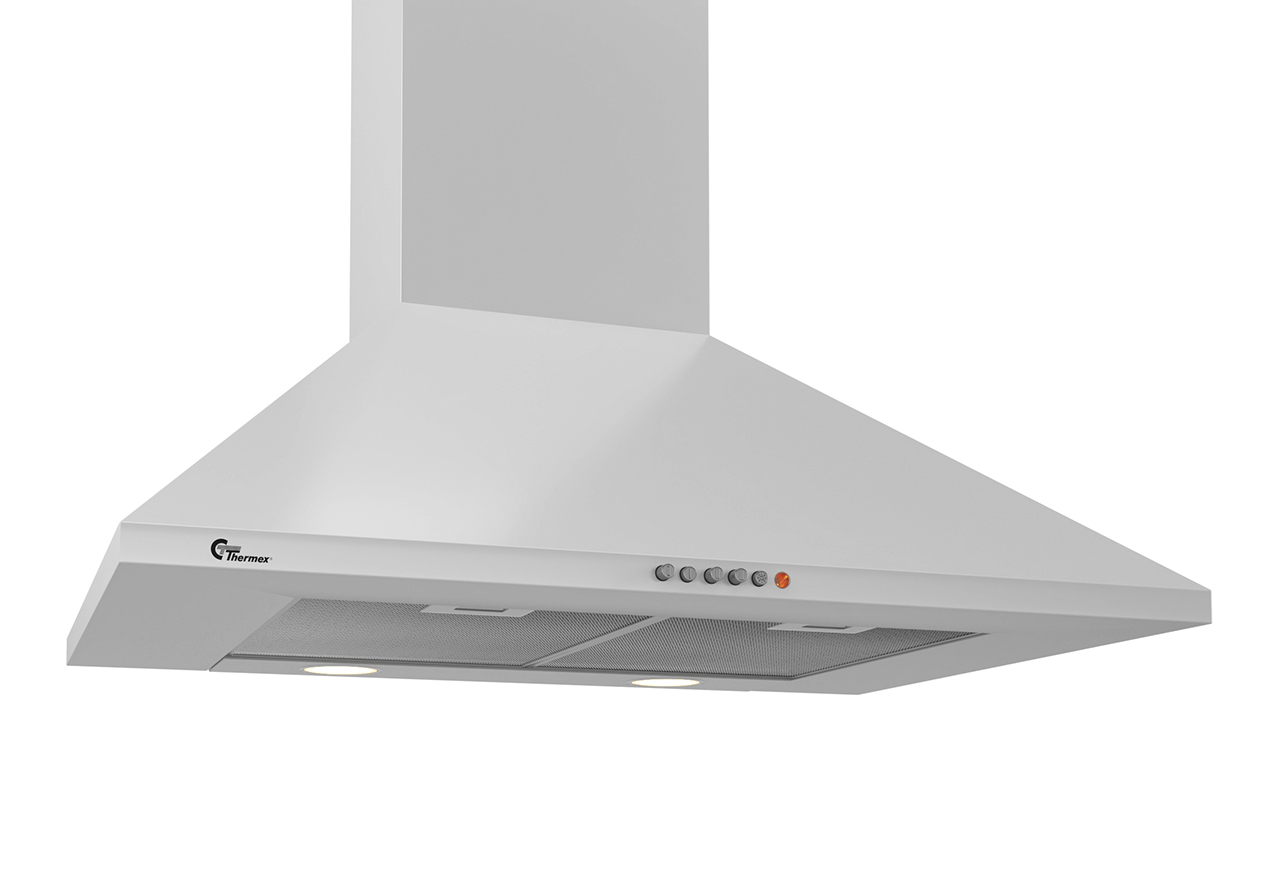

Decor 942 700 mm White With motor

527.41.3171.2
Thermex Decor 942 70 cm in white with motor is a classic pyramid-shaped hood with a large suction surface, efficient motor, and a simple and easy-to-use control panel
Width
Color hood
Please select variant!

Thermex Decor 942 has the classic pyramid shape and is available in white or stainless steel. Many people do not want an upper cabinet where the hob will be, if that is the case for you then Decor 942 is a good choice when you need to buy a hood. It is available in 2 different widths (60 and 70 cm). Can be used together with carbon filter. As with all wall-mounted models, the channel can be adapted to the ceiling height in your kitchen, either by using the connection function in the standard channel or by using a special channel. The built-in motor can produce up to 381 m3/h.

  • Possibility of balanced air exchange using the Trigger Link Module
  • Classic design
  • Simple operation
  • Large suction surface

Specifications

Minimum airflow [m3/h]
199.3
Minimum-Soundpower [dB(A)]
49
Maximum-airflow [m3/h]
381.7
Maximum-Soundpower [dB(A)]
61
Control
Push buttons
Material
White painted steel
Voltage [V]
230

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Push button

The classic push button regulation has been used in hoods for many years. It's a simple way to turn on the lights and engine by pressing the spring actuated buttons. Simple and incredibly reliable.

Specifications

Minimum airflow [m3/h]
199.3
Minimum-Soundpower [dB(A)]
49
Maximum-airflow [m3/h]
381.7
Maximum-Soundpower [dB(A)]
61
Control
Push buttons
Material
White painted steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
700
Maximum depth [mm]
470
Maximum height [mm]
1015
Vent pipe width (mm)
196
Vent pipe max height (mm)
850
Vent pipe min height (mm)
470
Minimum length vent pipe cutdown [mm]
500
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
390
Packaging depth [mm]
780
Packaging height(mm)
550
Net weight [kg]
9
Weight
11

Features

Control
Push buttons
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
100
LE value [lux/W]
38
LE-class
A
EEI-value
87.8
EEI-class
D
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.3
Total consumption of light (WL) [W]
2.6
GFE-value
80.7
GFE-class
C
FDE-value
8.1
FDE-class
E
Motor Power [W]
130
Voltage [V]
230

Other specifications

EAN
5703347523854
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.41.0900.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
Material
White painted steel

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
