Glasgow 80 cm black with motor
540.21.1082.2

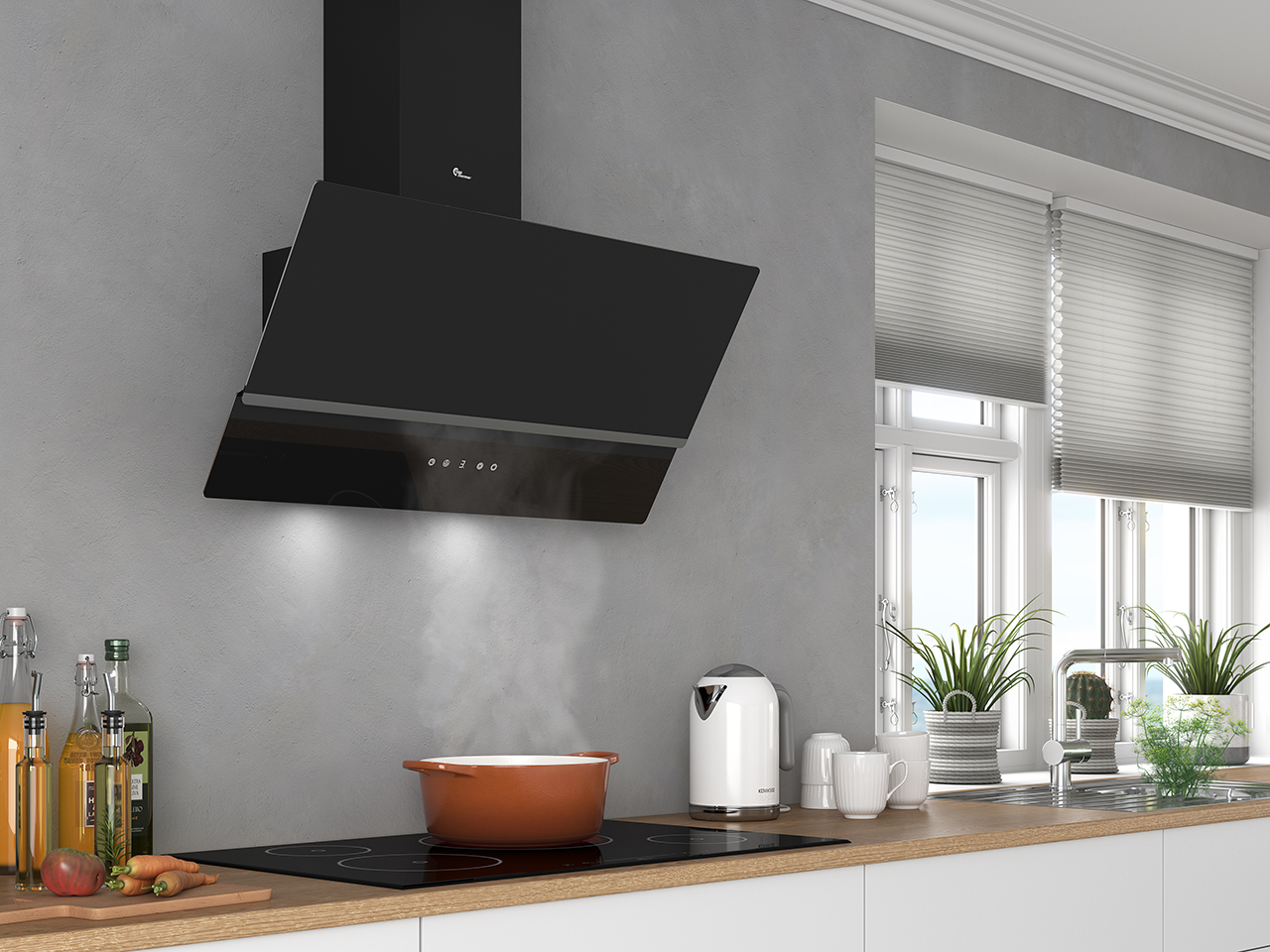

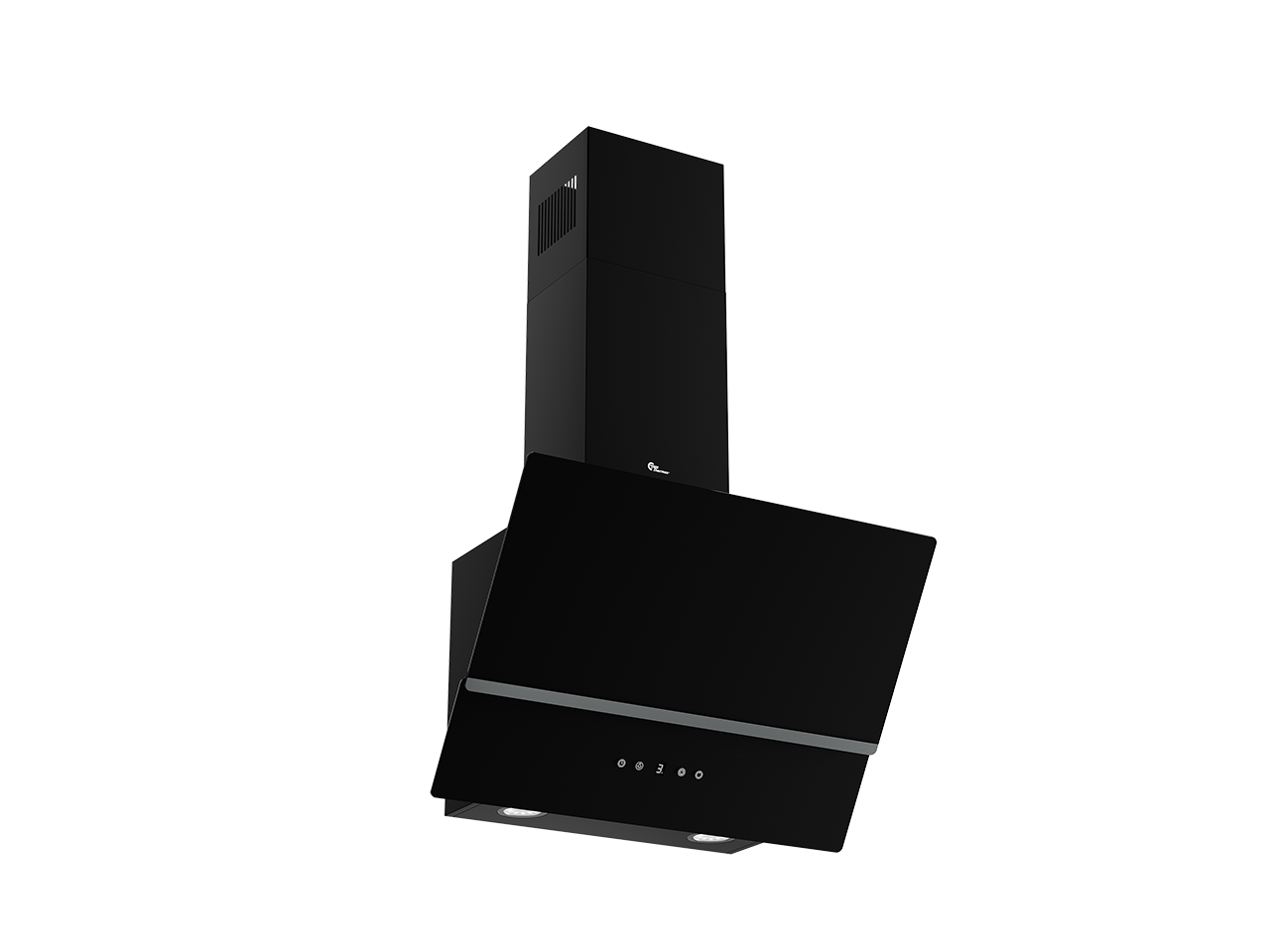

Thermex Glasgow 80 cm in black with motor is a price-friendly slanted hood with strong suction motor and simple glass touch control panel.
Width
A new Thermex bestseller is in the making, namely the wall-mounted and inclined Thermex Glasgow. Affordable price, stylish design and fine specifications make it a sure winner. We don't know in advance whether your kitchen will look best with the one that is 60 cm wide or 80 cm wide, but we do know that it will form a work of art on the wall. Do like many others choose Thermex Glasgow, you won't regret it. The built-in motor can produce up to 543 m3/h
Specifications
Minimum airflow [m3/h]
180
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
543
Maximum-Soundpower [dB(A)]
64
Energy consumption [W]
78
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230
Specifications
Minimum airflow [m3/h]
180
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
543
Maximum-Soundpower [dB(A)]
64
Energy consumption [W]
78
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230
Weight and measurements
Maximum width [mm]
800
Maximum depth [mm]
375
Maximum height [mm]
1150
Vent pipe width (mm)
222
Vent pipe max height (mm)
780
Vent pipe min height (mm)
400
Minimum length vent pipe cutdown [mm]
370
Outlet dimension (mm)
Ø150
Packaging width(mm)
852
Packaging depth [mm]
440
Packaging height(mm)
435
Net weight [kg]
13.6
Weight
16.6
Features
Control
Glass touch
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
138
LE value [lux/W]
32.9
LE-class
A
EEI-value
38.8
EEI-class
A+
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
82
GFE-class
C
FDE-value
32.5
FDE-class
A
Energy consumption [W]
78
Energiforbrug standby (Ps) [W]
0.43
Motor Power [W]
75
Voltage [V]
230
Other specifications
EAN
5703347532085
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8600.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
No
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.2
Downloads
Here you will find all documents relevant to this product
