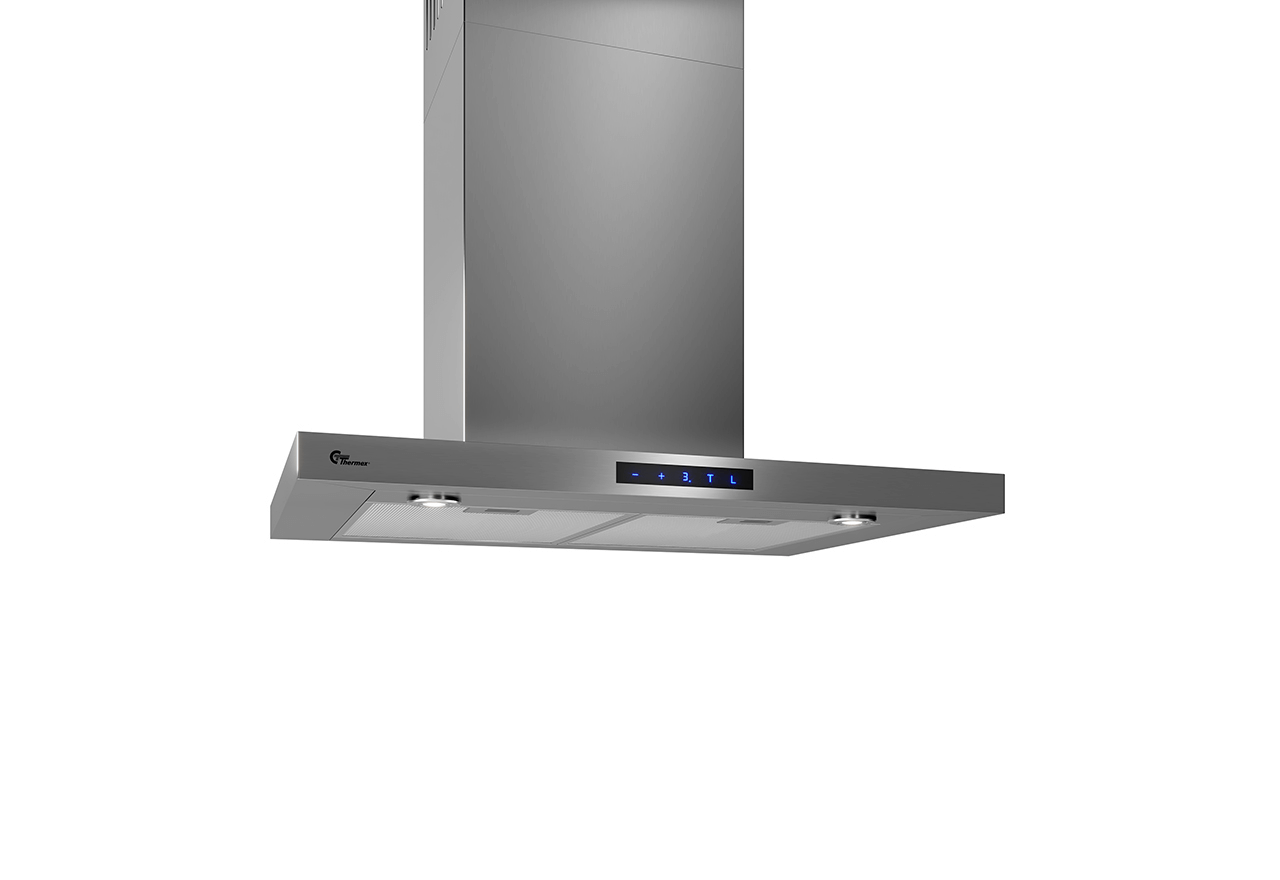

Harwich II wall 700 mm Stainless with motor
527.23.3078.2
Harwich II 70 cm stainless with motor is a classic hood with a large suction surface, strong suction motor and efficient lighting.
Width
Color hood
Motor type
The Thermex Harwich II is an affordable wall-mounted model with a horizontal design. You get a lot of hood for the money when you choose the Harwich II, large collection surface, good extraction capacity and a stainless design. Elegant and discreet glass touch operation. Available in 4 different widths from 60 cm to 120 cm. It is also available in a free-hanging model of 90 cm width. Harwich has so-called decorative filters that look extra good. The built-in engine can produce up to 505 m3/h and as much as 705 m3/h when using the boost function.
- Stylish design
- Elegant and discreet glass touch operation
- Possibility of balanced air exchange using the Trigger Link Module
Specifications
Minimum airflow [m3/h]
205
Minimum-Soundpower [dB(A)]
46
Maximum-airflow [m3/h]
505
Maximum-Soundpower [dB(A)]
63
Airflow with boost [m3/h]
705
Soundpower boost [dB(A)]
68
Control
Glass touch
Material
Stainless steel
Specifications
Minimum airflow [m3/h]
205
Minimum-Soundpower [dB(A)]
46
Maximum-airflow [m3/h]
505
Maximum-Soundpower [dB(A)]
63
Airflow with boost [m3/h]
705
Soundpower boost [dB(A)]
68
Control
Glass touch
Material
Stainless steel
Weight and measurements
Maximum width [mm]
700
Maximum depth [mm]
500
Maximum height [mm]
990
Vent pipe width (mm)
325
Vent pipe max height (mm)
980
Vent pipe min height (mm)
490
Minimum length vent pipe cutdown [mm]
650
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
820
Packaging depth [mm]
570
Packaging height(mm)
470
Net weight [kg]
14.5
Weight
18
Features
Control
Glass touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Smarthome
No
Technical specifications
LE value [lux/W]
125
LE-class
G
EEI-value
34.3
EEI-class
A++
Colour temperature [Kelvin]
4000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
3
GFE-value
65.5
GFE-class
D
FDE-value
37.8
FDE-class
A
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.45
Moottorin maksimikulutus [W]
160
Other specifications
EAN
5703347531361
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.23.0545.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Stainless steel
BodyColor
Stainless steel
Front panel material
Stainless steel
BodyColor (RAL)
0
Material
Stainless steel
