Central Harwich II wall 90cm black, apartment timer
527.23.3092.7

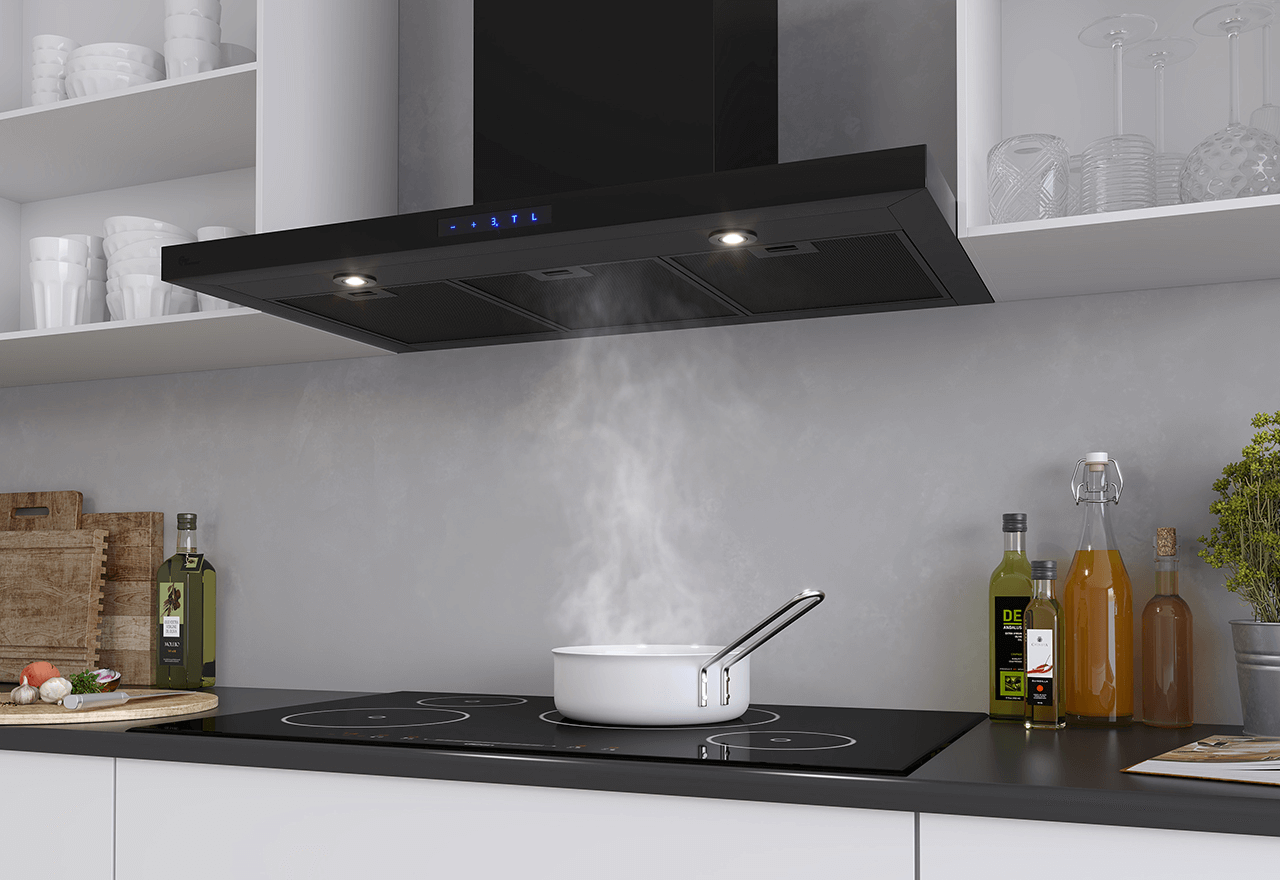

Central Harwich II apartment 90 cm in black is thin and elegant in a modern design with a glass touch panel on the front.
Width
Color hood
Motor type
Central Harwich II apartment 90 cm in black is thin and elegant in a modern design with a glass touch panel on the front. With 3 widths 600, 700 or 900 mm and in 2 different colours, it fits both with stainless or black kitchen equipment. The large filter surfaces provide effective non-absorption. The model is also equipped with energy-saving LED lighting. Central Harwich II apartment comes with electronic timer controlled damper, 15-30-45 and 60 min.
- Glass touch panel
- Electronic timer-controlled damper with setting of basic and forcing flow
- Toplink compatible
Specifications
Control
Glass touch
Material
Black painted steel
Weight and measurements
Maximum width [mm]
900
Maximum depth [mm]
500
Maximum height [mm]
990
Vent pipe width (mm)
325
Vent pipe max height (mm)
980
Vent pipe min height (mm)
490
Minimum length vent pipe cutdown [mm]
650
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø125
Packaging width(mm)
1000
Packaging depth [mm]
575
Packaging height(mm)
540
Net weight [kg]
17.2
Weight
21.8
Features
Control
Glass touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
LE value [lux/W]
120
LE-class
G
Colour temperature [Kelvin]
4000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
3
GFE-value
65.5
GFE-class
D
Power supply [V]
230
Other specifications
EAN
5703347531804
Type of grease filter
Aluminum filter
Number of filters
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Central ventilation
Front panel color
Black
BodyColor
Black
Front panel material
Black lacquered steel
Material
Black painted steel
