Harwich II wall 900 mm Black with motor

527.23.3092.2

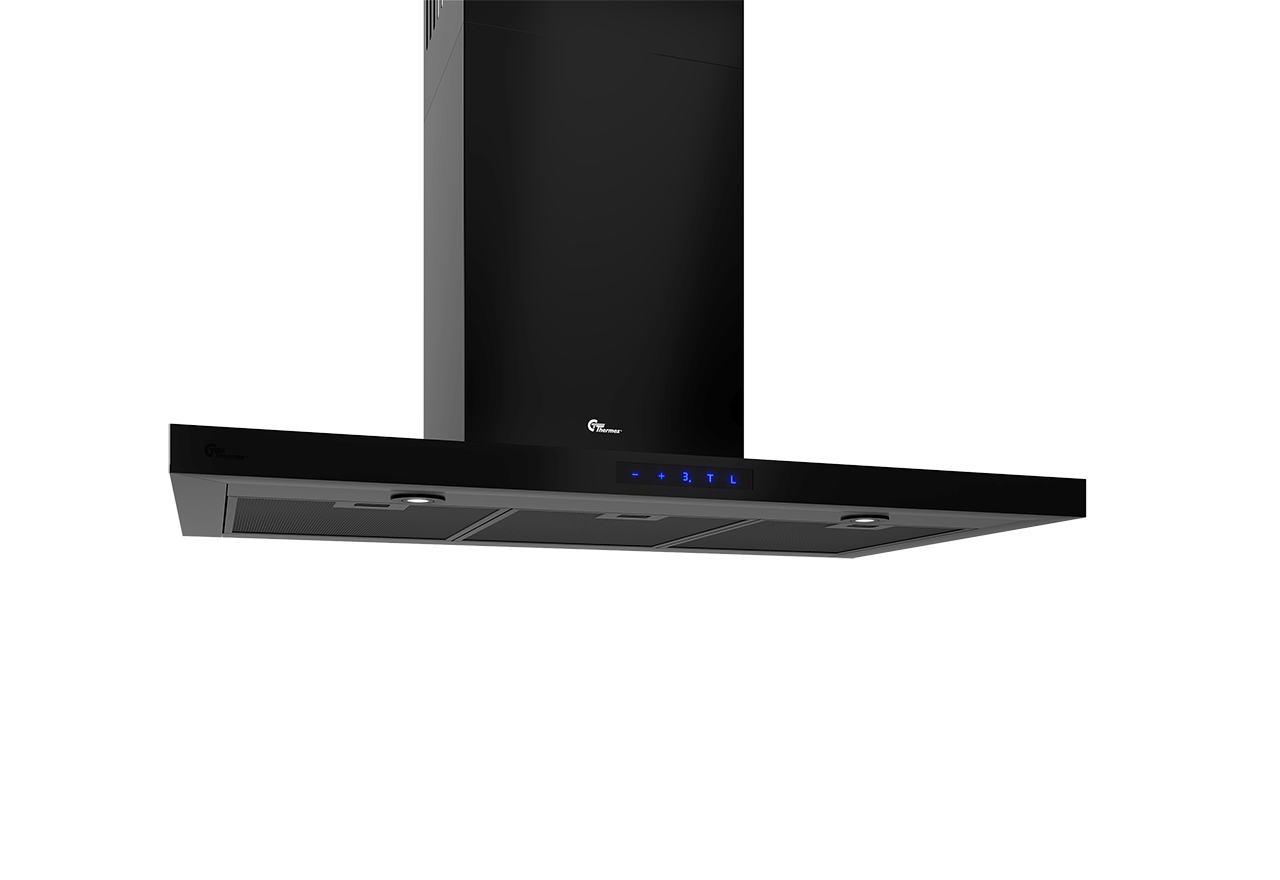

Harwich II 90 cm in black with motor is a classic hood with a large suction surface, strong suction motor and efficient lighting
Width
Color hood
Motor type
Please select variant!

The Thermex Harwich II is an affordable wall-mounted model with a horizontal design. You get a lot of hood for the money when you choose the Harwich II, large collection surface, good extraction capacity and a stainless design. Elegant and discreet glass touch operation. Available in 4 different widths from 60 cm to 120 cm. It is also available in a free-hanging model of 90 cm width. Harwich has so-called decorative filters that look extra good. The built-in engine can produce up to 505 m3/h and as much as 705 m3/h when using the boost function.

  • Stylish design
  • Elegant and discreet glass touch operation
  • Possibility of balanced air exchange using the Trigger Link Module

Specifications

Minimum airflow [m3/h]
220
Minimum-Soundpower [dB(A)]
46
Maximum-airflow [m3/h]
515
Maximum-Soundpower [dB(A)]
63
Airflow with boost [m3/h]
725
Soundpower boost [dB(A)]
68
Energy consumption [W]
168
Control
Glass touch
Material
Black painted steel

Specifications

Minimum airflow [m3/h]
220
Minimum-Soundpower [dB(A)]
46
Maximum-airflow [m3/h]
515
Maximum-Soundpower [dB(A)]
63
Airflow with boost [m3/h]
725
Soundpower boost [dB(A)]
68
Energy consumption [W]
168
Control
Glass touch
Material
Black painted steel

Weight and measurements

Maximum width [mm]
900
Maximum depth [mm]
500
Maximum height [mm]
990
Vent pipe width (mm)
325
Vent pipe max height (mm)
980
Vent pipe min height (mm)
490
Minimum length vent pipe cutdown [mm]
650
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
1000
Packaging depth [mm]
575
Packaging height(mm)
540
Net weight [kg]
17.2
Weight
21.8

Features

Control
Glass touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Smarthome
No

Technical specifications

LE value [lux/W]
120
LE-class
A
EEI-value
34.3
EEI-class
A++
Colour temperature [Kelvin]
4000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
3
GFE-value
65.5
GFE-class
D
FDE-value
38.9
FDE-class
A
Energy consumption [W]
168
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.45
Motor Power [W]
160

Other specifications

EAN
5703347531385
Type of grease filter
Aluminum filter
Number of filters
3
Carbon filter as accessory
Yes
Carbon filter code
535.23.0545.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black lacquered steel
Material
Black painted steel

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
