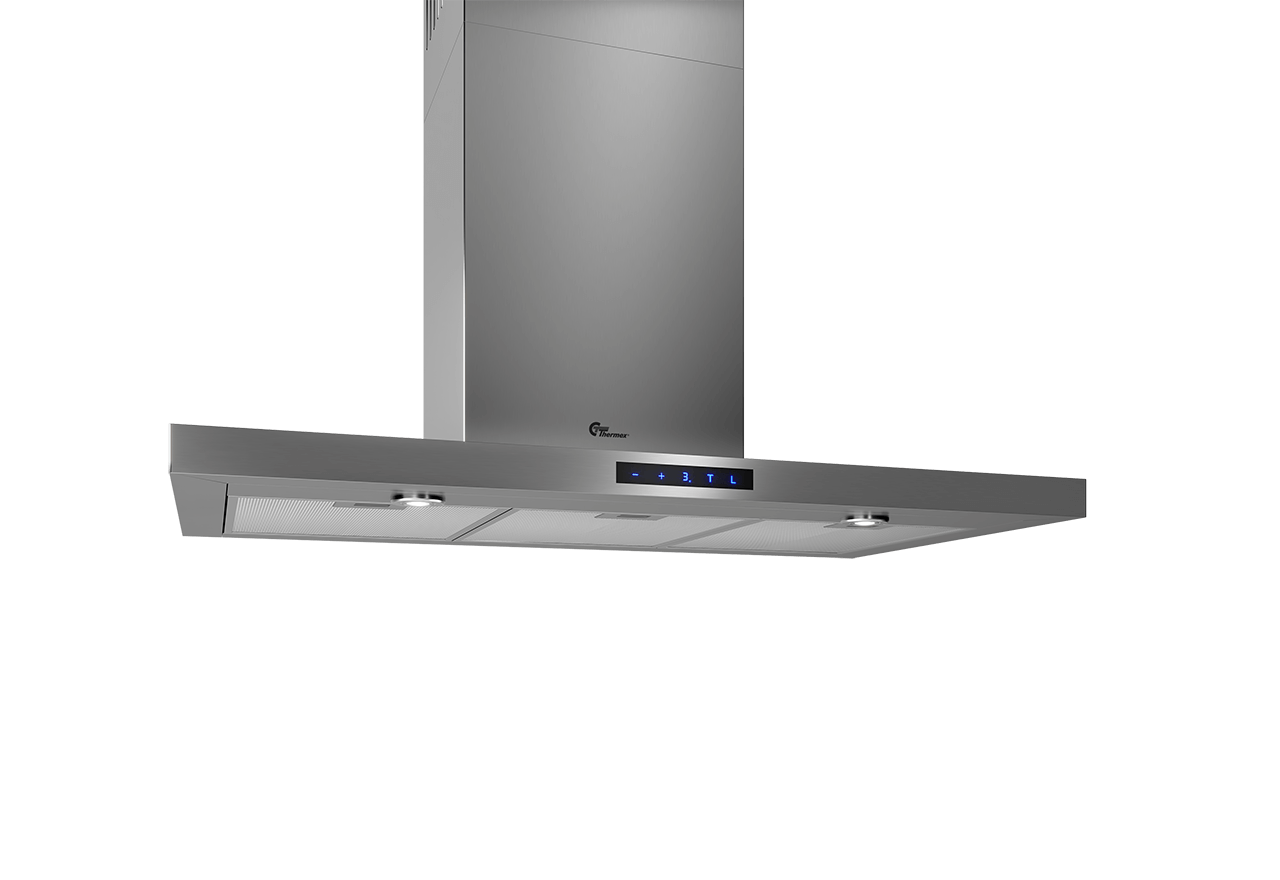

Harwich II wall 900 mm Stainless without motor

527.23.3098.0
Harwich II 90 cm in stainless steel without motor is a classic hood with a large suction surface, and is intended for connection to an external motor, central ventilation or heat recovery
Width
Color hood
Motor type
Please select variant!

The Thermex Harwich II is an affordable wall-mounted model with a horizontal design. You get a lot of hood for the money when you choose the Harwich II, large collection surface, good extraction capacity and a stainless design. Elegant and discreet glass touch operation. Available in 4 different widths from 60 cm to 120 cm. It is also available in a free-hanging model of 90 cm width. Harwich has so-called decorative filters that look extra good. Thermex has several different external motors that suit your mounting situation and budget.

  • Stylish design
  • Elegant and discreet glass touch operation
  • Possibility of balanced air exchange using the Trigger Link Module

Specifications

Control
Glass touch
Material
Stainless steel

Specifications

Control
Glass touch
Material
Stainless steel

Weight and measurements

Maximum width [mm]
900
Maximum depth [mm]
500
Maximum height [mm]
990
Vent pipe width (mm)
325
Vent pipe max height (mm)
980
Vent pipe min height (mm)
490
Minimum length vent pipe cutdown [mm]
650
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
1000
Packaging depth [mm]
575
Packaging height(mm)
540
Net weight [kg]
17.2
Weight
21.8

Features

Control
Glass touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Smarthome
No

Technical specifications

LE value [lux/W]
120
LE-class
G
Colour temperature [Kelvin]
4000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
3
GFE-value
65.5
GFE-class
D
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.45

Other specifications

EAN
5703347531392
Type of grease filter
Aluminum filter
Number of filters
3
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
External motor
Front panel color
Stainless steel
BodyColor
Stainless steel
Front panel material
Stainless steel
Material
Stainless steel

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Exhaust fittings

External motors
