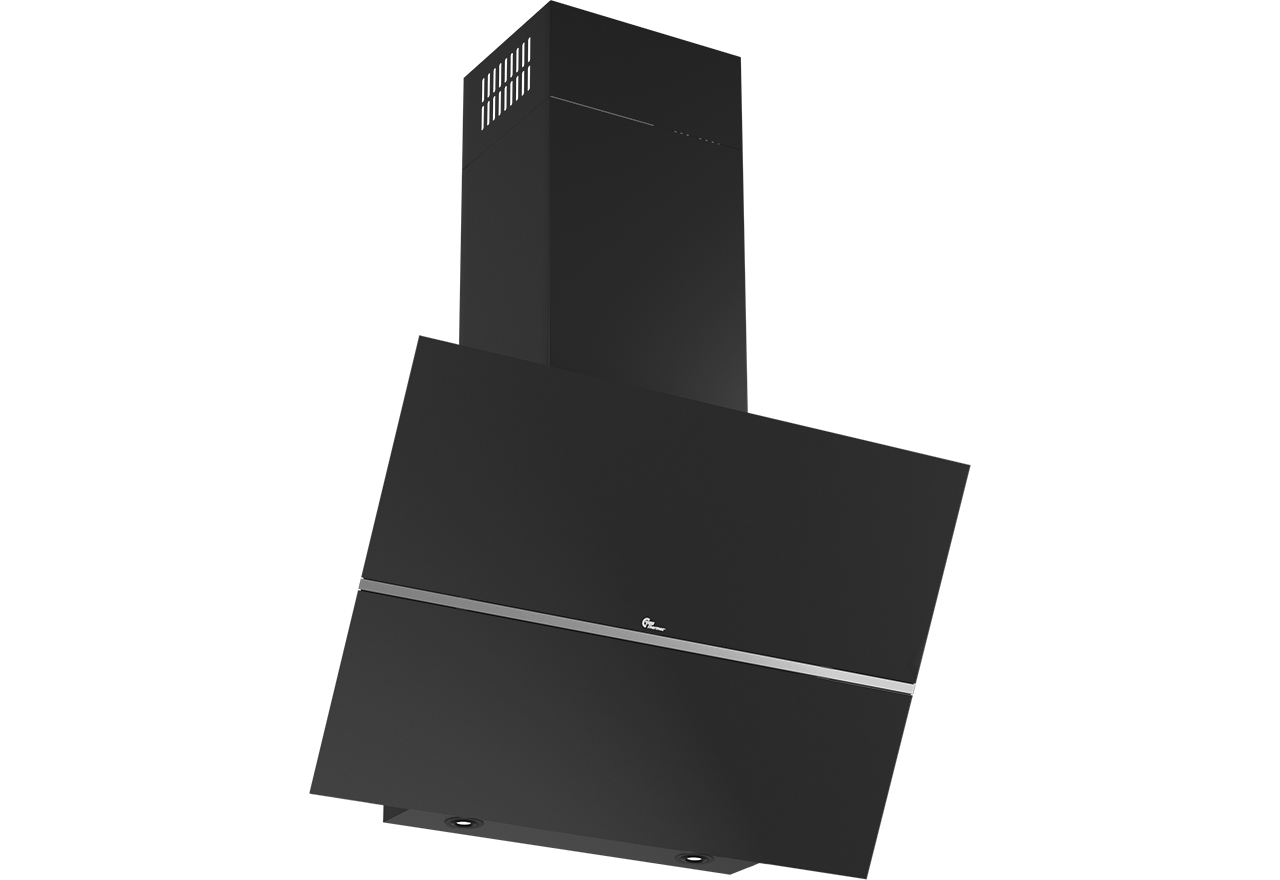

Mini Bordeaux 600 mm Black Without motor

540.23.1568.0
Thermex model Mini Bordeaux 60 cm in black with motor is a vertical scope. A scope with a reduced height, which together with the special slanted design means that the scope does not appear too violent on the wall
Width
Motor type
Please select variant!

Model Mini Bordeaux is a vertical scope. A scope with a reduced height, which together with the special slanted design means that the scope does not appear too violent on the wall. This applies both if it is installed hanging solo or in connection with upper cabinets. Thermex «All Possibilities» solution means that it can be adapted to all homes and all types of exhaust and ventilation systems, too Thermex Plasmex® .

The hood is controlled by our new smart remote control or automatically via the hob with Thermex Thermex Toplink® . In addition, you can operate the hood via the Thermex Remote app, which can be downloaded for free from the App store and Google Play. In the app, it is possible to adjust the brightness, activate periodic extraction and get an indication of the filter.

You can also use Voice link the functionality built into the hood. Here you can control the hood with your voice alone via Google Assistant (Hey Google) . So there are plenty of options to choose from to operate your Thermex Mini Bordeaux. Thermex has several different external motors that suit your mounting situation and budget.

  • Glass door can be opened for increased absorption
  • Effective front and bottom suction
  • Control via voice, app and remote
  • Possibility of balanced air exchange using the Trigger Link Module
  • TopLink compatible

Specifications

Energy consumption [W]
3
Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

VoiceLink

Control your Thermex hood by using your voice alone - this applies to both the hood's suction power and light. This gives you the freedom to use your hands for other things when you are in the kitchen.

Read more

Wifi

The Wifi function means that the product communicates wirelessly via Wifi. All private homes today have Wifi, which offers many options in connection with electronic ventilation products.

App control

With the App control, you can access your Thermex product via your smartphone. It turns your smartphone into a remote control, so you always have full control. In the app, there are more functions than you find on the normal operation.

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Kelvin adjustment

Kelvin adjustment makes it possible to adjust the color temperature of the light from cold to warm light. This makes it possible to make the light in the product fit perfectly with the other lighting in the kitchen.

Remote control

The remote control makes it easy and convenient to operate your Thermex product. You don't even have to get up - Then it doesn't get any easier.

Light dimmer

Using the dimmer function, you can adjust the brightness of the work light in the scope. The lighting in kitchens is very different, so with dimmers you can adjust the amount of light to suit your needs.

Bottom suction

This hood has bottom suction. This means that there is a metal filter or suction slit at the bottom of the hood, which makes the suction even more effective.

Front suction

This hood has front suction. This means that there is a suction slot in the front of the hood, which makes the suction even more effective. This especially helps to catch the embers from the outermost cooking zones.

Periodic extraction

Periodic extraction is a function of the hood which makes it possible to use the hood as an aid for ventilation in the home. You can e.g. set the hood to start for 10 minutes per hour.

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Filter cleaning indicator

The filter cleaning indicator is a timer that reminds you to remember to clean the filter in the hood. It is not a sensor, but a timer that gives a notification after a period of time.

Specifications

Energy consumption [W]
3
Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
340
Maximum height [mm]
1330
Vent pipe width (mm)
255
Vent pipe max height (mm)
980
Vent pipe min height (mm)
480
Minimum length vent pipe cutdown [mm]
400
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
700
Packaging depth [mm]
520
Packaging height(mm)
520
Net weight [kg]
19
Weight
21

Features

Control
Remote control
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
Yes
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes

Technical specifications

Illumination (Emiddle) [lux]
366
LE value [lux/W]
122
LE-class
A
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
64
GFE-class
E
Energy consumption [W]
3
Type of plug
Schuko
Energiforbrug standby (Ps) [W]
0.45
Voltage [V]
230

Other specifications

EAN
5703347530678
Type of grease filter
Aluminum filter
Number of filters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
External motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.7
