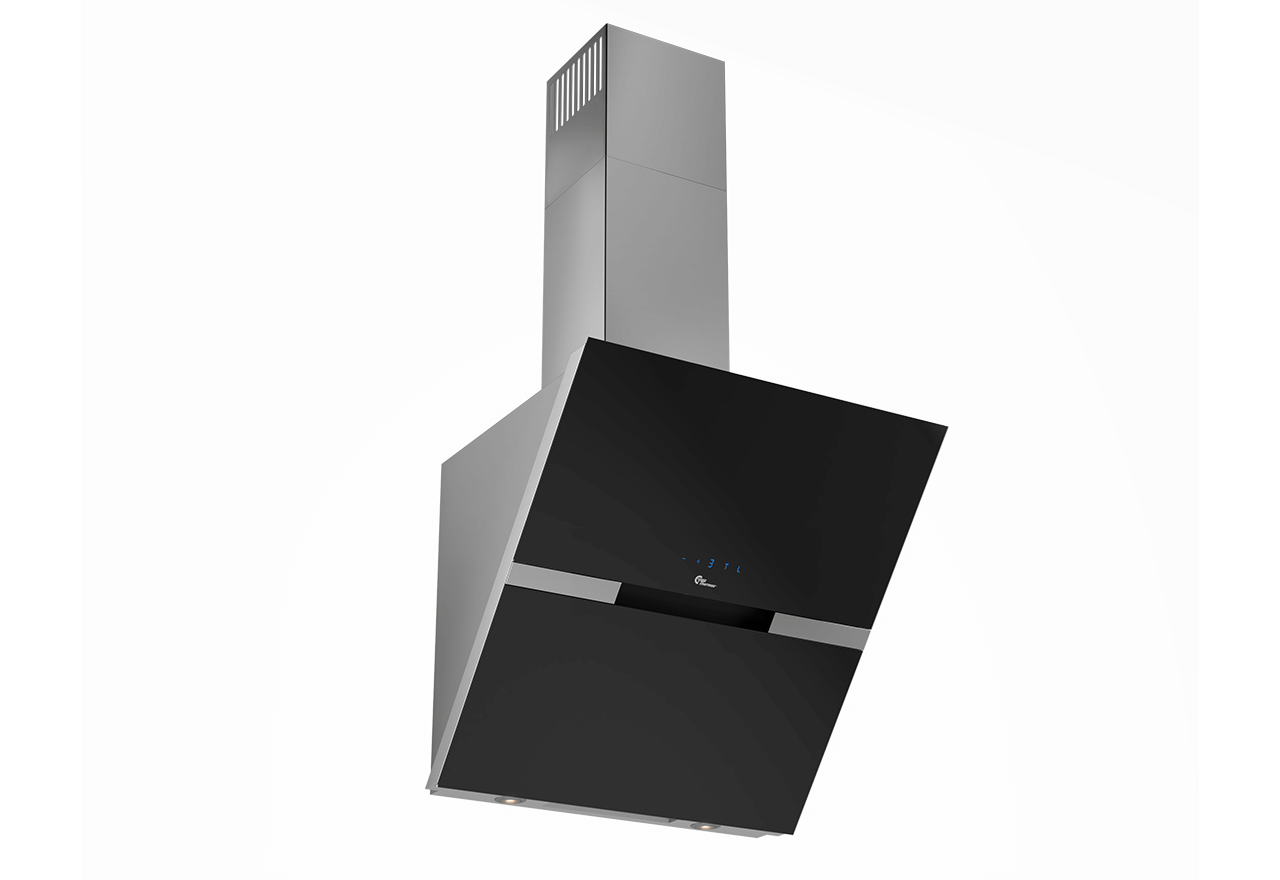

Preston II 600 mm Stainless/Black With motor

540.23.2068.2

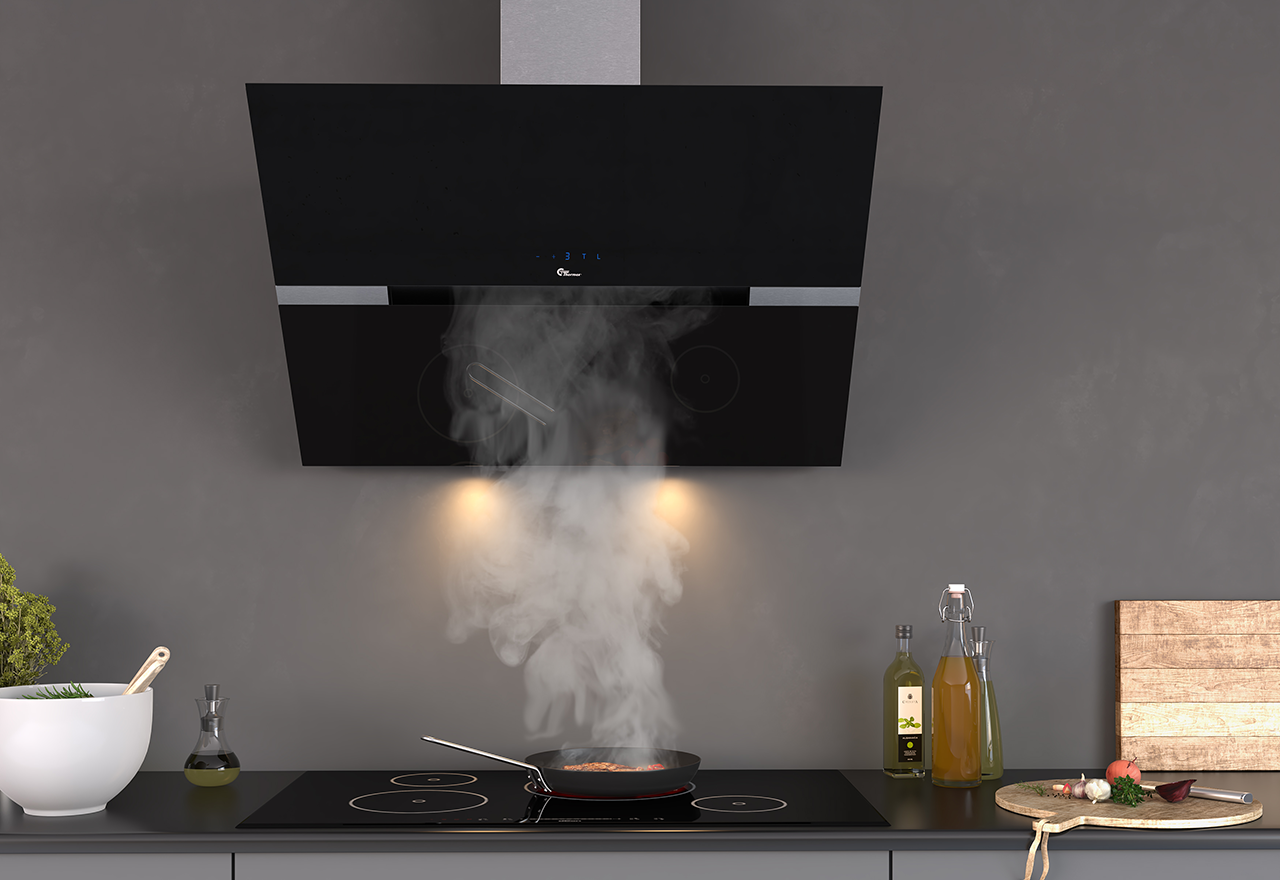

Preston II 60 cm in black with motor is an inclined hood in a beautiful and simple design, with a particularly strong suction motor. Discreet and functional glass touch operation
Width
Please select variant!

The Thermex Preston II is one of our most popular models, and not without reason, nice design and good performance with 3 speeds + boost. Glass touch operation that you call up by passing your hand over the glass plate. When it is not in use, all you see is the black glass plate. Preston II is Thermex «All Possibilities» compatible, so it can be adapted to all homes and all imaginable ventilation solutions.

Thermex Preston II is a really decorative and good solution. The built-in motor can produce up to 525 m3/h and as much as 750 m3/h when using the boost function.

  • Glass door can be opened for increased absorption
  • Possibility of balanced air exchange using the Trigger Link Module
  • Modern design
  • Glass touch operation

Specifications

Minimum airflow [m3/h]
312
Minimum-Soundpower [dB(A)]
53
Maximum-airflow [m3/h]
560
Maximum-Soundpower [dB(A)]
64
Airflow with boost [m3/h]
787
Soundpower boost [dB(A)]
69
Control
Glass touch
Material
Stainless steel and Black glass
Voltage [V]
230

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Glass touch

The Glastouch control is an elegant solution to the normal control, which goes together with the hood. As the operation is behind a glass panel, cleaning the hood is even easier with the glass touch.

Bottom suction

This hood has bottom suction. This means that there is a metal filter or suction slit at the bottom of the hood, which makes the suction even more effective.

Front suction

This hood has front suction. This means that there is a suction slot in the front of the hood, which makes the suction even more effective. This especially helps to catch the embers from the outermost cooking zones.

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Specifications

Minimum airflow [m3/h]
312
Minimum-Soundpower [dB(A)]
53
Maximum-airflow [m3/h]
560
Maximum-Soundpower [dB(A)]
64
Airflow with boost [m3/h]
787
Soundpower boost [dB(A)]
69
Control
Glass touch
Material
Stainless steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
485
Maximum height [mm]
1430
Vent pipe width (mm)
25.5
Vent pipe max height (mm)
980
Vent pipe min height (mm)
480
Minimum length vent pipe cutdown [mm]
510
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
640
Packaging depth [mm]
550
Packaging height(mm)
710
Net weight [kg]
23.75
Weight
28

Features

Control
Glass touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
No
Moveable outlet
Yes
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
Yes
Wi-Fi
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
538
LE value [lux/W]
89.6
LE-class
A
EEI-value
53.8
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
3
Total consumption of light (WL) [W]
6
GFE-value
61.3
GFE-class
E
FDE-value
29.7
FDE-class
A
Type of plug
Schuko
Energiforbrug standby (Ps) [W]
0.45
Motor Power [W]
275
Voltage [V]
230

Other specifications

EAN
5703347514746
El-nummer
9978890628
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.23.0570.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Stainless steel
Front panel material
Black glass
Material
Stainless steel and Black glass
SupplyCord (m)
2.2
