TXTF90
527.31.1198.2

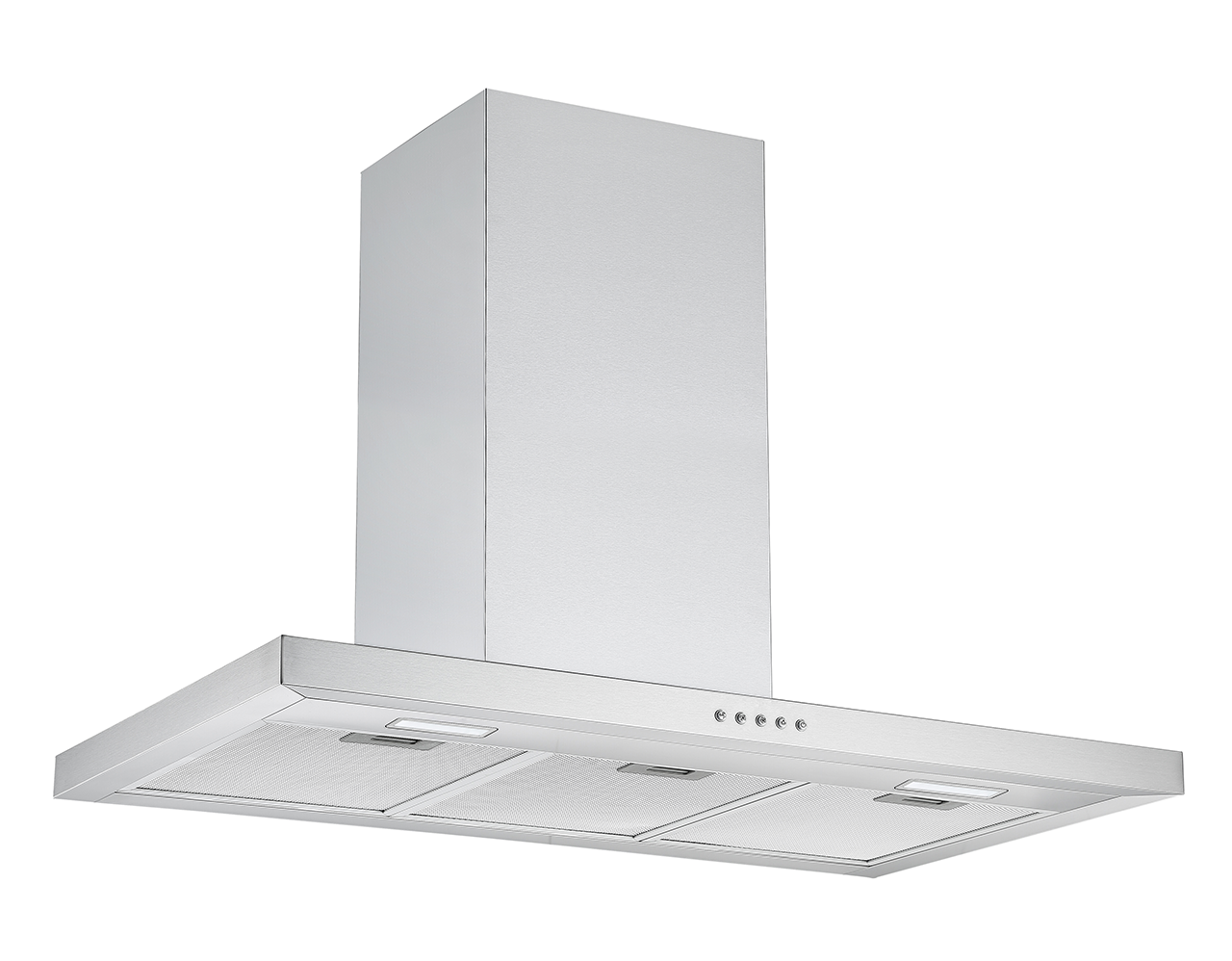

TXTF 90 in stainless steel. Is a price-friendly decorative wall-mounted scope in 90 cm stainless steel with 3 speeds and suction capacity up to 550m/3h as well as LED lighting, possibility of outdoor exhaust or recirculation.
Specifications
Minimum airflow [m3/h]
282
Minimum-Soundpower [dB(A)]
42
Maximum-airflow [m3/h]
610
Maximum-Soundpower [dB(A)]
69
Control
Push buttons
Material
Stainless steel
Specifications
Minimum airflow [m3/h]
282
Minimum-Soundpower [dB(A)]
42
Maximum-airflow [m3/h]
610
Maximum-Soundpower [dB(A)]
69
Control
Push buttons
Material
Stainless steel
Weight and measurements
Maximum width [mm]
900
Maximum depth [mm]
500
Maximum height [mm]
1020
Vent pipe width (mm)
303
Vent pipe max height (mm)
980
Vent pipe min height (mm)
500
Minimum length vent pipe cutdown [mm]
400
Outlet dimension (mm)
Ø150
Packaging width(mm)
640
Packaging depth [mm]
620
Packaging height(mm)
400
Net weight [kg]
13
Weight
15
Features
Control
Push buttons
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
162
LE value [lux/W]
42.8
LE-class
G
EEI-value
51.7
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3.8
GFE-value
84.3
GFE-class
C
FDE-value
28.1
FDE-class
A
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.48
Moottorin maksimikulutus [W]
78
Other specifications
EAN
5703347532344
Type of grease filter
Aluminum filter
Number of filters
3
Carbon filter as accessory
Yes
Carbon filter code
535.21.8600.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Stainless steel
BodyColor
Stainless steel
Front panel material
Stainless steel
BodyColor (RAL)
0
Material
Stainless steel
SupplyCord (m)
1.2
