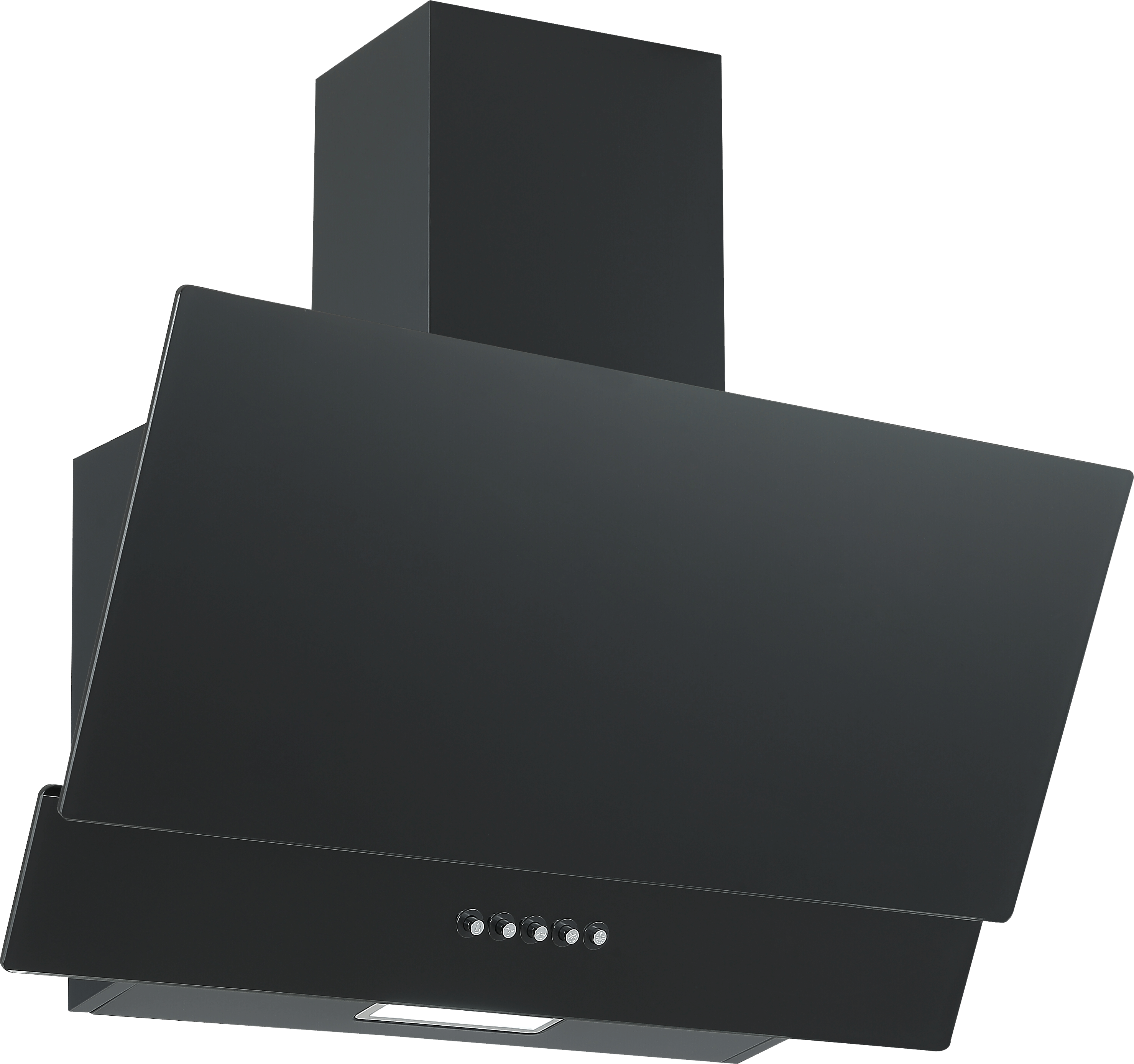

TXVK60 Black

540.31.1062.2
Thermex TXVK60 is a compact and stylish vertical cooker hood with a black glass front, simple push-button control, and an energy-efficient motor. Perfect for small kitchens with focus on function and design.
Width
Please select variant!

Design and materials
Thermex TXVK60 is a stylish vertical wall-mounted cooker hood with an angled front in black glass and a body and chimney in black lacquered steel. With a compact height of only 29.5 cm and a width of 60 cm, it’s ideal for smaller kitchens where both space and aesthetics matter.

Simple control
The hood is operated using classic push buttons, allowing easy control of the three speeds and the lighting. The simple interface provides quick and intuitive operation in a busy kitchen environment.

Efficient performance
TXVK60 features a built-in motor with energy class A and delivers an airflow of up to 302 m³/h. The noise level starts at 52 dB(A), and the integrated LED light strip (2 W) provides even and energy-efficient lighting over your cooking area.

Easy cleaning
The hood is easy to maintain – the surfaces can be wiped with a damp cloth, and the included aluminium filter can be removed and cleaned in the dishwasher. If recirculation is desired, optional carbon filters are available to purify the air before it is returned to the kitchen.

  • Compact design – only 29.5 cm in height, ideal for smaller kitchens
  • Elegant black glass front and black painted steel for a modern look
  • Energy-efficient motor (energy class A)
  • Easy operation with classic push buttons
  • Simple cleaning – wipe with cloth and dishwasher-safe filter

Specifications

Minimum airflow [m3/h]
164
Minimum-Soundpower [dB(A)]
52
Maximum-airflow [m3/h]
302
Maximum-Soundpower [dB(A)]
66
Control
Push buttons
Material
Black painted steel and Black glass
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
164
Minimum-Soundpower [dB(A)]
52
Maximum-airflow [m3/h]
302
Maximum-Soundpower [dB(A)]
66
Control
Push buttons
Material
Black painted steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
263
Maximum height [mm]
1075
Vent pipe width (mm)
222
Vent pipe max height (mm)
780
Vent pipe min height (mm)
400
Minimum length vent pipe cutdown [mm]
295
Outlet dimension (mm)
Ø150
Packaging width(mm)
320
Packaging depth [mm]
660
Packaging height(mm)
370
Net weight [kg]
9.3
Weight
10.7

Features

Control
Push buttons
Boost funktion
No
Decor light
No
Timer funktion
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
245
LE value [lux/W]
64
LE-class
A
EEI-value
52.2
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
4
GFE-value
67.5
GFE-class
D
FDE-value
21.8
FDE-class
C
Energiforbrug standby (Ps) [W]
0.48
Motor Power [W]
60
Voltage [V]
230

Other specifications

EAN
5703347532368
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8320.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
1
Suction Bottom
No
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.2

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
