TXVK90 Black

540.31.1092.2
Width
Please select variant!

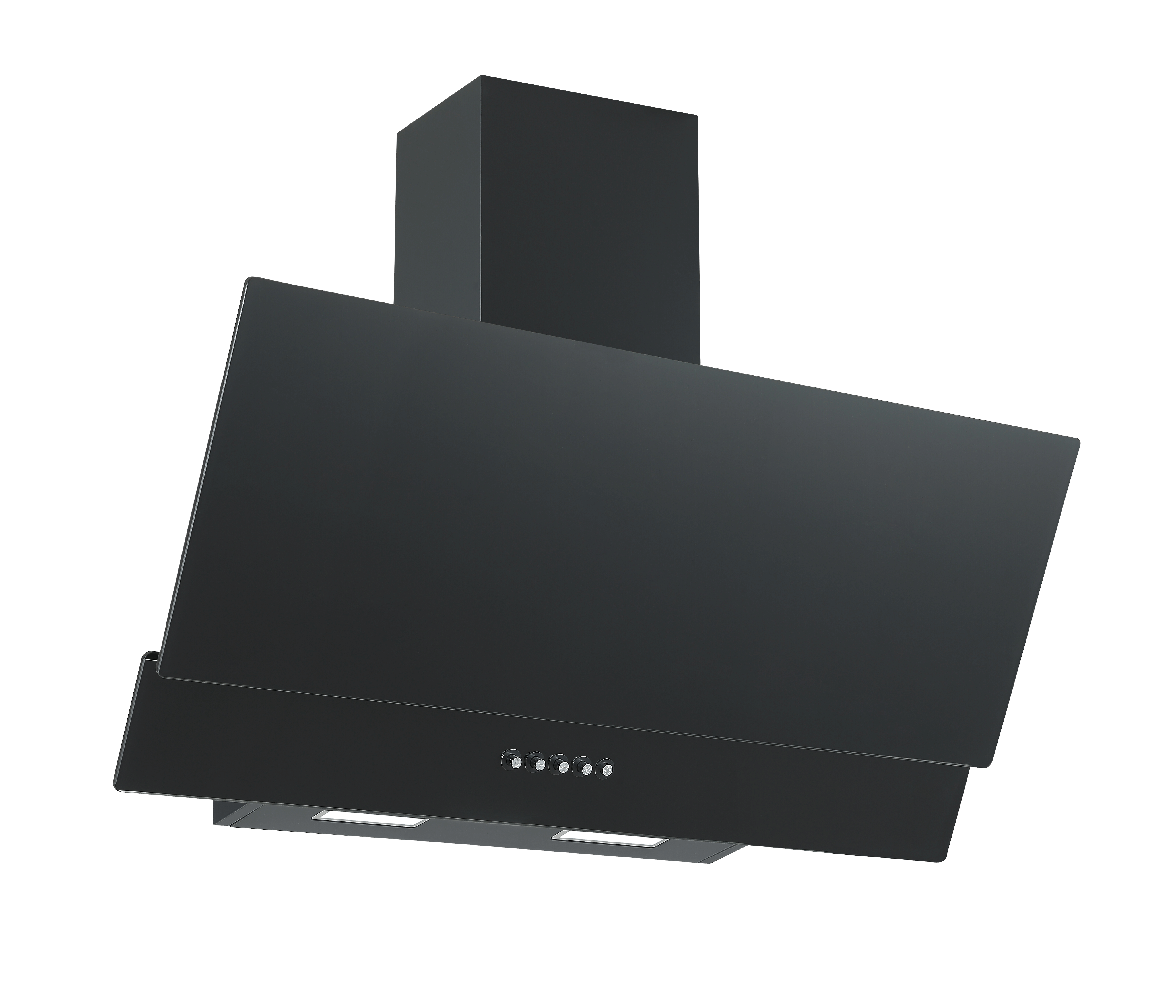

Thermex TXVK 90 Black. Is an extremely affordable classic vertical scope for wall mounting in 90 cm black with 3 speeds and suction capacity up to 308 m3/h and LED lighting. Possibility of return to the outdoors or recirculation

Specifications

Minimum airflow [m3/h]
179
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
335
Maximum-Soundpower [dB(A)]
67
Control
Push buttons
Material
Black painted steel and Black glass

Specifications

Minimum airflow [m3/h]
179
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
335
Maximum-Soundpower [dB(A)]
67
Control
Push buttons
Material
Black painted steel and Black glass

Weight and measurements

Maximum width [mm]
900
Maximum depth [mm]
263
Maximum height [mm]
1075
Vent pipe width (mm)
222
Vent pipe max height (mm)
780
Vent pipe min height (mm)
400
Minimum length vent pipe cutdown [mm]
295
Outlet dimension (mm)
Ø120
Packaging width(mm)
955
Packaging depth [mm]
325
Packaging height(mm)
370
Net weight [kg]
10.6
Weight
13.4

Features

Control
Push buttons
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
251
LE value [lux/W]
67.8
LE-class
A
EEI-value
53.1
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
3.7
GFE-value
65.1
GFE-class
D
FDE-value
20.9
FDE-class
C
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.48
Motor Power [W]
60

Other specifications

EAN
5703347532375
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8320.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
1
Suction Bottom
No
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.2

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
