TXVKHBL 60

H540.21.1062.2

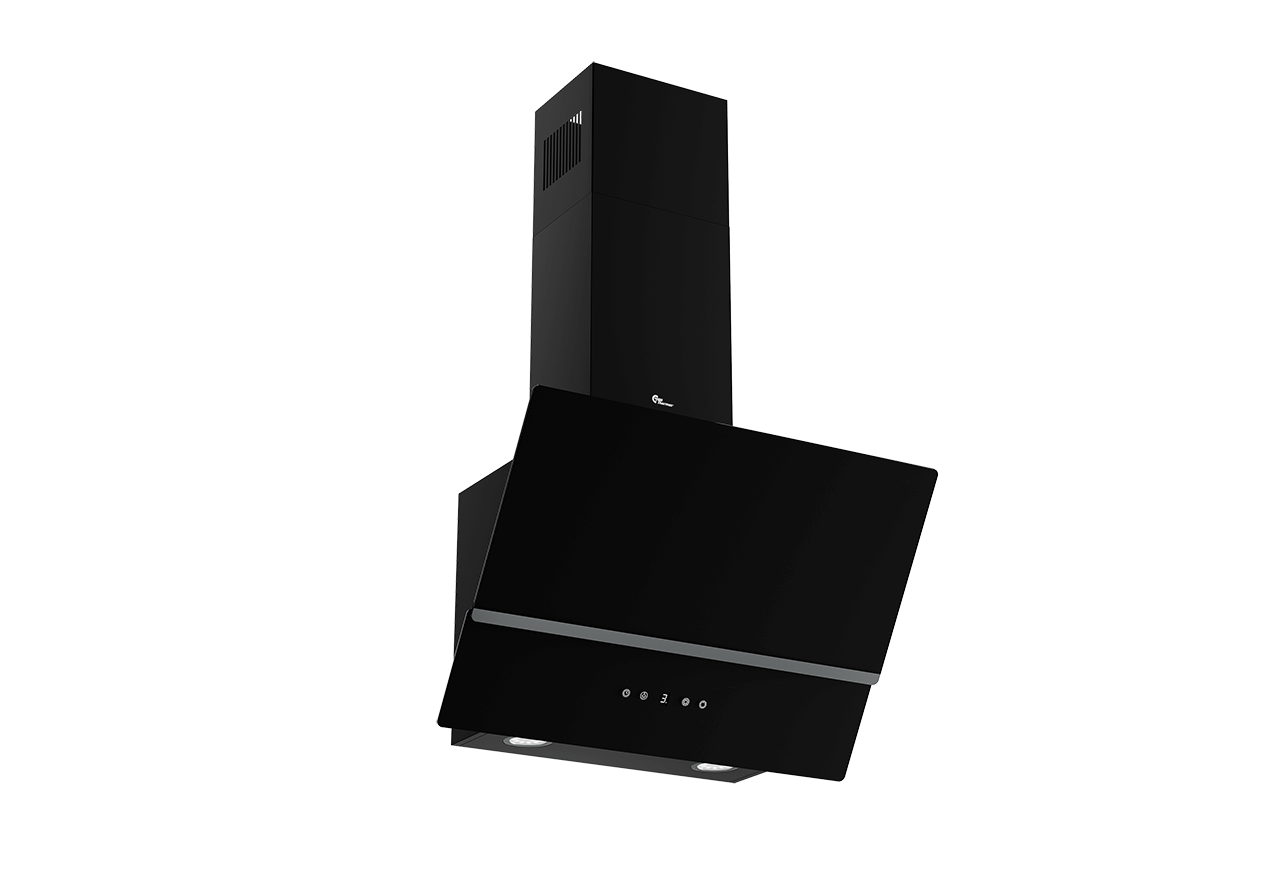

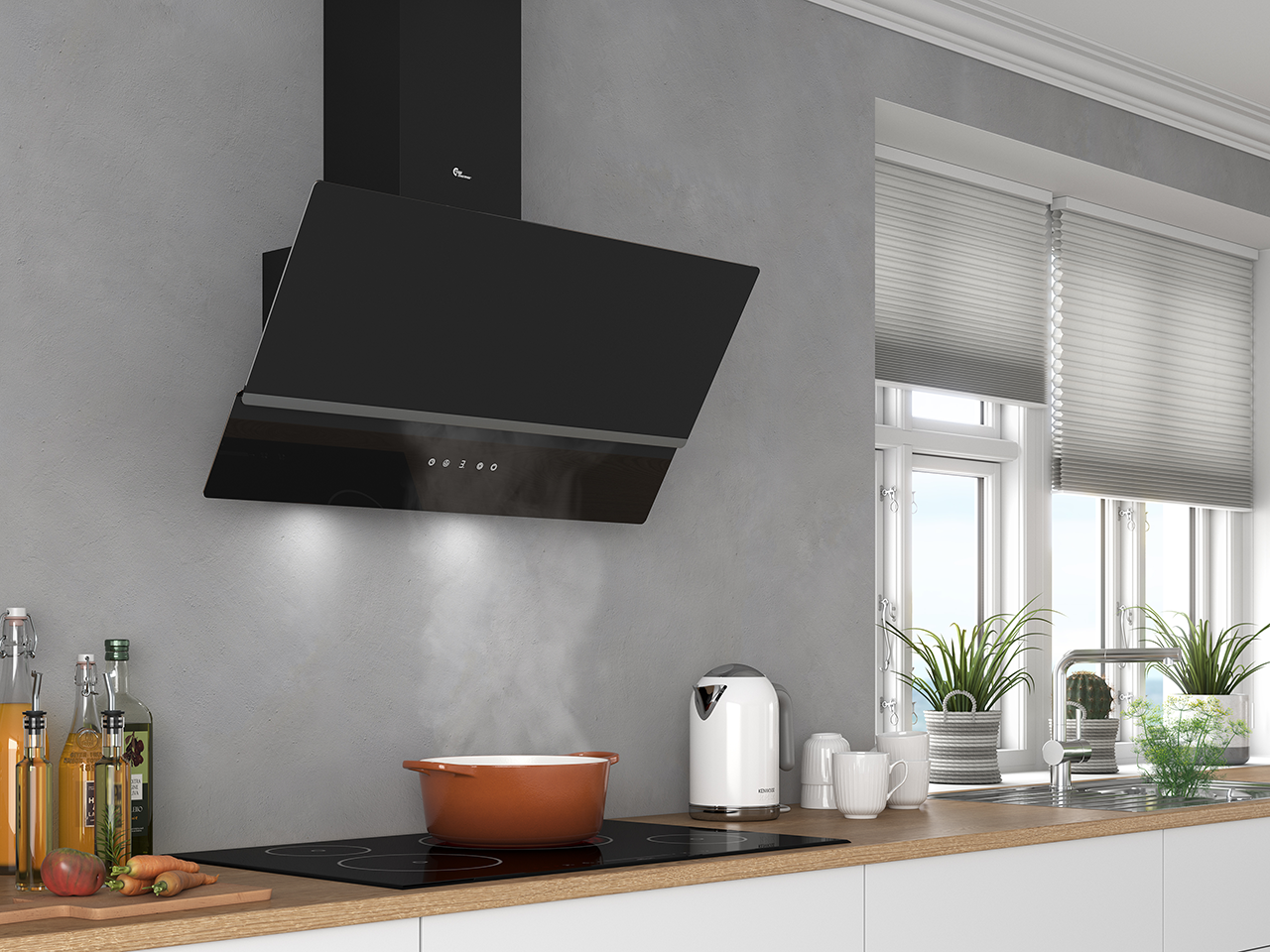

TXVKHBL 60 from Thermex is an elegant vertical cooker hood for wall mounting in black painted steel and black glass. With smart glass touch control, a powerful motor, and integrated lighting, it's both efficient and stylish. Hob Link integration to the Thermex hob enables automatic regulation of extraction.
TXVKHBL 60 from Thermex is a vertical cooker hood designed for wall mounting. It boasts an elegant design in black painted steel combined with black glass and measures 60 cm in width. With 1 aluminum filter and 2 LED lamps, it offers both effective extraction and lighting.

One of its features is its Hob Link integration with the Thermex TH1INBHBL 60 hob. This allows for automatic activation of the extraction, adjustment of the suction power based on the hob's level, and automatic shutdown of the hood and its lights when the hob is turned off. Of course, the hood's functions can also be manually controlled via its intuitive glass touch control panel.

The built-in motor is of high quality with low energy consumption, reflected in its A+ energy rating. It delivers powerful extraction of up to 543 m³/h with a low noise level, as low as 43 dB(A).

Cleaning the hood is simple, as it can be wiped down with a damp cloth and the glass can be cleaned with window cleaner. The aluminum filters can also be easily removed and washed in the dishwasher, making maintenance practical and hassle-free.
  • Hob Link Technology: Connects with Thermex TH1INBHBL 60 hob for automatic control
  • Elegant Design: Black painted steel and black glass in 60 cm width offer a stylish look
  • Effective Function: With 1 aluminum filter and 2 LED lamps, it ensures both extraction and lighting
  • High-Performance Motor: With A+ energy rating and up to 543 m³/h extraction at low noise level
  • Easy Cleaning: Wipe down with a damp cloth, and filters are dishwasher-safe for hassle-free maintenance

Specifications

Minimum airflow [m3/h]
180
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
543
Maximum-Soundpower [dB(A)]
64
Energy consumption [W]
78
Control
Glass touch
Material
Black painted steel and Black glass

Specifications

Minimum airflow [m3/h]
180
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
543
Maximum-Soundpower [dB(A)]
64
Energy consumption [W]
78
Control
Glass touch
Material
Black painted steel and Black glass

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
375
Maximum height [mm]
1150
Vent pipe width (mm)
222
Vent pipe max height (mm)
780
Vent pipe min height (mm)
400
Minimum length vent pipe cutdown [mm]
370
Outlet dimension (mm)
Ø150
Packaging width(mm)
652
Packaging depth [mm]
440
Packaging height(mm)
435
Net weight [kg]
12.5
Weight
14.5

Features

Control
Glass touch
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
138
LE value [lux/W]
32.9
LE-class
G
EEI-value
38.8
EEI-class
A+
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
82
GFE-class
C
FDE-value
32.5
FDE-class
A
Energy consumption [W]
78
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.43
Moottorin maksimikulutus [W]
75

Other specifications

EAN
5703347533471
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8600.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
No
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
BodyColor (RAL)
0
Material
Black painted steel and Black glass
SupplyCord (m)
1.2
