Vertical Automatic - black - gesture control
540.21.1592.2

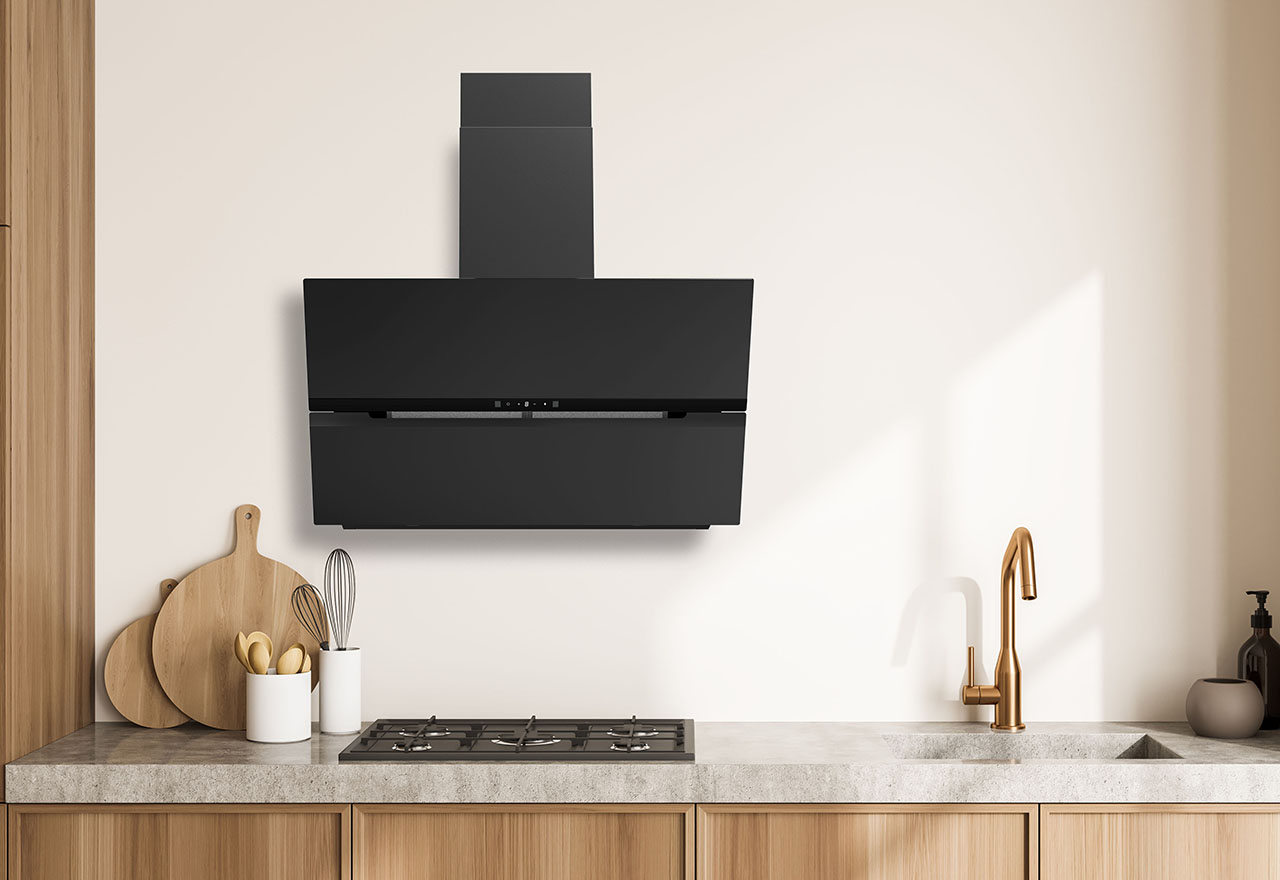

Thermex Vertical Automatic is a stylish wall-mounted cooker hood with advanced gesture control, an automatic glass panel, and a quiet motor that ensures efficient ventilation and easy operation.
Color hood

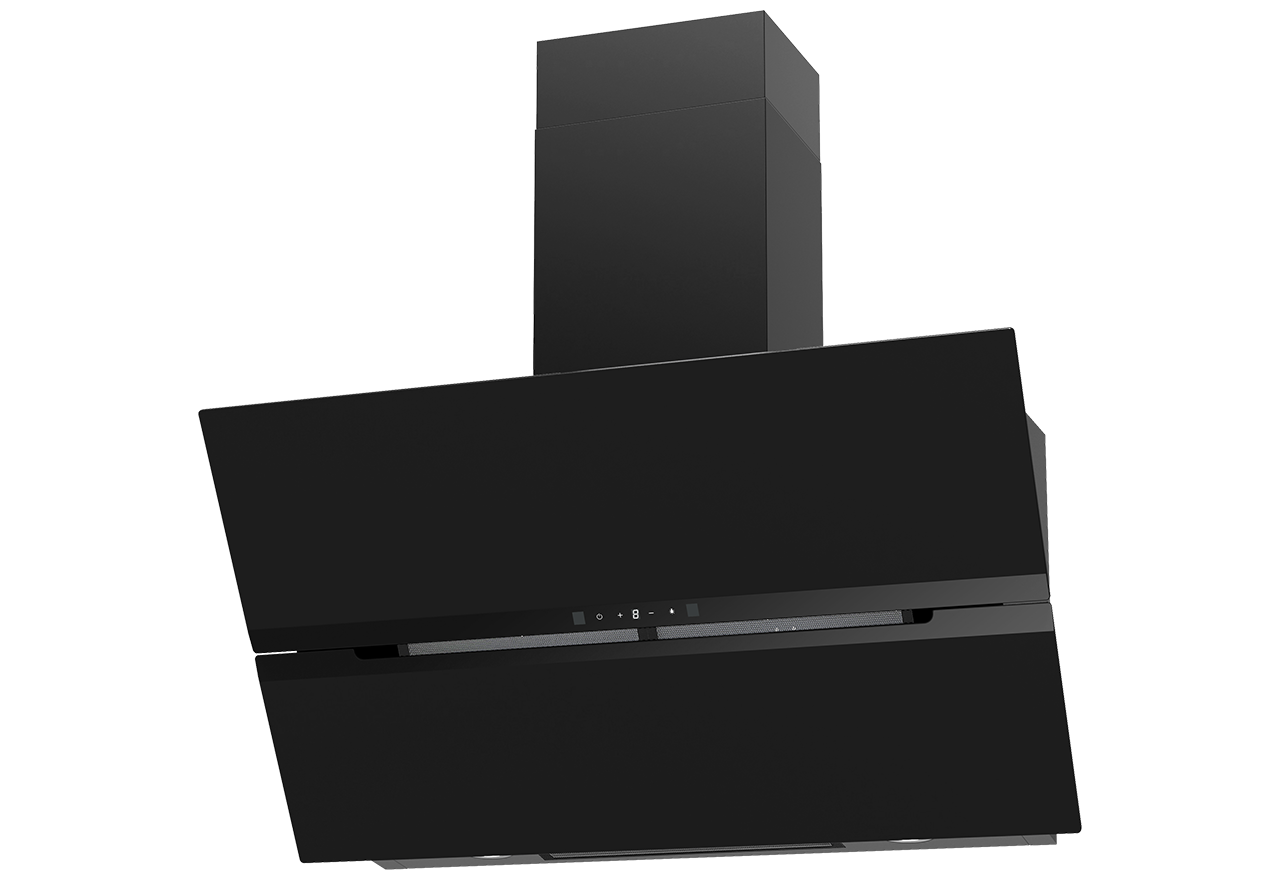

Thermex Vertical Automatic – Gesture control is a stylish and intelligent vertical wall-mounted cooker hood that combines advanced technology with modern design.
Design and Materials
The cooker hood's slanted front in matte black glass, along with the body and chimney in black-painted steel, provides an exclusive and sleek look. The 90 cm wide hood features an automatic glass panel that opens gradually in sync with the speed adjustment – closed at level 1 and gradually opening at higher levels.
Intelligent Operation
The hood is operated via a glass touch display with a digital readout of the motor's levels, speeds, timer, and lighting. Gesture control technology allows for hands-free operation – by moving your hand horizontally in front of the sensor, you can easily increase or decrease the speed, as well as turn the light on and off. This touchless control ensures a hygienic and convenient experience, especially when your hands are dirty during cooking.
Efficient Performance
The powerful and quiet DC motor with an energy rating of A+++ delivers an air volume of up to 453 m³/h with a noise level starting from only 37 dB(A). The two energy-efficient 1.5 W LED lights ensure optimal illumination of the cooktop.
Easy Cleaning
The surface is easily wiped down with a damp cloth, while the three aluminum filters can be cleaned in the dishwasher for simple maintenance.
- Vertical wall-mounted cooker hood in matte black glass and black-painted steel, 90 cm wide
- Automatic opening glass panel that adjusts to the speed level
- Gesture control for hands-free operation of speed and lighting
- Quiet and energy-efficient DC motor (A+++) with air volume up to 453 m³/h
- Easy cleaning with wipe-down surface and dishwasher-safe filters
Specifications
Minimum airflow [m3/h]
135
Minimum-Soundpower [dB(A)]
37
Maximum-airflow [m3/h]
453
Maximum-Soundpower [dB(A)]
54
Energy consumption [W]
43
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230
Specifications
Minimum airflow [m3/h]
135
Minimum-Soundpower [dB(A)]
37
Maximum-airflow [m3/h]
453
Maximum-Soundpower [dB(A)]
54
Energy consumption [W]
43
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230
Weight and measurements
Maximum width [mm]
900
Maximum depth [mm]
387
Maximum height [mm]
1450
Vent pipe width (mm)
300
Vent pipe max height (mm)
1000
Vent pipe min height (mm)
500
Minimum length vent pipe cutdown [mm]
450
Outlet dimension (mm)
Ø150
Packaging width(mm)
955
Packaging depth [mm]
450
Packaging height(mm)
540
Net weight [kg]
20.8
Weight
28
Features
Control
Glass touch
Boost funktion
No
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
Yes
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
103
LE value [lux/W]
34
LE-class
A
EEI-value
29.8
EEI-class
A+++
Energy consumption in off mode (Po) [W]
0.46
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
66.2
GFE-class
D
FDE-value
34.7
FDE-class
A
Energy consumption [W]
43
Type of plug
Schuko
Energiforbrug standby (Ps) [W]
0.46
Motor Power [W]
40
Voltage [V]
230
Other specifications
EAN
5703347534171
Type of grease filter
Aluminum filter
Number of filters
3
Carbon filter as accessory
Yes
Carbon filter code
535.21.8400.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.6
Downloads
Here you will find all documents relevant to this product
