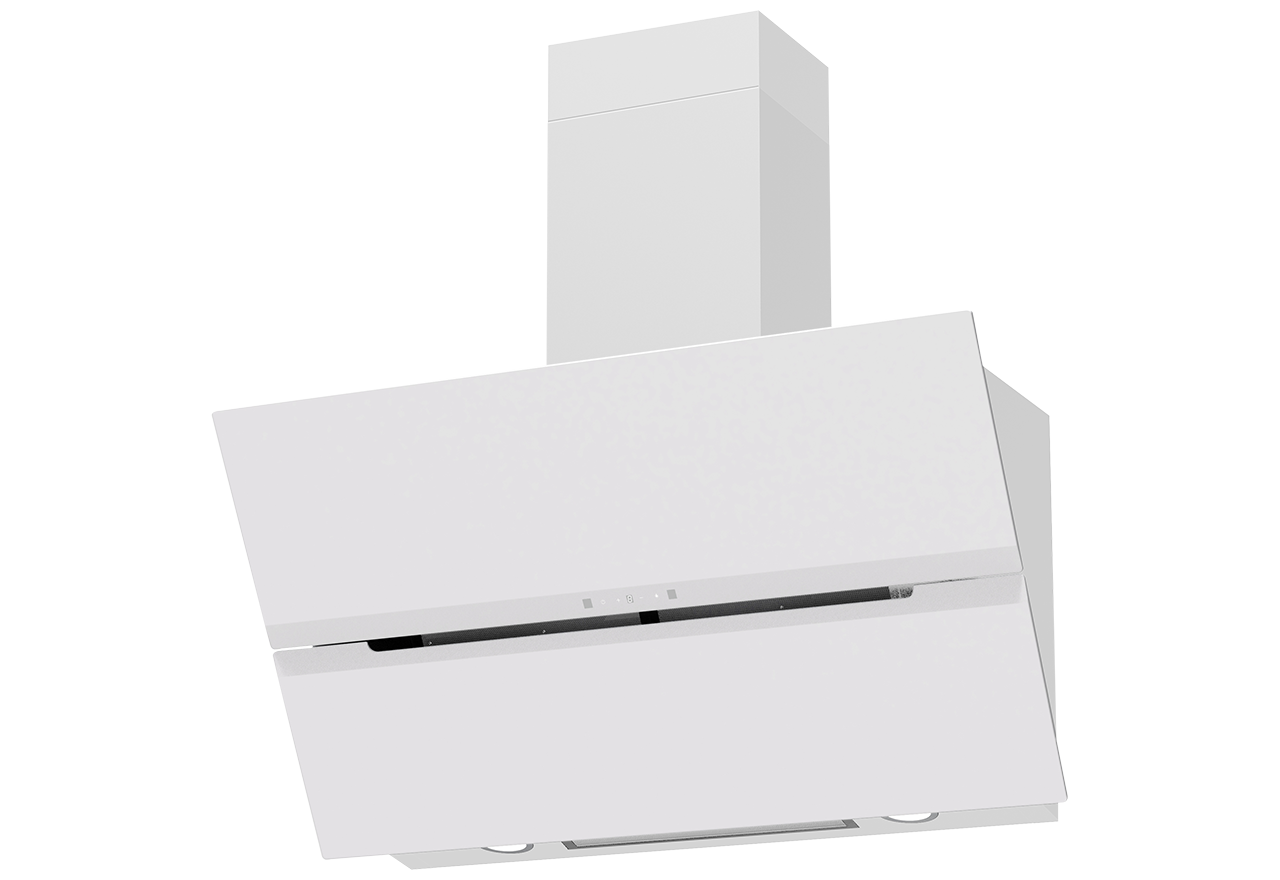

Vertical Automatic - 90 cm hvid - gesture control

540.21.1591.2
Thermex Vertical Automatic is a stylish wall-mounted cooker hood with advanced gesture control, automatic glass panel, and a quiet motor that ensures efficient ventilation and easy operation.
Color hood
Please select variant!

Thermex Vertical Automatic – Gesture control is a stylish and intelligent vertical wall-mounted cooker hood that combines advanced technology with modern design.

Design and Materials
The cooker hood's slanted front in matte white glass, along with the body and chimney in white-painted steel, gives an exclusive and sleek look. The 90 cm wide hood has an automatic glass panel that opens gradually in sync with the speed adjustment – closed at level 1 and gradually opening at higher levels.

Intelligent Operation
The cooker hood is operated via a glass touch display with a digital display of the motor's steps, speeds, timer, and lighting. Gesture control technology allows for hands-free operation – by moving your hand horizontally in front of the sensor, you can easily increase or decrease the speed, as well as turn the light on or off. This touchless operation ensures a hygienic and convenient experience, especially when your hands are dirty while cooking.

Efficient Performance
The powerful and quiet DC motor with an energy rating of A+++ delivers an air volume of up to 510 m³/h with a noise level starting at just 42 dB(A). The two energy-efficient 1.5 W LED lights ensure optimal lighting for the cooktop.

Easy Cleaning
The surface is easily wiped down with a damp cloth, while the three aluminum filters can be cleaned in the dishwasher for simple maintenance.

  • Vertical wall-mounted cooker hood in matte white glass and white-painted steel, 90 cm wide
  • Automatic opening glass panel that adjusts to the speed level
  • Gesture control for hands-free operation of speed and lighting
  • Quiet and energy-efficient DC motor (A+++) with air volume up to 510 m³/h
  • Easy to clean with wipe-down surface and dishwasher-safe filters

Specifications

Minimum airflow [m3/h]
165
Minimum-Soundpower [dB(A)]
42
Maximum-airflow [m3/h]
510
Maximum-Soundpower [dB(A)]
60
Energy consumption [W]
43
Control
Glass touch
Material
White painted steel and White glass
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
165
Minimum-Soundpower [dB(A)]
42
Maximum-airflow [m3/h]
510
Maximum-Soundpower [dB(A)]
60
Energy consumption [W]
43
Control
Glass touch
Material
White painted steel and White glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
900
Maximum depth [mm]
387
Maximum height [mm]
1450
Vent pipe width (mm)
300
Vent pipe max height (mm)
1000
Vent pipe min height (mm)
500
Minimum length vent pipe cutdown [mm]
450
Longer vent pipe length (mm)
1000
Outlet dimension (mm)
Ø150
Packaging width(mm)
955
Packaging depth [mm]
450
Packaging height(mm)
540
Net weight [kg]
20.8
Weight
28

Features

Control
Glass touch
Boost funktion
No
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
Yes
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

LE value [lux/W]
30
LE-class
A
EEI-class
A+++
Energy consumption in off mode (Po) [W]
0.46
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
66.1
GFE-class
D
FDE-value
36
FDE-class
A
Energy consumption [W]
43
Type of plug
Schuko
Energiforbrug standby (Ps) [W]
0.46
Motor Power [W]
40
Voltage [V]
230

Other specifications

EAN
5703347534164
Type of grease filter
Aluminum filter
Number of filters
3
Carbon filter as accessory
Yes
Carbon filter code
535.21.8400.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
Black glass
Material
White painted steel and White glass
SupplyCord (m)
1.6

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
