Close - 60 cm
520.21.7061.2

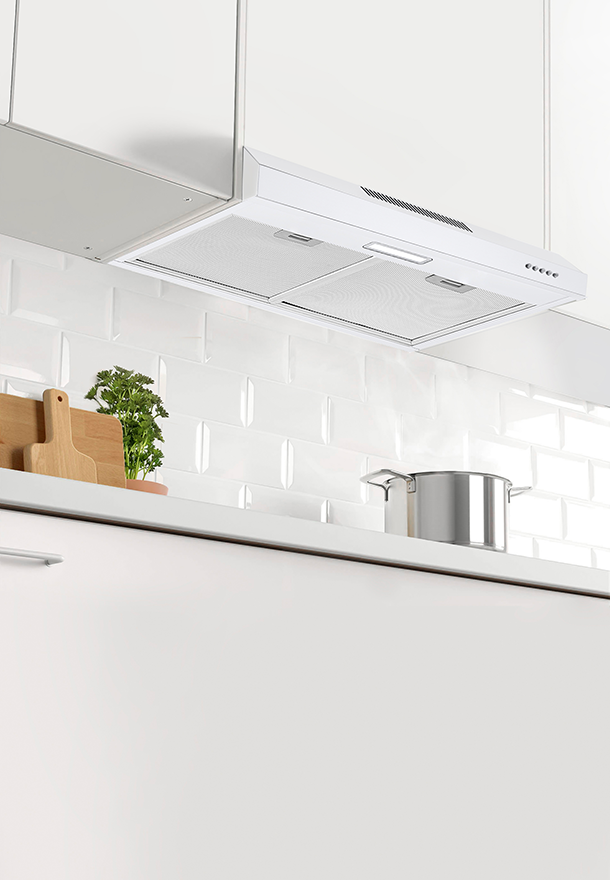

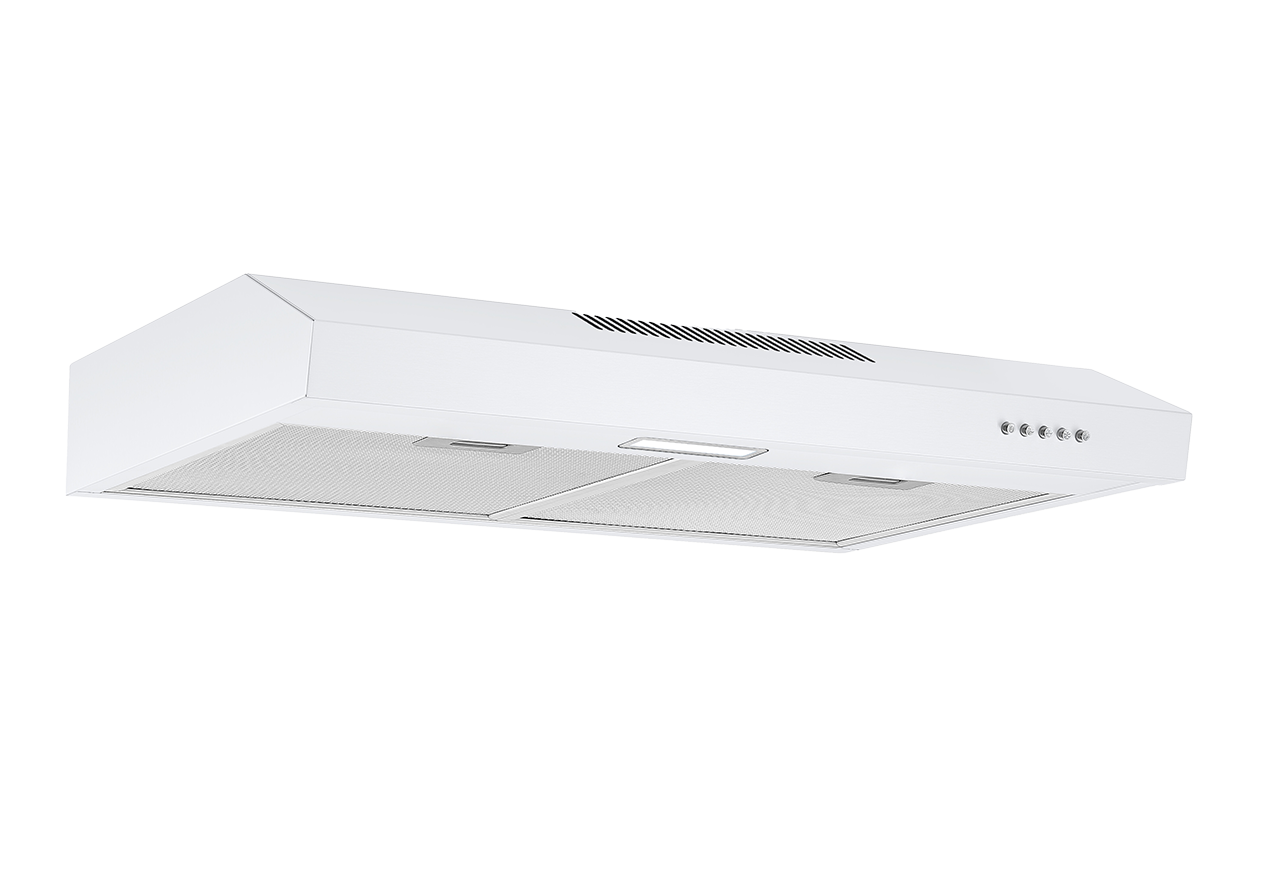

Thermex Close is a discreet cabinet-supported cooker hood in white lacquered steel with LED lights and washable filters. Easy operation and possibility of recirculation without piping.
Thermex Close is a discreet and functional cabinet-supported cooker hood that fits perfectly under most wall cabinets.
Design and functionality
Made of white lacquered steel and with a simple, modern look, Close is easily integrated into both new and existing kitchens. The hood is mounted directly under the wall cabinet and measures 60 cm in width, which makes it suitable for most standard kitchen cabinets. The integrated LED light strip (3000 Kelvin, 2 W) provides pleasant and even illumination above the hob.
Features and operation
Close is equipped with two efficient aluminium filters that trap grease and steam and can be easily cleaned in the dishwasher. A carbon filter is included and enables recirculation without the need for piping in the cabinet – the air is instead led out through the front. Operation is via push buttons, from which light and three speeds are easily controlled.
Engine and capacity
The cooker hood has a built-in motor with energy label A and a capacity of up to 218 m³/h, which ensures a stable and efficient extraction for daily cooking.
Noise
With a sound level starting at 50 dB(A), Close offers a comfortable and relatively quiet operation – even at higher suction powers.
Easy cleaning
The surface is easily wiped with a damp cloth, and the removable aluminium filters can be washed in the dishwasher, making maintenance simple.
Thermex Close combines simple operation, solid performance and a stylish design – ideal for those who want a practical and discreet cooker hood in everyday life.
- Cabinet-supported cooker hood in white lacquered steel with a stylish design
- LED light strip (3000 K, 2 W) for efficient illumination of the cooking zone
- Easy operation with push buttons and three speeds
- Carbon filter included – recirculation without piping in the cabinet
- Washable aluminium filters and low noise level from 50 dB(A)
Specifications
Minimum airflow [m3/h]
120
Minimum-Soundpower [dB(A)]
50
Maximum-airflow [m3/h]
218
Maximum-Soundpower [dB(A)]
66
Energy consumption [W]
37
Control
Push buttons
Material
White painted steel
Voltage [V]
230
Projekteringsfane
Odour extraction test standard
Specifications
Minimum airflow [m3/h]
120
Minimum-Soundpower [dB(A)]
50
Maximum-airflow [m3/h]
218
Maximum-Soundpower [dB(A)]
66
Energy consumption [W]
37
Control
Push buttons
Material
White painted steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
480
Maximum height [mm]
130
Outlet dimension (mm)
Ø120
Packaging width(mm)
650
Packaging depth [mm]
150
Packaging height(mm)
540
Net weight [kg]
4.8
Weight
5.6
Features
Control
Push buttons
Boost funktion
No
Decor light
No
Timer funktion
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
207
LE value [lux/W]
90
LE-class
A
EEI-value
54
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
2
GFE-value
65.1
GFE-class
D
FDE-value
15.3
FDE-class
D
AEC [kWh/h]
19
Energy consumption [W]
37
Energiforbrug standby (Ps) [W]
0.48
Odour extraction test standard
Motor Power [W]
35
Voltage [V]
230
Other specifications
EAN
5703347534706
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
In
Carbon filter code
535.21.7010.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
1
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Vent pipe modification
Mounting
Cabinet substantiated
Motor type
Internal motor
Front panel color
BodyColor
White
Front panel material
Material
White painted steel
SupplyCord (m)
1.2
