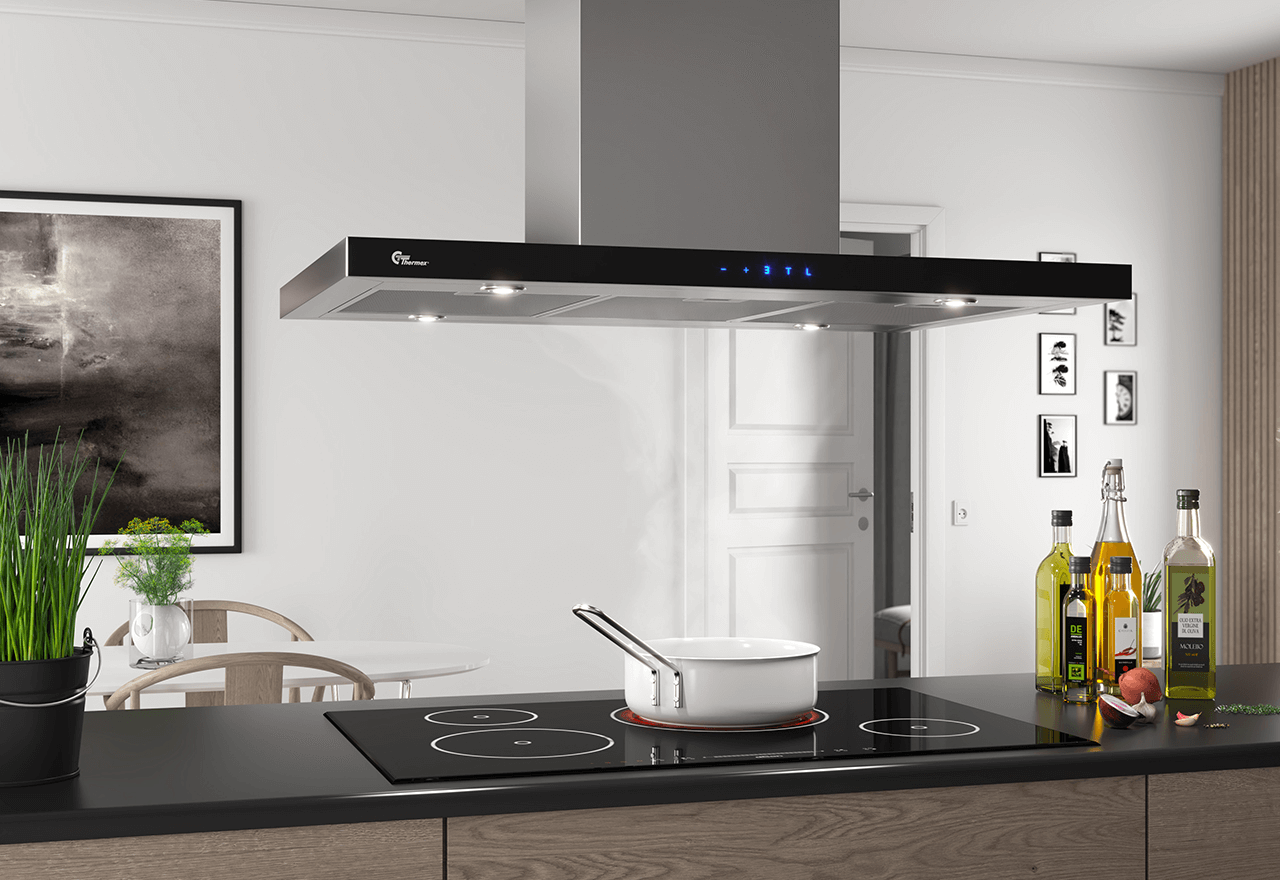

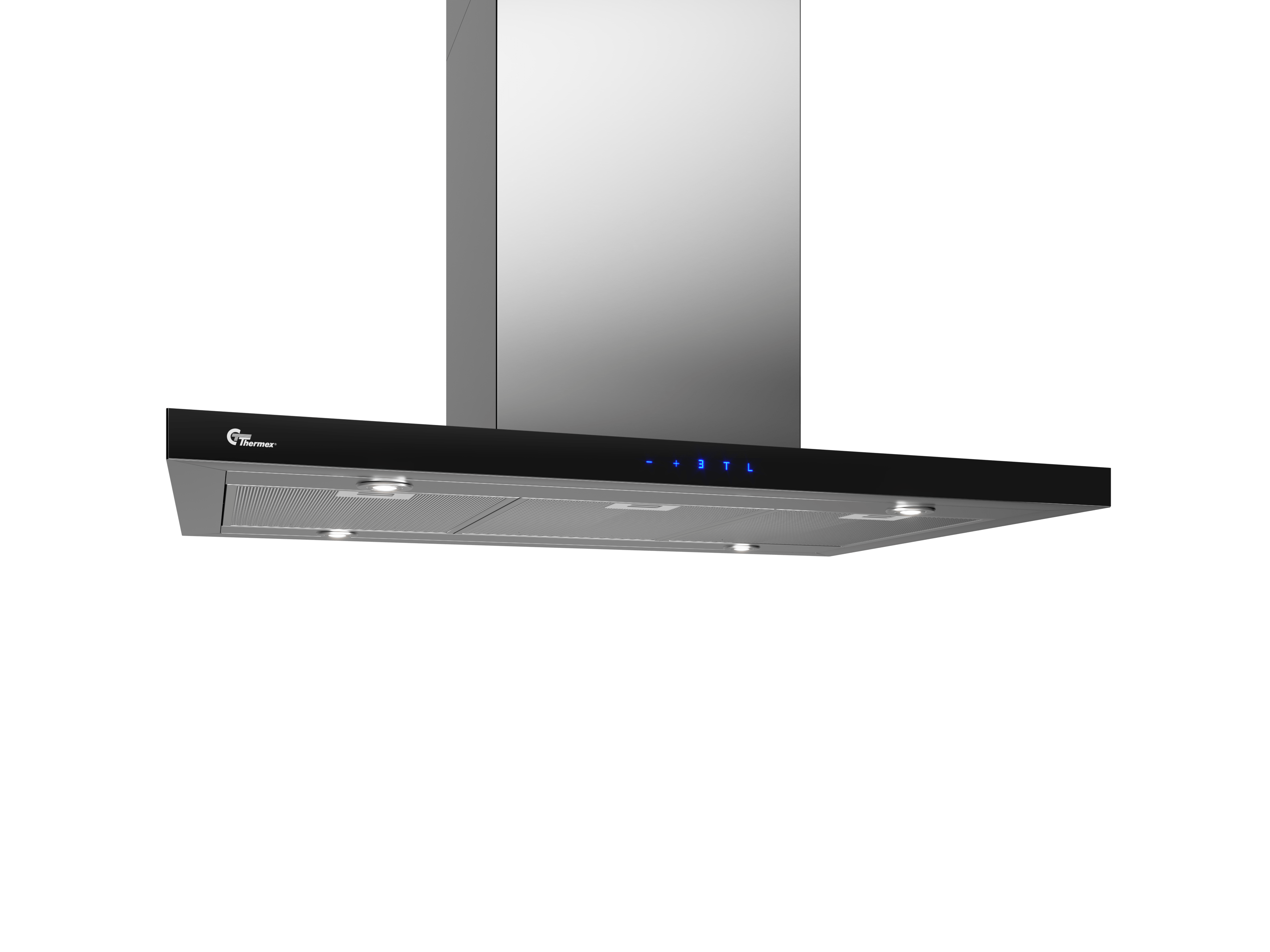

Decor 840 900 mm Stainless

528.23.8498.2

Specifications

Minimum airflow [m3/h]
290
Minimum-Soundpower [dB(A)]
54
Maximum-airflow [m3/h]
540
Maximum-Soundpower [dB(A)]
66
Airflow with boost [m3/h]
750
Soundpower boost [dB(A)]
70
Control
Glass touch
Material
Stainless steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
900
Maximum depth [mm]
600
Maximum height [mm]
980
Vent pipe width (mm)
320
Vent pipe max height (mm)
940
Vent pipe min height (mm)
790
Minimum length vent pipe cutdown [mm]
500
Outlet dimension (mm)
Ø150
Packaging width(mm)
1000
Packaging depth [mm]
400
Packaging height(mm)
765
Net weight [kg]
21.5
Weight
26

Features

Control
Glass touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
Yes
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
Yes
Wi-Fi
No
Toplink compatible
Yes
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
705
LE value [lux/W]
117.5
LE-class
A
EEI-value
53.4
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
6
GFE-value
68
GFE-class
D
FDE-value
30.4
FDE-class
A
Power supply [V]
230
Odour extraction test standard
Motor Power [W]
160
Voltage [V]
230

Other specifications

EAN
5703347531507
Type of grease filter
Aluminum filter
Number of filters
3
Carbon filter as accessory
Yes
Carbon filter code
535.23.0570.9
Number of carbonfilters
3
Number of speeds ex (boost)
3
Number of lamps
4
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Vent pipe modification
Yes
Mounting
Free-hanging
Motor type
Internal motor
Front panel color
Black
BodyColor
Stainless steel
Front panel material
Black lacquered steel
Material
Stainless steel
