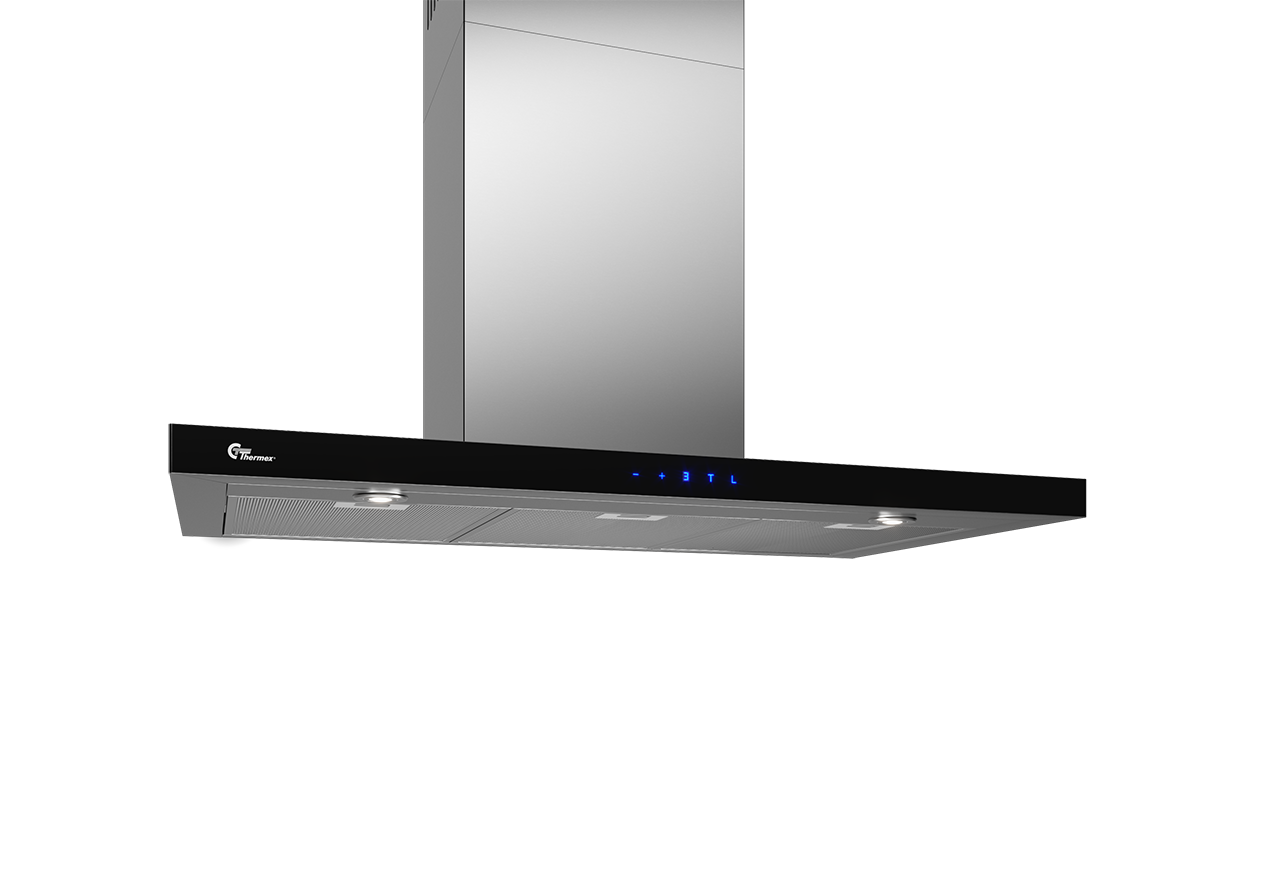

Decor 840 900 mm Stainless

527.23.8498.2
Width
Please select variant!

Specifications

Minimum airflow [m3/h]
300
Minimum-Soundpower [dB(A)]
52
Maximum-airflow [m3/h]
530
Maximum-Soundpower [dB(A)]
65
Airflow with boost [m3/h]
750
Soundpower boost [dB(A)]
71
Control
Glass touch
Material
Stainless steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
900
Maximum depth [mm]
500
Maximum height [mm]
990
Vent pipe width (mm)
325
Vent pipe max height (mm)
950
Vent pipe min height (mm)
630
Minimum length vent pipe cutdown [mm]
500
Outlet dimension (mm)
Ø150
Packaging width(mm)
1000
Packaging depth [mm]
540
Packaging height(mm)
575
Net weight [kg]
16
Weight
18

Features

Control
Glass touch
Moveable outlet
No
Built-in trigger function
No
Wi-Fi
No

Technical specifications

Illumination (Emiddle) [lux]
375
LE value [lux/W]
125
LE-class
A
EEI-value
52.4
EEI-class
A
Colour temperature [Kelvin]
4000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
3
GFE-value
67
GFE-class
D
FDE-value
30.7
FDE-class
A
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.45
Odour extraction test standard
Motor Power [W]
160
Voltage [V]
230

Other specifications

EAN
5703347531491
Number of filters
3
Carbon filter as accessory
Yes
Carbon filter code
535.23.0555.9
Number of carbonfilters
1
Number of speeds ex (boost)
3
Vent pipe modification
Yes
Motor type
Internal motor
BodyColor
Stainless steel
Material
Stainless steel

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
