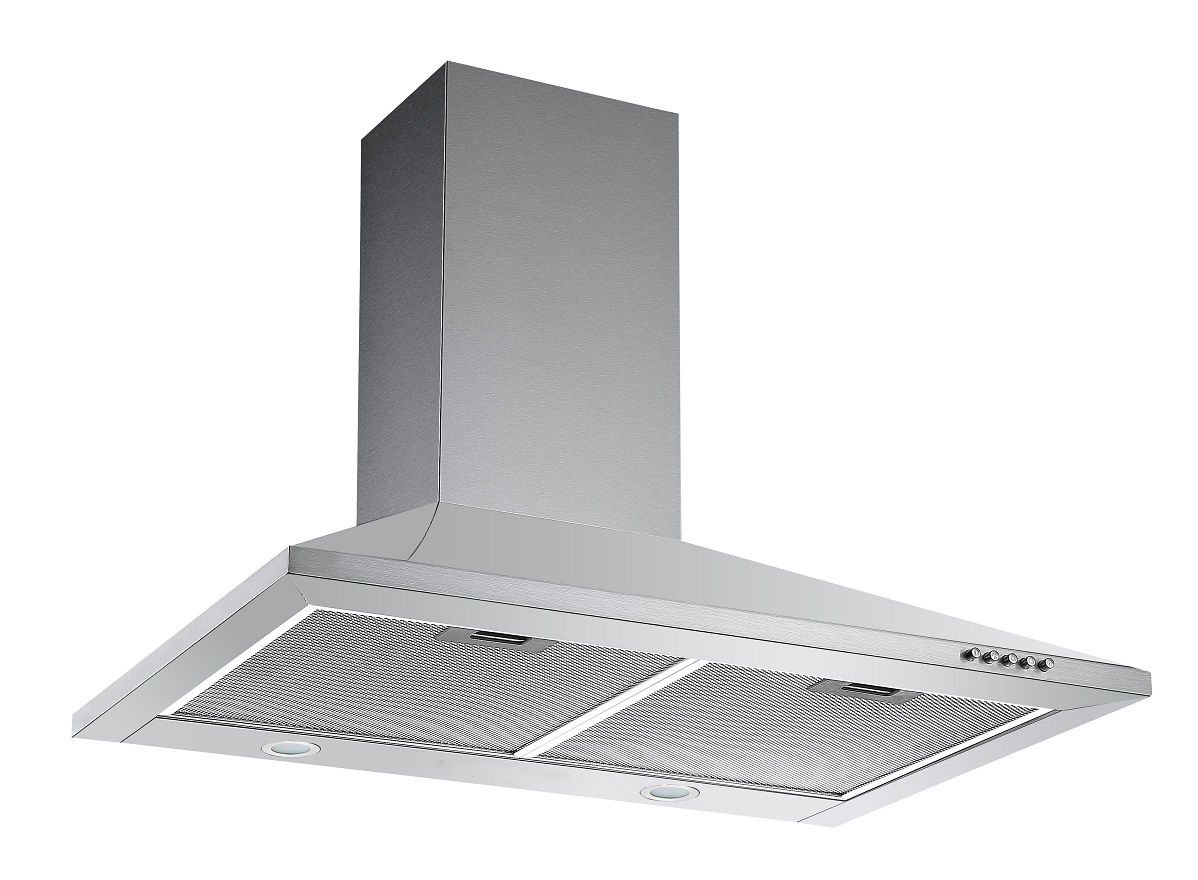

Decor 932

527.21.4068.2

Specifications

Minimum airflow [m3/h]
225
Minimum-Soundpower [dB(A)]
60
Maximum-airflow [m3/h]
354
Maximum-Soundpower [dB(A)]
69
Energy consumption [W]
69
Control
Push buttons
Material
Stainless steel

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
475
Maximum height [mm]
960
Vent pipe width (mm)
222
Vent pipe max height (mm)
780
Vent pipe min height (mm)
400
Minimum length vent pipe cutdown [mm]
300
Outlet dimension (mm)
Ø150
Packaging width(mm)
650
Packaging depth [mm]
250
Packaging height(mm)
525
Net weight [kg]
7
Weight
8.5

Features

Control
Push buttons
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
194
LE value [lux/W]
51
LE-class
A
EEI-value
67.1
EEI-class
B
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
4
GFE-value
64.5
GFE-class
E
FDE-value
13.1
FDE-class
D
Energy consumption [W]
69
Power supply [V]
230
Odour extraction test standard
Motor Power [W]
65

Other specifications

EAN
5703347533358
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.21.8310.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
BodyColor
Stainless steel
Front panel material
Material
Stainless steel
SupplyCord (m)
1.2
