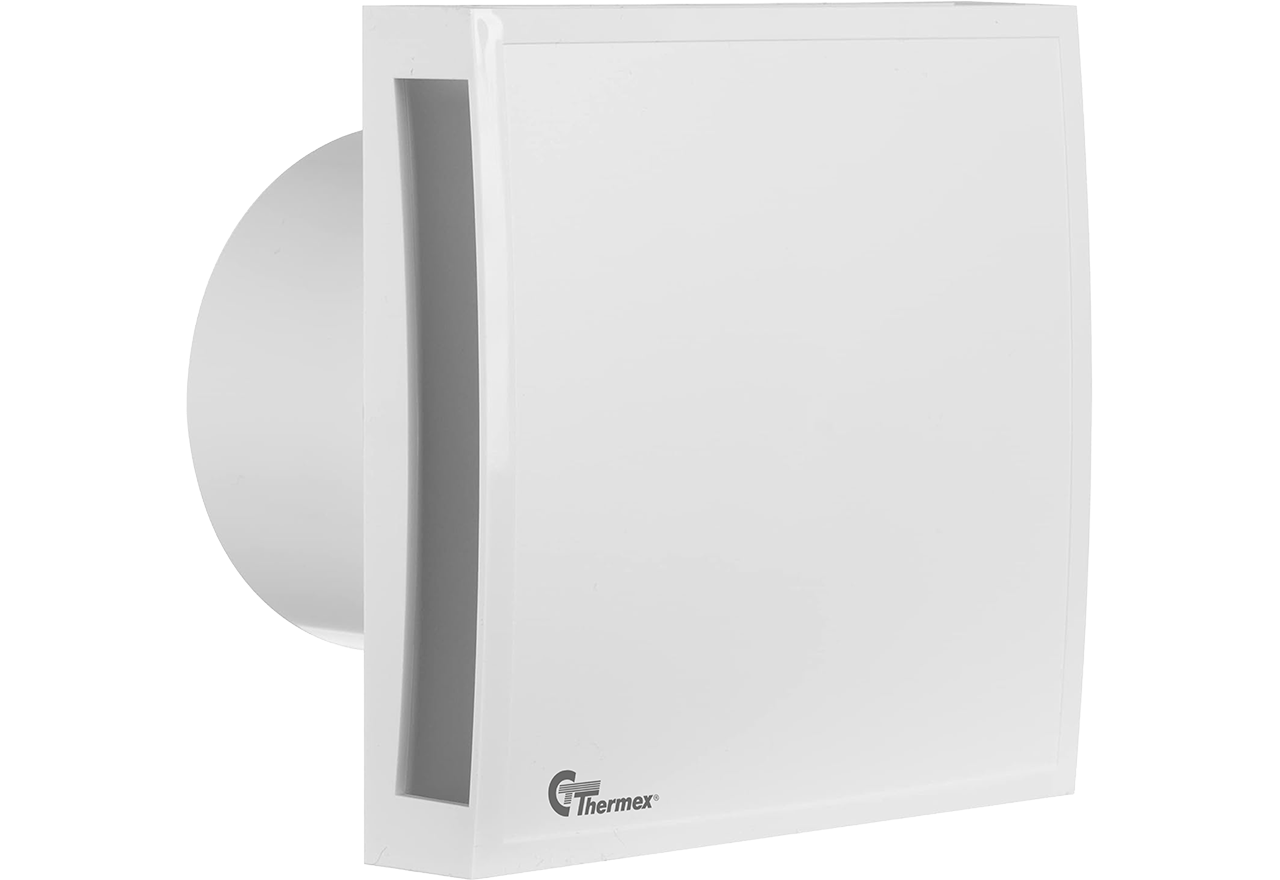

Design 100 HT – White
200.50.3011.2
Design 100 HT in white combines discreet design with automatic humidity control and timer.
Color
Options
Fan with automatic humidity control and timer
The Thermex Design 100 HT in white is equipped with both a hygrostat and an overrun timer, providing automatic ventilation control. It is designed for bathrooms and smaller spaces that require intelligent humidity control and a discreet look.

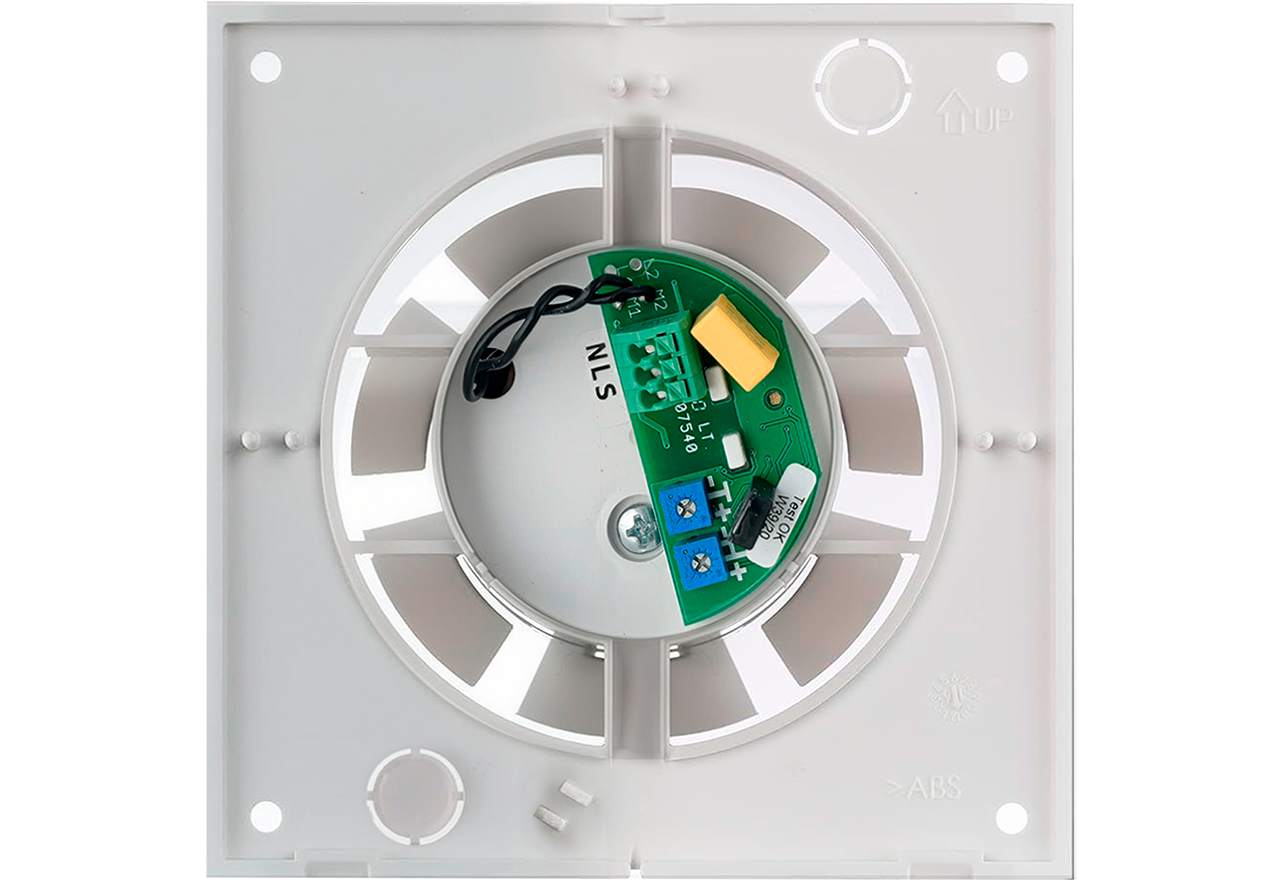

The hygrostat automatically activates the fan at high humidity – adjustable from 60 to 90%. The timer can be set to continue ventilation for up to 30 minutes after use. The closed white front design ensures a clean, minimalist appearance.
Features:
Built-in hygrostat (60–90% RH)
Adjustable overrun timer (1–30 minutes)

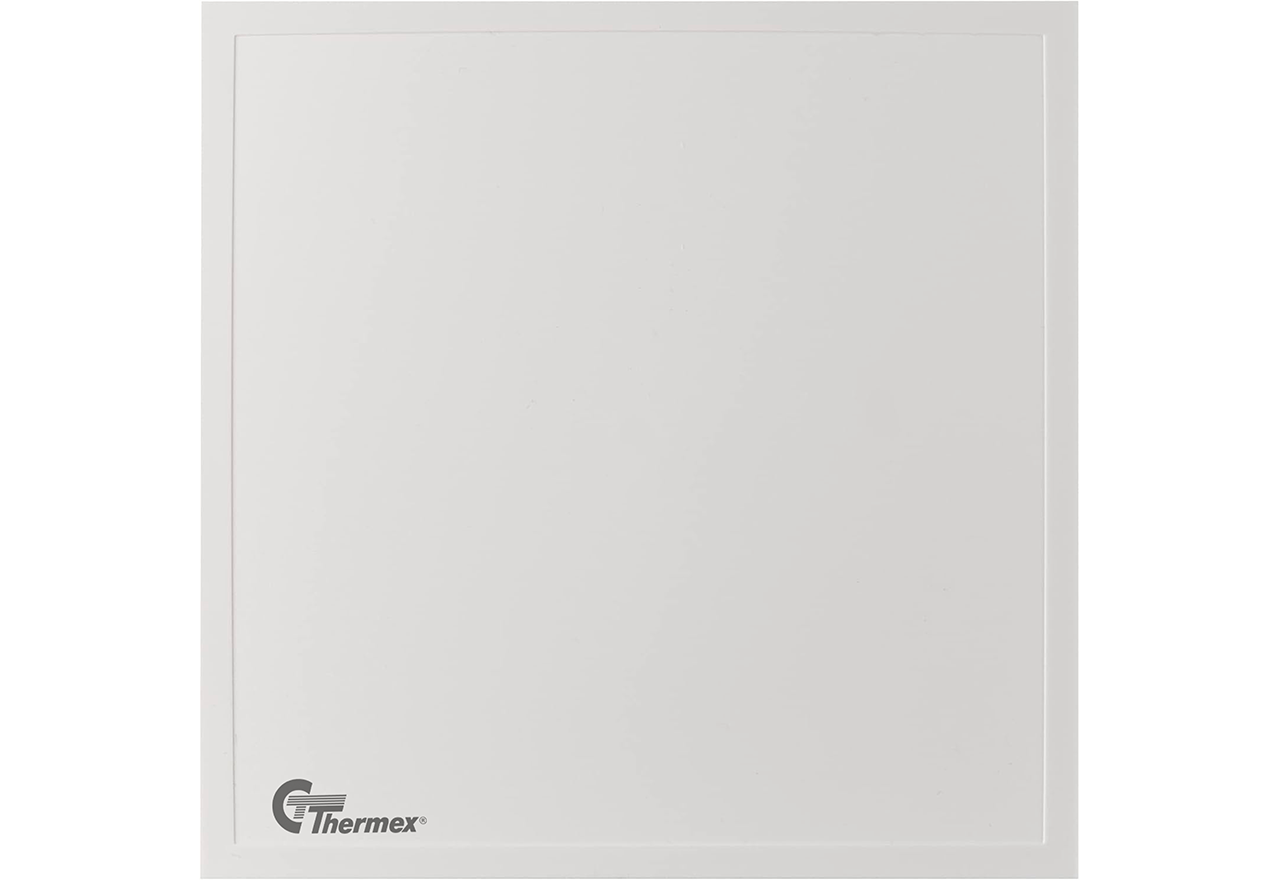

White front with closed design

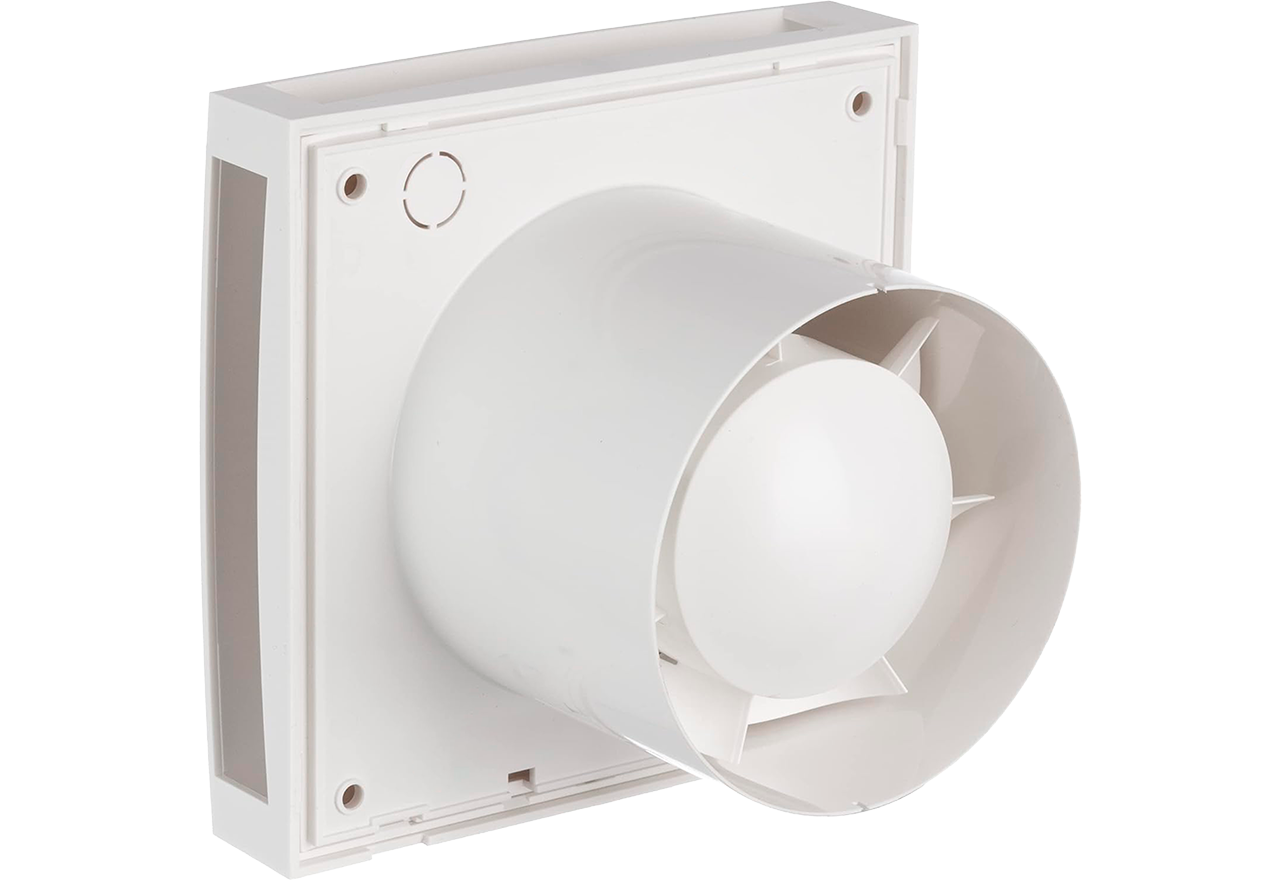

Sleek and compact fan for Ø100 mm duct
Technical specifications:
Voltage: 230 V ~ 50 Hz
Power consumption: 15 W
Airflow: 100 m³/h
Sound pressure: 32 dB(A) at 3 metres
Speed: 2550 RPM
IP rating: IPX4
Insulation class: B
Operating temperature: 5 °C to 40 °C
Dimensions (HxWxD): 140 x 140 x 96 mm
Duct connection: Ø100 mm
Design 100 HT – White is the ideal choice if you want automatic and quiet ventilation in a simple white design.
- Adjustable hygrostat (60–90 % RH)
- Adjustable overrun timer (1–30 min)
- Low noise level: 32 dB(A)
- White closed front panel
- Ø100 mm connection
Specifications
Energy consumption [W]
15
Luftmængde ved 0 Pascal [m3/t]
100
Kapslingsklasse
IPX4
Control
None
Material
Plastic
Voltage [V]
230
Specifications
Energy consumption [W]
15
Luftmængde ved 0 Pascal [m3/t]
100
Kapslingsklasse
IPX4
Control
None
Material
Plastic
Voltage [V]
230
Weight and measurements
Maximum width [mm]
145
Maximum depth [mm]
115
Maximum height [mm]
145
Aftræksdimension (mm)
Ø100
Packaging width(mm)
159
Packaging depth [mm]
120
Packaging height(mm)
156
Net weight [kg]
0.43
Weight
0.54
Features
Control
None
Timer funktion
Ja
Fugtsensor
Ja
Technical specifications
Energy consumption [W]
15
Kapslingsklasse
IPX4
Luftmængde ved 0 Pascal [m3/t]
100
Maximum sound pressure at 3 meters [dB(A)]
32
Voltage [V]
230
Other specifications
EAN
5703347206450
BodyColor
White
Material
Plastic
Max air temperature (° C)
40
Fan speed [rpm]
2550
