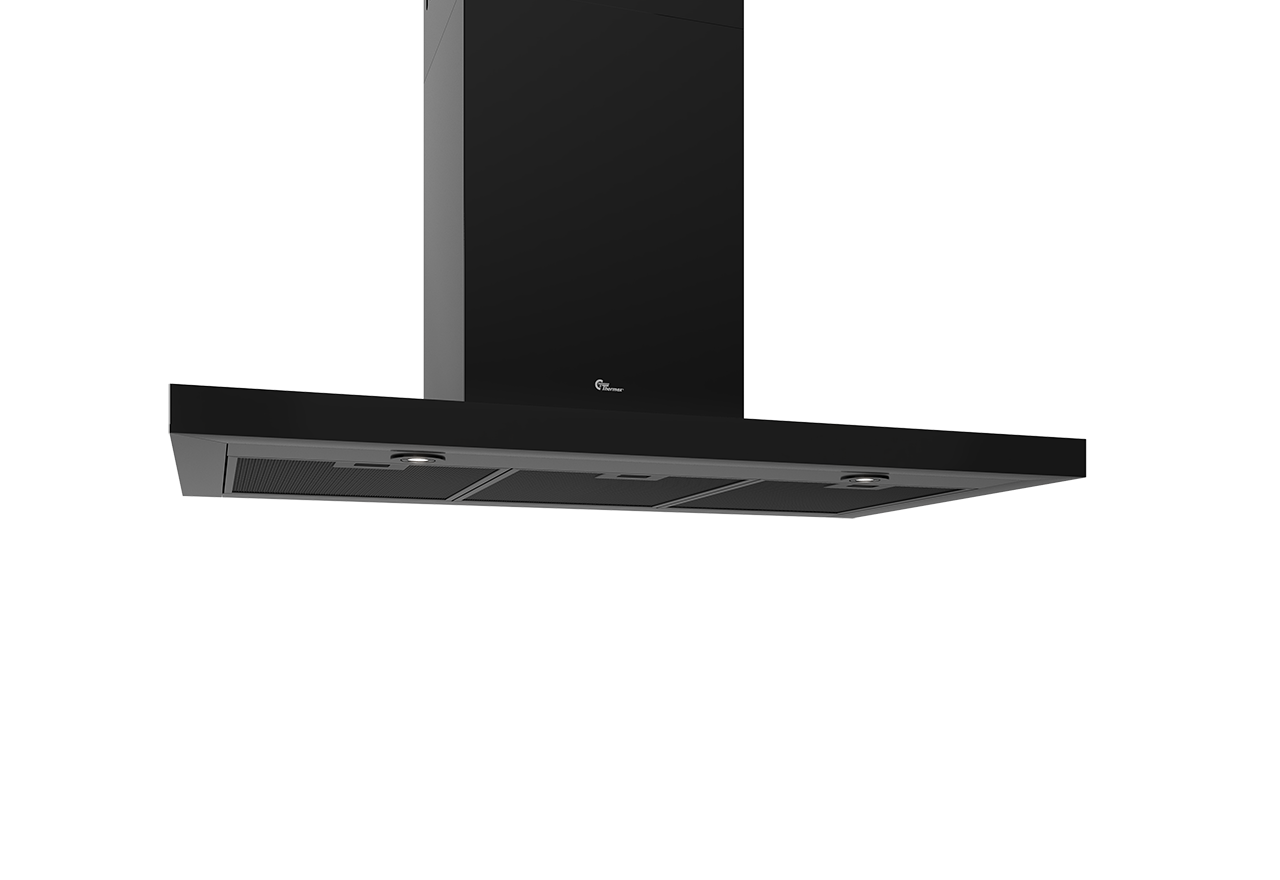

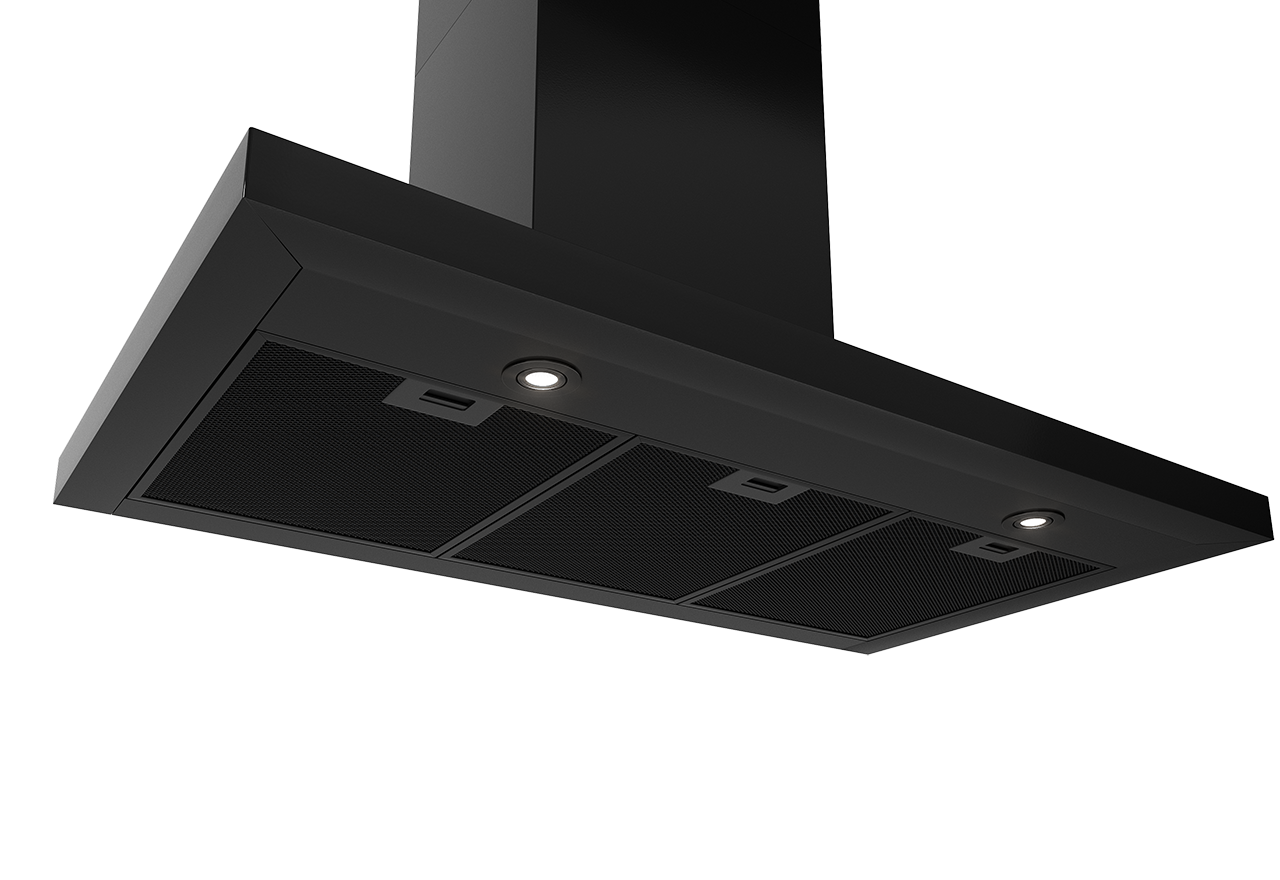

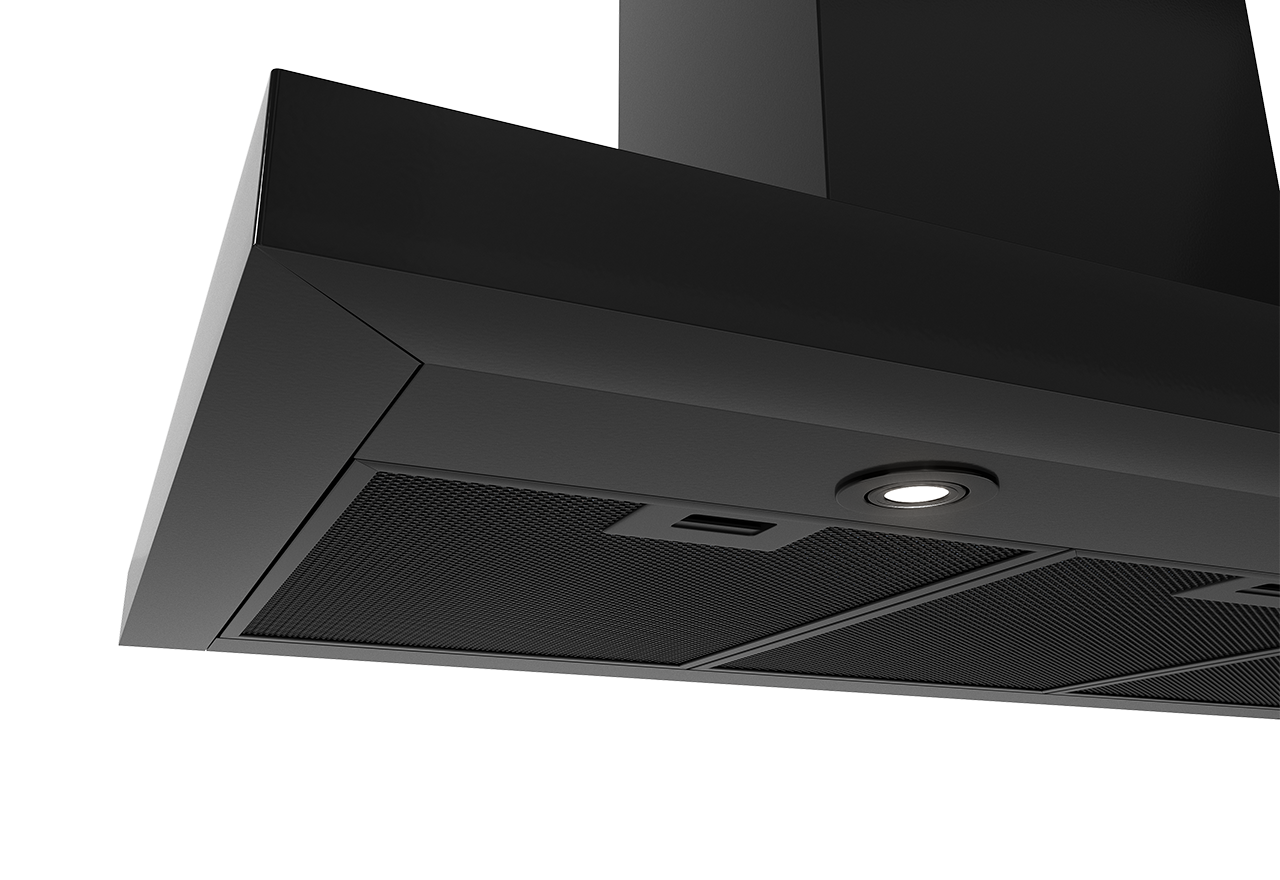

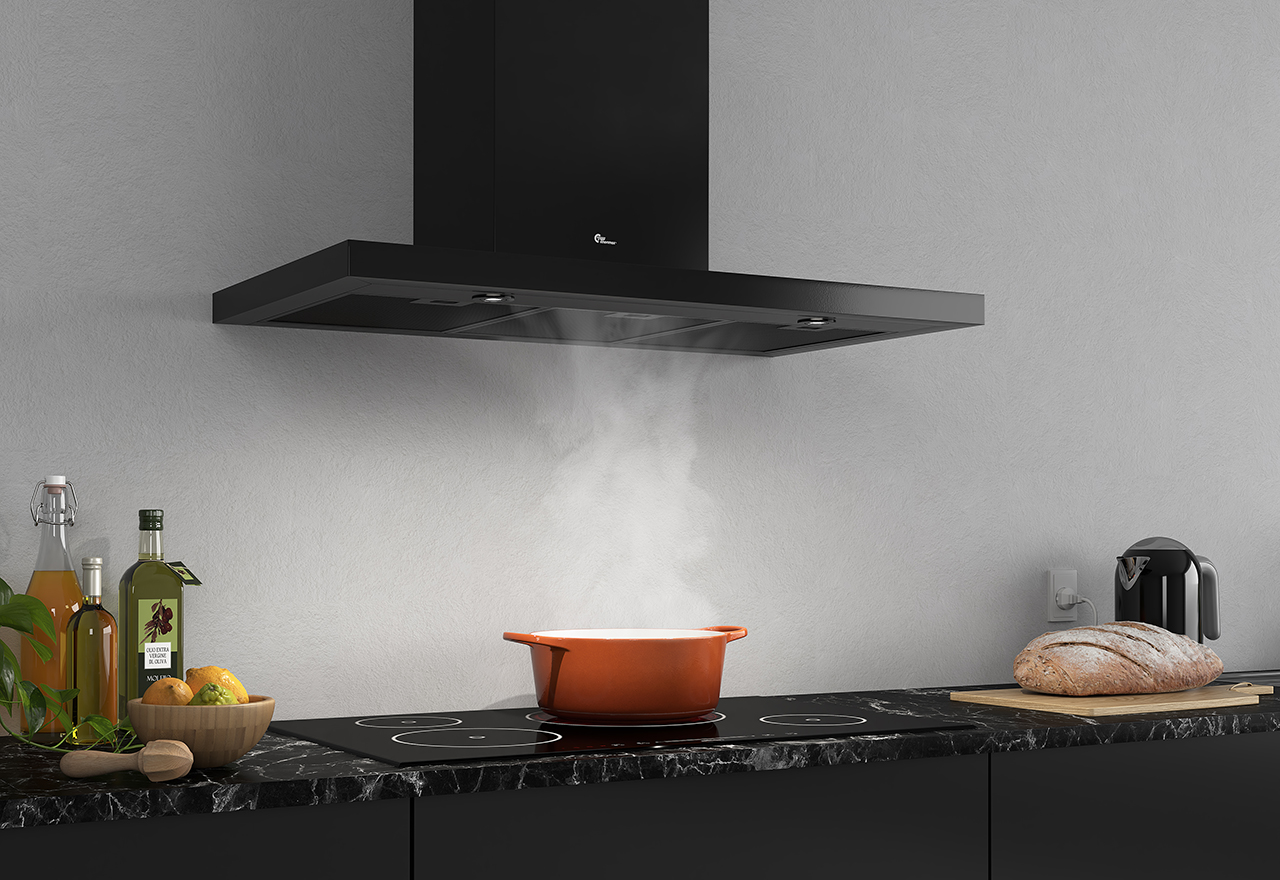

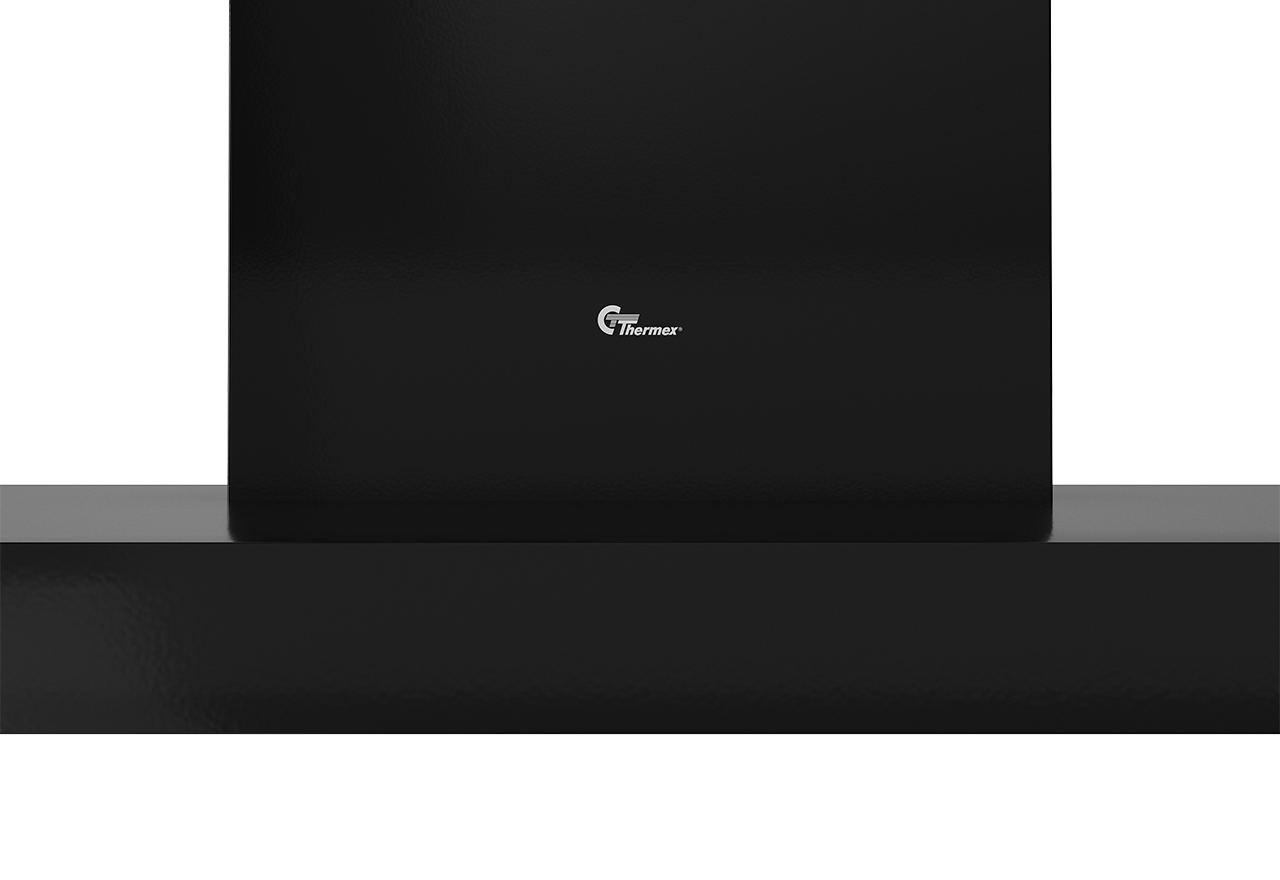

Design Line 8001 - 90 cm - wall - black - Smarthome
527.23.3292.2
Width
Specifications
Minimum airflow [m3/h]
225
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
535
Maximum-Soundpower [dB(A)]
63
Airflow with boost [m3/h]
720
Soundpower boost [dB(A)]
69
Energy consumption [W]
164
Control
Remote control
Material
Black painted steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
900
Maximum depth [mm]
500
Maximum height [mm]
990
Vent pipe width (mm)
325
Vent pipe max height (mm)
950
Vent pipe min height (mm)
630
Minimum length vent pipe cutdown [mm]
650
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
1000
Packaging depth [mm]
575
Packaging height(mm)
540
Net weight [kg]
17.2
Weight
21.8
Features
Control
Remote control
Moveable outlet
No
Built-in trigger function
Yes
Wi-Fi
Yes
Technical specifications
Illumination (Emiddle) [lux]
400
LE value [lux/W]
80
LE-class
A
EEI-value
30.4
EEI-class
A++
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2.5
Total consumption of light (WL) [W]
5
GFE-value
57
GFE-class
E
FDE-value
40.5
FDE-class
A
Energy consumption [W]
164
Type of plug
Schuko
Energiforbrug standby (Ps) [W]
0.45
Odour extraction test standard
Motor Power [W]
160
Voltage [V]
230
Other specifications
EAN
5703347533037
Number of filters
3
Carbon filter as accessory
Yes
Carbon filter code
535.23.0545.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Suction Front
No
Vent pipe modification
Yes
Motor type
Internal motor
BodyColor
Black
Material
Black painted steel
SupplyCord (m)
1.7
