Design Line 8002 - Vertical Cooker Hood - 60 cm

540.23.2262.2
Elegant vertical cooker hood in black glass with powerful and quiet DC motor, adjustable lighting and energy class A+++ for modern kitchens.
Width
Please select variant!

The Thermex Design Line 8002 is a sleek and modern vertical cooker hood in black glass and metal that combines exclusive design with efficient performance.

Design and functionality
Design Line 8002 has a stylish vertical design and a reduced height, which gives a modern look without dominating the room. The 60 cm wide model fits perfectly into most standard kitchens, and the slim shape means that you avoid bumping your head while cooking. The black glass front adds a luxurious touch to the kitchen's décor.

Features and operation
The cooker hood is equipped with a powerful, brushless DC motor that delivers up to 740 m³/h in extraction capacity. The motor ensures high efficiency with low energy consumption and an energy class of A+++, making it both environmentally friendly and economical to operate. It ensures a fresh and pleasant atmosphere in the kitchen, even during intensive cooking.

Noise
Thanks to the state-of-the-art brushless motor, the Design Line 8002 is particularly quiet with a noise level of just 42 dB(A). It provides a quiet and comfortable cooking experience without disturbing noise.

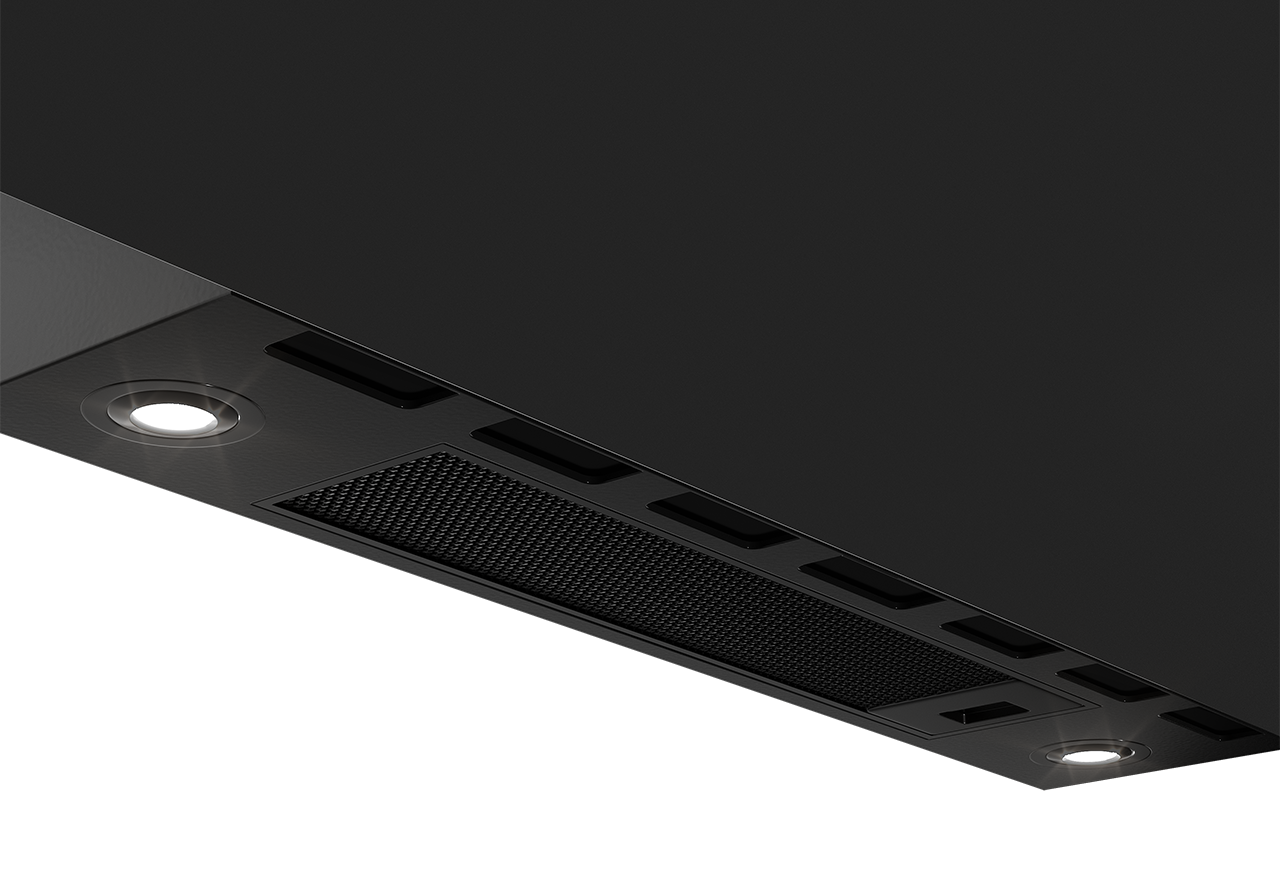

Lighting and Operation
The lighting can be adjusted in both brightness and colour temperature from warm to cool white light, so the mood in the kitchen can be adapted to any situation. The cooker hood can be operated by remote control, via Thermex Toplink® (optional), or through the Thermex Remote app. It also supports voice control via Google Assistant, so you can easily control the functions with your voice.

Easy cleaning
The sturdy metal filters can be easily removed by opening the lower glass plate. The filters are dishwasher safe, making cleaning quick, easy and hygienic.

Installation
Design Line 8002 can be installed both with and without an extractor, which provides flexibility in installation and makes it easy to adapt the hood to different kitchen solutions.

The Thermex Design Line 8002 combines exclusive design, high energy efficiency and modern technology in one stylish solution for the quality-conscious kitchen.

  • Exclusive design in black glass and metal
  • Powerful brushless DC motor with up to 740 m³/h suction power
  • Low noise level from just 42 dB(A)
  • Adjustable LED lighting in brightness and colour temperature
  • Easy operation via remote control, app and voice control

Specifications

Minimum airflow [m3/h]
240
Minimum-Soundpower [dB(A)]
42
Maximum-airflow [m3/h]
550
Maximum-Soundpower [dB(A)]
61
Airflow with boost [m3/h]
740
Soundpower boost [dB(A)]
67
Energy consumption [W]
163
Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
240
Minimum-Soundpower [dB(A)]
42
Maximum-airflow [m3/h]
550
Maximum-Soundpower [dB(A)]
61
Airflow with boost [m3/h]
740
Soundpower boost [dB(A)]
67
Energy consumption [W]
163
Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
340
Maximum height [mm]
1330
Vent pipe width (mm)
255
Vent pipe max height (mm)
930
Vent pipe min height (mm)
480
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
700
Packaging depth [mm]
520
Packaging height(mm)
520
Net weight [kg]
21
Weight
23

Features

Control
Remote control
Moveable outlet
Yes
Built-in trigger function
Yes
Wi-Fi
Yes

Technical specifications

Illumination (Emiddle) [lux]
312
LE value [lux/W]
78
LE-class
A
EEI-value
29.9
EEI-class
A+++
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
4
GFE-value
62
GFE-class
E
FDE-value
41.2
FDE-class
A
AEC [kWh/h]
26.2
Energy consumption [W]
163
Type of plug
Schuko
Energiforbrug standby (Ps) [W]
0.45
Motor Power [W]
160
Voltage [V]
230

Other specifications

EAN
5703347534867
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.23.0545.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Vent pipe modification
Yes
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.7
Battery type
CR2032
Number of batteries
1

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info
