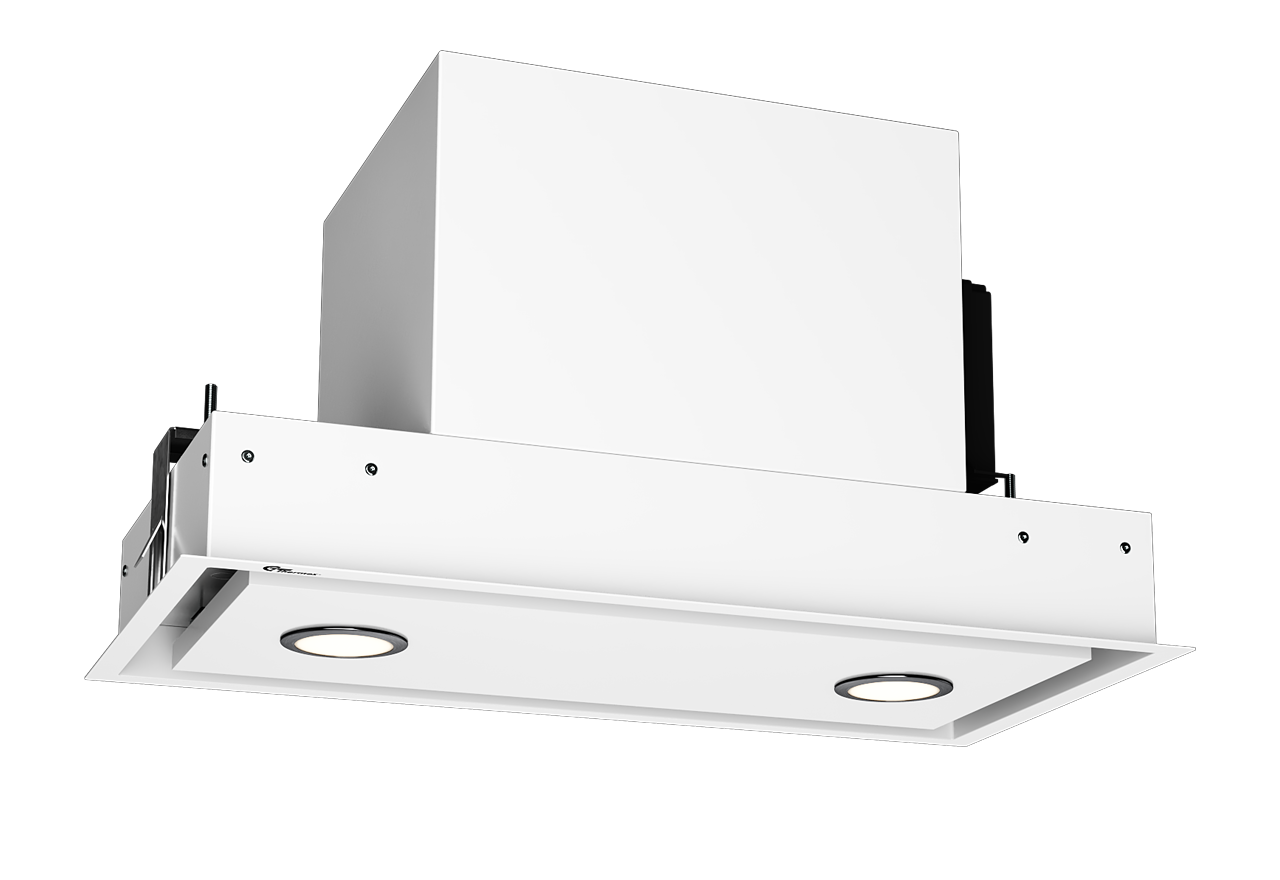

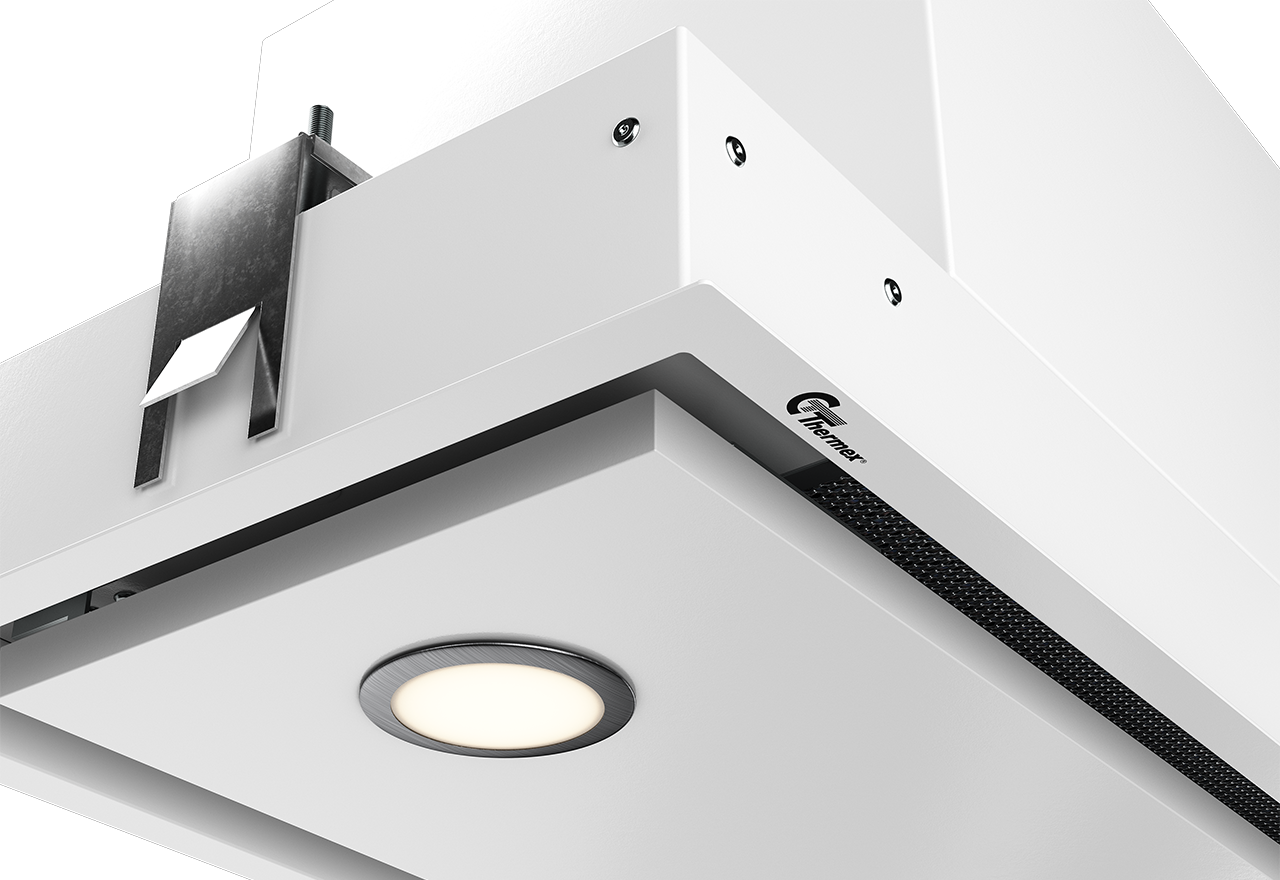

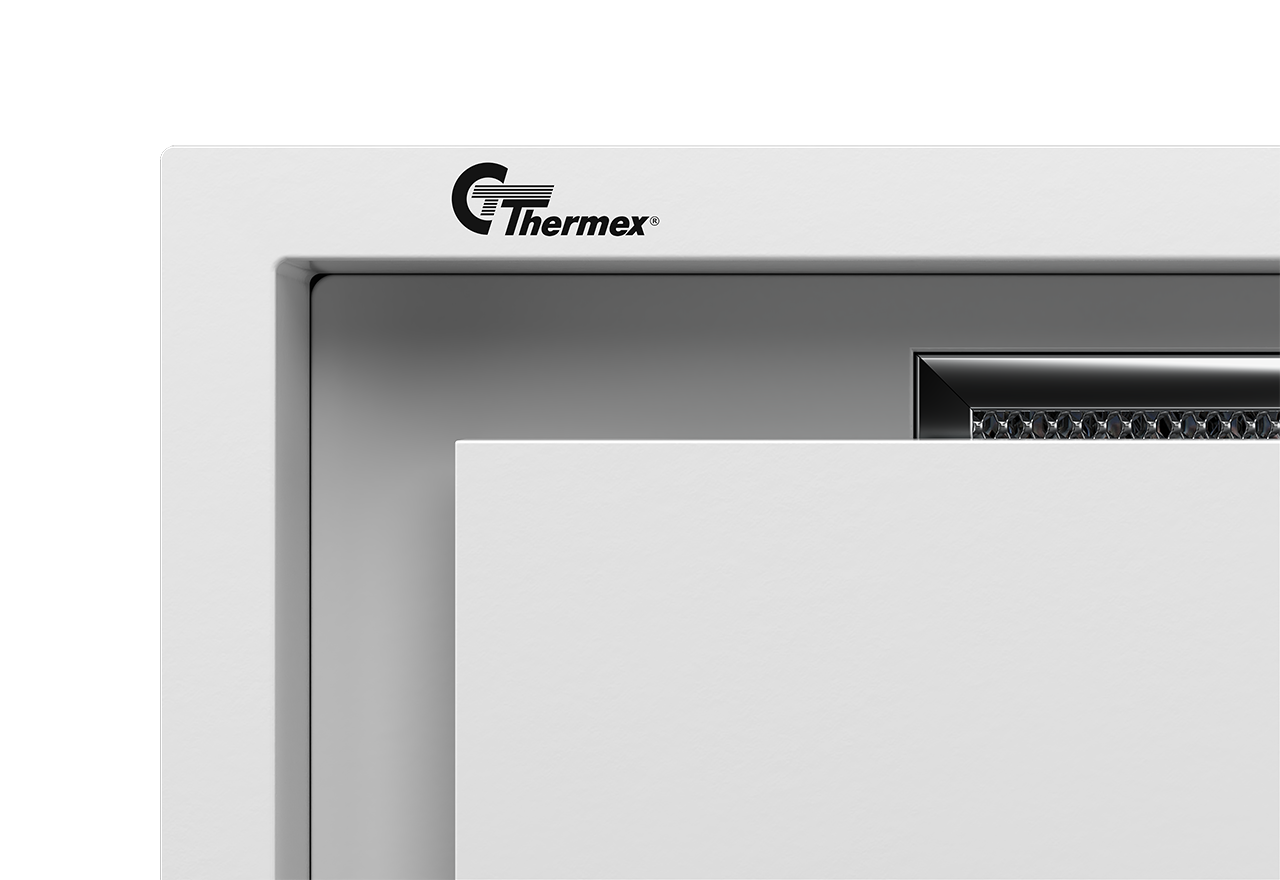

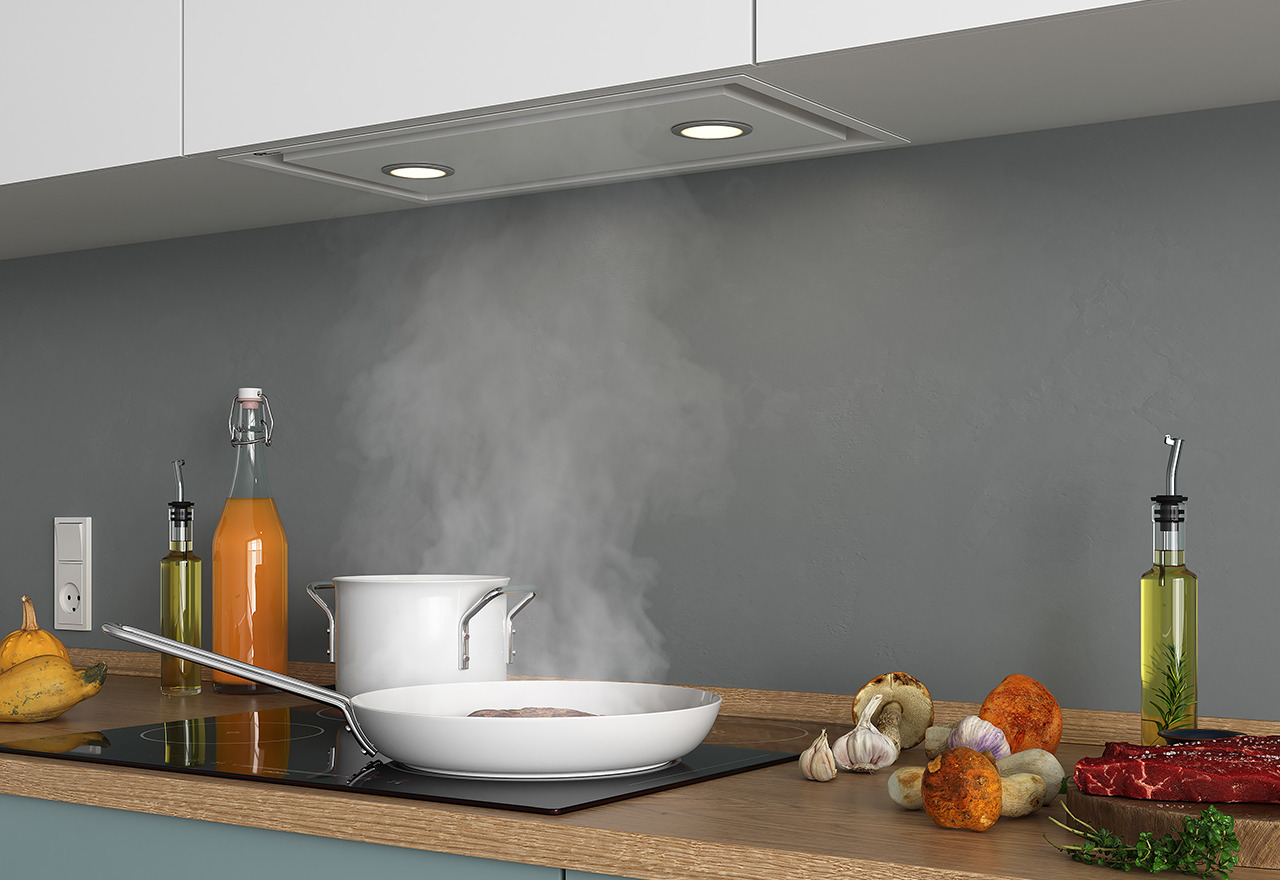

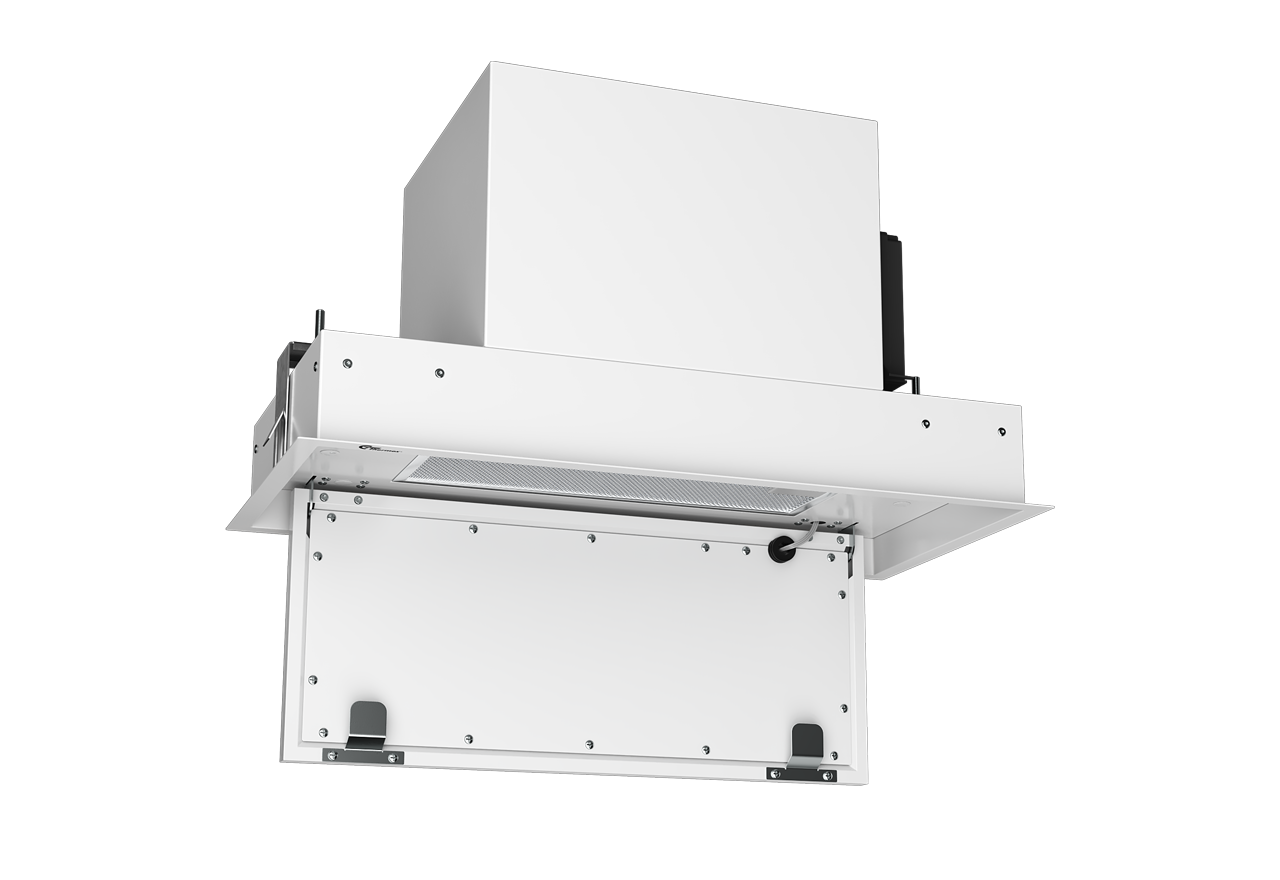

Design Line 8003 - 60 cm - build-in - white - Smarthome
423.23.1161.2
Width
Color hood
Specifications
Minimum airflow [m3/h]
200
Minimum-Soundpower [dB(A)]
42
Maximum-airflow [m3/h]
480
Maximum-Soundpower [dB(A)]
62
Airflow with boost [m3/h]
660
Soundpower boost [dB(A)]
68
Energy consumption [W]
165
Control
Remote control
Material
White painted steel
Weight and measurements
Maximum width [mm]
556
Maximum depth [mm]
289
Maximum height [mm]
293
Outlet dimension (mm)
Ø150
Packaging width(mm)
700
Packaging depth [mm]
570
Packaging height(mm)
475
Net weight [kg]
13.5
Weight
17
Features
Control
Remote control
Moveable outlet
Yes
Built-in trigger function
Yes
Wi-Fi
Yes
Technical specifications
Illumination (Emiddle) [lux]
180
LE value [lux/W]
30
LE-class
G
EEI-value
36.1
EEI-class
A+
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2.5
Total consumption of light (WL) [W]
6
GFE-value
58
GFE-class
E
FDE-value
36.5
FDE-class
A
Energy consumption [W]
165
Type of plug
Schuko
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.45
Odour extraction test standard
Moottorin maksimikulutus [W]
160
Other specifications
EAN
5703347532931
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.23.0590.9
Number of carbonfilters
1
Number of speeds ex (boost)
3
Suction Bottom
Yes
Suction Front
No
Motor type
Internal motor
BodyColor
White
BodyColor (RAL)
9003
Material
White painted steel
SupplyCord (m)
1.7
