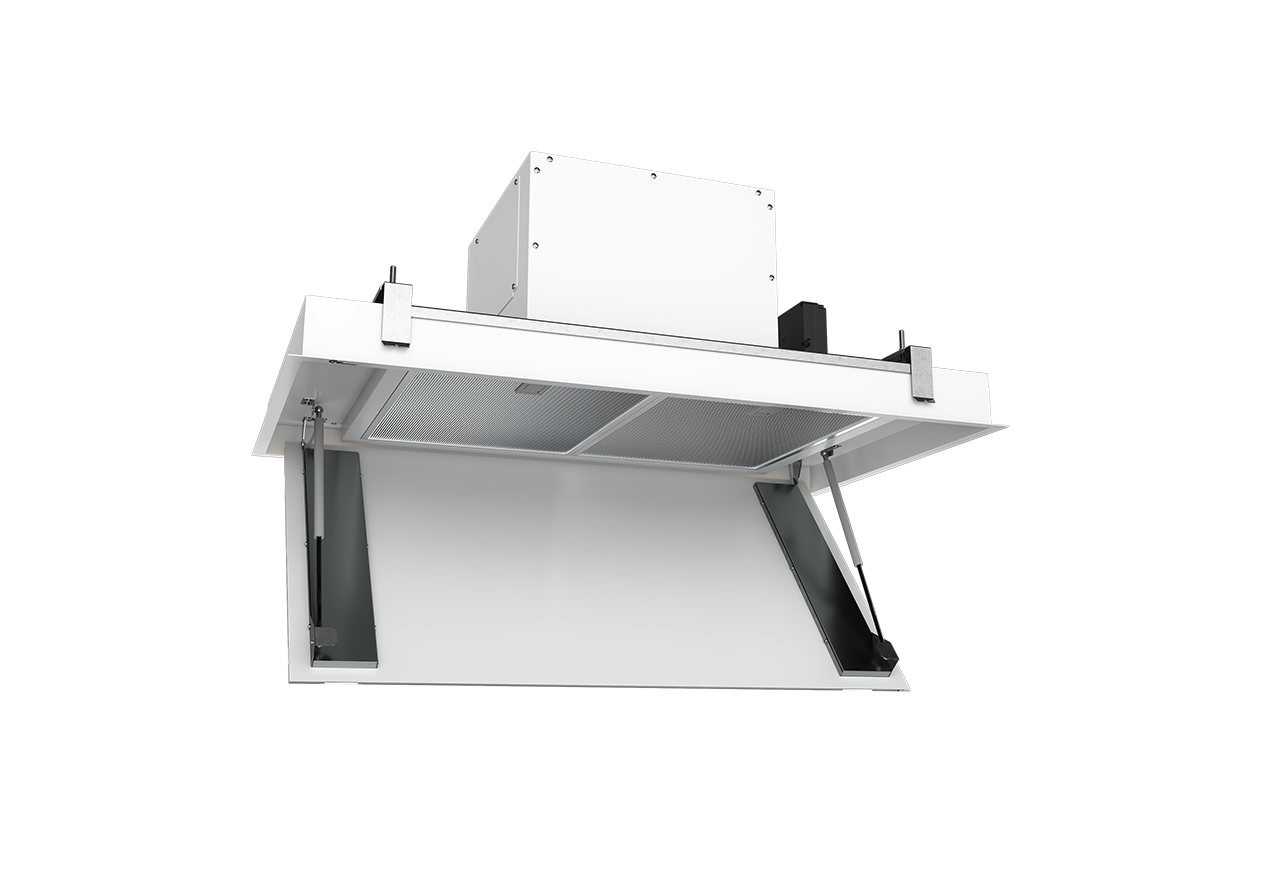

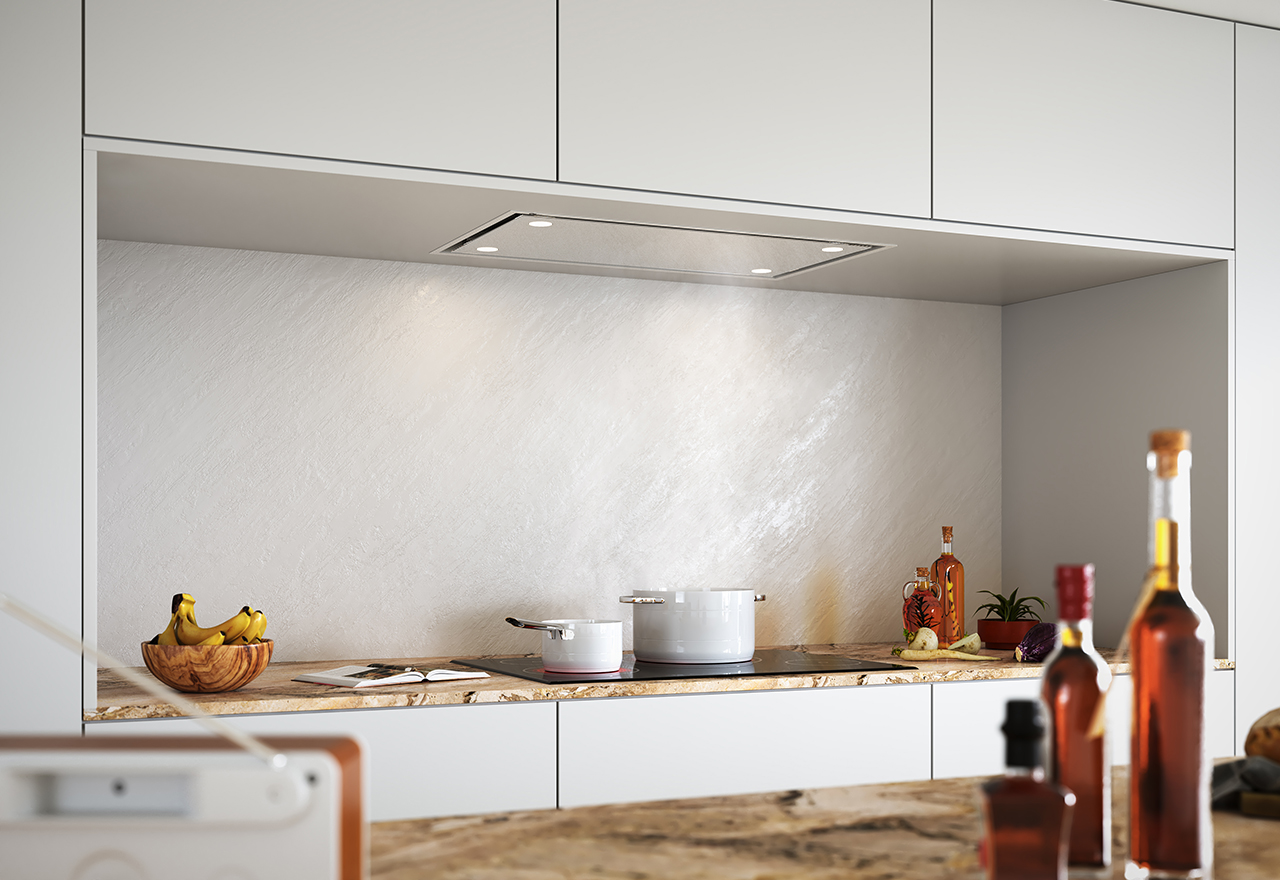

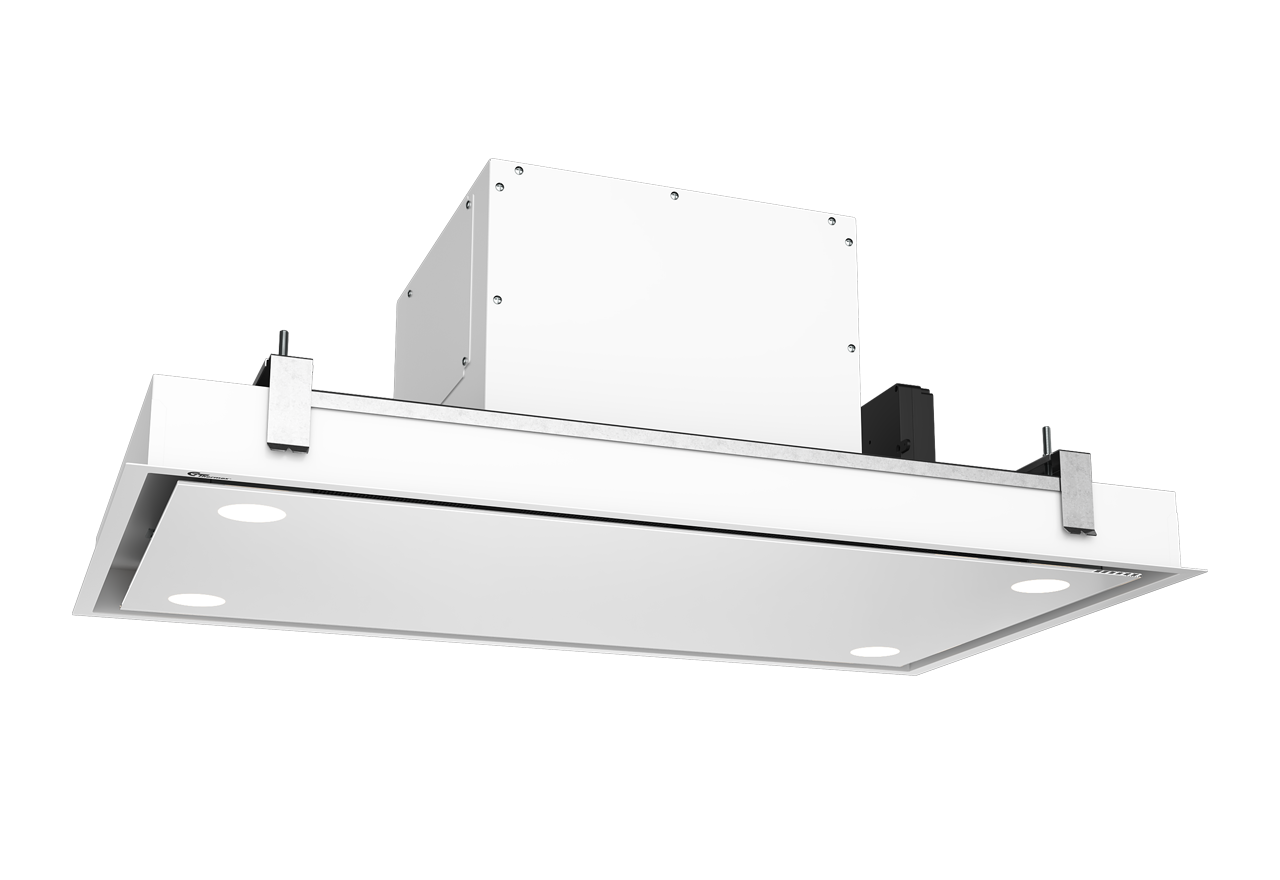

Design Line 8004 - 90x50 cm - Ceiling - white - Smarthome
423.23.5091.2
Thermex Design Line 8004 is a stylish and flexible cooker hood for installation in deep cabinets or ceilings. With white glass and a white metal frame, it offers effective ventilation and flexible control options.
Design Line 8004 from Thermex is the perfect solution when you need a cooker hood for installation in deep cabinets or for ceiling mounting. The hood features an elegant white glass panel and a white metal frame that exudes quality and style.

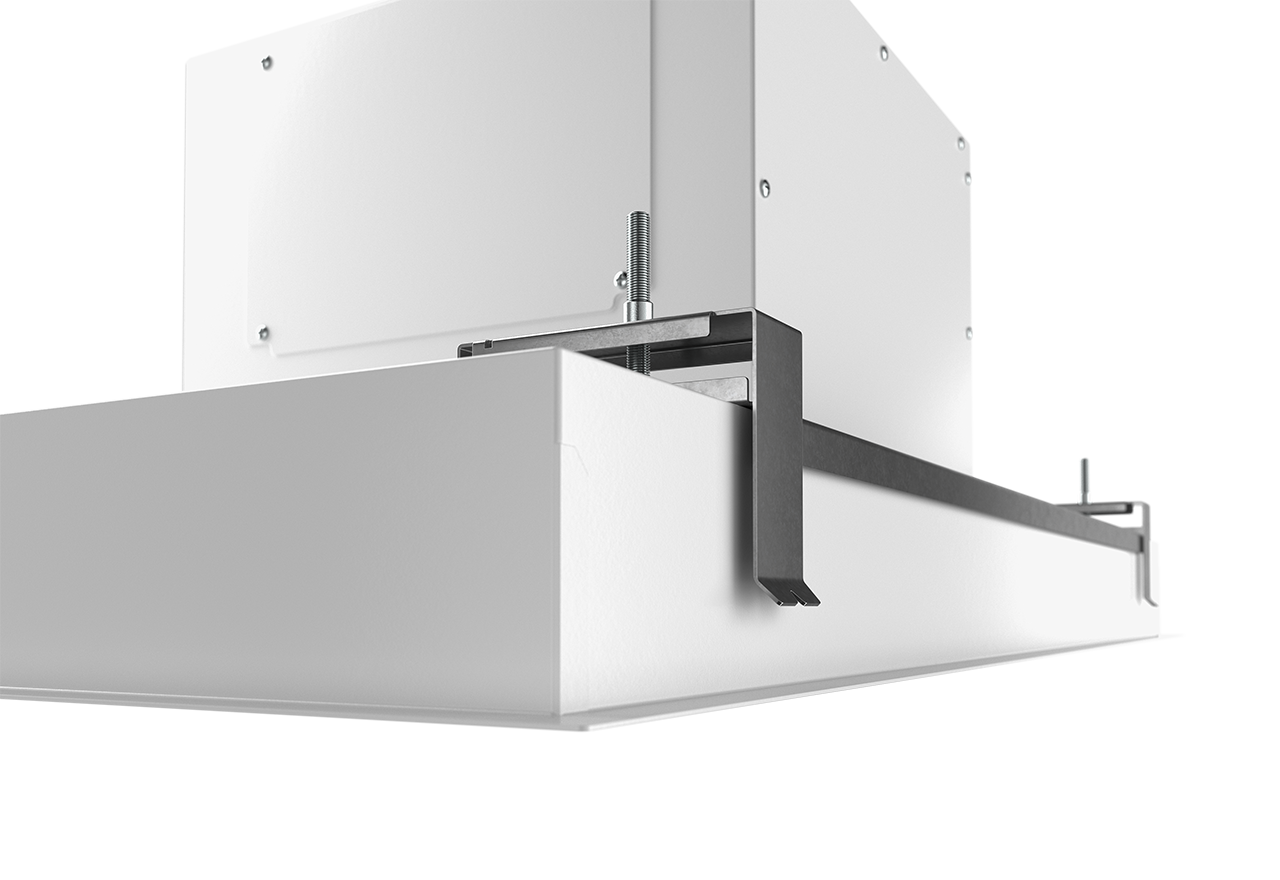

Flexible Installation
The installation of Design Line 8004 is straightforward, offering flexibility by allowing the motor to rotate in four directions or directly upward. The motor can also be removed and placed externally, up to 5 meters away, with the included motor kit.

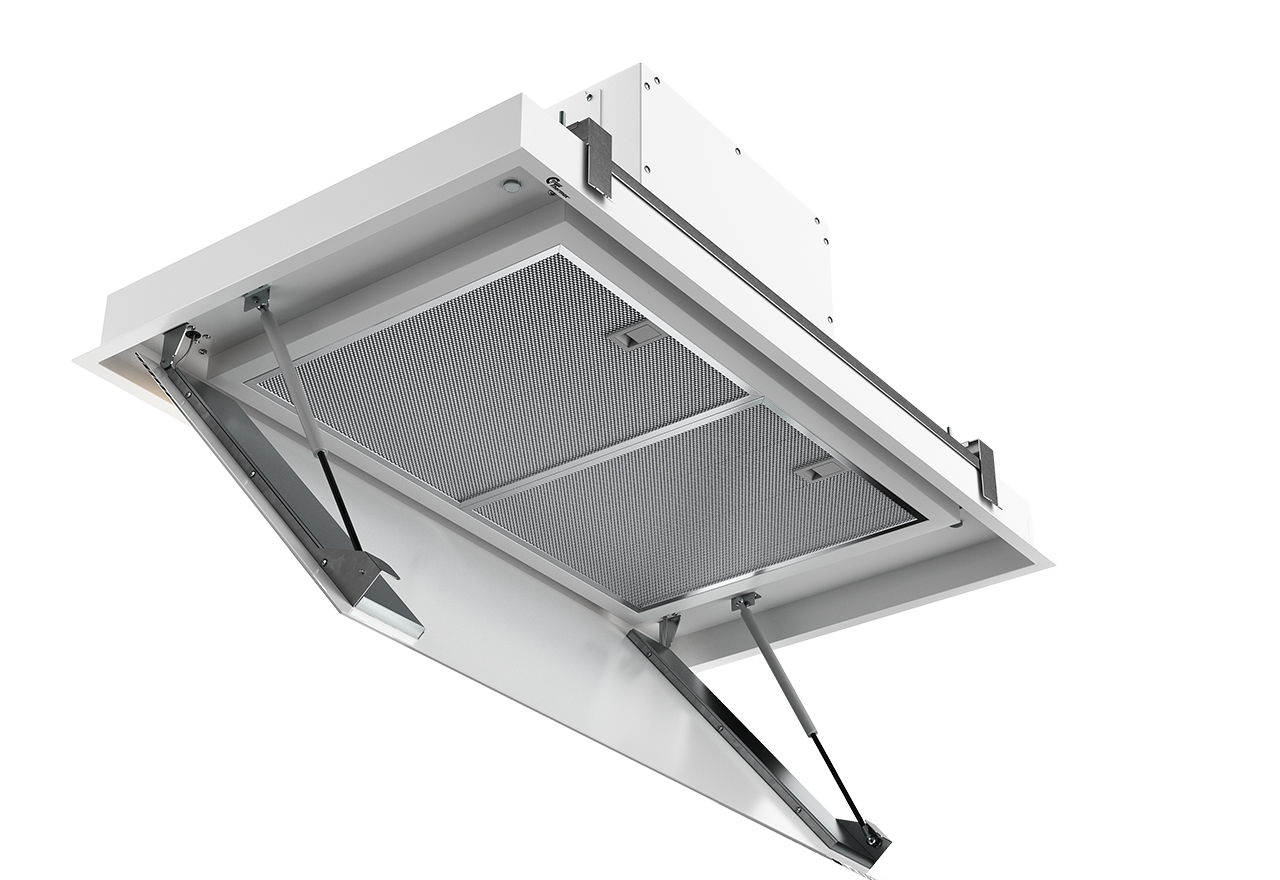

Easy Cleaning
The metal filters in the hood are easy to remove and clean. By opening the glass door of the hood, you can access the filters, which are dishwasher safe, making maintenance simple and convenient.
Efficient and Quiet Ventilation
With a powerful brushless motor that can extract up to 700 m³/h, the Design Line 8004 ensures effective ventilation in the kitchen. The DC motor is energy-efficient, quiet (from 41 dB(A)), and creates a fresh and comfortable indoor environment.

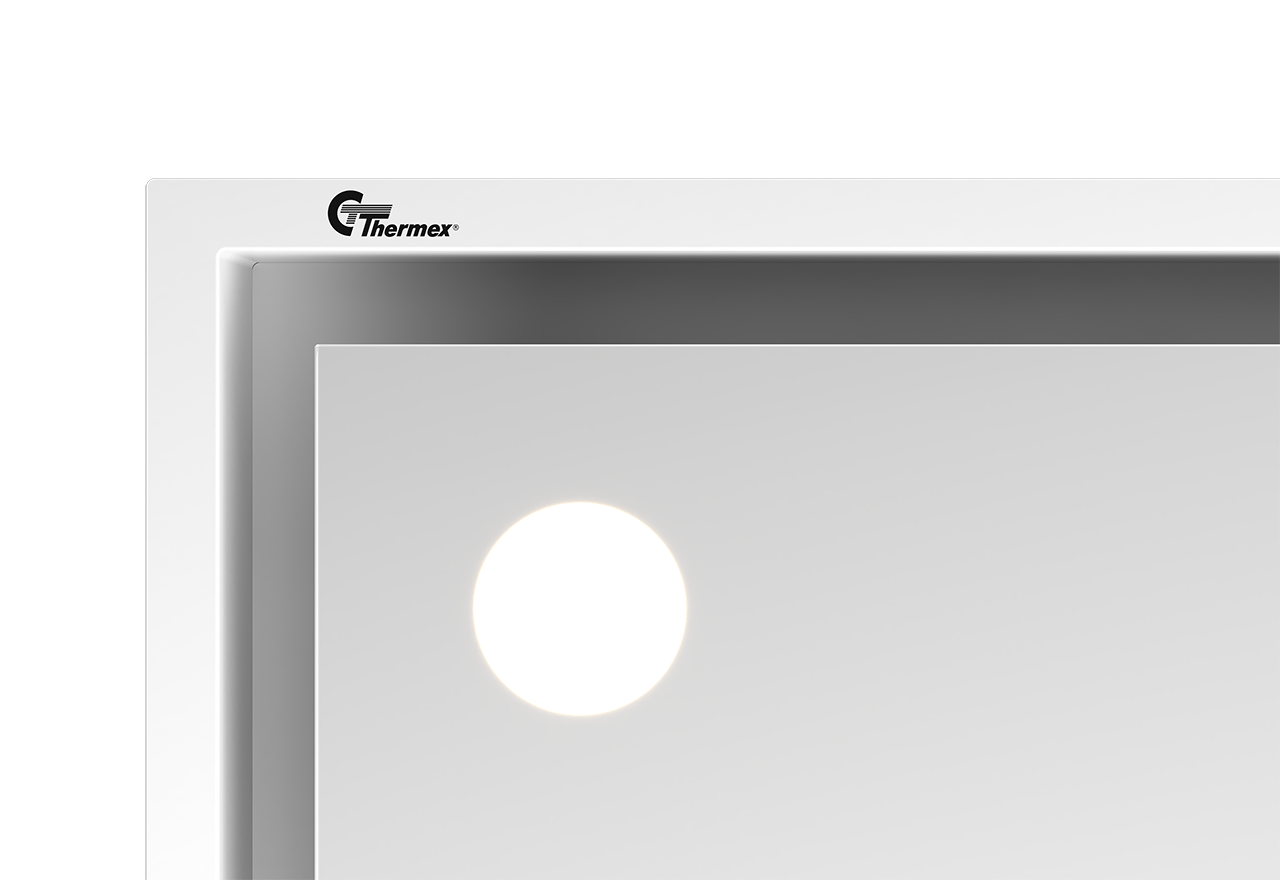

Adjustable Lighting
The lighting in Design Line 8004 can be adjusted to suit any mood in the kitchen. You can adjust the brightness and color temperature, from warm to cool white, for the perfect ambiance, whether you’re cooking or enjoying a cozy light after dinner.
Smart Operation with Multiple Options
The hood can be controlled via remote control, automatically with Thermex Toplink® (sold separately), or through the Thermex Remote app, which can be downloaded for free on the App Store and Google Play. The app allows you to adjust the light, activate ventilation, and monitor the filter alarm.
Voice Control
You can also take advantage of the built-in voice control feature to control the hood with Google Assistant (Hey Google). With many control options, there is always an easy way to use your Design Line 8004.
- Flexible installation: Ability to rotate the motor in four directions or place it externally up to 5 meters away
- Easy cleaning: Removable metal filters that can be washed in the dishwasher
- Powerful and quiet motor: DC motor with 700 m³/h extraction and noise level from 41 dB(A)
- Adjustable lighting: Dimmable and color-adjustable LED light for changing moods in the kitchen
- Smart control: Works with remote control, app, and voice control via Google Assistant
Specifications
Minimum airflow [m3/h]
220
Minimum-Soundpower [dB(A)]
41
Maximum-airflow [m3/h]
520
Maximum-Soundpower [dB(A)]
64
Airflow with boost [m3/h]
700
Soundpower boost [dB(A)]
68
Energy consumption [W]
170
Control
Remote control
Material
White painted steel
Voltage [V]
230
Specifications
Minimum airflow [m3/h]
220
Minimum-Soundpower [dB(A)]
41
Maximum-airflow [m3/h]
520
Maximum-Soundpower [dB(A)]
64
Airflow with boost [m3/h]
700
Soundpower boost [dB(A)]
68
Energy consumption [W]
170
Control
Remote control
Material
White painted steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
900
Maximum depth [mm]
500
Maximum height [mm]
305
Outlet dimension (mm)
Ø150
Packaging width(mm)
1000
Packaging depth [mm]
575
Packaging height(mm)
400
Net weight [kg]
17.2
Weight
21.8
Features
Control
Remote control
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
Yes
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes
Technical specifications
Illumination (Emiddle) [lux]
320
LE value [lux/W]
32
LE-class
A
EEI-value
38.7
EEI-class
A+
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2.5
Total consumption of light (WL) [W]
10
GFE-value
68
GFE-class
D
FDE-value
39.6
FDE-class
A
Energy consumption [W]
170
Type of plug
Schuko
Energiforbrug standby (Ps) [W]
0.45
Odour extraction test standard
Motor Power [W]
160
Voltage [V]
230
Other specifications
EAN
5703347532979
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.23.0545.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
4
Suction Bottom
Yes
Suction Front
No
Suction Edge
Yes
Mounting
Ceiling Integrated
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
White glass
Material
White painted steel
SupplyCord (m)
1.7
