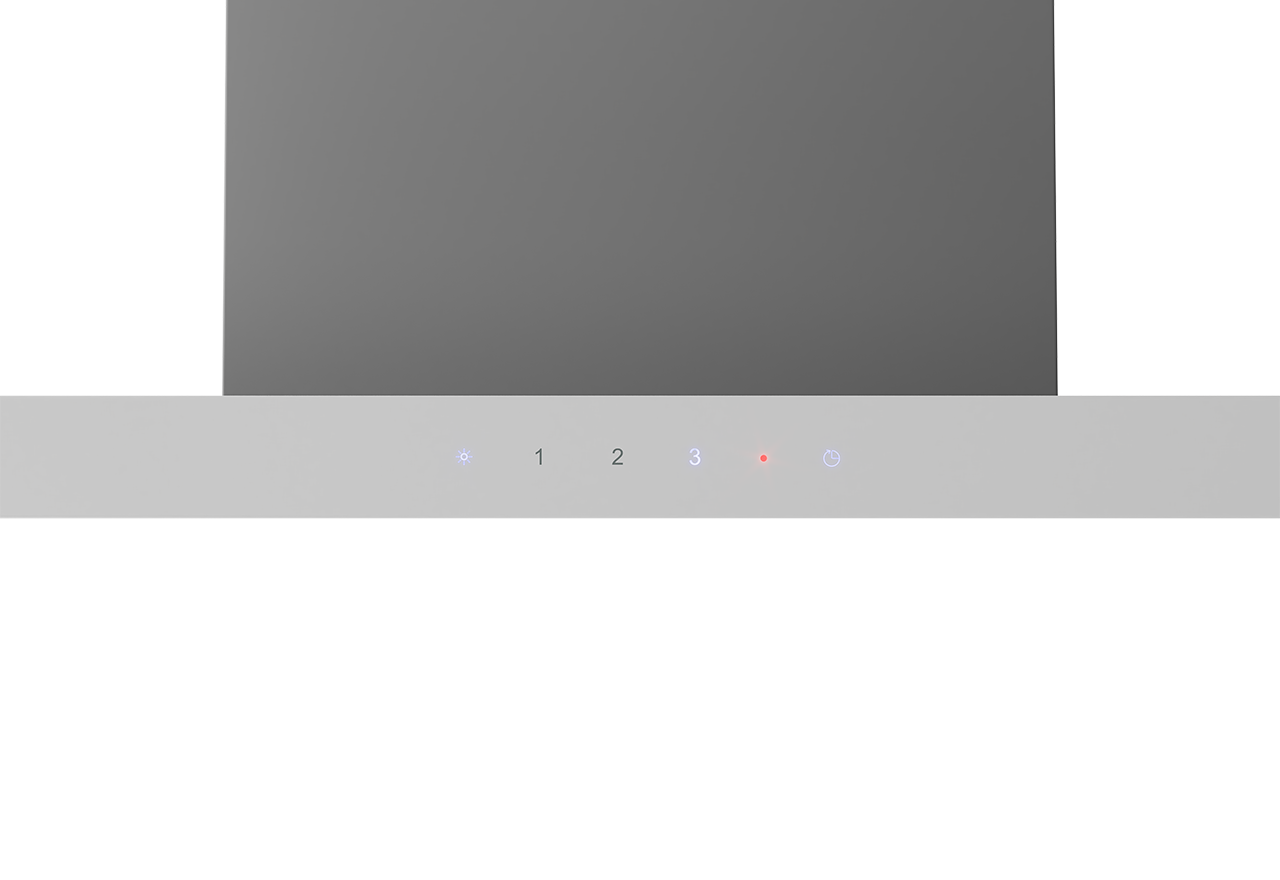

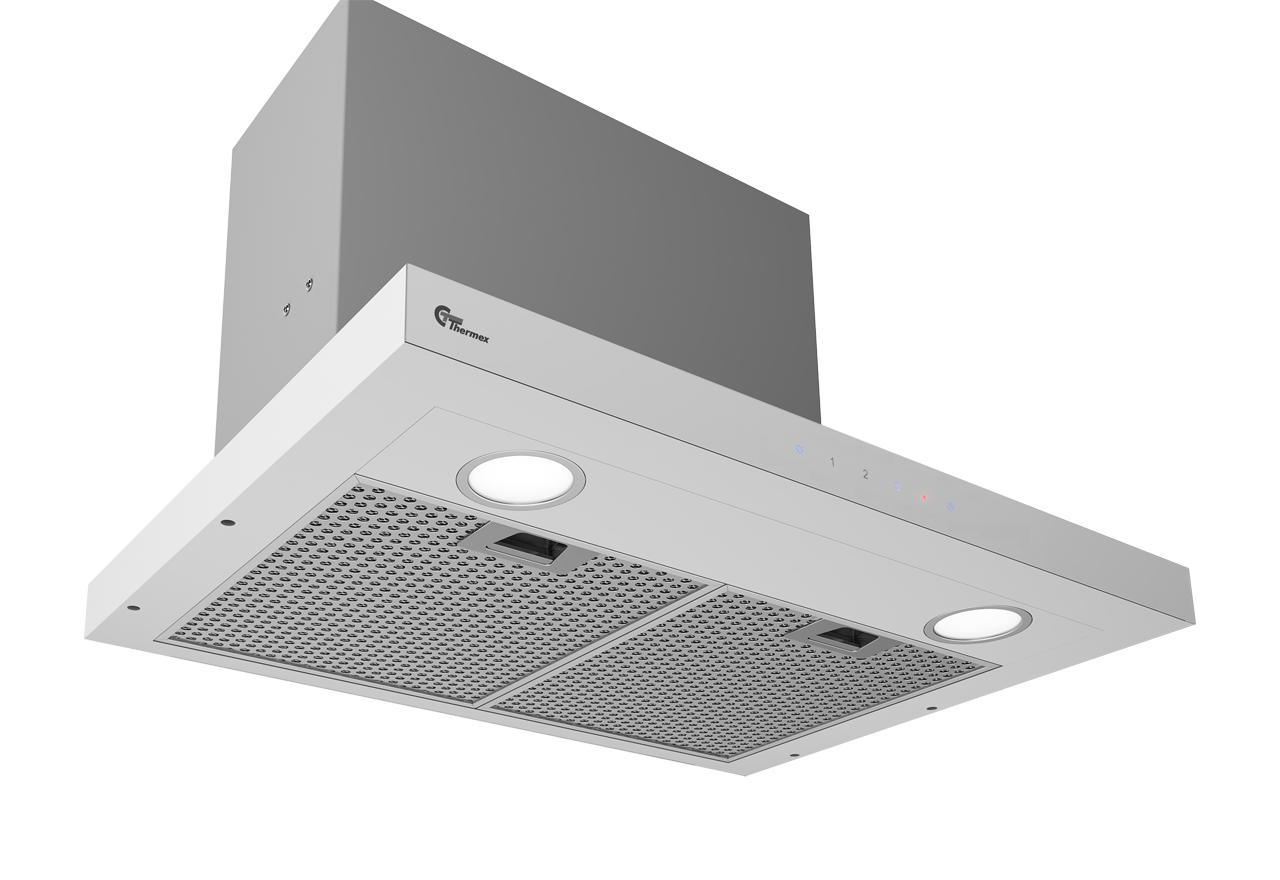

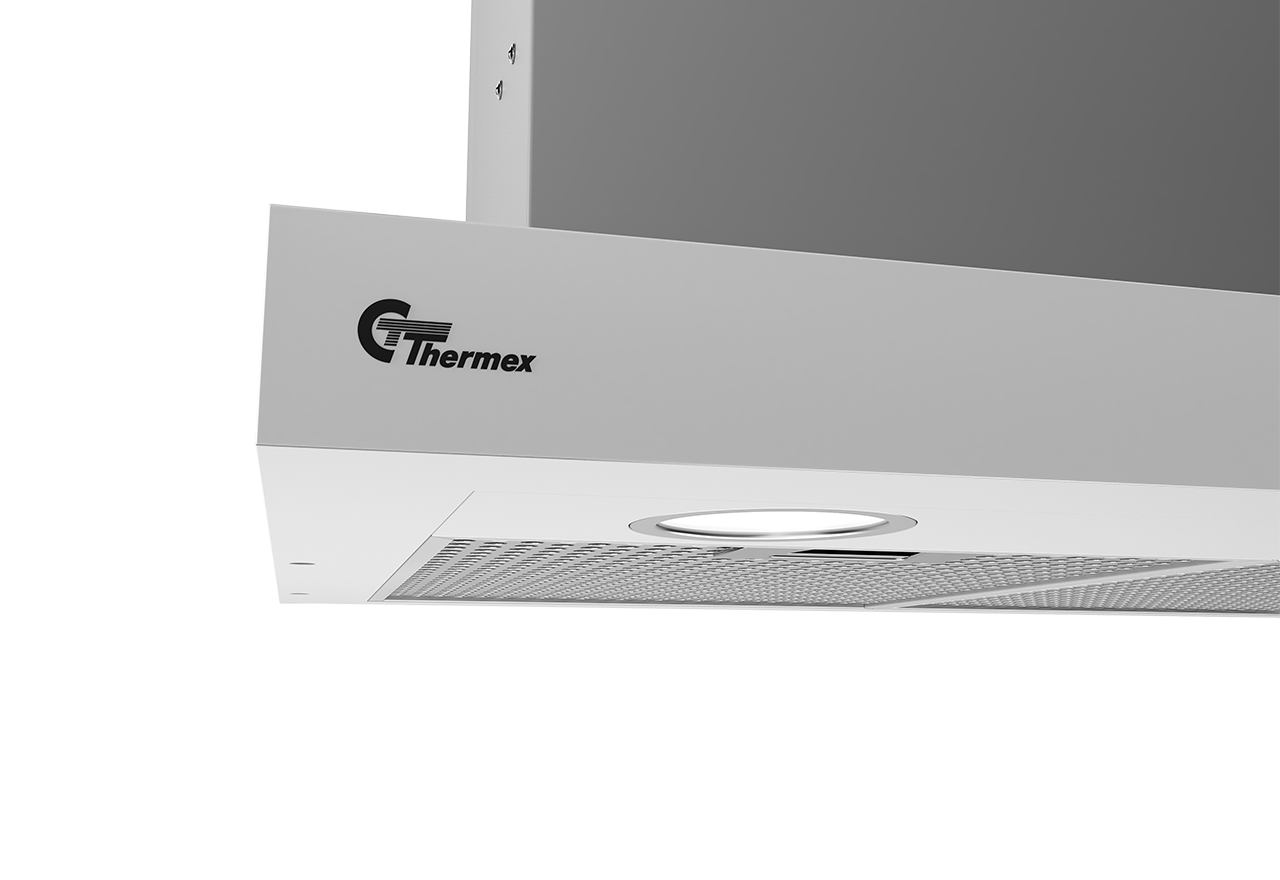

Design Line 8005 - 60 cm - build-in - white - Smarthome
520.19.1361.2
Color hood
Specifications
Minimum airflow [m3/h]
180.4
Minimum-Soundpower [dB(A)]
39
Maximum-airflow [m3/h]
550
Maximum-Soundpower [dB(A)]
57
Airflow with boost [m3/h]
549.7
Energy consumption [W]
110
Control
Glass touch
Material
Stainless steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
450
Maximum height [mm]
425
Outlet dimension (mm)
Ø150
Packaging width(mm)
515
Packaging depth [mm]
505
Packaging height(mm)
650
Net weight [kg]
17
Weight
18
Features
Control
Glass touch
Decor light
No
Moveable outlet
No
Built-in trigger function
No
Wi-Fi
No
Technical specifications
Illumination (Emiddle) [lux]
108
LE value [lux/W]
108
LE-class
A
EEI-value
22
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
83.1
GFE-class
C
FDE-value
24.6
FDE-class
B
Energy consumption [W]
110
Energiforbrug standby (Ps) [W]
0.44
Odour extraction test standard
Motor Power [W]
110
Voltage [V]
230
Other specifications
EAN
5703347532986
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.19.3600.9
Number of carbonfilters
2
Number of speeds ex (boost)
4
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
White glass
Material
Stainless steel
SupplyCord (m)
1.2
