Design Line Central 8003 Timer - 80 cm - black

423.23.1182.7
Thermex Design Line Central 8003 Timer is a cabinet-integrated cooker hood that discreetly fits into any kitchen. With app control, dimmable LED lighting, and easy cleaning, it is ideal for modern homes.

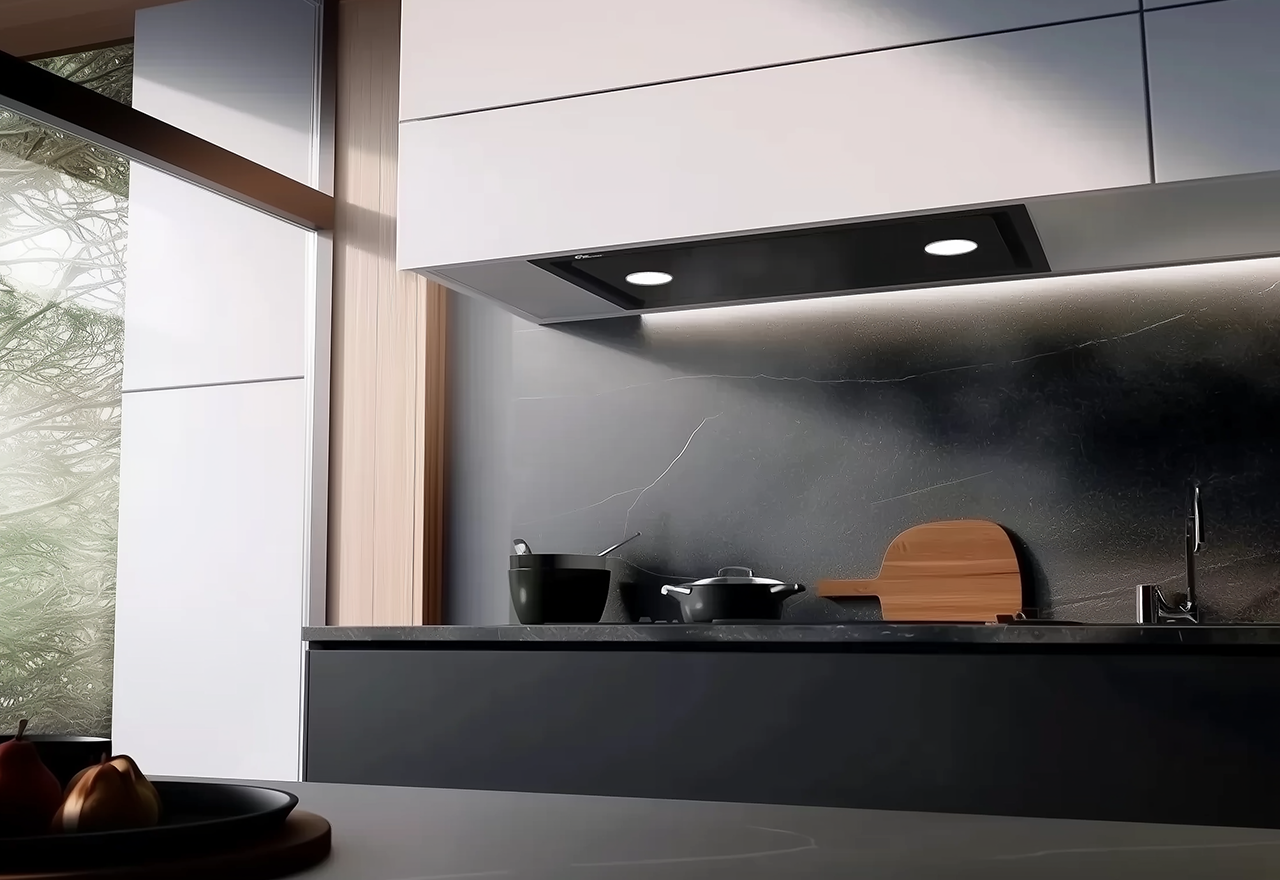

Thermex Design Line Central 8003 Timer is an elegant cabinet-integrated cooker hood, designed to fit discreetly into any kitchen. Made of black-painted steel with a glass panel, this hood is specifically intended for installation in 80 cm upper cabinets with a width of 75 cm, making it a stylish choice.

Features:
- Light control: The LED light can be dimmed and adjusted in the kelvin/white spectrum, ensuring the light always matches the kitchen’s ambiance and needs.
- Smart control: The cooker hood can be controlled via an app or voice control with Google Home for added convenience and user-friendliness.
- Integration: The cooker hood can be connected to the hob using Thermex TopLink (sold separately), providing an even more intuitive and unified kitchen experience.

Easy Cleaning
For simple maintenance, the hood’s filters can be washed in the dishwasher, and the hood itself can be kept clean by wiping the surfaces with a damp cloth.

The cooker hood is supplied with a Central ventilation module.
The Thermex Central ventilation module is a complete solution for those who want to use a cooker hood without motor in a home with central or decentralized ventilation. This ventilation kit allows the cooker hood to be used in connection with ventilation systems without the need for additional installations.

Features:
- Electronically controlled damper: The kit is equipped with a Belimo damper motor, known for its exceptional reliability.
- Manual adjustment: Allows precise adjustment of the damper settings for both ground and forced ventilation.
- Timer setting: The damper can be timed to open at intervals of 15, 30, 45, and 60 minutes, ensuring precise control of ventilation.
- Plug and Play Installation: The Central Ventilation module is electrically connected to the cooker hood, ready for use as a plug and play solution.
- Switch/trigger function: The electronics include a switch/trigger function that allows a signal to be sent to the ventilation system if necessary.

Thermex Design Line Central 8003 Timer combines advanced technology and functional design, making it an ideal choice for modern kitchens.

  • Smart control of the cooker hood via voice, app, and remote
  • The light can be adjusted in the kelvin/white spectrum for optimal lighting and ambiance in the kitchen
  • Timer setting of 15-60 minutes
  • Electronically controlled damper

Specifications

Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

Projekteringsfane

Odour extraction test standard

Specifications

Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
750
Maximum depth [mm]
284
Maximum height [mm]
146
Outlet dimension (mm)
Ø125
Packaging width(mm)
250
Packaging depth [mm]
365
Packaging height(mm)
800
Net weight [kg]
14
Weight
15

Features

Control
Remote control
Boost funktion
Yes
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes

Technical specifications

Illumination (Emiddle) [lux]
204
LE value [lux/W]
68
LE-class
A
EEI-class
Lamp consumption [W]
2.4
Total consumption of light (WL) [W]
4.8
Type of plug
Schuko
Odour extraction test standard
Voltage [V]
230

Other specifications

EAN
5703347533945
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Carbon filter code
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
Number of carbonfilters
Number of speeds ex (boost)
Number of lamps
2
Suction Bottom
No
Suction Front
No
Suction Edge
Yes
Longer vent pipe available
Vent pipe modification
Mounting
Cabinet integrated
Motor type
Central ventilation
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
2
