Design Line Central 8006 Villa - 60 cm - White

520.19.1461.8
Thermex Design Line Central 8006 Villa is a sleek and functional pull-out cooker hood in white-lacquered steel. With adjustable LED lighting and app control, it’s perfect for the modern kitchen.

Thermex Design Line Central 8006 Villa is an elegant and functional cabinet-integrated pull-out cooker hood. Made of white-painted steel and equipped with two durable aluminum filters and two LED lights, it offers a modern and sleek solution. The hood is designed for installation in a 60 cm upper cabinet, making it ideal for kitchens where both aesthetics and functionality are prioritized.

Features:
- Light control: The LED light can be dimmed and adjusted in the kelvin/white spectrum, ensuring the light always matches the kitchen’s ambiance and needs.
- Smart control: The cooker hood can be controlled via an app or voice control with Google Home for added convenience and user-friendliness.
- Integration: The cooker hood can be connected to the hob using Thermex TopLink (sold separately), providing an even more intuitive and unified kitchen experience.

Easy Cleaning
For simple maintenance, the hood’s filters can be washed in the dishwasher, and the hood itself can be kept clean by wiping the surfaces with a damp cloth.

The cooker hood is delivered with a Central Villa module.

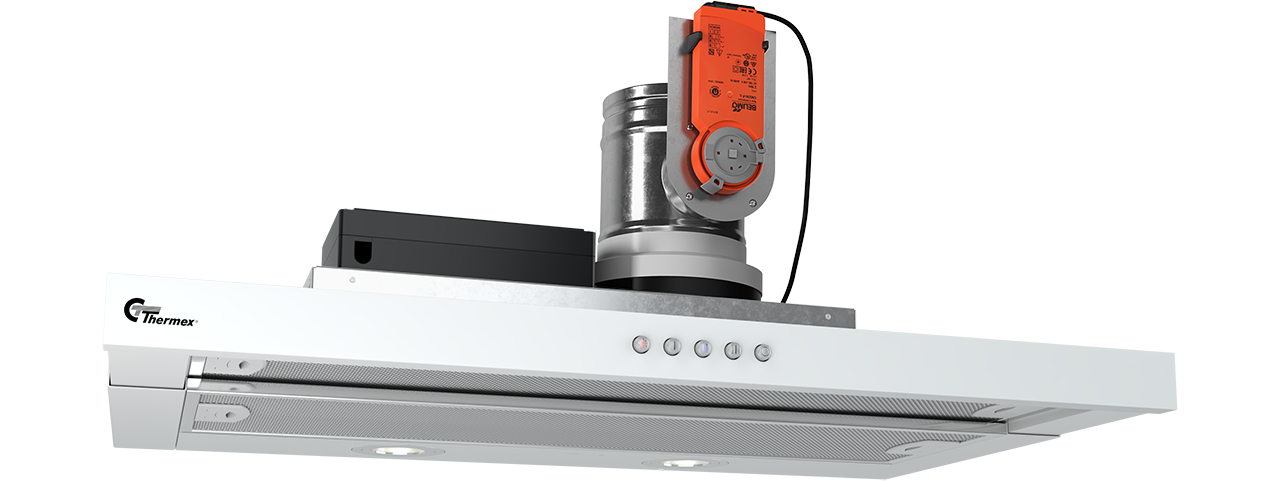

The Central Villa module is a ventilation solution for cooker hoods without a motor, designed specifically for villas with a central ventilation system (System Villa). This unit allows the cooker hood to integrate directly with the home’s ventilation, controlling extraction from both kitchen and bathroom centrally via the hood.

Features:
- Specialized ventilation system: Designed for homes with a System Villa ventilation system, a central ventilation system without heat recovery that connects extraction from the kitchen and bathroom.
- Motor control and electronic damper: The module features a motorized damper that controls extraction between the kitchen and bathroom and regulates base ventilation, with the option to set ventilation at 5 different levels.

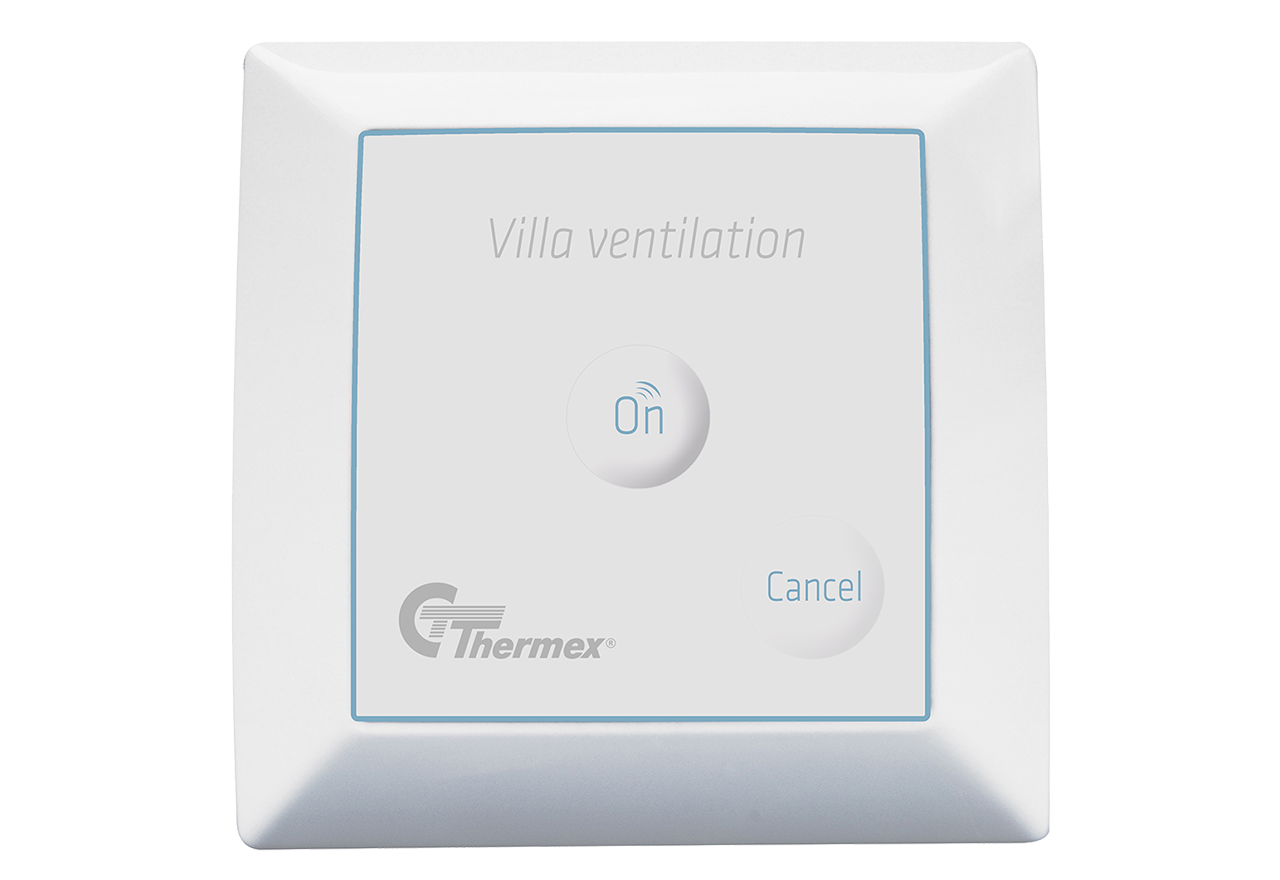

- Wireless bathroom control: Includes a wireless switch that allows forced extraction in the bathroom without affecting the kitchen, ideal for optimal ventilation control in the bathroom.
- Plug and Play installation: The Central Villa module is electrically connected to the cooker hood, ready for use as a plug and play solution.

Thermex Design Line Central 8006 Villa combines modern technology and practical design, making it an ideal choice for the stylish and efficient kitchen.

  • Smart control of the cooker hood via voice or app control
  • The light can be adjusted in the kelvin/white spectrum for optimal lighting and ambiance in the kitchen
  • Electronically controlled damper with base ventilation setting
  • Motor control with base ventilation (5 adjustable levels)
  • Wireless switch for the bathroom, allowing forced ventilation in the bathroom without extraction in the kitchen

Specifications

Control
Soft touch
Material
White painted steel
Voltage [V]
230

Projekteringsfane

Odour extraction test standard

Specifications

Control
Soft touch
Material
White painted steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
445
Maximum height [mm]
175
Outlet dimension (mm)
Ø125
Packaging width(mm)
660
Packaging depth [mm]
520
Packaging height(mm)
390
Net weight [kg]
10
Weight
12

Features

Control
Soft touch
Boost funktion
Yes
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes

Technical specifications

Illumination (Emiddle) [lux]
330
LE value [lux/W]
94
LE-class
A
EEI-class
Lamp consumption [W]
1.2
Total consumption of light (WL) [W]
2.4
Odour extraction test standard
Voltage [V]
230

Other specifications

EAN
5703347533990
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Carbon filter code
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
Number of carbonfilters
Number of speeds ex (boost)
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Vent pipe modification
Mounting
Extract
Motor type
Centralventilation Villa
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
Material
White painted steel
SupplyCord (m)
2
