Flex 50 cm

520.21.6151.2
Flex 50 cm white is a compact cabinet-integrated cooker hood with simple controls, LED lighting and efficient extraction. The model includes a carbon filter set and is suitable for recirculation in kitchens without ducting.
Width
Please select variant!

Flex 50 cm white is a compact and efficient cabinet-integrated cooker hood designed for modern kitchens with a focus on functionality, discreet integration and user-friendly operation.
Flex is supplied with a carbon filter set, making it suitable for recirculation in kitchens without external ducting.

Design and functionality
The cooker hood is made of white painted steel, giving it a timeless and minimalist appearance that fits naturally into many kitchen designs. The compact width of 50 cm makes the model ideal for smaller kitchens or cabinets with limited space while maintaining an elegant, integrated look.
The built-in LED light strip (3000 Kelvin, 1.5 W) provides a warm and comfortable working light over the hob and ensures good visibility during cooking.

Features and operation
Flex is equipped with two washable aluminium filters that effectively capture grease and help maintain cleaner air in the kitchen. The hood is also supplied with a carbon filter set for recirculation, making installation flexible in kitchens without direct extraction.
Operation is simple via rocker switches for controlling two speeds and the light. A practical microswitch in the pull-out front automatically turns the hood on and off when it is pulled out or pushed back in.
The energy-efficient motor has energy rating A and delivers an airflow capacity of up to 317 m³/h, ensuring efficient removal of steam and cooking fumes.

Noise level
With a noise level from 43 dB(A) at the lowest speed up to 61 dB(A) at maximum power, the cooker hood operates relatively quietly and contributes to a comfortable kitchen environment.

Easy cleaning
The smooth surface can easily be wiped clean with a damp cloth. The aluminium filters are dishwasher safe, making maintenance quick and convenient.

Flexible installation
Flex is designed for cabinet integration and can be installed in different types of wall cabinets. It can be used for both ducted extraction and recirculation and is supplied with a carbon filter set, making it ready for installation in kitchens without a ventilation duct.

Specifications
Width: 50 cm
Material: White painted steel
Controls: Rocker switches
Speeds: 2
Airflow capacity: Up to 317 m³/h
Noise level: 43–61 dB(A)
Lighting: LED 1.5 W, 3000 K
Filter: 2 washable aluminium filters
Carbon filter: Included for recirculation
Energy rating: A

Flex 50 cm white combines compact design, simple operation and efficient ventilation in a discreet cabinet-integrated cooker hood suitable for both smaller kitchens and modern interior solutions.





  • Discreet design that fits in wall cabinets
  • Built-in LED light strip (3000 K) for optimal illumination
  • Washable aluminium filters and carbon filter option
  • Easy operation with rocker buttons and microswitch
  • Low-noise motor (43-61 dB) with energy label A

Specifications

Minimum airflow [m3/h]
157
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
317
Maximum-Soundpower [dB(A)]
61
Control
Switch control
Material
White painted steel
Energy consumption [W]
34.5
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
157
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
317
Maximum-Soundpower [dB(A)]
61
Control
Switch control
Material
White painted steel
Energy consumption [W]
34.5
Voltage [V]
230

Weight and measurements

Maximum width [mm]
500
Maximum depth [mm]
430
Maximum height [mm]
250
Outlet dimension (mm)
Ø150
Packaging width(mm)
555
Packaging depth [mm]
240
Packaging height(mm)
355
Net weight [kg]
5.4
Weight
6.1

Features

Control
Switch control
Boost funktion
No
Decor light
No
Timer funktion
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
98
LE value [lux/W]
51.5
LE-class
A
EEI-value
38.6
EEI-class
A+
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
1.9
GFE-value
76.5
GFE-class
C
FDE-value
18.1
FDE-class
C
AEC [kWh/h]
10.3
Energy consumption [W]
34.5
Energiforbrug standby (Ps) [W]
0.48
Motor Power [W]
33
Voltage [V]
230

Other specifications

EAN
5703347535239
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
In
Carbon filter code
535.21.7000.9
Number of carbonfilters
2
Number of speeds ex (boost)
2
Number of lamps
1
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Extract
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
Material
White painted steel
SupplyCord (m)
1.2
Battery type
None
Number of batteries
0

Downloads

Here you will find all documents relevant to this product

Product info

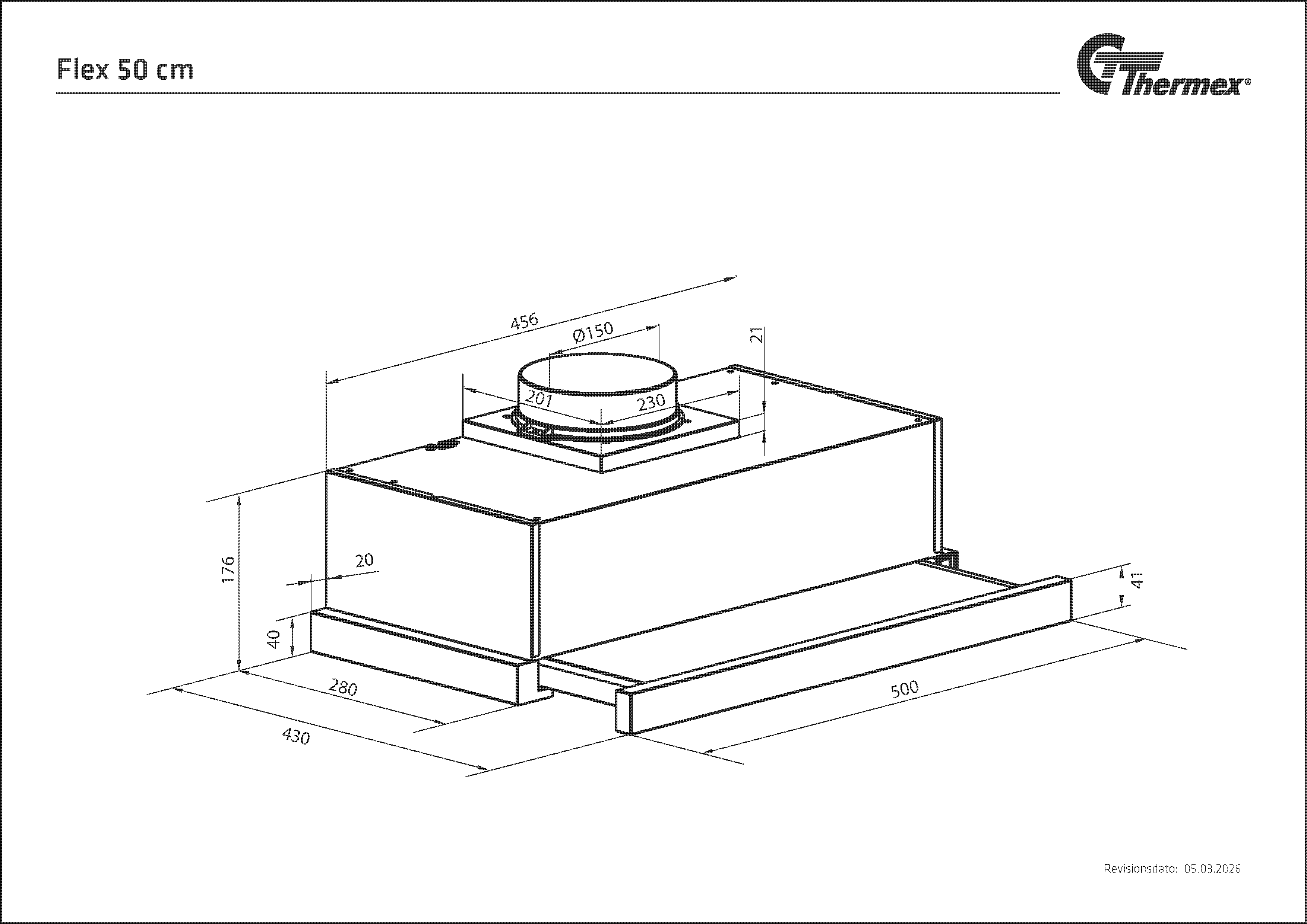

Dimensional drawing
