K502 50 cm

520.21.4051.2

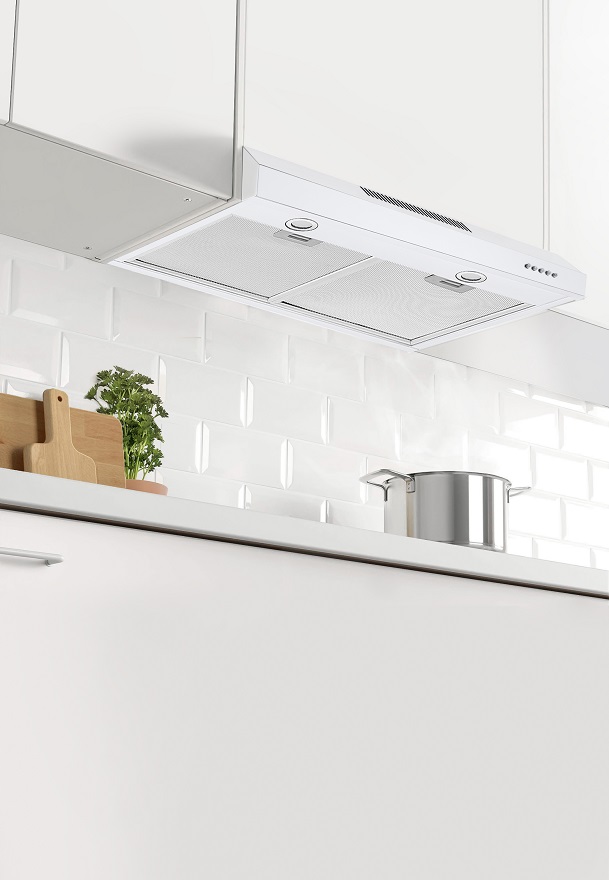

Thermex K502 is a discreet and efficient 50 cm under-mounted cooker hood in a white lacquered design – perfect for small kitchens. With LED lighting, 3 speeds and the possibility of recirculation.
Width
Please select variant!

Cooker hood K502 50 cm white Thermex
The Thermex K502 is a white lacquered under-mounted cooker hood with an unobtrusive design and efficient performance. With three speeds and energy-efficient LED lighting, this 50 cm wide cooker hood is a great choice for smaller kitchens.

Discreet and compact design
The Thermex K502 fits perfectly under cabinets or shelves in the kitchen. With its classic and compact design, it blends discreetly into your kitchen décor, while effectively removing cooking fumes and steam.

Efficient air purification with three speeds
The fan has three speed settings, allowing you to easily adjust the airflow as needed. With a maximum air flow of 210 m³/h and a motor power of 85 W, the Thermex K502 ensures a cleaner and healthier kitchen environment, even in smaller spaces. The fan has a noise level of 56-72 dB.

Energy-efficient LED lighting
The Thermex K502 has two energy-efficient LED lights that provide a clear and pleasant light over the cooktop. This makes cooking easier and contributes to a pleasant atmosphere in the kitchen, while keeping energy consumption low.

Easy to use and maintain
The fan is easy to use with a clear push-button panel for adjusting the speeds. The robust steel filter captures grease particles effectively and is easy to clean, ensuring long-lasting performance and maintenance-free operation.

Flexible installation with recirculation options
The Thermex K502 comes with a built-in motor and can be connected to a duct with Ø 125 mm. If duct connection is not possible, the hood can be used with a recirculation filter (Carbon filter CF180 – sold separately), making it flexible and adaptable to different kitchen environments.

  • Discreet and compact design for base cabinet mounting
  • 3 speeds and up to 210 m³/h airflow
  • Energy-efficient LED lighting for good working light
  • Easy operation with push buttons and cleanable filter
  • Can be used with duct or recirculation filter (sold separately)

Specifications

Minimum airflow [m3/h]
134
Minimum-Soundpower [dB(A)]
60
Maximum-airflow [m3/h]
223
Maximum-Soundpower [dB(A)]
72
Energy consumption [W]
89
Control
Push buttons
Material
White painted steel
Voltage [V]
230

Projekteringsfane

Odour extraction test standard

Specifications

Minimum airflow [m3/h]
134
Minimum-Soundpower [dB(A)]
60
Maximum-airflow [m3/h]
223
Maximum-Soundpower [dB(A)]
72
Energy consumption [W]
89
Control
Push buttons
Material
White painted steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
500
Maximum depth [mm]
480
Maximum height [mm]
100
Outlet dimension (mm)
Ø150
Packaging width(mm)
550
Packaging depth [mm]
150
Packaging height(mm)
540
Net weight [kg]
4.6
Weight
5.4

Features

Control
Push buttons
Boost funktion
No
Decor light
No
Timer funktion
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
322
LE value [lux/W]
80.6
LE-class
A
EEI-value
67
EEI-class
B
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
4
GFE-value
65.9
GFE-class
D
FDE-value
13.1
FDE-class
D
AEC [kWh/h]
29.8
Energy consumption [W]
89
Odour extraction test standard
Motor Power [W]
85
Voltage [V]
230

Other specifications

EAN
5703347533327
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.21.7010.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Vent pipe modification
Mounting
Cabinet substantiated
Motor type
Internal motor
Front panel color
BodyColor
White
Front panel material
Material
White painted steel
SupplyCord (m)
1.2

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
