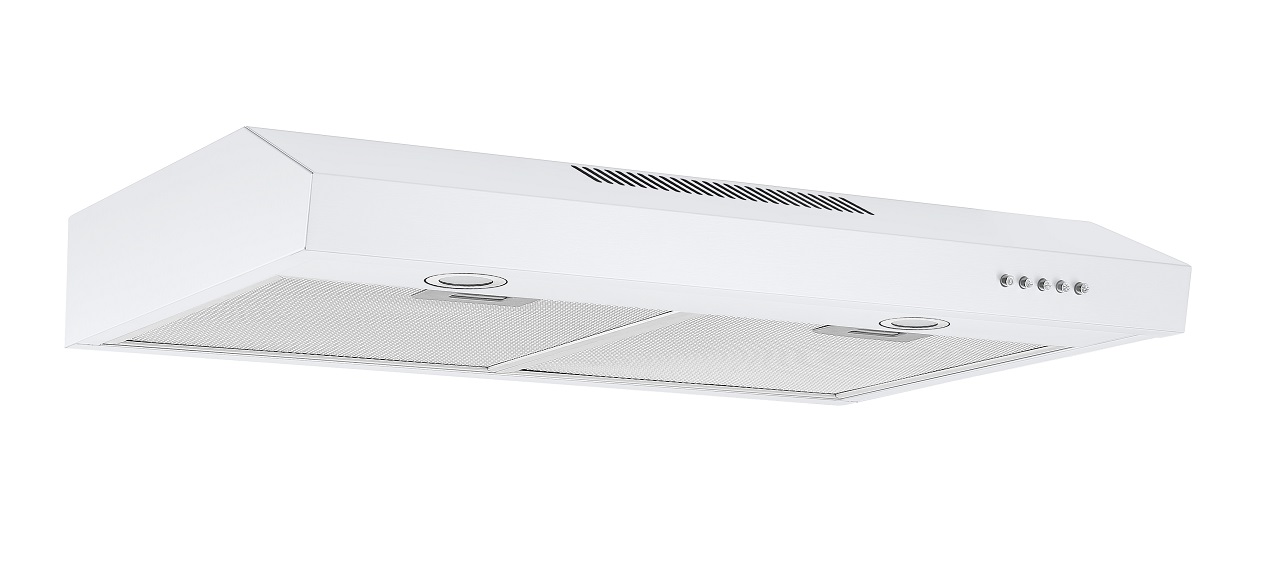

K502 60 cm
520.21.4061.2
Width
Specifications
Minimum airflow [m3/h]
134
Minimum-Soundpower [dB(A)]
60
Maximum-airflow [m3/h]
223
Maximum-Soundpower [dB(A)]
72
Energy consumption [W]
89
Control
Push buttons
Material
White painted steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
480
Maximum height [mm]
100
Outlet dimension (mm)
Ø150
Packaging width(mm)
650
Packaging depth [mm]
150
Packaging height(mm)
540
Net weight [kg]
4.8
Weight
5.6
Features
Control
Push buttons
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
322
LE value [lux/W]
80.6
LE-class
A
EEI-value
67
EEI-class
B
Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
4
GFE-value
65.9
GFE-class
D
FDE-value
13.1
FDE-class
D
Energy consumption [W]
89
Odour extraction test standard
Motor Power [W]
85
Voltage [V]
230
Other specifications
EAN
5703347533334
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.21.7010.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Vent pipe modification
Mounting
Cabinet substantiated
Motor type
Internal motor
Front panel color
BodyColor
White
Front panel material
Material
White painted steel
SupplyCord (m)
1.2
Downloads
Here you will find all documents relevant to this product
